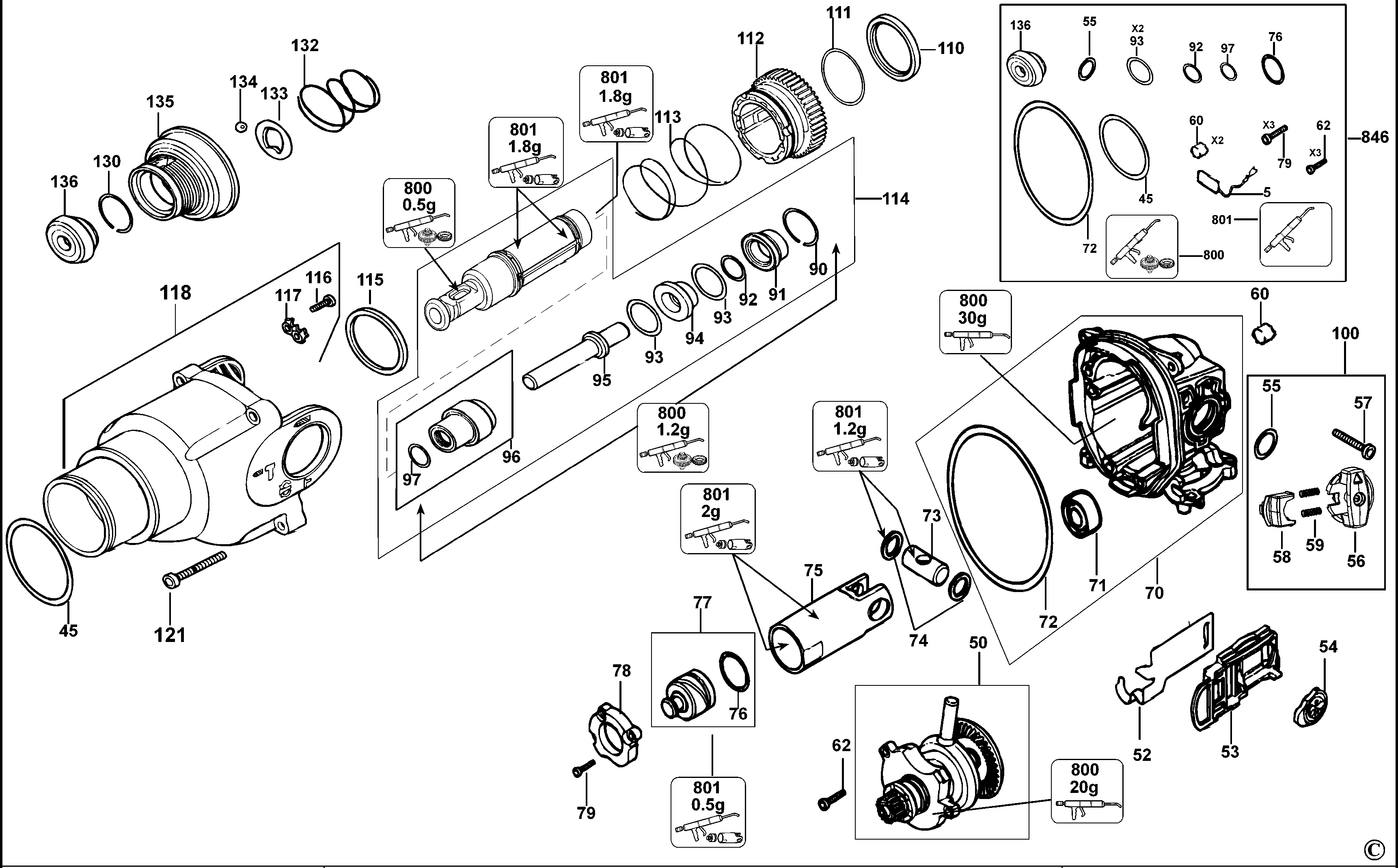

D25323K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N569794 | 1 | ARMATURE 230V | + Intershaft SA | GB |  |
|
| 1 | 496250-00 | 1 | ARMATURE 230V | GB | |
||
| 2 | 576690-05 | 1 | FIELD 230V | GB |  |
||
| 3 | 1006749-00 | 1 | SWITCH LOCK-ON | GB | |
||
| 4 | 577805-03 | 2 | BRUSH HOLDER 230V | GB | |
||
| 5 | 584429-00 | 1 | BRUSH KIT | 230 VOLT | GB | |
|
| 6 | 324119-04 | 1 | SCREW | M5 X 70 | GB | |
|
| 7 | 584090-00 | 1 | CORD PROTECTOR | GB | |||
| 8 | 582319-39 | 1 | CORDSET | GB | GB | |
|
| 9 | 578222-00 | 1 | PLUG | GB | |
||
| 10 | 1005646-00 | 1 | TUBE GUIDE | GB | |
||
| 11 | 1007508-00 | 1 | BEARING HOLDER | GB | |
||
| 12 | 1007502-00 | 1 | GUIDE BUSH | GB | |
||
| 13 | 1006418-00 | 1 | BELLOWS | GB | |
||
| 14 | 330065-13 | 2 | SCREW | GB | |
||
| 15 | 1006421-00 | 2 | SPRING | GB | |
||
| 16 | N395636 | 1 | HANDLE SA | GB | |
||
| 17 | 1007503-00 | 1 | STOP NUT | GB | |
||
| 18 | 930026-01 | 1 | BUMPER | GB | |
||
| 19 | 1006423-00 | 1 | LEVER | GB | |||
| 20 | N066799-00 | 2 | SCREW | GB | |
||
| 21 | 870052 | 1 | SLEEVE | GB | |
||
| 22 | 579720-00 | 1 | BUSH | GB | |
||
| 23 | 326519-03 | 2 | SCREW | GB | |
||
| 24 | 330003-19 | 1 | BEARING | GB | |
||
| 25 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | GB | |
|
| 29 | 584551-00 | 1 | INSERT | GB | |
||
| 30 | 1006414-00 | 1 | HOUSING | GB | |
||
| 31 | 581808-00 | 1 | BAFFLE FAN | GB | |
||
| 32 | 577993-00 | 1 | FIELD CASE | DeWALT | GB | |
|
| 33 | N039637 | 1 | END CAP SA | GB | |
||
| 34 | N387348 | 1 | HANDLE COVER | GB | |
||
| 35 | 330065-08 | 4 | SCREW | M4x18 T20 | GB | |
|
| 36 | 821070 | 1 | CORD CLAMP | GB | |
||
| 37 | 330065-08 | 1 | SCREW | M4x18 T20 | GB | |
|
| 38 | 330065-06 | 2 | SCREW | GB | |
||
| 39 | 330065-26 | 4 | SCREW | GB | |
||
| 40 | 330065-25 | 2 | SCREW | GB | |
||
| 41 | 1006419-00 | 1 | AXLE | GB | |
||
| 42 | 1006429-00 | 2 | DAMPER | GB | |
||
| 45 | 577791-00 | 1 | O RING | GB | |
||
| 46 | N020436 | 1 | SET OF LEAD WIRES | 230V | GB | |
|
| 50 | 584419-00 | 1 | INTERSHAFT SA | GB | |
||
| 52 | 578271-00 | 1 | PLATE | GB | |
||
| 53 | 579564-00 | 1 | HOLDER | GB | |
||
| 54 | 1006437-00 | 1 | SELECTOR | GB | |
||
| 55 | 584638-00 | 1 | O RING | 14x2 | GB | |
|
| 56 | 1006434-00 | 1 | KNOB | GB | |
||
| 57 | 324007-15 | 1 | SCREW | M4 X 20; M4 X 25 | GB | |
|
| 58 | 1006435-00 | 1 | TRIGGER | GB | |
||
| 59 | 1008957-00 | 2 | SPRING | GB | |
||
| 60 | 582865-00 | 2 | FILTER | GB | |
||
| 62 | 583981-00 | 3 | SCREW | 4x16 | GB | |
|
| 70 | N031252 | 1 | GEARCASE SA | GB | |
||
| 71 | 330003-81 | 1 | BEARING | GB | |
||
| 72 | 578229-00 | 1 | SEAL | GB | |
||
| 73 | 577801-00 | 1 | BEARING BLOCK | GB | |
||
| 74 | 577802-00 | 1 | WASHER SHIM | GB | |
||
| 75 | 496246-00 | 1 | PISTON | GB | |
||
| 76 | 579699-00 | 1 | O RING | GB | |
||
| 77 | 496245-00 | 1 | RAM | GB | |
||
| 78 | N042808 | 1 | BEARING BUSH | GB | |
||
| 79 | 324006-15 | 3 | SCREW | GB | |
||
| 90 | 577793-00 | 1 | CLIP | GB | |
||
| 91 | 584426-00 | 1 | BUSH | GB | |
||
| 92 | 580990-00 | 1 | O RING | GB | |
||
| 93 | 577135-00 | 1 | O RING | GB | |
||
| 94 | 584425-00 | 1 | DAMPER | GB | |
||
| 95 | 584424-00 | 1 | BEAT PIECE | GB | |
||
| 96 | 584423-00 | 1 | BEARING & SEAL | GB | |
||
| 97 | 577139-00 | 1 | SEAL | GB | |
||
| 100 | N031251 | 1 | LEVER KIT | GB | |
||
| 110 | 577797-00 | 1 | WASHER | GB | |||
| 111 | 577744-00 | 1 | O RING | 25.5 X 2 | GB | |
|
| 112 | 587482-00 | 1 | CLUTCH SA | GB | |
||
| 113 | 579178-00 | 1 | SPRING | GB | |
||
| 114 | 584422-00 | 1 | CYLINDER SA | GB | |
||
| 115 | 577814-00 | 1 | WASHER | GB | |
||
| 116 | 330065-05 | 2 | SCREW | GB | |
||
| 117 | 580291-00 | 1 | LOCKING DEVICE | GB | |
||
| 118 | 584433-00 | 1 | HOUSING SA | GB | |
||
| 121 | N066799-00 | 4 | SCREW | GB | |
||
| 130 | 579212-00 | 1 | RING | GB | |
||
| 132 | 871690 | 1 | SPRING | GB | |
||
| 133 | 578387-00 | 1 | WASHER | GB | |
||
| 134 | 583890-00 | 1 | BALL | GB | |
||
| 135 | N774198 | 1 | TUBE SA | GB | |
||
| 135 | N774198 | 1 | TUBE SA | GB | |
||
| 136 | 323489-00 | 1 | CAP | GB | |
||
| 160 | 1008956-00 | 1 | HANDLE SIDE SA | GB | |
||
| 170 | 495699-00 | 1 | DEPTH STOP | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | GB | |
|
| 817 | 496620-00 | 1 | LABEL | GB | |
||
| 821 | N018739 | 1 | RATING PLATE | GB | |
||
| 836 | 559638-99 | 1 | S.T.TERMINAL EXTRACTOR | GB | |
||
| 846 | N031539 | 1 | SERVICE KIT 230V | 230V | GB | |
|
| 861 | 578005-04 | 1 | KITBOX | GB | |
