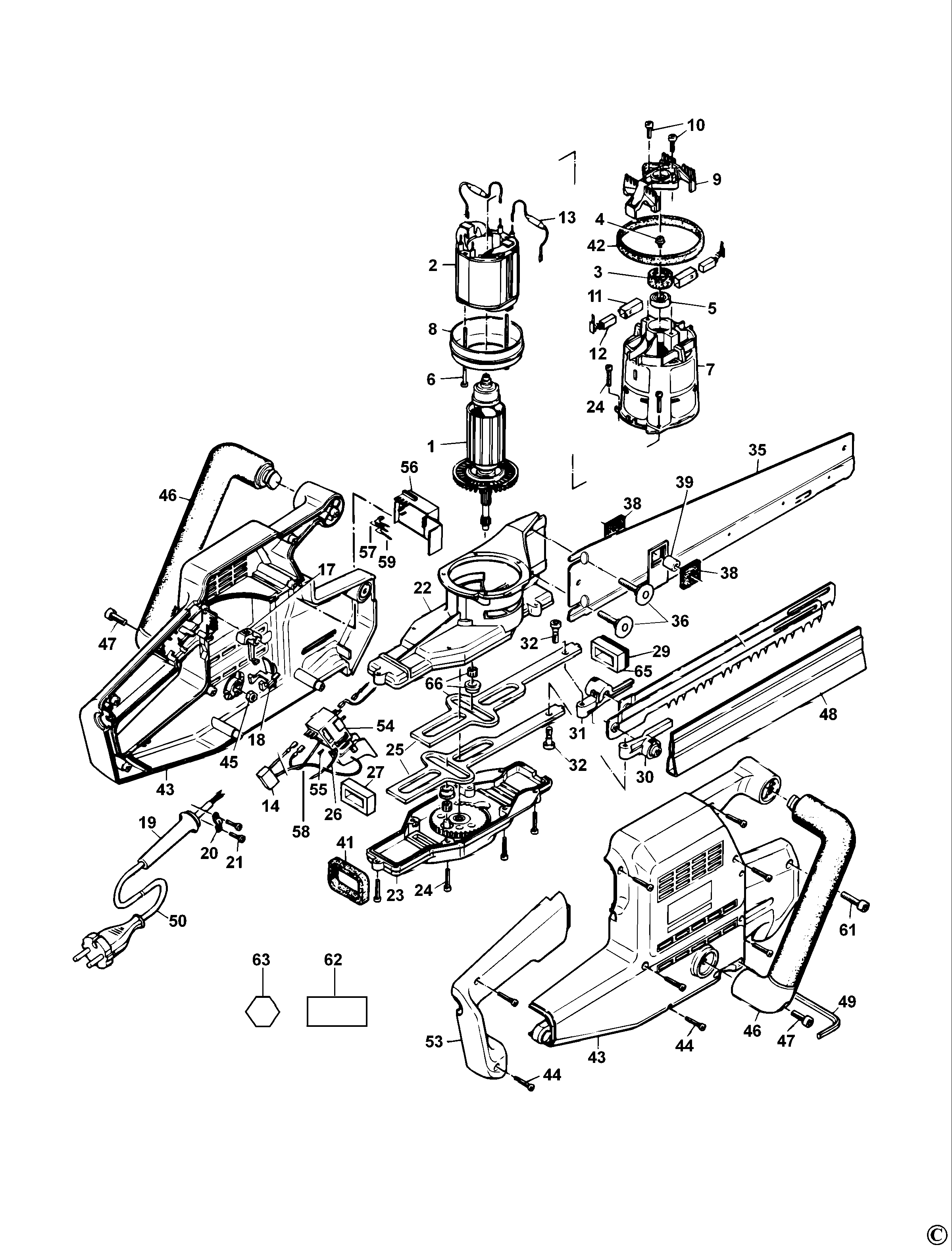

DW391L UNIVERSAL SAW Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 369453-06 | 1 | ARMATURE 115V | GB 115V | XW |  |
|
| 2 | 373007-17 | 1 | FIELD 115V | GB 115V | XW | |
|
| 3 | 911897 | 1 | HOLDER | XW | |
||
| 4 | 322491 | 1 | SCREW | XW | |
||
| 5 | 330003-19 | 1 | BEARING | XW |  |
||
| 6 | 916231 | 2 | SCREW | XW | |
||
| 7 | 322330 | 1 | FIELDCASE | XW | |
||
| 8 | 916128 | 1 | BAFFLE FAN | XW | |
||
| 9 | 322894 | 1 | BRIDGE | XW | |
||
| 10 | 911300 | 2 | SCREW | XW | |||
| 11 | 321337 | 2 | BRUSH HOLDER | XW | |
||
| 12 | 324055-00 | 2 | BRUSH & HOLDER 115V | GB 115V | XW | |
|
| 13 | 321354 | 2 | LEAD 70MM | XW | |
||
| 14 | 320842-03 | 1 | CAPACITOR | XW | |
||
| 17 | 322369-00 | 1 | LEVER | XW | |
||
| 18 | 323136 | 1 | LEVER | XW | |
||
| 19 | 770235 | 1 | PROTECTOR | XW | |
||
| 20 | 821070 | 1 | CORD CLAMP | XW | |
||
| 21 | D911324 | 2 | SCREW | XW | |
||
| 22 | 324817-00 | 1 | GEARCASE | XW | |
||
| 23 | 322667 | 1 | GEARCASE | XW | |
||
| 24 | 810091-00 | 11 | SCREW.SPECIAL | XW | |
||
| 25 | 1008559-01 | 1 | REPAIR KIT | XW | |
||
| 26 | 878756 | 1 | LEAD 200MM BLACK | XW | |
||
| 27 | 322377 | 1 | BEARING | XW | |
||
| 29 | 325990-00 | 1 | SEAL | XW | |
||
| 30 | 368469-00 | 1 | CLAMP SA RH | XW | |
||
| 31 | 368470-00 | 1 | CLAMP SA LH | XW | |
||
| 32 | 495253-00 | 1 | REPAIR KIT | XW | |
||
| 35 | 325334-00 | 1 | BAR | XW | |
||
| 36 | 324776-00 | 2 | SCREW | XW | |
||
| 38 | 322661 | 2 | INSERT | XW | |
||
| 39 | 322662 | 1 | SPACER | XW | |
||
| 41 | 322659 | 1 | INSERT | XW | |
||
| 42 | 322660 | 1 | INSERT | XW | |
||
| 43 | 325602-06 | 1 | CLAMSHELL SET | XW | |
||
| 44 | 330065-08 | 9 | SCREW | M4x18 T20 | XW | |
|
| 45 | 911018 | 2 | NUT | XW | |
||
| 46 | 323142 | 2 | HANDLE | XW | |
||
| 47 | 580475-00 | 2 | SCREW | XW | |
||
| 48 | 259680 | 1 | GUARD | XW | |
||
| 49 | 098000-11 | 1 | HEX KEY | XW | |
||
| 50 | 330061-05 | 1 | CORDSET (M/PLUG) | GB 115V | XW | |
|
| 53 | 322363-06 | 1 | HANDLE COVER | XW | |
||
| 54 | 322840 | 1 | SWITCH | XW | |
||
| 55 | 911026 | 3 | SCREW | XW | |
||
| 56 | 323009 | 1 | ELECTRONIC | XW | |
||
| 57 | 323375-01 | 1 | LEAD RED | XW | |
||
| 58 | 323376-01 | 1 | LEAD BLUE | XW | |
||
| 59 | 323377-01 | 1 | LEAD YELLOW | XW | |
||
| 61 | 322928 | 1 | SCREW | XW | |
||
| 62 | 323504-00 | 1 | WARNING LABEL | XW | |
||
| 63 | 323504-00 | 1 | WARNING LABEL | XW | |
||
| 65 | 325881-01 | 1 | BEARING | XW | |
||
| 66 | 1008559-01 | 2 | REPAIR KIT | XW | |
