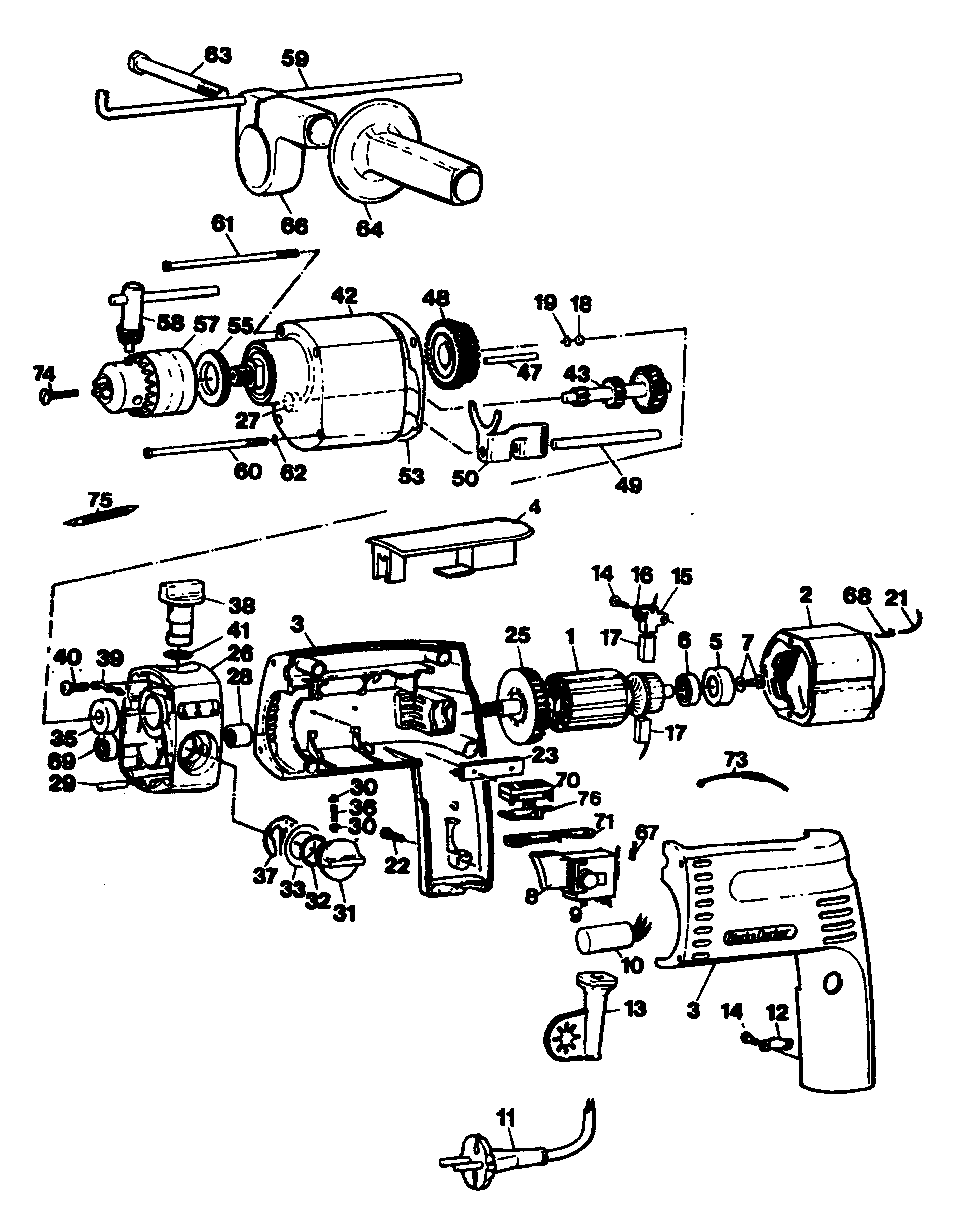

BD308RE HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 878878 | 1 | FIELD | XJ |  |
||
| 3 | 873348 | 1 | HOUSING | XJ | |
||
| 4 | 322162 | 1 | ELECTRONIC & SWITCH | XJ | |
||
| 5 | 911897 | 1 | HOLDER | XJ | |
||
| 6 | 330003-31 | 1 | BEARING | XJ |  |
||
| 7 | 911276 | 1 | SCREW | XJ | |
||
| 8 | 322162 | 1 | ELECTRONIC & SWITCH | XJ | |
||
| 9 | 911026 | 4 | SCREW | XJ | |
||
| 10 | 876515 | 1 | CONDENSOR | XJ | |
||
| 11 | 324438-07 | 1 | CORDSET (EURO) | XJ | |
||
| 12 | 821070 | 1 | CORD CLAMP | XJ | |
||
| 13 | 916080 | 1 | CORD PROTECTOR | XJ | |||
| 14 | D911324 | 4 | SCREW | XJ | |
||
| 15 | 917566 | 2 | BRUSH HOLDER | XJ | |
||
| 16 | 916309 | 2 | SPRING | XJ | |||
| 17 | 916368 | 2 | FSO BRUSH CUT OFF | XJ | |
||
| 18 | 916698 | 1 | BALL | XJ | |
||
| 19 | 916743 | 1 | WASHER | XJ | |
||
| 21 | 878277 | 4 | LEAD 280MM | XJ | |
||
| 22 | 911325 | 5 | SCREW | XJ | |
||
| 23 | 916399 | 2 | RUBBER | XJ | |
||
| 26 | 878306 | 1 | COVER | XJ | |
||
| 27 | 913063 | 1 | BEARING | XJ | |
||
| 28 | 330004-23 | 1 | BEARING | XJ | |
||
| 29 | 916321 | 1 | PIN | XJ | |
||
| 30 | 917149 | 2 | BALL | XJ | |
||
| 31 | 322074 | 1 | BUTTON | XJ | |
||
| 32 | 916851 | 1 | SEAL | XJ | |
||
| 33 | 916850 | 2 | WASHER SPRING | XJ | |
||
| 35 | 917161 | 1 | BEARING | XJ | |
||
| 36 | 916846 | 1 | SPRING | XJ | |
||
| 37 | 878291 | 1 | RING | XJ | |
||
| 38 | 322077 | 1 | BUTTON | XJ | |
||
| 39 | 916275 | 1 | SPRING | XJ | |
||
| 40 | 322121 | 1 | SCREW | XJ | |
||
| 41 | 916323 | 1 | O RING | XJ | |
||
| 42 | 878848 | 1 | GEARCASE | XJ | |
||
| 43 | 878299 | 1 | GEAR | XJ | |
||
| 47 | 917524 | 2 | PIN | XJ | |
||
| 48 | 878273 | 1 | GEAR | XJ | |
||
| 49 | 916453 | 1 | AXLE | XJ | |
||
| 50 | 917277 | 1 | SELECTOR FORK | XJ | |
||
| 53 | 916317 | 1 | GASKET | XJ | |
||
| 55 | 917404 | 1 | SEAL | XJ | |
||
| 57 | 5140071-68 | 1 | CHUCK 13MM | TYPE 2 | XJ | |
|
| 58 | 330034-07 | 1 | CHUCK KEY | TYPE 2 | XJ | |
|
| 58 | 894688 | 1 | CHUCK KEY 13MM | TYPE 1 | XJ | |
|
| 59 | 580787-00 | 1 | DEPTH STOP | XJ | |
||
| 60 | 911484 | 2 | SCREW | XJ | |
||
| 61 | 911481 | 2 | SCREW | XJ | |
||
| 62 | 916702 | 4 | WASHER | XJ | |
||
| 63 | 813918 | 1 | SCREW | XJ | |
||
| 64 | 872712 | 1 | HANDLE | XJ | |
||
| 66 | 917176 | 1 | CLAMP | XJ | |
||
| 67 | 930311 | 3 | CONNECTOR FEMALE | XJ | |
||
| 68 | 916594 | 4 | CONNECTOR MALE | XJ | |
||
| 69 | 916341 | 1 | BEARING | XJ | |
||
| 70 | 323932-49 | 1 | SWITCH KIT | XJ | |
||
| 71 | 323932-49 | 1 | SWITCH KIT | XJ | |
||
| 74 | 326039-00 | 1 | SCREW | TYPE 2 | XJ | |
|
| 74 | 945013-00 | 1 | SCREW | TYPE 1 | XJ | |
|
| 75 | 297757-02 | 1 | BIT PHILLIPS | XJ | |
||
| 76 | 911674 | 1 | PLATE | XJ | |
