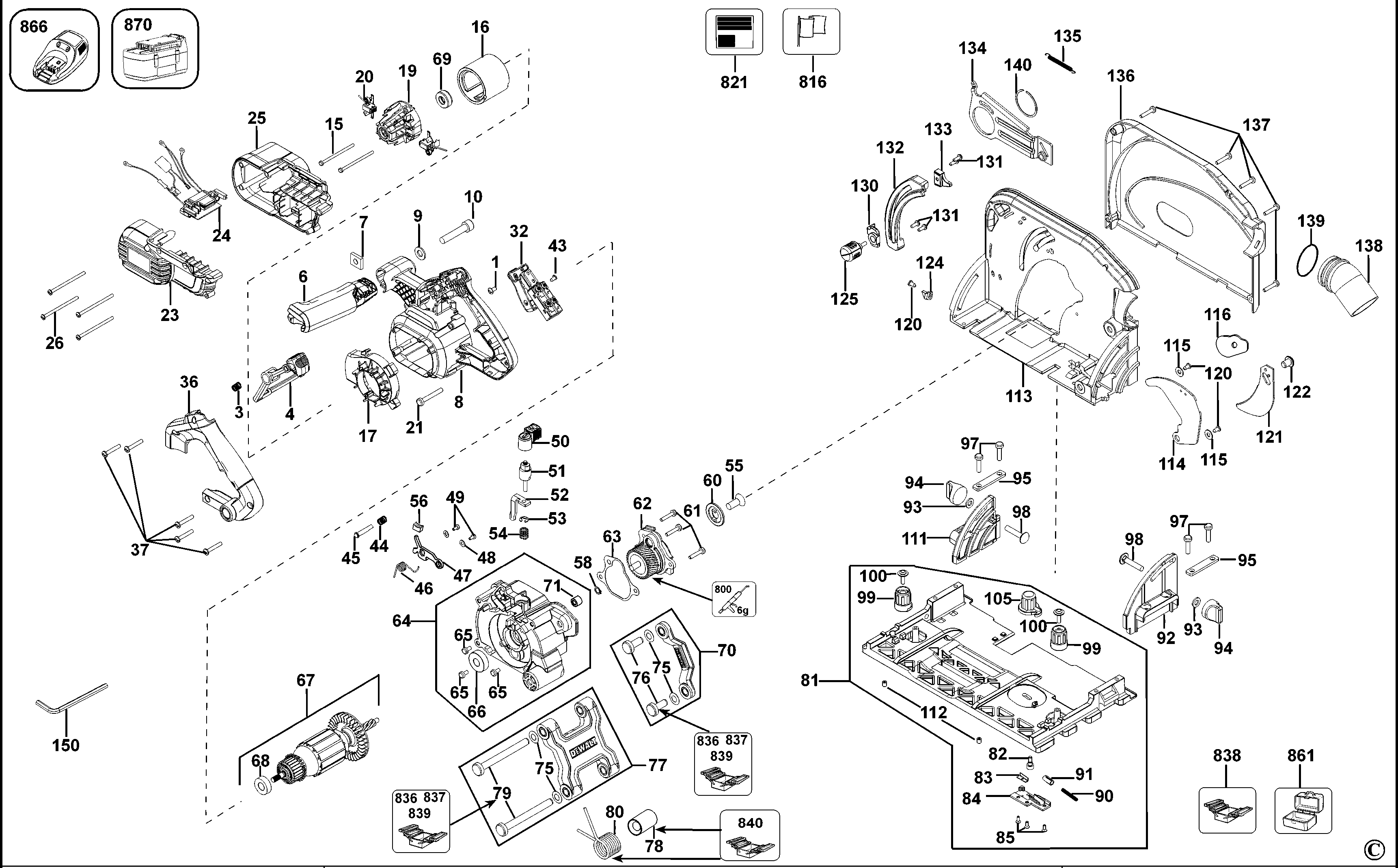

DC351KL CORDLESS PLUNGE SAW Type 1 - QU | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330065-04 | 1 | SCREW | XJ |  |
||
| 3 | 1007210-00 | 1 | SPRING COMPRESSION | XJ | |
||
| 4 | 1009031-00 | 1 | LEVER LOCK | XJ | |
||
| 6 | 492062-00 | 1 | HANDLE | XJ | |
||
| 7 | 491035-00 | 1 | PLATE | XJ | |
||
| 8 | 492475-00 | 1 | HANDLE | XJ |  |
||
| 9 | 1005703-00 | 1 | WASHER | XJ | |
||
| 10 | 949886-38 | 1 | SCREW | XJ | |
||
| 15 | 330019-25 | 2 | SCREW | XJ | |
||
| 16 | 1007580-00 | 1 | MAGNET SA | XJ | |
||
| 17 | 492258-00 | 1 | BAFFLE FAN | XJ | |
||
| 19 | N171820 | 1 | SUPPORT BEARING | XJ | |
||
| 20 | 610126-00 | 2 | BRUSHBOX SA | XJ | |
||
| 21 | 330045-18 | 4 | SCREW | XJ | |
||
| 23 | 494986-00 | 1 | END CAP | XJ | |
||
| 24 | 1007583-00 | 1 | CONTACT SA | XJ | |
||
| 25 | 494985-00 | 1 | HOUSING | XJ | |
||
| 26 | 330065-12 | 4 | SCREW | XJ | |
||
| 32 | 397182-00 | 1 | SWITCH | XJ | |
||
| 36 | 491445-01 | 1 | HANDLE COVER | XJ | |
||
| 37 | 330065-09 | 7 | SCREW | XJ | |
||
| 43 | 1007314-00 | 4 | SCREW | XJ | |
||
| 44 | 1005371-00 | 1 | SPRING COMPRESSION | XJ | |
||
| 46 | 1006028-00 | 1 | SPRING TORSION | XJ | |
||
| 47 | 1008323-00 | 1 | PLATE LOCK | XJ | |
||
| 48 | 330016-01 | 2 | WASHER | XJ | |
||
| 49 | 1006719-00 | 2 | SCREW TORX | XJ | |
||
| 50 | 493499-00 | 1 | BUTTON | XJ | |
||
| 51 | 496980-00 | 1 | PIN | XJ | |
||
| 52 | 496979-00 | 1 | PLATE | XJ | |
||
| 53 | 370170 | 1 | CIRCLIP | XJ | |
||
| 54 | 1005444-00 | 1 | SPRING COMPRESSION | XJ | |
||
| 55 | 490549-00 | 1 | SCREW | XJ | |
||
| 56 | 1008577-00 | 1 | BUTTON | XJ | |
||
| 58 | 491838-00 | 1 | CIRCLIP | XJ | |
||
| 60 | 490551-00 | 1 | OUTER FLANGE | XJ | |
||
| 61 | 330045-07 | 3 | SCREW | XJ | |
||
| 62 | 1007370-00 | 1 | GEAR & SPINDLE SA | XJ | |
||
| 63 | 491225-00 | 1 | GASKET | XJ | |
||
| 64 | N014985 | 1 | GEARCASE SA | XJ | |
||
| 65 | 330045-44 | 3 | SCREW | XJ | |
||
| 66 | 330003-96 | 1 | BEARING BALL | XJ | |
||
| 67 | 1007585-00 | 1 | ARMATURE SA | XJ | |
||
| 68 | 330003-60 | 1 | BEARING | XJ | |
||
| 70 | 1007372-00 | 1 | LINK | XJ | |
||
| 71 | 496697-00 | 1 | NEEDLE ROLLER | XJ | |
||
| 75 | 493529-00 | 4 | WASHER SPECIAL | XJ | |
||
| 76 | 1007373-00 | 2 | PIN | XJ | |
||
| 77 | 1007374-00 | 1 | LINKAGE SA | XJ | |
||
| 78 | 1007325-00 | 1 | SPACER | XJ | |
||
| 79 | 1007375-00 | 1 | PIN | XJ | |
||
| 80 | 491573-00 | 1 | SPRING TORSION | XJ | |
||
| 81 | 496802-01 | 1 | BASE PLATE | XJ | |
||
| 82 | 490687-00 | 1 | PIN | XJ | |
||
| 83 | 1005549-00 | 1 | SPRING CLIP | XJ | |
||
| 84 | 490702-00 | 1 | COVER | XJ | |
||
| 85 | 492088-00 | 3 | SCREW | XJ | |
||
| 90 | 491446-00 | 1 | SPRING COMPRESSION | XJ | |
||
| 91 | 1005053-00 | 1 | SPRING GUIDE | XJ | |
||
| 92 | 490479-00 | 1 | HINGE | XJ | |
||
| 93 | 1005704-00 | 2 | WASHER M6 | XJ | |
||
| 94 | 395889-00 | 2 | KNOB | XJ | |
||
| 95 | 490877-00 | 2 | RETAINING PLATE | XJ | |
||
| 97 | 330045-15 | 4 | SCREW | XJ | |
||
| 98 | 098128-40 | 2 | CARRIAGE BOLT | XJ | |
||
| 99 | 496804-00 | 2 | KNOB | XJ | |
||
| 100 | 496806-00 | 2 | SCREW | XJ | |
||
| 105 | 1005943-01 | 1 | ANTI KICK BACK | XJ | |
||
| 111 | 1007976-00 | 1 | HINGE | XJ | |
||
| 112 | 496698-00 | 2 | SCREW.SPECIAL | XJ | |
||
| 113 | 492119-00 | 1 | GUARD | XJ | |
||
| 114 | 491542-00 | 1 | COVERPLATE | XJ | |
||
| 115 | 1005219-00 | 2 | WASHER M5 | XJ | |
||
| 116 | 1007560-00 | 1 | RETAINER | XJ | |
||
| 120 | 389235-04 | 3 | SCREW | XJ | |
||
| 121 | N018408 | 1 | RIVING KNIFE | XJ | |
||
| 122 | 153637-06 | 1 | SCREW | XJ | |
||
| 124 | 490829-00 | 1 | POINTER | XJ | |
||
| 125 | 491151-00 | 1 | ADJUSTER DEPTH | XJ | |
||
| 130 | 491170-00 | 1 | POINTER | XJ | |
||
| 131 | 496621-00 | 5 | SCREW | XJ | |
||
| 133 | 1008510-00 | 1 | DEPTH STOP | XJ | |
||
| 134 | N018403 | 1 | CARRIER | XJ | |
||
| 135 | 490955-00 | 1 | SPRING | XJ | |
||
| 136 | 1006706-00 | 1 | GUARD COVER | XJ | |
||
| 137 | 330045-07 | 5 | SCREW | XJ | |
||
| 138 | N025979 | 1 | DUST PORT | XJ | |
||
| 139 | 323711-58 | 1 | O RING | XJ | |
||
| 140 | 629745-00 | 1 | CIRCLIP | XJ | |
||
| 150 | 098000-11 | 1 | HEX KEY | XJ | |
||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | XJ | |
|
| 816 | 492112-01 | 1 | BRAND LABEL | XJ | |
||
| 836 | 559691-99 | 1 | S.T.INSERTION TOOL | Press Tool | XJ | |
|
| 837 | 559698-99 | 1 | SERVICE TOOLING KIT | inc 836 837 838 839 | XJ | |
|
| 838 | 559698-99 | 1 | SERVICE TOOLING KIT | inc 836 837 838 839 | Blade setting | XJ | |
| 839 | 559696-99 | 1 | S.T.ASSEMBLY JIG | support tool | XJ | |
|
| 840 | 596002-99 | 1 | S.T.ASSEMBLY JIG | Guide Pin | XJ | |
|
| 861 | N089663 | 1 | KITBOX | XJ | |
