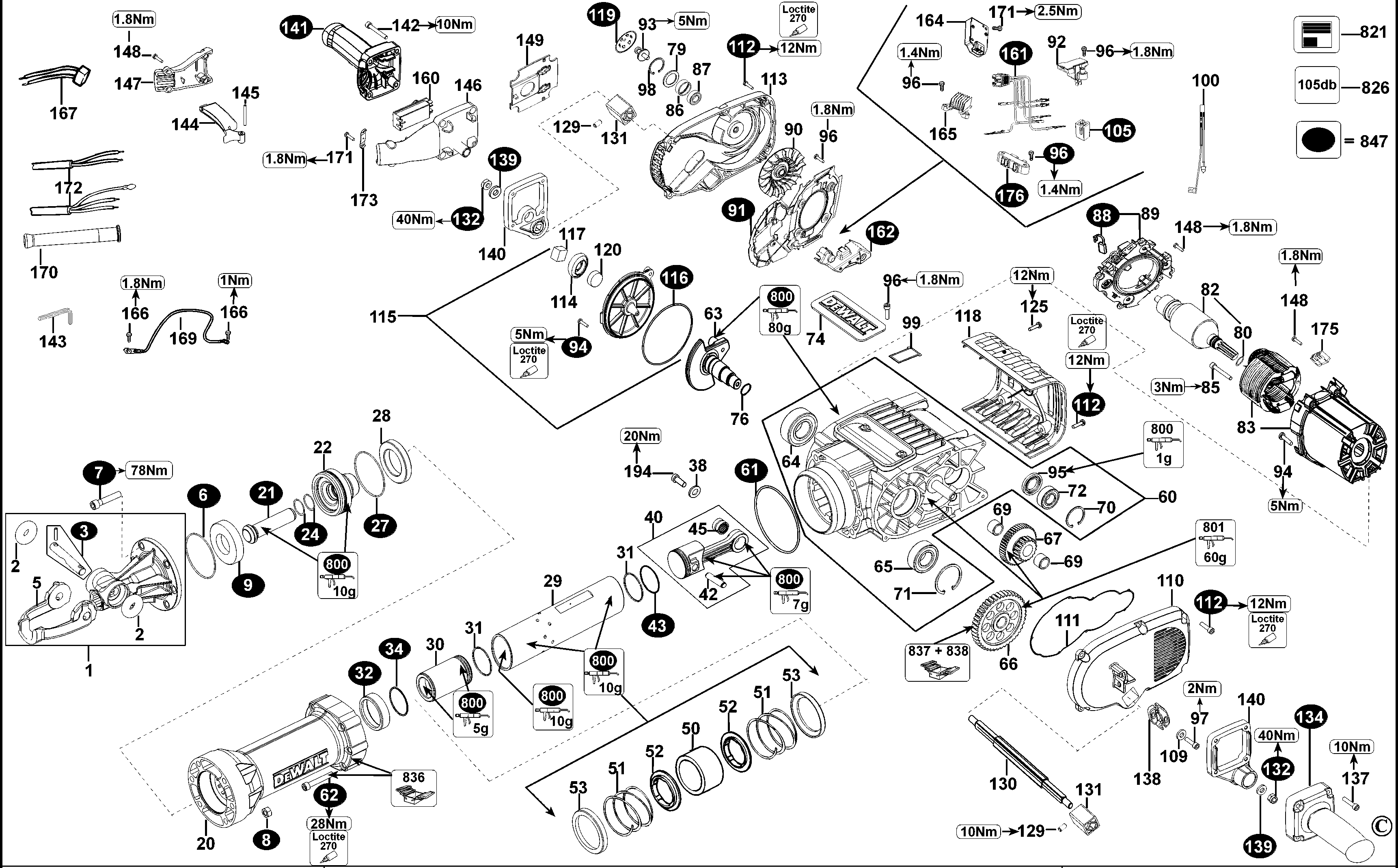

D25980 DEMOLITION HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N500401 | 1 | HOLDER SA | GB |  |
||
| 2 | 478063-00 | 2 | DAMPER | GB | |
||
| 3 | N500415 | 1 | REPAIR KIT | GB | |
||
| 5 | 494570-00 | 1 | RETAINER | GB | |
||
| 6 | 478116-00 | 1 | O RING | 90X4 NBR 70 | GB | |
|
| 7 | 949886-34 | 6 | BOLT | M12X65 ISO4762 | GB | |
|
| 8 | 496261-00 | 6 | NUT | M12 | GB | |
|
| 9 | 490534-00 | 1 | FELT SEAL | GB | |
||
| 20 | 494566-00 | 1 | HOUSING FRONT | GB | |
||
| 21 | 494567-00 | 1 | BEAT PIECE | GB | |
||
| 22 | 494562-00 | 1 | GUIDE SA | GB | |
||
| 24 | 584706-00 | 2 | O RING | GB | |
||
| 27 | 478119-00 | 1 | O RING | 72.6X3.5 NBR70 | GB | |
|
| 28 | 478071-00 | 1 | DAMPER | GB | |
||
| 29 | 494571-00 | 1 | CYLINDER | GB | |
||
| 30 | 1005669-00 | 1 | RAM | GB | |
||
| 31 | 494543-00 | 1 | PISTON RING | GB | |
||
| 32 | 494560-00 | 1 | RING | GB | |
||
| 34 | 494354-00 | 1 | O RING | 65X3.5 FKM | GB | |
|
| 38 | 493421-00 | 1 | WASHER | GB | |
||
| 40 | 496978-00 | 1 | PISTON KIT | GB | |
||
| 42 | 494559-00 | 1 | PIN | GB | |
||
| 43 | 494355-01 | 1 | O RING | 53.6 X 2.6 FKM | GB | |
|
| 45 | 494558-00 | 1 | BEARING NEEDLE | GB | |
||
| 50 | 494565-00 | 1 | CONNTERWEIGHT | GB |  |
||
| 51 | 478080-00 | 2 | SPRING | GB | |
||
| 52 | 478081-00 | 2 | GUIDE | GB | |
||
| 53 | 478082-00 | 2 | GUIDE | GB | |
||
| 60 | N040341 | 1 | HOUSING SA | inc 125 x 4 129 x 2 | GB | |
|
| 61 | 478120-00 | 1 | O RING | 112 X 4 NBR70 | GB | |
|
| 62 | 949886-35 | 6 | SCREW | M10X55 IS04762 | GB | |
|
| 63 | 494572-00 | 1 | CRANKSHAFT | GB | |
||
| 64 | 577745-04 | 1 | BEARING,BALL | 30 x 62 x 16 - 6206 | GB | |
|
| 65 | 577745-03 | 1 | BEARING,BALL | GB | |
||
| 66 | 494576-00 | 1 | GEAR | GB | |
||
| 67 | 494573-00 | 1 | GEAR SA | inc 2 x 67 | GB | |
|
| 69 | 494549-00 | 1 | BEARING SET | GB | |
||
| 70 | 616726-00 | 1 | RETAINER | GB | |
||
| 71 | 324821-05 | 1 | CIRCLIP | 52x2 DIN472 | GB | |
|
| 72 | 330003-69 | 1 | BEARING | GB | |
||
| 74 | 487668-00 | 1 | NAMEPLATE | GB | |
||
| 76 | 492448-00 | 1 | O RING | 25x1.5 NBR 70 | GB | |
|
| 79 | 491851-00 | 1 | WASHER | GB | |
||
| 80 | 577746-01 | 1 | RING | GB | |
||
| 82 | 494578-01 | 1 | ARMATURE 230V | GB | |
||
| 83 | 496846-01 | 1 | FIELD SA 230V | GB | |
||
| 85 | 330019-33 | 2 | SCREW | GB | |
||
| 86 | N236019 | 1 | SLEEVE | GB | |
||
| 87 | 577745-00 | 1 | BEARING | GB | |
||
| 88 | 1005550-02 | 1 | BRUSH PAIR 230V | GB | |
||
| 89 | N184443 | 1 | BRUSH PLATE SA | GB | |
||
| 90 | 491666-00 | 1 | FAN SA | GB | |
||
| 91 | 491639-00 | 1 | BAFFLE | GB | |
||
| 92 | 491640-00 | 1 | PICK UP | GB | |
||
| 93 | 324119-02 | 1 | SCREW | GB | |
||
| 94 | 324007-11 | 5 | SCREW | M5 X 18 | GB | |
|
| 95 | 1006625-00 | 1 | SEAL | GB | |
||
| 96 | 330065-06 | 13 | SCREW | GB | |
||
| 97 | 324006-14 | 3 | SCREW | GB | |
||
| 98 | 496097-00 | 1 | CIRCLIP | GB | |
||
| 99 | 491772-00 | 2 | COVER BRUSH | GB | |
||
| 100 | 327517-01 | 1 | FILTER | GB | |
||
| 105 | 491651-00 | 1 | SOCKET | GB | |
||
| 109 | 860075-01 | 1 | WASHER | GB | |
||
| 110 | 478096-00 | 1 | COVER GEARCASE | GB | |
||
| 111 | 478097-00 | 1 | SEAL | GB | |
||
| 112 | 493968-00 | 16 | SCREW | GB | |
||
| 113 | 478098-00 | 1 | MOTOR COVER | GB | |
||
| 114 | 487438-00 | 1 | CAP | GB | |
||
| 115 | 491368-00 | 1 | COVER | GB | |
||
| 116 | 478122-00 | 1 | O RING | GB | |
||
| 117 | 494786-00 | 1 | RUBBER PAD | GB | |
||
| 118 | 479964-00 | 1 | COVER REAR | GB | |
||
| 119 | 492668-00 | 1 | END CAP | GB | |
||
| 120 | 487229-00 | 1 | FILTER | GB | |
||
| 129 | 153576-00 | 2 | SCREW | GB | |
||
| 130 | N141636 | 1 | REPAIR KIT | Inc 130, 140 | GB | |
|
| 131 | 478101-00 | 2 | SPRING SA | GB | |
||
| 132 | 494471-00 | 2 | NUT | M10 DIN 980 | GB | |
|
| 134 | N167287 | 1 | HANDLE | GB | |
||
| 137 | 949886-37 | 4 | SCREW | M6x30 DIN912 | GB | |
|
| 138 | 478104-00 | 1 | STOP RUBBER | GB | |
||
| 139 | 495104-00 | 2 | WASHER CLAMP | GB | |
||
| 140 | N141636 | 1 | REPAIR KIT | Inc 130, 140 | GB | |
|
| 141 | N167282 | 1 | HANDLE RH | GB | |
||
| 142 | 949886-36 | 4 | SCREW | M6x45 Din 912 | GB | |
|
| 143 | 930574-00 | 1 | HEX KEY 5 MM | GB | |
||
| 144 | 478107-00 | 1 | TRIGGER | GB | |
||
| 145 | 377374 | 1 | PIN | GB | |
||
| 146 | N167285 | 1 | HOUSING SWITCH | GB | |
||
| 146 | N167285 | 1 | HOUSING SWITCH | GB | |
||
| 147 | N167324 | 1 | SWITCH COVER | GB | |
||
| 148 | 330065-08 | 10 | SCREW | M4x18 T20 | GB | |
|
| 149 | N167286 | 1 | PROTECTOR | GB | |
||
| 160 | 326087-04 | 1 | SWITCH | GB | |
||
| 161 | 494552-00 | 1 | SET OF LEAD WIRES | GB | |
||
| 162 | 495975-00 | 1 | COVER | GB | |
||
| 164 | N127691 | 1 | GACC MODULE 230V | GB | |
||
| 165 | 490796-00 | 1 | HEATSINK | GB | |
||
| 166 | 326619-00 | 1 | SCREW | GB | |
||
| 167 | 807285-16 | 1 | CAPACITOR | GB | |
||
| 170 | 947964-01 | 1 | CORD PROTECTOR | GB | |
||
| 171 | 324006-02 | 2 | SCREW | GB | |
||
| 172 | 582319-35 | 1 | CORDSET (M/PLUG) GB | GB | |
||
| 173 | 931477-00 | 1 | CORD CLAMP | GB | |
||
| 175 | 490914-00 | 1 | SOCKET | GB | |
||
| 176 | 491650-00 | 1 | PLUG | GB | |
||
| 194 | 494356-00 | 1 | SCREW | GB | |
||
| 800 | 578970-06 | 1 | GREASE 150 GMS | 145gms | GB | |
|
| 801 | 870889-02 | 1 | GREASE | GB | |
||
| 821 | 491658-12 | 1 | RATING PLATE | GB | |
||
| 826 | 487395-01 | 1 | LABEL | GB | |
||
| 836 | 559667-99 | 1 | S.T.REMOVAL TOOL | GB | |
||
| 837 | 559668-99 | 1 | S.T.REMOVAL TOOL | GB | |
||
| 838 | 559669-99 | 1 | S.T.PISTON JAMMER | GB | |
||
| 847 | 1005620-02 | 1 | 300HR 230V SERVICE KIT W/OUT MOTOR | GB | |
||
| 847 | 1005620-02 | 1 | 300HR 230V SERVICE KIT W/OUT MOTOR | GB | |
