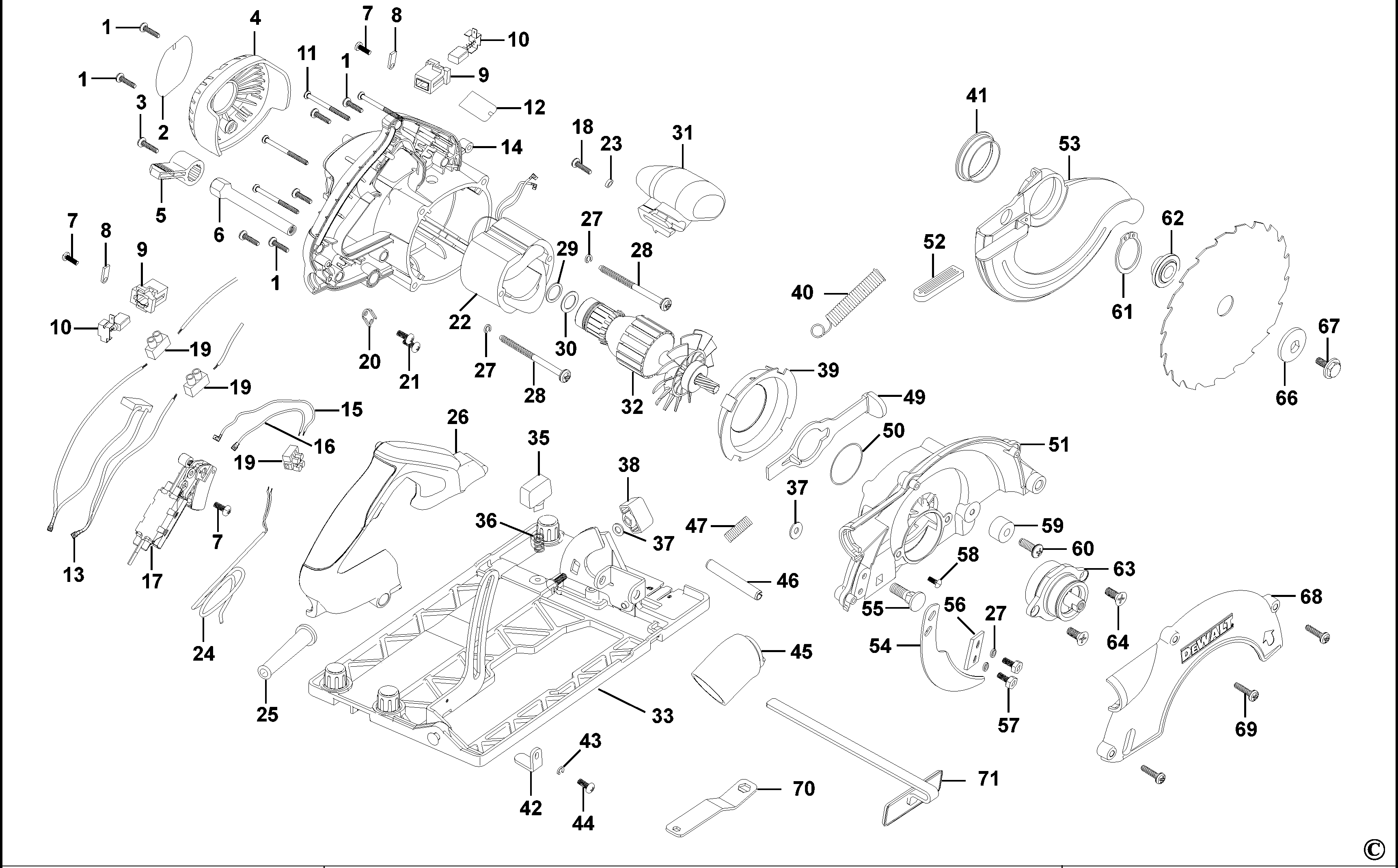

D23551 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1002003-00 | 7 | SCREW | M4 x 20mm | LX |  |
|
| 2 | 1002004-00 | 1 | BRAND LABEL | LX | |
||
| 3 | 1002005-00 | 1 | SCREW | LX | |
||
| 4 | 1002006-00 | 1 | END CAP | LX | |
||
| 5 | 1002007-00 | 1 | LEVER | LX | |
||
| 6 | 1002008-00 | 1 | LOCK PIN | LX | |
||
| 7 | 596863-00 | 3 | SCREW | 4.2 x 9.5mm | LX | |
|
| 8 | 1002009-00 | 2 | CLAMP | LX | |
||
| 9 | 1002010-00 | 2 | BRUSH HOLDER | LX | |
||
| 10 | 1002068-00 | 2 | BRUSH 115V | LX | |
||
| 11 | 596862-00 | 4 | SCREW | M5 x 55mm | LX | |
|
| 12 | 1005719-02 | 1 | NAMEPLATE | LX | |
||
| 13 | 1002013-00 | 1 | CAPACITOR | LX | |
||
| 14 | 1005717-00 | 1 | HOUSING MOTOR | LX | |
||
| 15 | 1002015-00 | 1 | LEADWIRE | LX | |
||
| 16 | 1002016-00 | 1 | LEADWIRE | LX | |
||
| 17 | 1002017-00 | 1 | SWITCH LOCK OFF | LX | |
||
| 18 | 1002018-00 | 1 | SCREW | 4.2 x 32mm | LX | |
|
| 19 | 1002019-00 | 2 | TERMINAL BLOCK | LX | |
||
| 20 | 1002071-00 | 1 | CORD CLAMP | LX | |
||
| 21 | 596873-00 | 2 | SCREW | M4 x 12mm | LX | |
|
| 22 | 1002072-00 | 1 | FIELD 115V | LX | |
||
| 23 | 1002022-00 | 1 | WASHER | 4mm | LX | |
|
| 24 | 1002074-00 | 1 | CORDSET | LX | |
||
| 25 | 1002075-00 | 1 | CORD PROTECTOR | LX | |
||
| 26 | 1005718-00 | 1 | HANDLE & COVER | LX | |
||
| 27 | 1002026-00 | 4 | WASHER SPRING | 5mm | LX | |
|
| 28 | 1002027-00 | 2 | SCREW | M5 x 60mm | LX | |
|
| 29 | 1002028-00 | 1 | SEAL | LX | |
||
| 30 | 1002029-00 | 1 | WASHER | LX | |
||
| 31 | 1002030-00 | 1 | HANDLE SA | LX | |
||
| 32 | 1002076-00 | 1 | ARMATURE 115V | LX | |
||
| 33 | 1005723-00 | 1 | SHOE SA | LX | |
||
| 34 | 1002033-00 | 1 | SCREW | LX | |
||
| 35 | 1002034-00 | 1 | SCREW WING | LX | |
||
| 36 | 1002035-00 | 1 | SPRING | LX | |
||
| 37 | 1002036-00 | 2 | WASHER | 6mm | LX | |
|
| 38 | 1002037-00 | 1 | WING NUT | LX | |
||
| 39 | 1002038-00 | 1 | BAFFLE FAN | LX | |
||
| 40 | 1002039-00 | 1 | SPRING | LX | |
||
| 41 | 1002040-00 | 1 | INSERT | LX | |
||
| 42 | 1002041-00 | 1 | SUPPORT | LX | |
||
| 43 | 1002042-00 | 1 | WASHER | LX | |
||
| 44 | 597547-00 | 1 | SCREW | M4 x 8mm | LX | |
|
| 45 | 1002043-00 | 1 | ADAPTOR | LX | |
||
| 46 | 1002044-00 | 1 | PIN | LX | |
||
| 47 | 1002045-00 | 1 | SPRING | LX | |
||
| 49 | 1002047-00 | 1 | SPANNER | LX | |
||
| 50 | 1002048-00 | 1 | O RING | LX | |
||
| 51 | 1002049-00 | 1 | GEARCASE | LX | |
||
| 52 | 1002050-00 | 1 | SLEEVE | LX | |
||
| 53 | 1002051-00 | 1 | GUARD LOWER | LX | |
||
| 54 | 1002052-00 | 1 | RIVING KNIFE | LX | |
||
| 55 | 1002053-00 | 1 | BOLT | LX | |
||
| 56 | 1002054-00 | 1 | PLATE | LX | |
||
| 57 | 1002055-00 | 2 | SCREW | LX | |
||
| 58 | 1002056-00 | 1 | SCREW | LX | |
||
| 59 | 1002057-00 | 1 | STOP RUBBER | LX | |
||
| 60 | 1002058-00 | 1 | SCREW | LX | |
||
| 61 | 1002059-00 | 1 | CIRCLIP | 38mm | LX | |
|
| 62 | 1002060-00 | 1 | INNER FLANGE | LX | |
||
| 63 | 1002061-00 | 1 | GEAR & SPINDLE SA | LX | |
||
| 64 | 596899-00 | 2 | SCREW | M4 x 12mm | LX | |
|
| 66 | 1002062-00 | 1 | OUTER FLANGE | LX | |
||
| 67 | 1002063-00 | 1 | BLADE BOLT | LX | |
||
| 68 | 1002064-00 | 1 | GUARD COVER | LX | |
||
| 69 | 1002065-00 | 3 | SCREW | LX | |
||
| 70 | 1002066-00 | 1 | WRENCH SPECIAL | LX | |
||
| 71 | 1002067-00 | 1 | RIP FENCE | LX | |
||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | 8 grams | LX |  |
