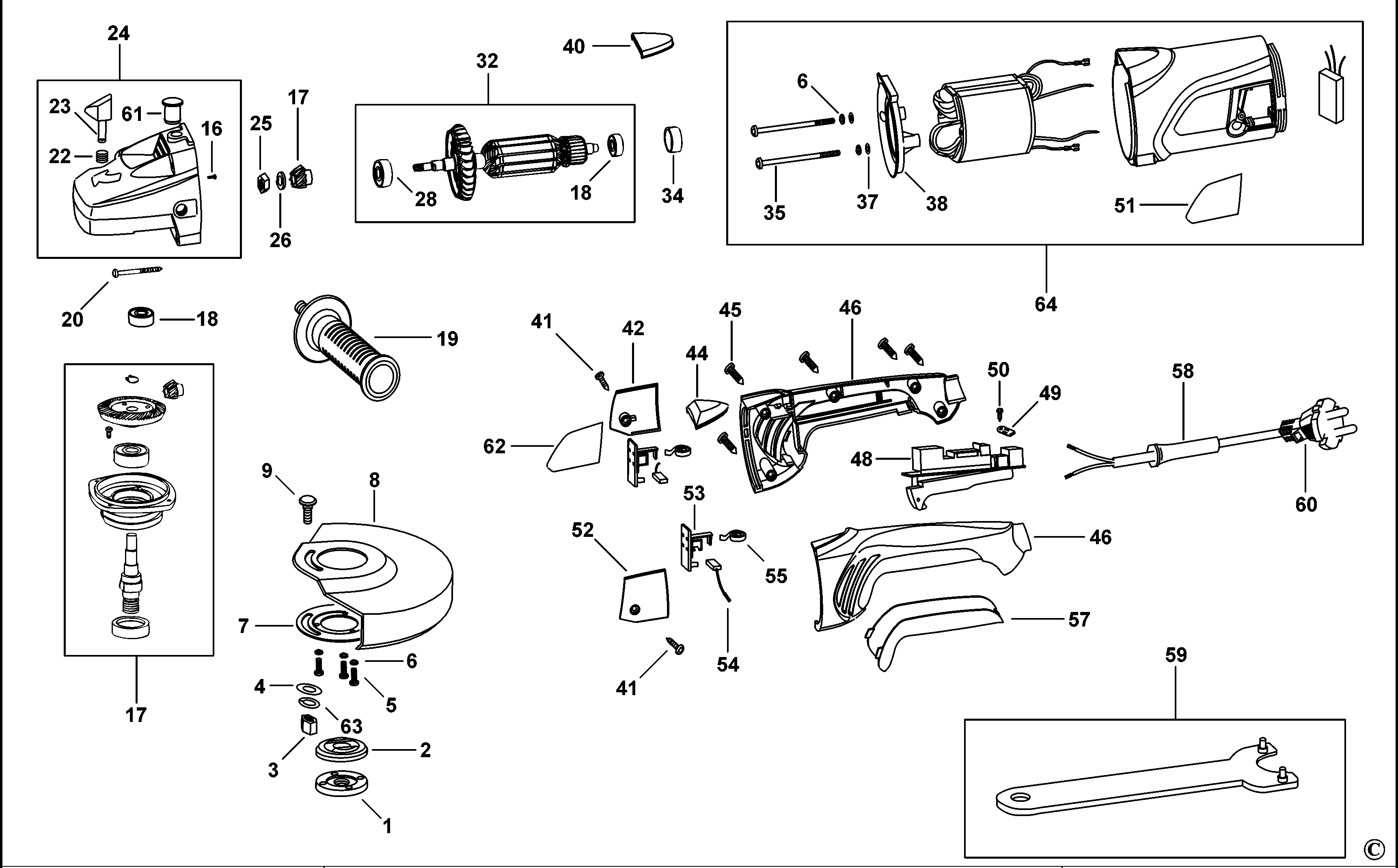

KG2000 ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 569320-00 | 1 | OUTER FLANGE | GB |  |
||
| 2 | 569321-00 | 1 | INNER FLANGE | GB | |
||
| 3 | 569322-00 | 1 | NUT | GB | |
||
| 4 | 569323-00 | 1 | WASHER | GB | |
||
| 5 | 569324-00 | 3 | SCREW | M5 X 20mm | GB | |
|
| 6 | 569325-00 | 3 | WASHER SPRING | GB | |
||
| 7 | 569326-00 | 1 | FLANGE | GB | |
||
| 8 | 569327-00 | 1 | GUARD | 230mm | GB | |
|
| 9 | 569328-00 | 1 | BOLT | GB | |
||
| 16 | 1004449-00 | 3 | SCREW | GB | |
||
| 17 | 1004450-01 | 1 | SPINDLE & GEAR SA | GB | |
||
| 18 | 569337-00 | 2 | BEARING | 6000ZZ - 10x26x8mm | GB | |
|
| 19 | 569338-00 | 1 | HANDLE | GB | |
||
| 20 | 569339-00 | 4 | SCREW | GB | |
||
| 22 | 569341-00 | 1 | SPRING | GB | |
||
| 23 | 569342-00 | 1 | SPINDLE LOCK | GB | |
||
| 24 | 1004451-00 | 1 | GEARCASE SA | GB | |
||
| 25 | 569344-00 | 1 | NUT | GB | |
||
| 26 | 569345-00 | 1 | WASHER SPRING | GB | |
||
| 28 | 569347-00 | 1 | BEARING | 6201ZZ - 12x32x10mm | GB | |
|
| 32 | 569351-00 | 1 | ARMATURE | GB | |
||
| 34 | 569353-00 | 1 | BEARING HOLDER | GB | |
||
| 35 | 569354-00 | 2 | SCREW | GB | |
||
| 37 | 569356-00 | 2 | WASHER | GB | |
||
| 38 | 569357-00 | 1 | BAFFLE | GB | |
||
| 40 | 569359-00 | 1 | PAD | GB | |
||
| 41 | 569360-00 | 2 | SCREW | GB | |
||
| 42 | 569361-00 | 1 | BRUSH CAP | RH | GB | |
|
| 44 | 569363-00 | 1 | PAD | GB | |
||
| 45 | 569364-00 | 5 | SCREW | GB | |
||
| 46 | 1004449-07 | 1 | HANDLE SA | GB | |
||
| 48 | 1004449-03 | 1 | SWITCH | GB | |
||
| 49 | 569368-00 | 1 | CABLE CLAMP | GB | |
||
| 50 | 569369-00 | 2 | SCREW | GB | |
||
| 51 | 569370-00 | 1 | BRAND LABEL | GB | |
||
| 52 | 569371-00 | 1 | BRUSH CAP | LH | GB | |
|
| 53 | 569372-00 | 2 | BRUSH HOLDER | GB | |
||
| 54 | 569373-00 | 1 | BRUSH PAIR | GB | |
||
| 55 | 569374-00 | 2 | BRUSH SPRING | GB | |
||
| 57 | 569376-00 | 1 | HANDLE COVER | GB | |
||
| 58 | 569377-00 | 1 | CORD PROTECTOR | GB | |
||
| 59 | 569378-00 | 1 | WRENCH | GB | |
||
| 60 | 569379-00 | 1 | CORDSET | GB |  |
||
| 61 | 569283-00 | 2 | CAP | GB | |
||
| 62 | 1004449-05 | 1 | RATING PLATE | GB | |
||
| 63 | 1004449-06 | 1 | WASHER | GB | |
||
| 64 | 1004530-03 | 1 | FIELD CASE KIT | Incl. Soft Start | GB | |
