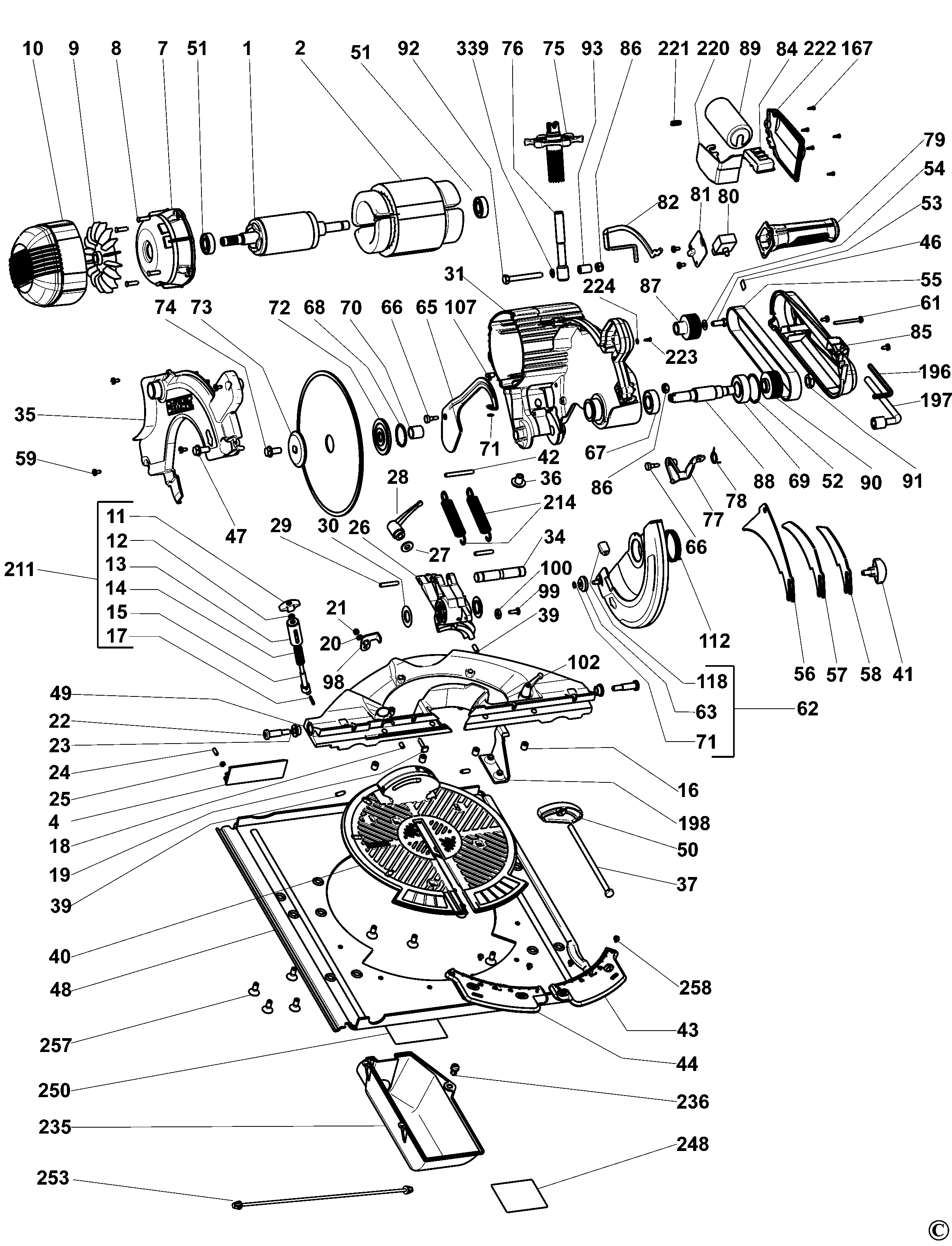

DW743 COMBINATION SAW Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868397-01 | 1 | ROTOR SA | 230V | GB |  |
|
| 2 | 868395-04 | 1 | STATOR 230V | GB |  |
||
| 3 | 868180-03 | 1 | SWITCH SA | GB | |
||
| 4 | 869209-00 | 1 | STOP PLATE | GB | |
||
| 5 | 868179-02 | 1 | MOTOR CABLE | 230 V - 4 core | GB | |
|
| 6 | N377168 | 1 | SWITCH COVER | GB | |
||
| 7 | 861085-04 | 1 | END CAP | GB | |
||
| 8 | 330045-15 | 2 | SCREW | GB | |
||
| 9 | 942413-02 | 1 | FAN | GB | |
||
| 10 | 861036-02 | 1 | END CAP | GB | |
||
| 11 | 942453-00 | 1 | KNOB | GB | |
||
| 12 | 949726-05 | 1 | NUT | GB | |
||
| 13 | 861069-00 | 1 | BARREL | GB | |
||
| 14 | 761054-00 | 1 | SPRING | GB | |
||
| 15 | 941798-00 | 1 | LOCKING PIN | GB | |
||
| 16 | 942329-00 | 6 | SCREW | GB | |
||
| 17 | 761065-00 | 1 | PIN | GB | |
||
| 18 | 949853-03 | 1 | SCREW | GB | |
||
| 19 | 869212-00 | 1 | SCREW | GB | |
||
| 20 | 939625-00 | 1 | WASHER | GB | |
||
| 21 | 860092-04 | 1 | NUT,STOP M5 | GB | |
||
| 22 | 616592-00 | 2 | BOLT | M8 x 16 | GB | |
|
| 23 | 607182-00 | 2 | BUSHING | GB | |
||
| 24 | 150075-00 | 1 | SCREW | GB | |
||
| 25 | 860083-03 | 1 | NUT | GB | |
||
| 26 | 869085-00 | 1 | SEGMENT | GB | |
||
| 27 | 860073-03 | 1 | WASHER M8 | GB | |
||
| 28 | 949884-01 | 1 | LEVER | GB | |
||
| 29 | 869205-01 | 2 | PIN | D6 x 36 | GB | |
|
| 30 | 148296-00 | 2 | WASHER | GB | |
||
| 31 | 869217-00 | 1 | HOUSING MOTOR | GB | |
||
| 32 | 942277-00 | 2 | PROTECTOR | GB | |
||
| 34 | 869087-00 | 1 | SPINDLE | GB | |
||
| 35 | 869089-00 | 1 | GUARD COVER | GB | |
||
| 36 | 869123-00 | 1 | GROMMET | GB | |
||
| 37 | 860085-32 | 1 | SCREW | M8 X 160 | GB | |
|
| 39 | 949743-01 | 2 | SCREW | GB | |
||
| 40 | 869230-00 | 1 | ROTARY TABLE | GB | |
||
| 41 | 861452-02 | 1 | KNOB | GB | |
||
| 42 | 869205-00 | 1 | PIN | GB | |
||
| 43 | 869179-00 | 1 | INSERT | GB | |
||
| 44 | 869179-01 | 1 | INSERT | GB | |
||
| 46 | 623289-00 | 1 | LABEL | GB | |
||
| 47 | 869198-00 | 1 | SCREW | M8 x 20 | GB | |
|
| 48 | N060145 | 1 | TABLE | GB | |
||
| 49 | 869127-00 | 1 | BACK FENCE | GB | |
||
| 50 | 869224-00 | 1 | CLAMP | GB | |
||
| 51 | 861721-15 | 2 | BEARING 6202 | 6202 2RS EMS | GB | |
|
| 52 | 869090-00 | 1 | WASHER | GB | |
||
| 53 | 860085-28 | 1 | SCREW | GB | |
||
| 54 | 861983-01 | 1 | WASHER | GB | |
||
| 55 | 869094-01 | 1 | BELT | PV-559J8 | GB | |
|
| 56 | 869096-00 | 1 | RIVING KNIFE | GB | |
||
| 59 | 330045-49 | 8 | SCREW | GB | |
||
| 61 | 869196-00 | 1 | SCREW | M5 x 20 | GB | |
|
| 62 | 868216-02 | 1 | LOWER GUARD SA | GB | |
||
| 63 | 146774-00 | 1 | ROLLER | GB | |
||
| 64 | 860094-00 | 7 | SCREW.TEMP | GB | |
||
| 65 | 869119-00 | 1 | LEVER SA | GB | |
||
| 66 | N399933 | 2 | SCREW | M5x30 T30 Patch | GB | |
|
| 67 | 330003-16 | 1 | BEARING | GB | |
||
| 68 | 860079-05 | 1 | CIRCLIP | GB | |
||
| 69 | 860155-08 | 1 | BEARING | GB | |
||
| 70 | 869116-00 | 1 | BUSH | GB | |
||
| 71 | 860077-01 | 1 | WASHER | GB | |
||
| 72 | 616319-00 | 1 | WASHER INNER CLAMP | GB | |
||
| 73 | 604765-00 | 1 | CLAMP OUTER | GB | |
||
| 74 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | GB | |
|
| 75 | 869099-00 | 1 | WHEEL ADJUSTER | GB | |
||
| 76 | 869115-00 | 1 | ADJUSTER HEIGHT | GB | |
||
| 77 | 869118-00 | 1 | PLATE | GB | |
||
| 78 | 869188-00 | 1 | SPRING | GB | |
||
| 79 | 869117-00 | 1 | HANDLE | GB | |
||
| 80 | 868182-01 | 1 | SWITCH | GB | |
||
| 81 | 869185-00 | 1 | COVER | GB | |
||
| 82 | 942467-04 | 1 | LEAD SA | GB | |
||
| 84 | 869186-00 | 1 | TERMINAL BLOCK | GB | |
||
| 85 | 869122-00 | 1 | COVER BELT | GB | |
||
| 86 | 860092-05 | 1 | NUT | GB | |
||
| 87 | 869093-00 | 1 | PULLEY | GB | |
||
| 88 | 869092-00 | 1 | SPINDLE | GB | |
||
| 89 | N497345-01 | 1 | CAPACITOR SA | GB | |
||
| 90 | 869093-01 | 1 | PULLEY | GB | |
||
| 91 | 869221-00 | 1 | NUT | M14 | GB | |
|
| 92 | 860086-13 | 1 | SCREW | M8 x 65 | GB | |
|
| 93 | 869222-00 | 1 | SPACER | GB | |
||
| 94 | 949701-05 | 1 | SCREW | M8 x 20 | GB | |
|
| 95 | 869199-00 | 4 | LEG SA | GB | |
||
| 96 | 949891-03 | 1 | SCREW | GB | |
||
| 98 | 863257-01 | 1 | PLATE | GB | |
||
| 99 | 861989-00 | 1 | SCREW | GB | |
||
| 100 | 949719-04 | 1 | BEARING | GB | |
||
| 101 | 869064-00 | 1 | CABLE CLAMP | GB | |
||
| 102 | 869058-01 | 1 | KNOB | GB | |
||
| 107 | 861991-00 | 1 | CAP | GB | |
||
| 109 | 868181-10 | 1 | CABLE | GB | |
||
| 110 | 869124-02 | 1 | RATING PLATE | GB | |
||
| 112 | 861988-00 | 1 | SPRING | GB | |
||
| 114 | 860084-09 | 2 | SCREW | GB | |
||
| 115 | 860089-41 | 2 | SCREW | M8 x 35 | GB | |
|
| 116 | 869121-01 | 1 | SWITCH & CABLE SA | GB | |||
| 118 | 861095-01 | 2 | BUFFER | GB | |
||
| 122 | 861090-00 | 1 | SCREW | GB | |
||
| 123 | N162670 | 1 | PIVOT | GB | |
||
| 124 | 941622-00 | 1 | SPRING | GB | |
||
| 125 | 860084-11 | 1 | SCREW | GB | |
||
| 126 | N162669 | 1 | GUARD UPPER | GB | |
||
| 127 | N164678 | 1 | GUARD SA | GB | |
||
| 128 | 860083-14 | 1 | NUT | GB | |
||
| 130 | 610710-00 | 1 | WARNING LABEL | GB | |
||
| 132 | 861074-01 | 1 | CROSS BRACE | GB | |
||
| 135 | 626191-00 | 1 | LABEL | GB | |
||
| 136 | 942375-00 | 4 | FOOT | GB | |
||
| 140 | 615994-00 | 1 | CLIP | GB | |
||
| 141 | 330045-05 | 1 | SCREW | GB | |
||
| 142 | 98197-08 | 4 | WASHER | GB | |
||
| 143 | 942447-00 | 4 | SCREW | GB | |
||
| 144 | 941756-00 | 4 | KNOB | GB | |
||
| 146 | N156120 | 1 | FRAME LH | GB | |
||
| 147 | 869125-00 | 1 | LABEL | GB | |
||
| 148 | 861073-00 | 4 | FOOT | GB | |
||
| 153 | 942522-00 | 2 | SPRING | GB | |
||
| 154 | 942098-00 | 1 | LOCKING DEVICE | GB | |
||
| 155 | 942185-00 | 1 | SCREW | M6 | GB | |
|
| 157 | 942104-00 | 2 | BRIDGE | GB | |
||
| 160 | 861071-00 | 1 | CATCH | GB | |
||
| 161 | 861070-00 | 1 | LOCKING DEVICE | GB | |
||
| 162 | N156121 | 1 | FRAME RH | GB | |
||
| 163 | 942365-00 | 1 | PIN | GB | |
||
| 164 | 949876-08 | 2 | WASHER | GB | |
||
| 167 | 860094-03 | 2 | SCREW | GB | |
||
| 171 | 860073-07 | 2 | WASHER M6 | GB | |
||
| 175 | 861091-00 | 3 | CABLE CLAMP | GB | |
||
| 186 | 868538-00 | 1 | CONTACT SA | 230v | GB | |
|
| 192 | 941614-00 | 1 | FOOT | GB | |
||
| 196 | 860098-04 | 1 | WRENCH 6 MM | GB | |
||
| 197 | 869181-00 | 1 | WRENCH SPECIAL | GB | |
||
| 198 | 861063-00 | 1 | TABLE LATCH | GB | |
||
| 211 | 861084-00 | 1 | LOCKING PIN SA | GB | |
||
| 214 | 869086-00 | 2 | SPRING | GB | |
||
| 215 | 941602-00 | 1 | WASHER | GB | |
||
| 220 | 868428-02 | 1 | COVER | GB | |
||
| 221 | 868431-00 | 1 | GROMMET | GB | |
||
| 222 | 868429-00 | 1 | COVER | GB | |
||
| 223 | 941812-00 | 1 | SCREW.SPECIAL | GB | |||
| 224 | 933652-00 | 1 | WASHER | GB | |
||
| 235 | N060146 | 1 | GUARD SA | GB | |
||
| 236 | 868303-00 | 2 | FASTENER | GB | |
||
| 250 | 861099-00 | 1 | LABEL | GB | |
||
| 253 | N060144 | 1 | CORD | GB | |
||
| 257 | 868256-00 | 12 | SCREW | GB | |
||
| 258 | 949795-01 | 4 | SCREW | GB | |
||
| 266 | 860610-01 | 1 | PUSHROD | GB | |
||
| 269 | 949743-03 | 1 | SCREW | GB | |
||
| 270 | 942320-03 | 1 | GUIDE | GB | |
||
| 271 | 861346-00 | 1 | FENCE | GB | |
||
| 272 | 942316-01 | 1 | CLAMPING BAR | GB | |
||
| 273 | 860073-03 | 2 | WASHER M8 | GB | |
||
| 275 | 941819-01 | 1 | BRACKET | GB | |
||
| 276 | 941756-00 | 2 | KNOB | GB | |
||
| 277 | 860092-00 | 1 | NUT | GB | |
||
| 279 | 941578-01 | 1 | FENCE | GB | |
||
| 280 | 942172-00 | 1 | BASE | GB | |
||
| 282 | 942151-00 | 1 | RAIL | GB | |
||
| 283 | 860089-00 | 2 | SCREW.TEMP | GB | |
||
| 284 | 941518-00 | 1 | SCREW | GB | |
||
| 285 | 860083-12 | 1 | NUT M6 | GB | |
