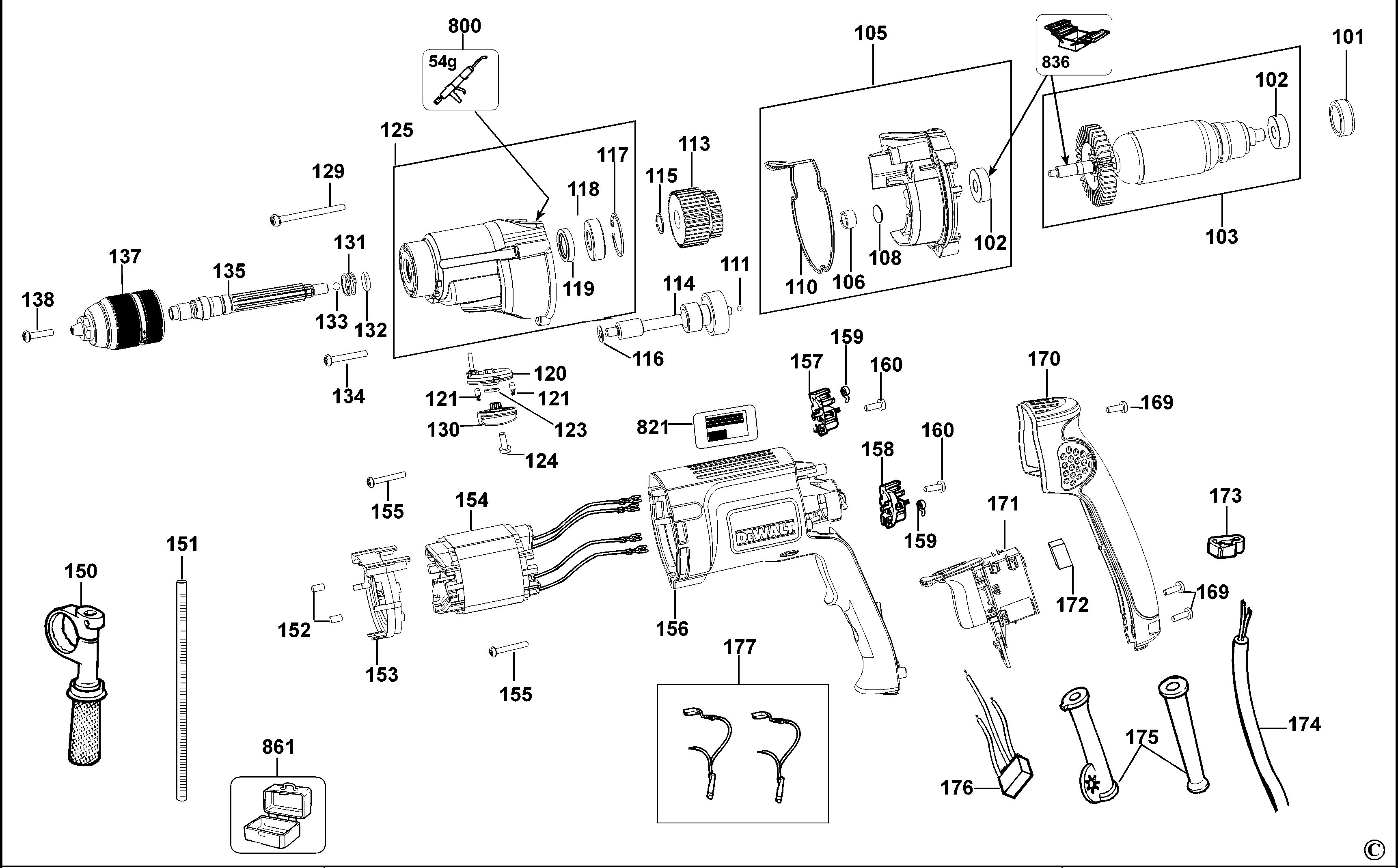

D21441 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 389824-00 | 1 | BOOT | GB |  |
||
| 102 | 605040-06 | 2 | BEARING,BALL | GB | |
||
| 103 | 494427-00 | 1 | ARMATURE 230V | GB | |
||
| 105 | 494624-00 | 1 | GEARCASE | GB | |
||
| 106 | 330004-20 | 1 | BEARING NEEDLE | GB | |
||
| 110 | 488148-00 | 1 | SEAL | GB | |
||
| 111 | 917725 | 1 | BALL | 3.5mm | GB | |
|
| 113 | 494625-00 | 1 | CLUTCH SA | GB | |
||
| 114 | 494627-00 | 1 | INTERSHAFT SA | GB | |
||
| 115 | 479369-00 | 1 | CIRCLIP | GB | |
||
| 116 | 492481-00 | 1 | WASHER | GB | |
||
| 117 | 488147-00 | 1 | CIRCLIP | GB | |
||
| 118 | 605040-25 | 1 | BEARING,BALL | GB | |
||
| 119 | 1006305-00 | 1 | SEAL | GB | |
||
| 120 | 479859-00 | 1 | SELECTOR SA | GB | |
||
| 121 | 326467-00 | 2 | DETENT | GB | |
||
| 123 | 323711-34 | 1 | O RING | GB | |
||
| 124 | 330065-22 | 1 | SCREW | GB | |
||
| 125 | 494628-00 | 1 | GEARCASE | GB | |
||
| 129 | 330019-30 | 2 | SCREW | GB | |
||
| 130 | 479865-00 | 1 | KNOB | GB | |
||
| 131 | 931890 | 1 | SPRING | GB | |
||
| 132 | 323711-34 | 1 | O RING | GB | |
||
| 133 | 000903-00 | 1 | BALL | GB | |
||
| 134 | 330019-16 | 1 | SCREW | GB | |
||
| 135 | 494630-00 | 1 | SPINDLE | GB | |
||
| 137 | 586200-11 | 1 | CHUCK KEYLESS | GB | |
||
| 138 | 490910-00 | 1 | SCREW | GB | |
||
| 150 | 939794-02 | 1 | HANDLE SIDE SA | GB | |
||
| 151 | 580787-00 | 1 | DEPTH STOP | GB | |
||
| 152 | 949638-02 | 2 | DAMPER | GB | |
||
| 153 | 176811-00 | 1 | BAFFLE | GB | |
||
| 154 | 494631-00 | 1 | FIELD 230V | GB |  |
||
| 155 | 390198-00 | 2 | SCREW | GB | |
||
| 156 | 478814-00 | 1 | FIELD CASE | GB | |
||
| 157 | 401878-02 | 1 | BRUSH HOLDER SA | RH | GB | |
|
| 158 | 401877-02 | 1 | BRUSH HOLDER SA | LH | GB | |
|
| 160 | 330065-06 | 2 | SCREW | GB | |
||
| 169 | 330019-13 | 3 | SCREW | M4X19 T20 | GB | |
|
| 170 | 488142-00 | 1 | HANDLE COVER | GB | |
||
| 171 | 494635-00 | 1 | SWITCH 240V | Tyco | GB | |
|
| 172 | 930026-01 | 1 | BUMPER | GB | |
||
| 173 | 402648-00 | 1 | CORD CLAMP | GB | |
||
| 174 | 330060-28 | 1 | CORDSET | GB | |
||
| 175 | 401751-00 | 1 | CORD PROTECTOR | GB | |
||
| 176 | 585292-03 | 1 | CAPACITOR | GB | |
||
| 177 | 578393-02 | 1 | BRUSH KIT 230V | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 836 | 559666-99 | 1 | S.T.SUPPORT JIG | GB | |
||
| 861 | N383875 | 1 | KITBOX | GB | |
