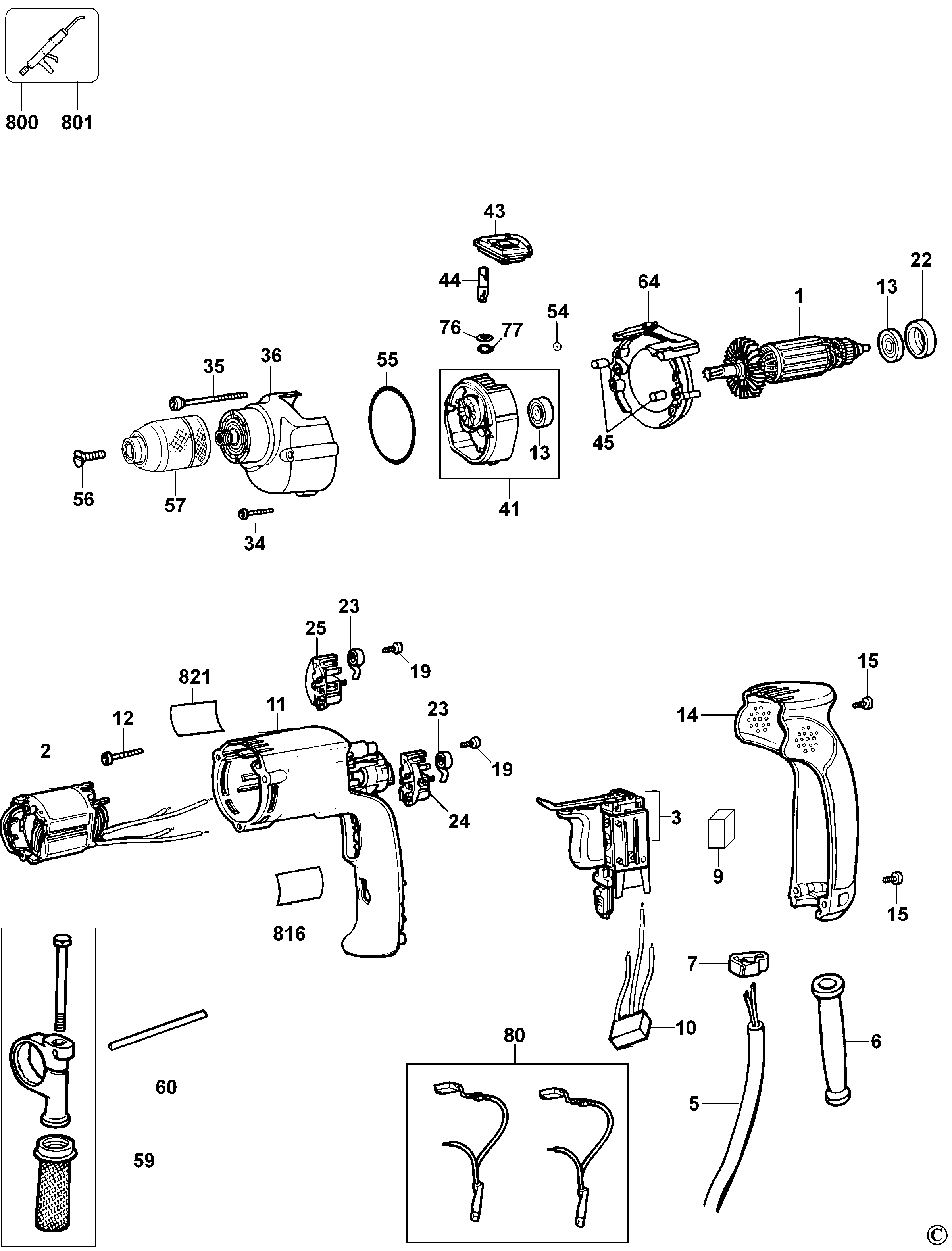

D21717 DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1007787-00 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 1005527-08 | 1 | FIELD 230V | GB | |
||
| 3 | 616576-01 | 1 | SWITCH | GB | |
||
| 5 | 330060-28 | 1 | CORDSET | GB |  |
||
| 6 | 401751-00 | 1 | CORD PROTECTOR | GB | |
||
| 7 | 402648-00 | 1 | CORD CLAMP | GB | |
||
| 9 | 930026-01 | 1 | BUMPER | GB | |
||
| 10 | 585292-03 | 1 | CAPACITOR | GB | |
||
| 11 | N014400 | 1 | FIELD CASE | GB | |
||
| 11 | N014400 | 1 | FIELD CASE | GB | |
||
| 12 | 390198-00 | 2 | SCREW | GB | |
||
| 13 | 605040-06 | 2 | BEARING,BALL | GB | |
||
| 14 | 176816-03 | 1 | HANDLE COVER | GB | |
||
| 15 | 330019-13 | 3 | SCREW | M4X19 T20 | GB | |
|
| 19 | 330065-06 | 2 | SCREW | GB | |
||
| 22 | 389824-00 | 1 | BOOT | GB | |
||
| 23 | 402759-00 | 2 | BRUSH SPRING | GB | |
||
| 24 | 401877-01 | 1 | BRUSH HOLDER SA | GB | |
||
| 25 | 401878-01 | 1 | BRUSH HOLDER SA | GB | |||
| 34 | 330019-14 | 1 | SCREW | GB | |
||
| 35 | 330019-17 | 2 | SCREW | GB | |
||
| 36 | 590106-00 | 1 | HOUSING SA | GB | |
||
| 41 | 590108-00 | 1 | GEARCASE SA | GB | |
||
| 43 | 590107-00 | 1 | SELECTOR SA | GB | |
||
| 44 | 946106-00 | 1 | PIN | GB | |
||
| 45 | 949638-02 | 2 | DAMPER | GB | |
||
| 54 | 000903-00 | 1 | BALL | GB | |
||
| 55 | 401847-00 | 1 | SEAL | GB | |
||
| 56 | 490910-00 | 1 | SCREW | GB | |
||
| 57 | 586200-01 | 1 | CHUCK KEYLESS | GB | |
||
| 59 | 939794-02 | 1 | HANDLE SIDE SA | GB | |
||
| 60 | 940357-00 | 1 | DEPTH STOP | GB | |
||
| 64 | 585994-00 | 1 | BAFFLE FAN | GB | |
||
| 76 | 050050-00 | 1 | RING | GB | |
||
| 77 | 176659-00 | 1 | WASHER | GB | |
||
| 80 | 578393-02 | 1 | BRUSH KIT 230V | GB | |
||
| 800 | 429911-00 | 1 | GREASE 40 GMS | GB | |
||
| 801 | 870889-02 | 1 | GREASE | GB | |
||
| 816 | 395047-00 | 1 | BRAND LABEL | GB | |
||
| 821 | 1008100-11 | 1 | RATING PLATE | GB | |
