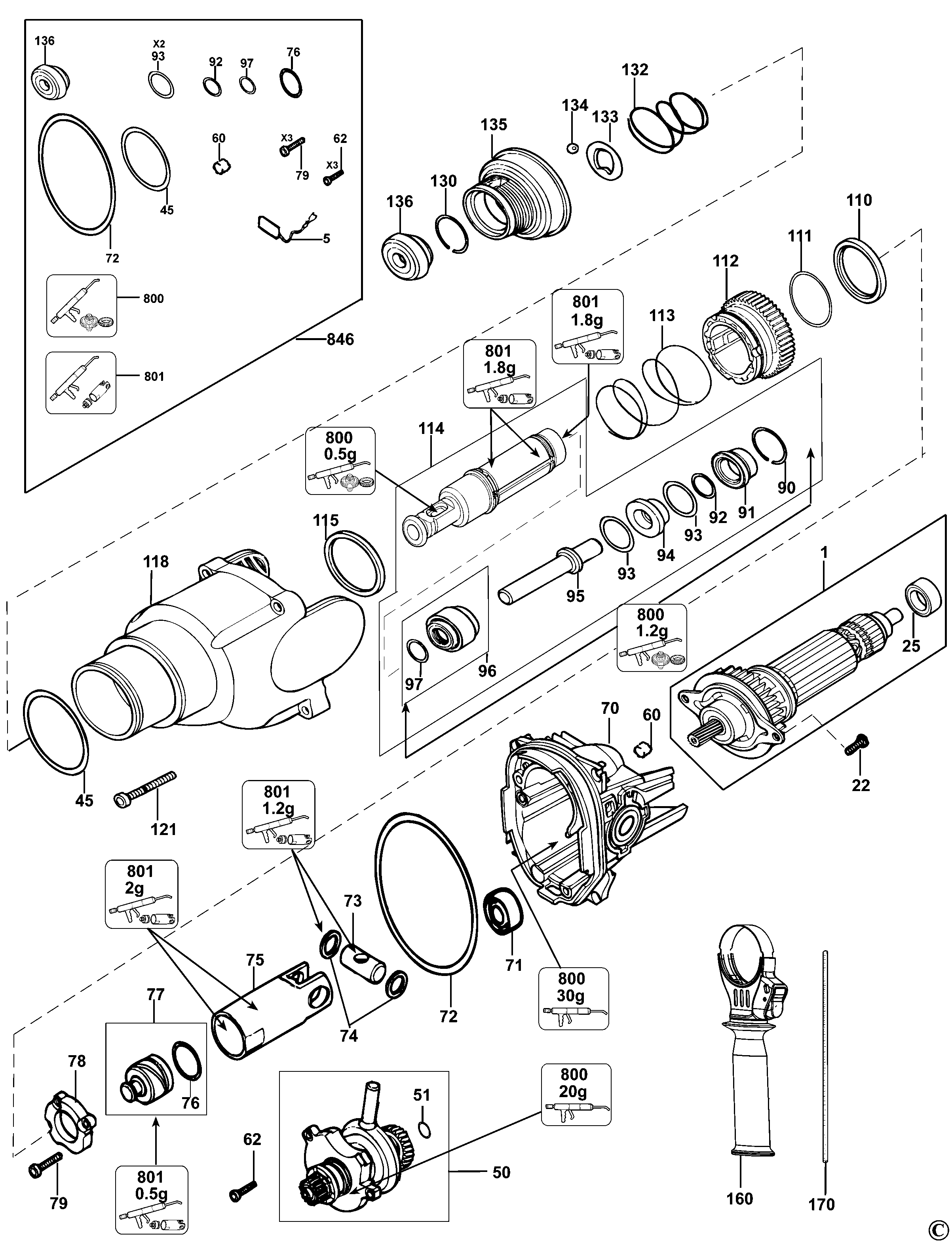

D25211K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 7 | 584090-00 | 1 | CORD PROTECTOR | XJ | |||
| 9 | 330065-26 | 1 | SCREW | XJ |  |
||
| 18 | 930026-01 | 1 | BUMPER | XJ | |
||
| 19 | 578218-00 | 1 | SLIDER | DeWALT | XJ | |
|
| 20 | 578220-00 | 1 | LEVER | XJ | |
||
| 21 | 870052 | 1 | SLEEVE | XJ | |
||
| 22 | 324006-14 | 2 | SCREW | XJ |  |
||
| 23 | 326519-03 | 4 | SCREW | XJ | |
||
| 24 | 582144-00 | 1 | BAFFLE | XJ | |
||
| 25 | 330003-19 | 1 | BEARING | XJ | |
||
| 31 | 578277-00 | 1 | FIELD CASE | XJ | |
||
| 32 | 586503-00 | 1 | HANDLE SA | XJ | |
||
| 34 | 578278-10 | 1 | HANDLE COVER | XJ | |
||
| 36 | 821070 | 1 | CORD CLAMP | XJ | |
||
| 37 | 330065-08 | 4 | SCREW | M4x18 T20 | XJ | |
|
| 40 | 330065-25 | 4 | SCREW | XJ | |
||
| 45 | 577791-00 | 1 | O RING | XJ | |
||
| 50 | 585480-00 | 1 | INTERSHAFT SA | XJ | |
||
| 51 | 580907-00 | 1 | O RING | 5x1 | XJ | |
|
| 60 | 582865-00 | 1 | FILTER | XJ | |
||
| 62 | 583981-00 | 3 | SCREW | 4x16 | XJ | |
|
| 70 | 586502-00 | 1 | HOUSING SA | XJ | |
||
| 71 | 330003-31 | 1 | BEARING | XJ | |
||
| 72 | 578229-00 | 1 | SEAL | XJ | |
||
| 73 | 577801-00 | 1 | BEARING BLOCK | XJ | |
||
| 74 | 577802-00 | 2 | WASHER SHIM | XJ | |
||
| 75 | 496246-00 | 1 | PISTON | XJ | |
||
| 76 | 579699-00 | 1 | O RING | XJ | |
||
| 77 | 496245-00 | 1 | RAM | XJ | |
||
| 78 | N042808 | 1 | BEARING BUSH | XJ | |
||
| 79 | 324006-15 | 3 | SCREW | XJ | |
||
| 90 | 577793-00 | 1 | CLIP | XJ | |
||
| 91 | 584426-00 | 1 | BUSH | XJ | |
||
| 92 | 580990-00 | 1 | O RING | XJ | |
||
| 93 | 577135-00 | 2 | O RING | XJ | |
||
| 94 | 584425-00 | 1 | DAMPER | XJ | |
||
| 95 | 584424-00 | 1 | BEAT PIECE | XJ | |
||
| 96 | 584423-00 | 1 | BEARING & SEAL | XJ | |
||
| 97 | 577139-00 | 1 | SEAL | XJ | |
||
| 110 | 577797-00 | 1 | WASHER | XJ | |||
| 111 | 577744-00 | 1 | O RING | 25.5 X 2 | XJ | |
|
| 112 | 587482-00 | 1 | CLUTCH SA | XJ | |
||
| 113 | 579178-00 | 1 | SPRING | XJ | |
||
| 114 | 584422-00 | 1 | CYLINDER SA | XJ | |
||
| 115 | 577814-00 | 1 | WASHER | XJ | |
||
| 118 | 586500-00 | 1 | GEARCASE SA | XJ | |
||
| 121 | 330065-28 | 4 | SCREW | XJ | |
||
| 130 | 579212-00 | 1 | RING | XJ | |
||
| 132 | 871690 | 1 | SPRING | XJ | |
||
| 133 | 578387-00 | 1 | WASHER | XJ | |
||
| 134 | 583890-00 | 1 | BALL | XJ | |
||
| 135 | N774198 | 1 | TUBE SA | XJ | |
||
| 135 | N774198 | 1 | TUBE SA | XJ | |
||
| 136 | 323489-00 | 1 | CAP | XJ | |
||
| 170 | 495699-00 | 1 | DEPTH STOP | XJ | |
||
| 800 | 870889-02 | 1 | GREASE | XJ | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | XJ | |
|
| 817 | 496620-00 | 1 | LABEL | XJ | |
||
| 846 | 585499-00 | 1 | SERVICE KIT 230V | XJ | |
||
| 861 | N383875 | 1 | KITBOX | XJ | |
