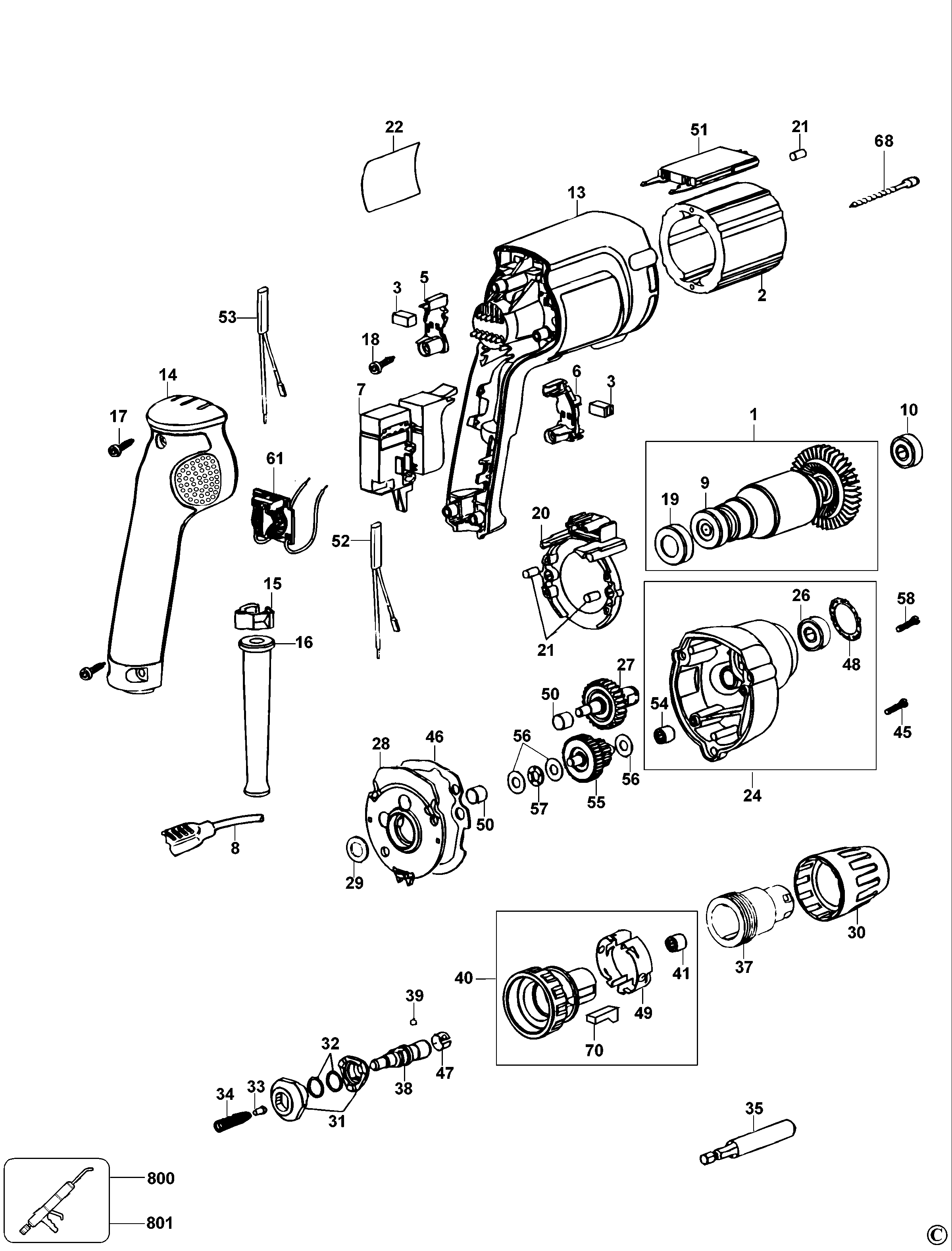

DW264K SCREWDRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 176853-01SV | 1 | ARMATURE & FAN | GB |  |
||
| 2 | 579636-00 | 1 | FIELD 230V | GB | |
||
| 3 | 176949-00 | 2 | BRUSH 230V | GB |  |
||
| 5 | 176801-03 | 1 | BRUSH HOLDER | GB | |
||
| 6 | 176800-03 | 1 | BRUSH HOLDER | GB | |
||
| 7 | 176830-15 | 1 | SWITCH | Tyco | GB | |
|
| 8 | 330060-07 | 1 | CORDSET | GB | |
||
| 9 | 605040-06 | 1 | BEARING,BALL | GB | |
||
| 10 | 605040-06 | 1 | BEARING,BALL | GB | |
||
| 13 | 396969-04 | 1 | FIELD CASE | GB | |
||
| 14 | 176816-03 | 1 | HANDLE COVER | GB | |
||
| 15 | 402648-00 | 1 | CORD CLAMP | GB | |
||
| 16 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 16 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | GB | |
|
| 18 | 330065-06 | 2 | SCREW | GB | |
||
| 19 | 389824-00 | 1 | BOOT | GB | |
||
| 20 | 176811-00 | 1 | BAFFLE | GB | |
||
| 21 | 949638-02 | 3 | DAMPER | GB | |
||
| 22 | 395047-00 | 1 | BRAND LABEL | GB | |
||
| 24 | 176706-00SV | 1 | GEARCASE | GB | |
||
| 24 | 176706-00SV | 1 | GEARCASE | GB | |
||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | GB | |
|
| 27 | 176710-00 | 1 | SPINDLE & GEAR SA | GB | |
||
| 28 | 388761-00 | 1 | GEARCASE COVER | GB | |
||
| 29 | 23813-00 | 1 | WASHER | GB | |
||
| 30 | 152492-01 | 1 | COLLAR | GB | |
||
| 31 | 603478-00 | 2 | CLUTCH | GB | |||
| 32 | 089210-00 | 2 | RETAINER | GB | |
||
| 33 | 021287-00 | 1 | GUIDE | GB | |
||
| 34 | 86211-00 | 1 | SPRING | GB | |||
| 35 | 364262-04 | 1 | HOLDER BIT | 5/16" Tek Nutsetter | GB | |
|
| 37 | 448862-01 | 1 | LOCATOR | 5/16 Nut Runner | GB | |
|
| 37 | 448862-00 | 1 | LOCATOR | 3/8 Nut Runner | GB | |
|
| 37 | 448862-02 | 1 | LOCATOR | 7/16 Nut Runner | GB | |
|
| 38 | 176697-00 | 1 | SPINDLE | GB | |
||
| 39 | 696631-00 | 1 | BALL | GB | |
||
| 40 | N543023 | 1 | HOUSING | GB | |
||
| 40 | N543023 | 1 | HOUSING | GB | |
||
| 41 | 448848-00 | 1 | SLEEVE BEARING | GB | |
||
| 45 | 330019-14 | 1 | SCREW | GB | |
||
| 46 | 176655-00 | 1 | GASKET | GB | |
||
| 47 | 94518-00 | 1 | RETAINER | GB | |||
| 48 | 176689-00 | 1 | RETAINER | GB | |
||
| 49 | 391436-00 | 2 | SPRING | GB | |
||
| 50 | 093128-00 | 2 | BEARING NEEDLE | GB | |
||
| 51 | 176917-00 | 1 | MODULE | GB | |
||
| 52 | 176890-00 | 1 | LEAD WHITE | GB | |
||
| 53 | 176890-01 | 1 | LEAD RED | GB | |
||
| 54 | 93129-00 | 1 | BEARING NEEDLE | GB | |||
| 55 | 176711-00 | 1 | SPINDLE & GEAR SA | GB | |
||
| 56 | 176732-00 | 3 | WASHER | GB | |
||
| 57 | 143079-00 | 1 | BEARING THRUST | GB | |
||
| 58 | 330019-16 | 2 | SCREW | GB | |
||
| 61 | 383714-00 | 1 | ELECTRONIC | GB | |
||
| 68 | 390198-00 | 2 | SCREW | GB | |
||
| 70 | 390437-01 | 1 | PLUG | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 801 | 69542-00 | 1 | GREASE | GB | |
