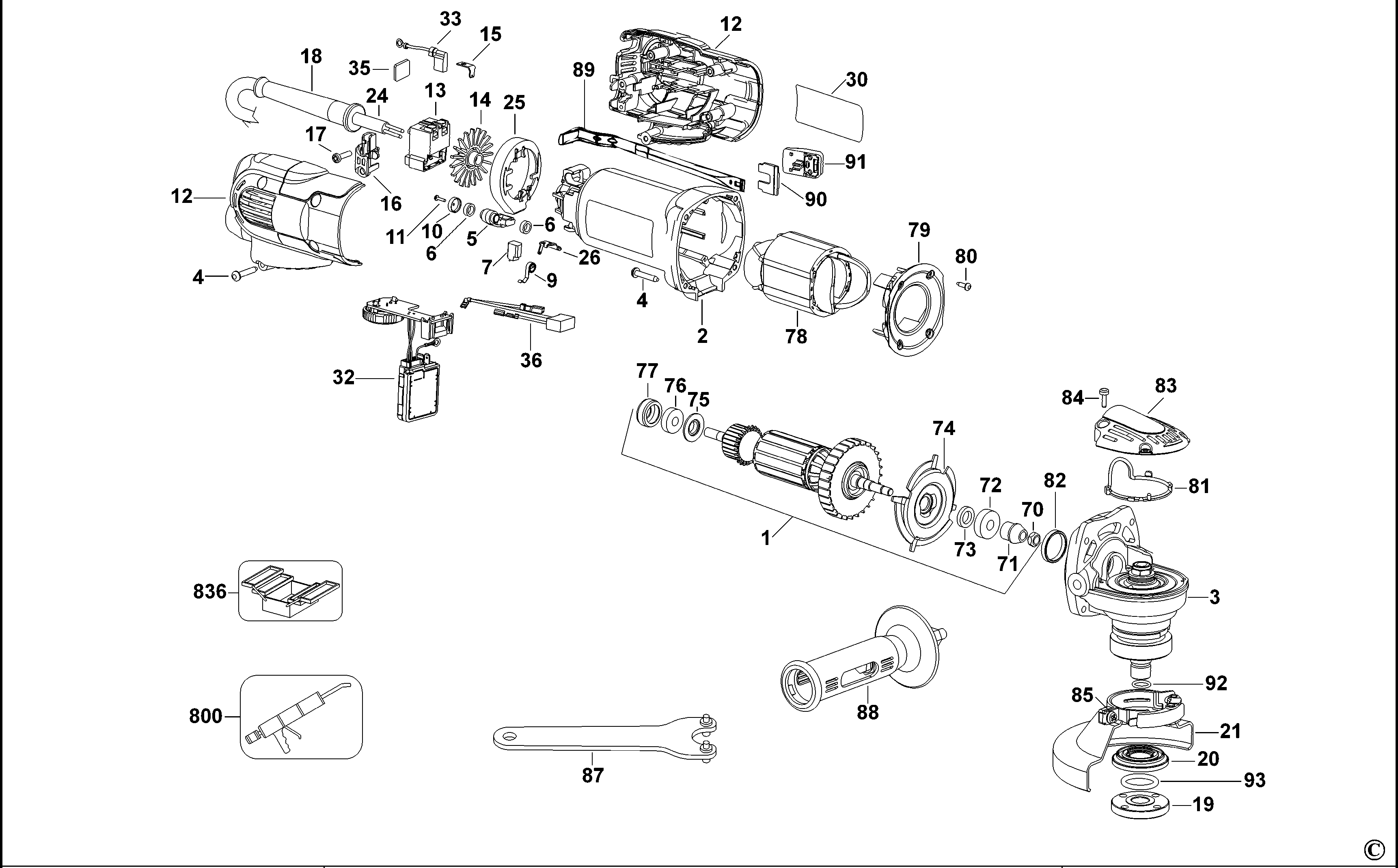

D28117 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 635994-00 | 1 | ARMATURE 230V | 230V | GB |  |
|
| 2 | 623599-03 | 1 | FIELDCASE | GB |  |
||
| 3 | 629447-03 | 1 | GEARCASE SA | M14,CLUTCH,AUTOBAL | INCL 82, 92 | GB | |
| 4 | 330065-31 | 9 | PLASTIC SCREW | GB | |
||
| 5 | 648743-00 | 2 | ARM | BRUSH | GB | |
|
| 6 | 623592-00 | 4 | FELT SEAL | GB | |
||
| 7 | 1003860-00 | 1 | BRUSH PAIR 230V | 636128-03 x 2 | GB | |
|
| 9 | 623589-00 | 2 | BRUSH SPRING | GB | |
||
| 10 | 623591-00 | 2 | BRUSH CAP | GB | |
||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | GB | |
|
| 12 | 635996-00 | 1 | HANDLE SA | GB | |
||
| 13 | 945614-01 | 1 | SWITCH | GB | |
||
| 14 | 633515-00 | 1 | SEPARATOR | PARTICLE, W/MAGNET | GB | |
|
| 15 | 634599-00 | 1 | TERMINAL | GB | |
||
| 16 | 628398-00 | 1 | CORD CLAMP | GB | |
||
| 17 | 330019-03 | 1 | SCREW | GB | |
||
| 18 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 18 | N542553 | 1 | CORD PROTECTOR | GB | |||
| 19 | 622613-02 | 1 | OUTER FLANGE | M14 | GB | |
|
| 20 | 633257-00SV | 1 | INNER FLANGE SA | INCL 93 | GB | |
|
| 21 | 634600-00 | 1 | GUARD SA | 115MM, AUTOBALANCE | INCL 85 | GB | |
| 24 | 562226-63 | 1 | CORDSET (M/PLUG) GB | GB | GB | |
|
| 25 | 637616-00 | 1 | BAFFLE | GB | |
||
| 26 | 623593-00 | 1 | TERMINAL | GB | |
||
| 30 | 635892-00 | 1 | BRAND LABEL | GB | |
||
| 32 | 642969-00 | 1 | CONTROL MODULE SA | SVC KIT SAG 230 VS | GB | |
|
| 33 | 631028-00 | 1 | LEAD SA | RED, 80mm, 18GA | GB | |
|
| 35 | 633391-00 | 1 | SEAL | TERMINAL | GB | |
|
| 36 | 637251-00 | 1 | CAPACITOR SA | W/CAPACITOR | GB | |
|
| 70 | 604484-00 | 1 | NUT | GB | |
||
| 71 | 627465-00 | 1 | PINION | 9 TOOTH | GB | |
|
| 72 | 605040-11 | 1 | BEARING,BALL | 608 (8 x 22 x 7) | GB | |
|
| 73 | 623617-00 | 1 | FELT SEAL | GB | |
||
| 74 | N422242 | 1 | RETAINER | GB | |
||
| 75 | 623613-00 | 1 | WASHER | GB | |
||
| 76 | 605040-02 | 1 | BEARING | GB | |
||
| 77 | 641823-00 | 1 | SLEEVE | GB | |
||
| 78 | 621220-03 | 1 | FIELD SA 230V | 230V | GB | |
|
| 79 | 623572-00 | 1 | BAFFLE FAN | GB | |
||
| 80 | 626360-00 | 4 | SCREW | M3 x 10 | GB | |
|
| 81 | 632513-00 | 1 | GASKET | GB | |
||
| 82 | 611492-00 | 1 | SLEEVE | GB | |
||
| 83 | 627313-00 | 1 | GEARCASE COVER | GB | |
||
| 84 | 385676-01 | 4 | SCREW | GB | |
||
| 85 | 631609-01 | 1 | SCREW | GB | |
||
| 87 | 401680-00 | 1 | WRENCH | GB | |
||
| 88 | 614796-00 | 1 | SIDE HANDLE | ANTI-VIB. | GB | |
|
| 89 | 637304-00 | 1 | LINK | GB | |
||
| 90 | 644326-00 | 1 | BAR LOCKING | LOCK | GB | |
|
| 91 | 623608-00 | 1 | BUTTON START | GB | |
||
| 92 | 633045-00 | 1 | O RING | 9.19x2.62 | GB | |
|
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | GB | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
|
| 836 | 233804-36 | 1 | DRIVER | T6 | GB |
