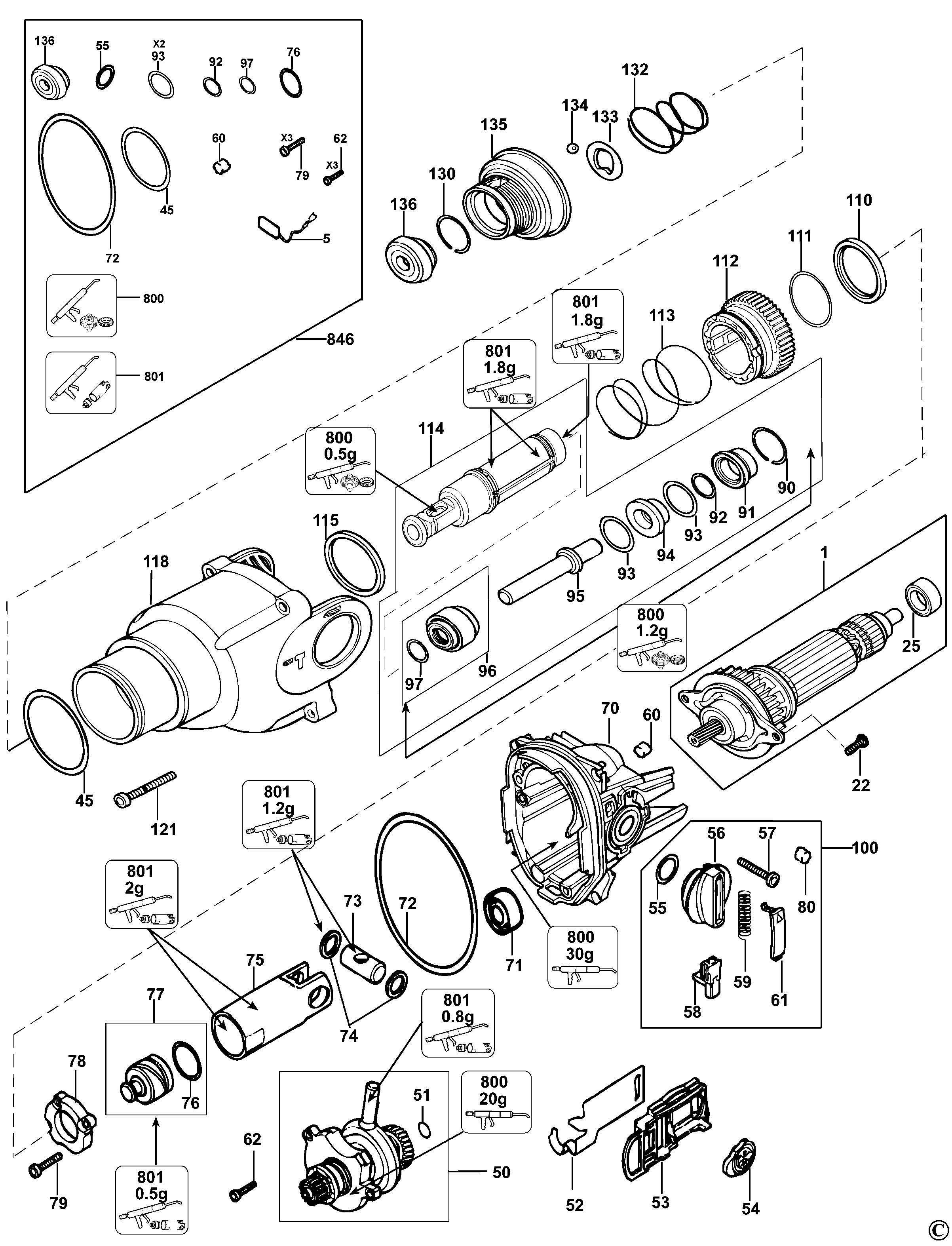

D25112K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 496249-00 | 1 | ARMATURE 120V | LX |  |
||
| 2 | 496247-00 | 1 | FIELD 120V | LX |  |
||
| 3 | 583748-05 | 1 | SWITCH 115V | LX | |
||
| 4 | 577830-03 | 2 | BRUSH HOLDER SA | 120 Volt | LX | |
|
| 5 | 585475-01 | 1 | BRUSH PAIR 115V | LX | |
||
| 6 | 320842-19 | 1 | CAPACITOR | LX | |
||
| 7 | 584090-00 | 1 | CORD PROTECTOR | LX | |||
| 8 | 582319-05 | 1 | CORDSET (M/PLUG) | 115 VOLT | LX | |
|
| 12 | 584304-00 | 1 | LEAD WHITE | LX | |
||
| 13 | 584304-10 | 1 | LEAD BLUE | LX | |
||
| 14 | 584304-04 | 1 | LEAD BLACK | LX | |
||
| 15 | 584304-05 | 1 | LEAD VIOLET | LX | |
||
| 16 | 584304-08 | 1 | CHOKE LEAD RED | LX | |
||
| 17 | 584304-09 | 1 | CHOKE LEAD SA | Yellow | LX | |
|
| 18 | 930026-01 | 1 | BUMPER | LX | |
||
| 19 | 479818-00 | 1 | LEVER | LX | |
||
| 21 | 870052 | 1 | SLEEVE | LX | |
||
| 22 | 324006-14 | 2 | SCREW | LX | |
||
| 23 | 326519-03 | 4 | SCREW | LX | |
||
| 25 | 330003-19 | 1 | BEARING | LX | |
||
| 29 | 584551-00 | 1 | INSERT | LX | |
||
| 31 | 577826-00 | 1 | BAFFLE FAN | LX | |
||
| 32 | 577810-00 | 1 | FIELDCASE | LX | |
||
| 34 | 479817-00 | 1 | HANDLE COVER | LX | |
||
| 35 | 330065-06 | 4 | SCREW | LX | |
||
| 36 | 821070 | 1 | CORD CLAMP | LX | |
||
| 37 | 330065-09 | 1 | SCREW | LX | |
||
| 40 | 330065-25 | 4 | SCREW | LX | |
||
| 45 | 577791-00 | 1 | O RING | LX | |
||
| 50 | 585480-00 | 1 | INTERSHAFT SA | LX | |
||
| 51 | 580907-00 | 1 | O RING | 5x1 | LX | |
|
| 52 | 578271-00 | 1 | PLATE | LX | |
||
| 53 | 579564-00 | 1 | HOLDER | LX | |
||
| 54 | 579552-00 | 1 | SELECTOR | LX | |
||
| 55 | 584638-00 | 1 | O RING | 14x2 | LX | |
|
| 56 | 587269-00 | 1 | LEVER | LX | |
||
| 57 | 324007-14 | 1 | SCREW | 4x20 | LX | |
|
| 58 | 579184-00 | 1 | LOCK BUTTON | LX | |
||
| 59 | 579179-00 | 1 | SPRING | LX | |
||
| 60 | 582865-00 | 1 | FILTER | LX | |
||
| 61 | 579185-00 | 1 | COVER | LX | |
||
| 62 | 583981-00 | 3 | SCREW | 4x16 | LX | |
|
| 70 | 585482-00 | 1 | HOUSING SA | LX | |
||
| 71 | 330003-31 | 1 | BEARING | LX | |
||
| 72 | 578229-00 | 1 | SEAL | LX | |
||
| 73 | 577801-00 | 1 | BEARING BLOCK | LX | |
||
| 74 | 577802-00 | 2 | WASHER SHIM | LX | |
||
| 75 | 496246-00 | 1 | PISTON | LX | |
||
| 76 | 579699-00 | 1 | O RING | LX | |
||
| 77 | 496245-00 | 1 | RAM | LX | |
||
| 78 | N042808 | 1 | BEARING BUSH | LX | |
||
| 79 | 324006-15 | 3 | SCREW | LX | |
||
| 80 | 587252-00 | 1 | FILTER | LX | |
||
| 90 | 577793-00 | 1 | CLIP | LX | |
||
| 91 | 584426-00 | 1 | BUSH | LX | |
||
| 92 | 580990-00 | 1 | O RING | LX | |
||
| 93 | 577135-00 | 2 | O RING | LX | |
||
| 94 | 584425-00 | 1 | DAMPER | LX | |
||
| 95 | 584424-00 | 1 | BEAT PIECE | LX | |
||
| 96 | 584423-00 | 1 | BEARING & SEAL | LX | |
||
| 97 | 577139-00 | 1 | SEAL | LX | |
||
| 100 | 495665-00 | 1 | LEVER KIT | LX | |
||
| 110 | 577797-00 | 1 | WASHER | LX | |||
| 111 | 577744-00 | 1 | O RING | 25.5 X 2 | LX | |
|
| 112 | 587482-00 | 1 | CLUTCH SA | LX | |
||
| 113 | 579178-00 | 1 | SPRING | LX | |
||
| 114 | 584422-00 | 1 | CYLINDER SA | LX | |
||
| 115 | 577814-00 | 1 | WASHER | LX | |
||
| 118 | 586501-00 | 1 | HOUSING SA | 2 Mode | LX | |
|
| 121 | 330065-28 | 4 | SCREW | LX | |
||
| 130 | 579212-00 | 1 | RING | LX | |
||
| 132 | 871690 | 1 | SPRING | LX | |
||
| 133 | 578387-00 | 1 | WASHER | LX | |
||
| 134 | 583890-00 | 1 | BALL | LX | |
||
| 135 | N774198 | 1 | TUBE SA | LX | |
||
| 135 | N774198 | 1 | TUBE SA | LX | |
||
| 136 | 323489-00 | 1 | CAP | LX | |
||
| 160 | 589467-00 | 1 | SIDE HANDLE | LX | |
||
| 170 | 495699-00 | 1 | DEPTH STOP | LX | |
||
| 800 | 870889-02 | 1 | GREASE | LX | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | LX | |
|
| 817 | 496620-00 | 1 | LABEL | LX | |
||
| 821 | 495119-31 | 1 | RATING PLATE | LX | |
||
| 846 | 585500-00 | 1 | SERVICE KIT 115V | LX | |
||
| 861 | N383875 | 1 | KITBOX | LX | |
