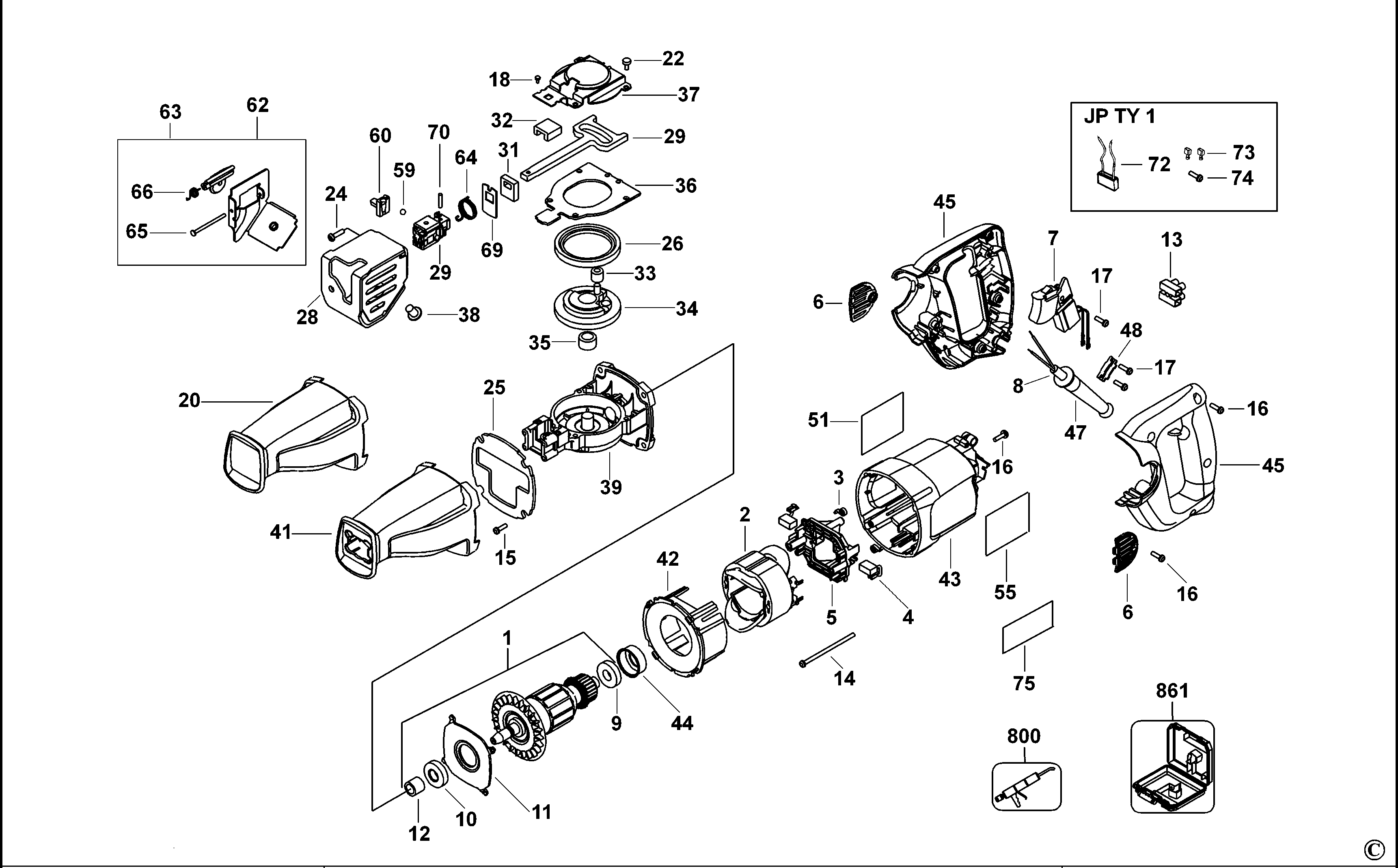

DW304PK CUTSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 383387-00 | 2 | BRUSH SPRING | XJ |  |
||
| 4 | N501035 | 2 | BRUSH 230V | XJ | |
||
| 5 | N402490 | 1 | BRUSH SA | XJ | |
||
| 6 | 382751-00 | 2 | COVER BRUSH | XJ |  |
||
| 7 | 398894-00 | 1 | SWITCH | XJ | |||
| 9 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | XJ | |
|
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | XJ | |
|
| 11 | 383476-00 | 1 | PLATE | XJ | |
||
| 12 | 696060-00 | 1 | RETAINER | XJ | |
||
| 14 | 330019-50 | 2 | SCREW | M4.55x50 PLASTIC THD FMG | XJ | |
|
| 15 | 330019-15 | 4 | SCREW | XJ | |
||
| 16 | 330019-13 | 9 | SCREW | M4X19 T20 | XJ | |
|
| 17 | 330019-02 | 2 | SCREW | XJ | |
||
| 18 | 158472-00 | 2 | SCREW | XJ | |
||
| 20 | 146583-00 | 1 | BOOT | XJ | |
||
| 22 | 144457-02 | 4 | SCREW | XJ | |
||
| 24 | 142940-00 | 4 | SCREW | XJ | |
||
| 25 | 146576-00 | 1 | GASKET | XJ | |
||
| 26 | N401394 | 1 | RING | XJ | |
||
| 28 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XJ | |
|
| 29 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XJ | |
|
| 31 | 609488-00 | 1 | FELT SEAL | XJ | |
||
| 32 | 604644-01 | 1 | BEARING | XJ | |
||
| 33 | 385238-00 | 1 | BEARING NEEDLE | XJ | |
||
| 34 | 448503-14SV | 1 | GEAR | XJ | |
||
| 35 | 135531-00 | 1 | BEARING | XJ | |
||
| 36 | N083910 | 1 | PLATE | XJ | |
||
| 37 | 448489-03 | 1 | PLATE | XJ | |
||
| 38 | 099279-08 | 1 | SCREW | XJ | |
||
| 39 | 616333-00SV | 1 | GEARCASE | XJ | |
||
| 41 | 613722-00SV | 1 | GEARCASE COVER SA | XJ | |
||
| 42 | 382750-01 | 1 | BAFFLE FAN | XJ | |
||
| 44 | 137382-02 | 1 | SLEEVE | XJ | |
||
| 48 | 450877-00 | 1 | CORD CLAMP | XJ | |
||
| 55 | 627212-00 | 1 | BRAND LABEL | DEWALT | XJ | |
|
| 59 | 000903-00 | 1 | BALL | XJ | |
||
| 60 | 616363-00 | 1 | SLIDER | XJ | |
||
| 62 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XJ | |
|
| 63 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XJ | |
|
| 64 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XJ | |
|
| 65 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XJ | |
|
| 66 | N302139 | 1 | SHAFT SA | SA Shaft w/SA Shoe | XJ | |
|
| 69 | 608202-00 | 1 | RETAINER | PLATE | XJ | |
|
| 70 | 330041-27 | 1 | ROLLPIN | XJ | |
||
| 72 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 74 | 330019-01 | 1 | SCREW.TEMP | M3.63 x 9.5mm T15 | XJ | |
|
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | XJ | |
|
| 861 | 381189-00 | 1 | KITBOX | XJ | |
