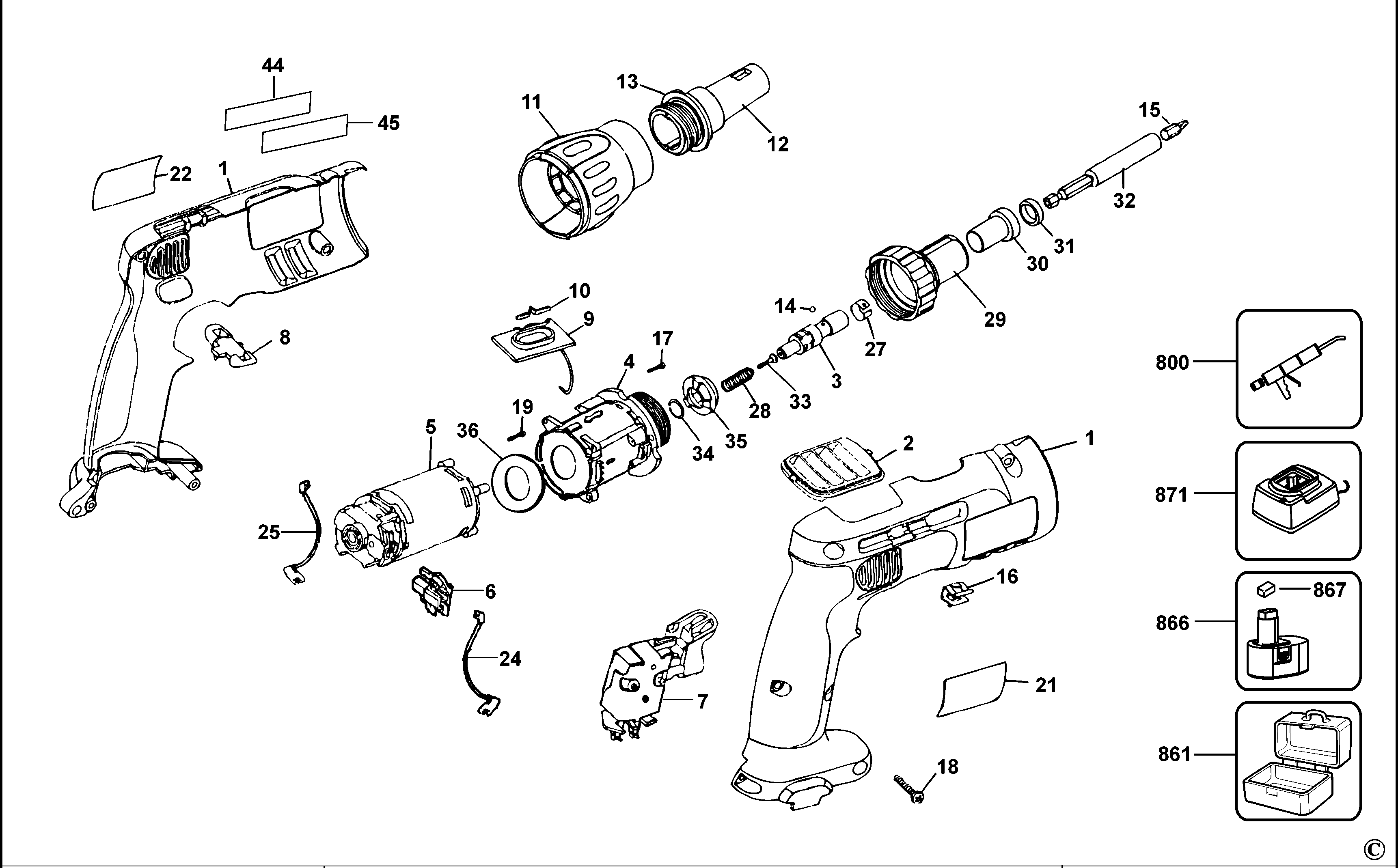

DC520K CORDLESS SCREWDRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 151791-21 | 1 | CLAMSHELL PAIR | GB |  |
||
| 2 | 151681-04 | 1 | VENT | GB | |
||
| 3 | N278979 | 1 | SPINDLE | Inc Items 14 & 27 | GB | |
|
| 4 | 152576-00SV | 1 | TRANSMISSION SA | GB | |
||
| 5 | 606004-11 | 1 | MOTOR SA | GB | |
||
| 6 | 493511-00 | 1 | BRUSH PAIR | GB |  |
||
| 7 | 152274-19SV | 1 | SWITCH | GB | |
||
| 8 | 151678-00 | 1 | BUTTON | GB | |
||
| 9 | 150939-01 | 1 | ACTUATOR | GB | |
||
| 10 | 144658-00 | 1 | SPRING | GB | |
||
| 11 | 151225-00 | 1 | COLLAR | GB | |
||
| 12 | 450770-01 | 1 | LOCATOR | GB | |
||
| 12 | 448862-00 | 1 | LOCATOR | 3/8 Nut Runner | GB | |
|
| 13 | 449890-00 | 1 | SEAL | GB | |
||
| 14 | 696631-00 | 1 | BALL | GB | |
||
| 15 | 607904-22 | 1 | BIT SCREWDRIVER | DRYWALL PR2 | GB | |
|
| 16 | 148354-03 | 2 | HOLDER | GB | |
||
| 17 | 330019-00 | 4 | SCREW | M3x16 T10 PLASTITE | GB | |
|
| 18 | 330013-04 | 7 | SCREW | GB | |
||
| 19 | 98091-10 | 4 | SCREW | GB | |
||
| 21 | N050305 | 1 | RATING PLATE | DC520-XJ Type 1 | GB | |
|
| 22 | 395657-00 | 1 | BRAND LABEL | GB | |
||
| 24 | N180562 | 1 | LEAD SA | w/EMI Beads | GB | |
|
| 24 | 389042-00 | 1 | LEAD RED | GB | |
||
| 25 | 389041-00 | 1 | LEAD BLACK | GB | |
||
| 25 | N180562 | 1 | LEAD SA | w/EMI Beads | GB | |
|
| 27 | 94518-00 | 1 | RETAINER | GB | |||
| 28 | 86211-00 | 1 | SPRING | GB | |||
| 29 | 448859-05 | 1 | HOUSING | Inc Items 30 & 31 | GB | |
|
| 30 | 450907-00 | 1 | SLEEVE | GB | |
||
| 31 | 696534-00 | 1 | SEAL | GB | |
||
| 32 | 619773-02 | 1 | HOLDER BIT | GB | |
||
| 33 | 021287-00 | 1 | GUIDE | GB | |
||
| 34 | 089210-00 | 1 | RETAINER | GB | |
||
| 35 | 603478-00 | 1 | CLUTCH | GB | |||
| 36 | 152482-00 | 1 | SEAL | GB | |
||
| 800 | 69542-00 | 1 | GREASE | GB | |
||
| 866 | 582627-00 | 2 | BATTERY 18V - 2.4AH | DC520KA | GB | |
|
| 867 | 645221-00 | 1 | CAP | GB | |
||
| 871 | 572576-00 | 1 | CHARGER 7.2V - 18V | GB | |
