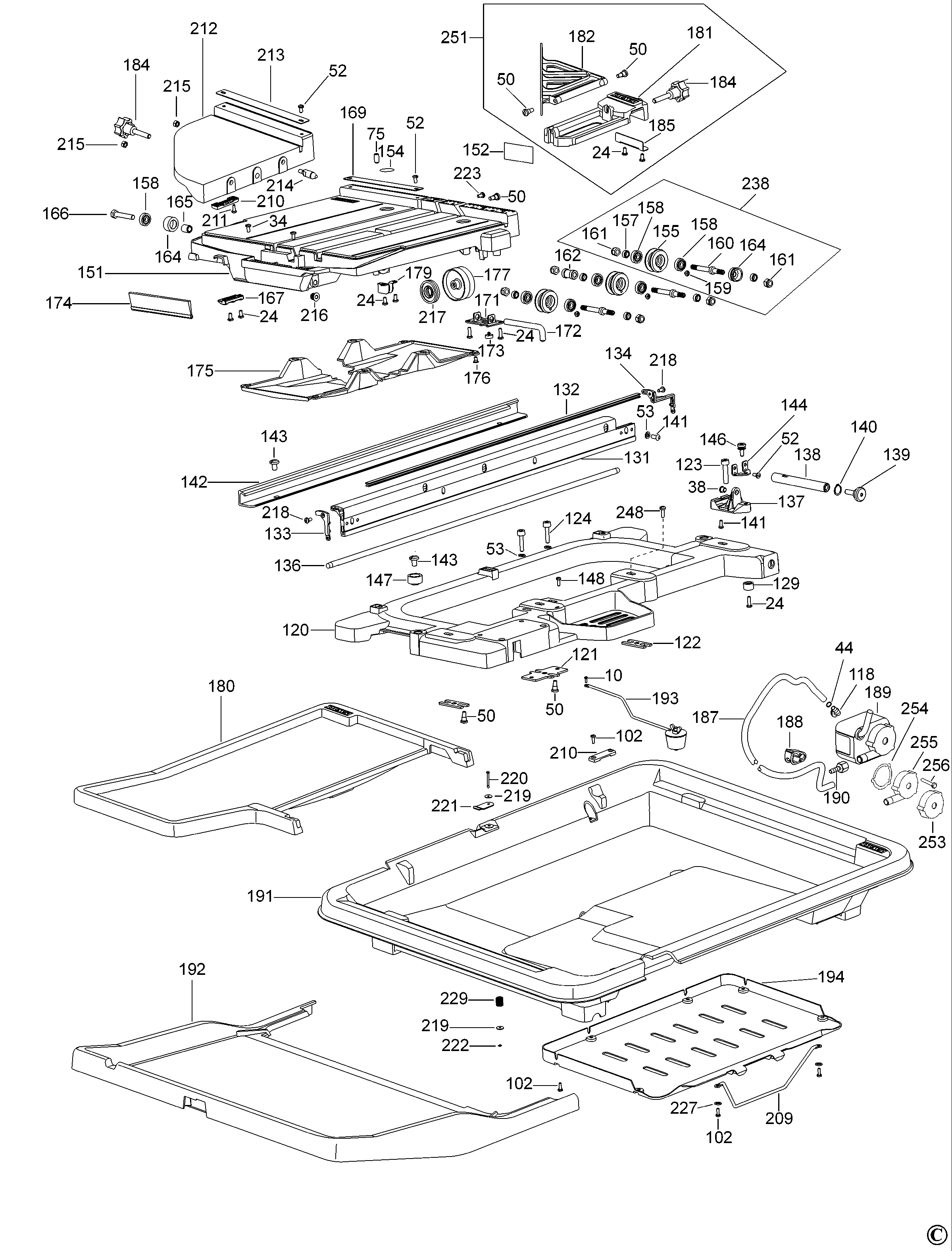

D24000 TILE CUTTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 5140024-35 | 1 | FIELDCASE | LX | |||
| 3 | 5140024-36 | 1 | FIELD 120V | 120V | LX |  |
|
| 4 | 5140024-37 | 1 | ARMATURE 120V | 120V | LX | |
|
| 5 | 605040-27 | 1 | BEARING | LX | |
||
| 6 | N043347 | 1 | BEARING | LX | |
||
| 7 | 398605-00 | 1 | RETAINER | LX | |
||
| 10 | 618303-00 | 2 | SCREW | M4.55 X 13 | LX | |
|
| 12 | 609970-00 | 1 | SLEEVE INSULATING | LX | |
||
| 13 | 682149-00 | 1 | BUSH | LX | |
||
| 16 | 616755-00 | 1 | NUT | ARBOR | LX | |
|
| 17 | 612689-00 | 1 | WASHER OUTER CLAMP | LX |  |
||
| 18 | 612690-00 | 1 | WASHER INNER CLAMP | LX | |
||
| 20 | 612692-00 | 1 | GEARCASE COVER SA | LX | |
||
| 21 | 330003-29 | 1 | BEARING,BALL | LX | |
||
| 24 | 618302-03 | 15 | SCREW | M5 X 16 | LX | |
|
| 26 | 627524-00 | 1 | ARM | INCL 28 AND 69 | LX | |
|
| 26 | 627524-00 | 1 | ARM | LX | |
||
| 27 | 618132-00 | 1 | LABEL | DEPTH STOP | LX | |
|
| 28 | 330004-06 | 1 | BEARING NEEDLE | LX | |
||
| 29 | 612698-00 | 1 | SPINDLE LOCK | LX | |
||
| 30 | 618568-00 | 1 | FELT SEAL | LX | |
||
| 31 | 398736-00 | 2 | SPRING | LX | |
||
| 32 | 616758-00 | 1 | LOCK BUTTON | SPINDLE LOCK | LX | |
|
| 33 | 612701-00 | 1 | LINER | WEAR | LX | |
|
| 34 | 618302-00 | 5 | SCREW | M4 X 10 | LX | |
|
| 35 | 612702-00 | 1 | HANDLE | LX | |
||
| 36 | 618302-06 | 17 | SCREW | M6 X 16 | LX | |
|
| 37 | 624451-00 | 1 | COVER | BLADE | INCL 232 | LX | |
| 38 | 148608-01 | 5 | INSERT | M6 STAINLESS | LX | |
|
| 39 | 612704-00 | 1 | SLEEVE | LX | |
||
| 40 | 612705-00 | 1 | RETAINER | LX | |
||
| 41 | 612768-00 | 1 | NOSE | LX | |
||
| 42 | 612771-00 | 1 | VALVE | MANIFOLD | LX | |
|
| 43 | 613462-00 | 2 | NOZZLE | LX | |
||
| 44 | 618353-00 | 4 | O RING | LX | |
||
| 45 | 612773-00 | 1 | PLATE | NOZZLE CLAMP | LX | |
|
| 47 | 612774-00 | 1 | LEVER | LX | |
||
| 48 | 618303-02 | 1 | SCREW | M4.55 X 25 | LX | |
|
| 49 | 612728-00 | 1 | RETAINER | LX | |
||
| 50 | 618369-00 | 11 | SCREW | SHOULDER | LX | |
|
| 51 | 612776-00 | 1 | FLAP | SIDE | LX | |
|
| 52 | 618302-02 | 13 | SCREW | M5 X 10 | LX | |
|
| 53 | 618540-00 | 10 | WASHER | SS | LX | |
|
| 54 | 612778-00 | 1 | REAR FLAP | LX | |
||
| 55 | 618540-01 | 1 | WASHER | SS | LX | |
|
| 56 | 618314-00 | 1 | COVER | INCL. LABELS/INSERTS | LX | |
|
| 57 | 395021-00 | 1 | LABEL | LX | |
||
| 58 | 618136-00 | 1 | WARNING LABEL | LX | |
||
| 59 | 618304-00 | 1 | SCREW | M6 X 25 SS | LX | |
|
| 61 | 612707-00 | 1 | SPACER | LX | |
||
| 62 | 618369-02 | 1 | SCREW | M6 SS SHOULDER | LX | |
|
| 63 | 618304-02 | 1 | SCREW | M6 12 SS MACH | LX | |
|
| 64 | 612669-00 | 1 | TRUNNION | ALSO ORDER ITEM 69 | LX | |
|
| 65 | 612708-00 | 1 | PIVOT SHAFT | LX | |
||
| 66 | 614031-00 | 1 | PIVOT SHAFT | LX | |
||
| 67 | 612710-00 | 2 | SPACER | SPRING | LX | |
|
| 68 | 612711-00 | 1 | SPRING | LX | |
||
| 69 | 612709-00 | 4 | BUSHING | LX | |
||
| 70 | 618305-00 | 4 | GRUB SCREW | M5 X 10 SS | LX | |
|
| 71 | 612712-00 | 1 | KNOB | BEVEL | LX | |
|
| 74 | 616763-00 | 1 | KNOB | LX | |
||
| 75 | 618305-02 | 2 | SCREW | M6 X 16 SS | LX | |
|
| 76 | 612671-00 | 1 | BRACKET | HEIGHT ADJUST | LX | |
|
| 77 | 618069-00 | 1 | KNOB | LX | |
||
| 78 | 618540-02 | 1 | WASHER | SS | LX | |
|
| 79 | 623621-00 | 1 | BOLT | LX | |
||
| 80 | 612709-01 | 1 | BUSHING | LX | |
||
| 81 | 612717-00 | 1 | PIN | LX | |
||
| 82 | 618542-00 | 1 | RETAINER | EXTERNAL RING | LX | |
|
| 83 | 618305-01 | 1 | SCREW | M5 X 5 | LX | |
|
| 84 | 618313-01 | 1 | COLUMN | incl item 85 | LX | |
|
| 85 | 632110-00 | 1 | WARNING LABEL | LX | |
||
| 86 | 612718-01 | 1 | PLATE | LX | |
||
| 87 | 616769-00 | 1 | SPANNER | LX | |
||
| 88 | 98000-13 | 1 | HEX KEY 4 MM | ZINC | LX | |
|
| 89 | 147190-01 | 1 | CLIP | LX | |
||
| 90 | 618123-00 | 1 | CLIP | LX | |
||
| 91 | 612677-00 | 1 | SUPPORT | LX | |
||
| 91 | 627525-00 | 1 | SUPPORT | INC 80,95 AND 198 | LX | ||
| 92 | 616770-01 | 3 | SCREW | M8 X 1.25 SHOULDER | LX | |
|
| 93 | 616771-00 | 1 | PLATE | LX | |
||
| 94 | 613811-00 | 1 | PLATE | LX | |
||
| 95 | 618133-00 | 1 | LABEL | BEVEL SCALE | LX | |
|
| 96 | 612722-00 | 1 | COVER | LX | |
||
| 97 | 612724-00 | 1 | END CAP | LX | |
||
| 98 | N020198 | 1 | SWITCH | LX | |
||
| 99 | 612784-01 | 1 | PLATE | SWITCH | LX | |
|
| 100 | 612726-01 | 1 | BEZEL | SWITCH | LX | |
|
| 101 | 612727-00 | 1 | ENCLOSURE | LX | |
||
| 102 | 618303-01 | 28 | SCREW | M4.55 X 19 SS | LX | |
|
| 103 | 616772-00 | 1 | COVER | LX | |
||
| 104 | 616773-00 | 1 | ENCLOSURE | POWERBOX | LX | |
|
| 105 | 616774-00 | 1 | CABLE SA | LX | |
||
| 106 | 450212-00 | 4 | TERMINAL | LX | |
||
| 107 | 450213-00 | 6 | TERMINAL | LX | |
||
| 109 | 605155-00 | 5 | BUSHING | LX | |
||
| 110 | 633730-00 | 1 | CORD | LX | |
||
| 111 | 053650-03 | 2 | TERMINAL | Amp 41332 | LX | |
|
| 114 | 388301-00 | 1 | CLIP | LX | |
||
| 115 | 098102-10 | 3 | SCREW.TEMP | M4x10 FLATHD TAPTITE | LX | |
|
| 116 | 385865-00 | 2 | SCREW | LX | |
||
| 117 | 619683-00 | 3 | CLAMP | LX | |
||
| 118 | 612775-00 | 1 | CONNECTOR | 90 DEGREE ELBOW | LX | |
|
| 120 | 612673-00 | 1 | FRAME | LX | |
||
| 121 | 617634-00 | 1 | PLATE | CLAMPING POSITION | LX | |
|
| 122 | 617635-00 | 2 | PLATE | CLAMPING ANGLE | LX | |
|
| 123 | 618369-03 | 4 | SCREW | M8 SS SHOULDER | LX | |
|
| 124 | 618304-03 | 2 | SCREW | M6 X 30 SS MACH | LX | |
|
| 129 | 616767-00 | 4 | FOOT | LX | |
||
| 131 | 612732-00 | 1 | TRACK | LX | |
||
| 132 | 617352-00 | 1 | LINER | LX | |
||
| 133 | 612777-00 | 1 | CAP | LX | |
||
| 134 | 612854-00 | 1 | CAP | LX | |
||
| 136 | 612733-00 | 1 | GUIDE ROD | LX | |
||
| 137 | 627522-00 | 1 | BLOCK | V; | INCL 38 | V | LX | |
| 137 | 627522-00 | 4 | BLOCK | V; | LX | |
|
| 138 | 613465-00 | 1 | CYLINDER | LX | |
||
| 139 | 612735-00 | 1 | SCREW | LX | |
||
| 140 | 618541-00 | 1 | RETAINER | EXTERNAL RING | LX | |
|
| 141 | 618304-01 | 4 | SCREW | M6 X 14 SS | LX | |
|
| 142 | 612737-00 | 1 | TRACK | NON GUIDING | LX | |
|
| 143 | 618302-07 | 4 | SCREW | M8 X 12 | LX | |
|
| 144 | 612738-00 | 2 | BRACKET | LX | |
||
| 146 | 612758-00 | 2 | SCREW | LX | |
||
| 147 | 146753-00 | 2 | BUSHING | LX | |
||
| 148 | 620468-00 | 1 | SCREW | LX | |
||
| 150 | 616770-00 | 4 | SCREW | SHOULDER | LX | |
|
| 151 | 618312-01 | 1 | TABLE | W/LABELS | LX | ||
| 152 | 000000-00 | 1 | NO LONGER AVAILABLE | LX | |||
| 154 | 610707-00 | 2 | WARNING LABEL | LX | |
||
| 155 | 612741-00 | 3 | GUIDE | ROLLER | LX | |
|
| 157 | 612743-00 | 6 | SPACER | LX | |
||
| 158 | 330003-82 | 12 | BEARING | LX | |
||
| 159 | 618304-07 | 3 | SCREW | M4 X 4.5 MACH | LX | |
|
| 160 | 612745-00 | 3 | SHAFT | LX | |
||
| 161 | 618539-00 | 6 | STOP NUT | ELASTIC | LX | |
|
| 162 | 612746-00 | 1 | CYLINDER | LX | |
||
| 164 | 612742-00 | 6 | ROLLER | LX | |
||
| 165 | 612748-00 | 3 | SPACER | LX | |
||
| 166 | 618304-05 | 3 | SCREW | M8 X 45 MACH | LX | |
|
| 167 | 612749-00 | 1 | PLATE | LX | |
||
| 169 | 612752-00 | 1 | SCALE | LX | |
||
| 171 | 616784-00 | 1 | BRACKET | LOCK ROD | LX | |
|
| 172 | 617230-00 | 1 | ROD | LX | |
||
| 173 | 616785-00 | 1 | SCREW | LX | |
||
| 174 | 612755-00 | 1 | BRUSH | GROOVE | LX | |
|
| 175 | 612756-00 | 2 | RESERVOIR | CART | LX | |
|
| 176 | 618369-01 | 12 | SCREW | M5 SS SHOULDER | LX | |
|
| 177 | 612757-00 | 1 | DISC | CUT INDICATOR | LX | |
|
| 179 | 612739-00 | 1 | STOP | LX | |
||
| 180 | 612759-00 | 1 | COLLECTOR | WATER | LX | |
|
| 181 | 612687-00 | 1 | GUIDE | EDGE | LX | ||
| 182 | 612761-00 | 1 | GUIDE | 45 DEGREE | LX | |
|
| 184 | 612716-00 | 2 | KNOB | LX | |
||
| 185 | 612763-00 | 1 | CLAMPING BAR | LX | |
||
| 187 | 618697-00 | 1 | TUBE PLASTIC | PVC | LX | |
|
| 188 | 631599-00 | 1 | VALVE | FLOW ADJUSTER | LX | |
|
| 189 | 634742-01 | 1 | PUMP SA | LX | LX | |
|
| 190 | 616779-00 | 1 | ADAPTOR | 1/4 MPT | LX | |
|
| 191 | 622978-00 | 1 | TRAY | W102,193,194,209,21 | LX | ||
| 192 | 612783-00 | 1 | EXTENSION | REAR PAN | LX | |
|
| 193 | 612786-00 | 1 | PLUG | W/CHAIN | LX | ||
| 194 | 618076-00 | 1 | TRAY | LX | |
||
| 195 | 623509-00 | 1 | POINTER | BEVEL | LX | |
|
| 196 | 153460-06 | 1 | SCREW | SEMS | LX | |
|
| 197 | 618302-05 | 4 | SCREW | M5 X 40 SS | LX | |
|
| 198 | 13486-00 | 2 | SCREW | DRIVE | LX | |
|
| 199 | 613365-00 | 1 | WING NUT | LX | |
||
| 200 | 618305-06 | 1 | SCREW | M8 X 30 | LX | |
|
| 204 | 618302-08 | 2 | SCREW | M6 X 25 SS | LX | |
|
| 205 | 624147-00 | 1 | LEAD BLACK | LX | |
||
| 206 | 624147-01 | 1 | LEAD SA WHITE | LX | |
||
| 207 | 393520-00 | 1 | TERMINAL BLOCK | LX | |
||
| 209 | 623773-00 | 1 | CORD | LX | |
||
| 210 | 622977-00 | 3 | COVER | LX | |
||
| 211 | 618302-01 | 2 | SCREW | M4 X 12 SS | LX | |
|
| 212 | 618320-00 | 1 | EXTENSION | LX | |
||
| 213 | 612753-00 | 1 | SCALE | LX | |
||
| 214 | 623075-00 | 2 | PIN | LX | |||
| 215 | 618539-01 | 2 | NUT | LX | |
||
| 216 | 623086-00 | 1 | INSERT | M8 SS | LX | |
|
| 217 | 623383-00 | 1 | DISC | INSERT | LX | |
|
| 218 | 618302-09 | 4 | SCREW | M4 X 16 SS | LX | |
|
| 219 | 618540-03 | 2 | WASHER | SS | LX | |
|
| 220 | 624727-00 | 1 | PIN | LX | |
||
| 221 | 622976-00 | 1 | LATCH | LX | |
||
| 222 | 605365-00 | 1 | RETAINER | CLIP | LX | |
|
| 223 | 618302-10 | 1 | SCREW | M5 X 16 SS | LX | |
|
| 226 | 56122-00 | 1 | O RING | LX | |
||
| 227 | 618540-04 | 3 | WASHER | 6MM SS | LX | |
|
| 229 | 625913-00 | 1 | SPRING | LX | |
||
| 230 | 609971-00 | 1 | SLEEVE | LX | |
||
| 231 | 625745-00 | 1 | CLIP | CORD | LX | |
|
| 232 | 148608-02 | 3 | INSERT | LX | |
||
| 233 | 5140024-30 | 2 | BRUSH 115V | LX | |
||
| 234 | 5140024-31 | 2 | BRUSH HOLDER | LX | |
||
| 235 | 5140024-32 | 2 | BRUSH CAP | LX | |
||
| 236 | 5140024-33 | 2 | SCREW | M4x10 | LX | |
|
| 237 | 5140024-34 | 2 | SCREW | M4.55x78 | LX | |
|
| 238 | 627857-00 | 3 | ROLLER SA | LX | |
||
| 239 | 628348-00 | 1 | SLEEVE | LX | |
||
| 241 | 632106-00 | 1 | CAPACITOR | LX | |
||
| 242 | 632109-00 | 1 | LABEL | SWITCH | LX | |
|
| 244 | 633729-00 | 1 | SWITCH SAFETY | PRCD | LX | |
|
| 245 | 637960-00 | 1 | CORDSET | LX MARKET | LX | |
|
| 246 | 388414-00 | 1 | SLEEVE INSULATING | FERRITE CORE | LX | |
|
| 247 | 632108-00 | 1 | LABEL | GROUND | LX | |
|
| 248 | 627036-00 | 1 | PLUG | PLASTIC | LX | |
|
| 249 | 152636-00 | 1 | BLADE HOLDER | LX | |
||
| 250 | 634968-00 | 1 | PLUG | LX | |
||
| 251 | 612688-00 | 1 | GUIDE SA | LX | |||
| 253 | 496555-00 | 1 | FILTER | LX | |
||
| 254 | 5140058-96 | 1 | GASKET | LX | |
||
| 255 | 5140058-97 | 1 | COVER | LX | |
||
| 256 | 330019-14 | 1 | SCREW | LX | |
||
| 800 | 5140061-28 | 1 | GREASE | LX | |
