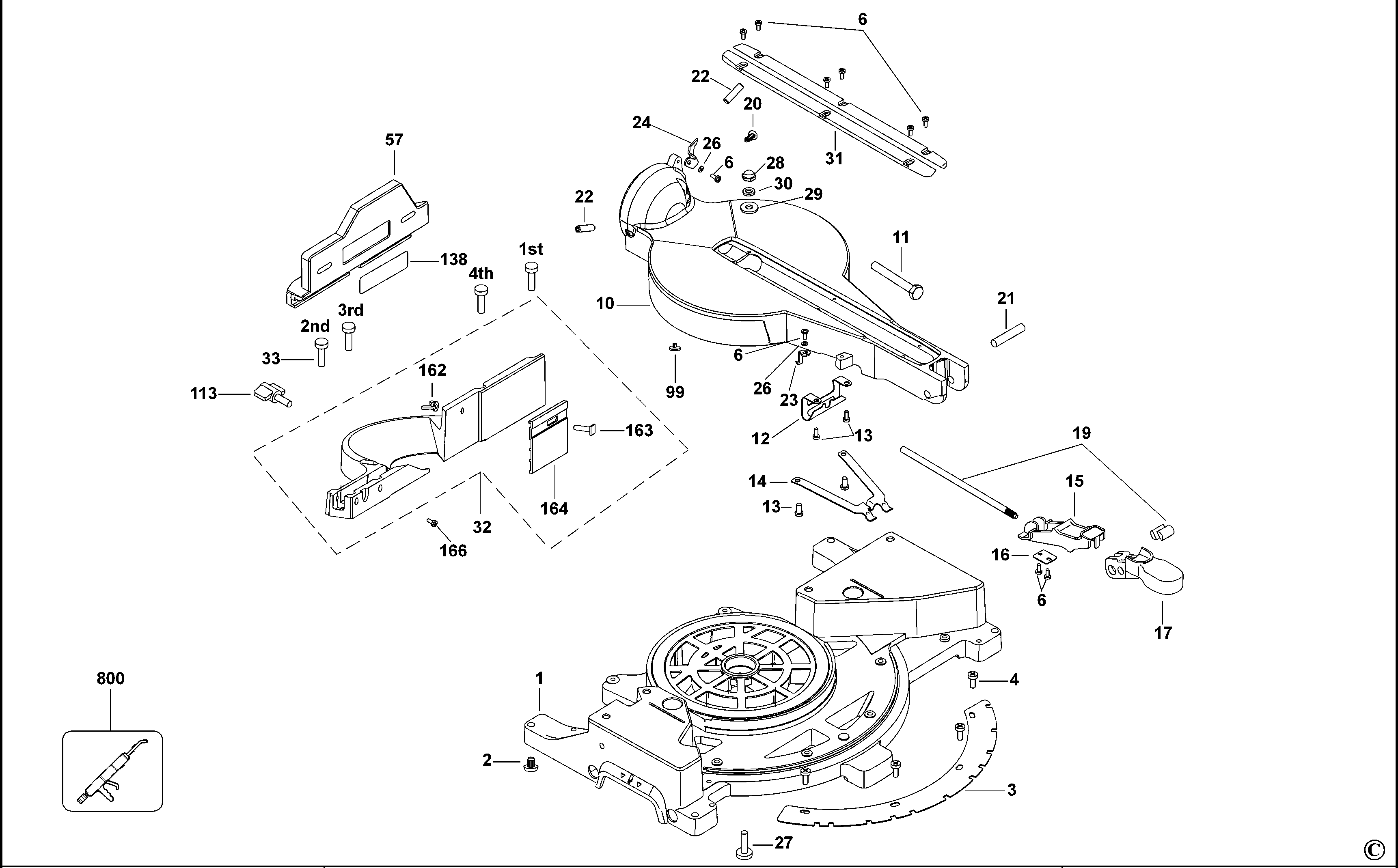

D27111 TABLE TOP MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 869349-00 | 1 | BASE SA | GB |  |
||
| 2 | 153612-00 | 4 | FOOT | GB | |
||
| 3 | N690033 | 1 | SCALE | GB | |
||
| 4 | 604987-00 | 4 | SCREW | GB | |
||
| 5 | N114229 | 1 | TABLE | GB | |
||
| 6 | 330045-05 | 10 | SCREW | GB | |
||
| 7 | 391358-01 | 1 | HOLDER | GB | |
||
| 8 | 860094-02 | 1 | SCREW | GB | |
||
| 9 | 860610-01 | 1 | PUSHROD | GB | |
||
| 10 | 869350-00 | 1 | TABLE SA | GB | |
||
| 11 | 638875-00 | 1 | BOLT | GB | |
||
| 12 | 397062-00 | 1 | PLATE | GB | |
||
| 13 | 330045-55 | 4 | SCREW | M5x55 MTL THD FMG | GB | |
|
| 14 | 397070-00 | 1 | SPRING | GB | |
||
| 15 | 397073-00 | 1 | ACTUATOR | GB | |
||
| 16 | 397075-00 | 1 | CLAMP | GB | |
||
| 17 | 397065-00 | 1 | LEVER | GB | |
||
| 18 | 635045-00 | 1 | BRACKET | GB | |
||
| 19 | 629395-00 | 1 | LOCK SA | GB | |
||
| 20 | 638835-00 | 1 | COVER | GB | |
||
| 21 | 397063-00 | 1 | PIN | GB | |
||
| 22 | 153576-03 | 2 | SCREW | GB | |
||
| 23 | 397048-00 | 1 | POINTER | GB | |
||
| 24 | 397090-00 | 1 | POINTER | GB | |
||
| 25 | 330045-05 | 4 | SCREW | GB | |
||
| 26 | 249233-00 | 2 | WASHER | GB | |
||
| 27 | 612008-00 | 1 | SCREW | GB | |
||
| 28 | 860092-05 | 1 | NUT | GB | |
||
| 29 | 153781-00 | 2 | WASHER | GB | |
||
| 30 | 613270-00 | 1 | WASHER | GB | |
||
| 31 | N714363 | 2 | COVERPLATE | GB | |
||
| 32 | 641363-00 | 1 | FENCE SA | Inc 162,163,164 | GB | |
|
| 33 | 330045-33 | 4 | SCREW | GB | |
||
| 34 | N102812 | 1 | GUARD KIT | GB | |
||
| 35 | 330045-32 | 2 | SCREW | M8x1.25x20 MTLTHDFMG | GB | |
|
| 36 | 860073-03 | 2 | WASHER M8 | GB | |
||
| 37 | 860083-04 | 2 | NUT | GB | |
||
| 38 | 637806-00 | 1 | FENCE | GB | |
||
| 39 | 637805-00 | 1 | PLATE | GB | |
||
| 40 | 634738-00 | 1 | BRACKET | GB | |
||
| 41 | 860073-03 | 2 | WASHER M8 | GB | |
||
| 42 | 612008-00 | 1 | SCREW | GB | |
||
| 43 | 392948-00 | 1 | WASHER CLAMP | GB | |
||
| 44 | 605794-00 | 1 | LEVER LOCK | GB | |
||
| 45 | 860094-02 | 1 | SCREW | GB | |
||
| 47 | 605795-00 | 1 | CLEVIS PIN | GB | |
||
| 48 | 605796-00 | 1 | BRACKET | GB | |
||
| 49 | 636091-00 | 1 | SUPPORT | GB | |
||
| 50 | 153781-00 | 1 | WASHER | GB | |
||
| 52 | 860092-05 | 1 | NUT | GB | |
||
| 53 | 606362-01 | 1 | BUSHING | GB | |
||
| 54 | 941756-00 | 1 | KNOB | GB | |
||
| 55 | 930574-00 | 1 | HEX KEY 5 MM | GB | |
||
| 55 | 385567-03 | 1 | KEY | TX30 6.0mm | GB | |
|
| 57 | 640349-00 | 1 | FENCE | GB | |
||
| 58 | 637338-00 | 1 | LEVER LOCK | GB | |
||
| 59 | 860084-24 | 4 | SCREW | GB | |
||
| 60 | 150075-00 | 1 | SCREW | GB | |
||
| 61 | 330045-34 | 1 | SCREW | GB | |
||
| 62 | 860094-02 | 2 | SCREW | GB | |
||
| 63 | 637289-00 | 1 | SPRING | GB | |
||
| 64 | 637193-00 | 1 | LEVER | GB | |
||
| 65 | 153639-00 | 1 | SCREW | GB | |
||
| 66 | 949702-19 | 1 | SCREW | GB | |
||
| 67 | 634719-00 | 1 | ARM | GB | |
||
| 68 | 649653-00 | 1 | LOCKING PIN | GB | |
||
| 69 | 860806-00 | 1 | RING | GB | |
||
| 70 | N102812 | 1 | GUARD KIT | GB | |
||
| 71 | 385756-01 | 1 | BUSH | GB | |
||
| 72 | 330045-33 | 1 | SCREW | GB | |
||
| 73 | 641029-00 | 1 | SPACER | GB | |
||
| 74 | 868768-07 | 1 | BEARING | GB | |
||
| 75 | 640248-00 | 1 | CONNECTOR | GB | |
||
| 76 | 637550-00 | 1 | BRACKET | GB | |
||
| 77 | 868412-07 | 1 | STATOR 230V | GB | |
||
| 78 | 945841-00 | 1 | FAN | GB | |
||
| 79 | 642100-00 | 1 | FAN COVER | GB | |
||
| 80 | 868411-03 | 1 | ROTOR | >43 2006 | GB | |
|
| 80 | 868411-03 | 1 | ROTOR | <43 2006 | GB | |
|
| 81 | 860080-02 | 1 | RING | GB | |
||
| 82 | 330003-13 | 1 | BEARING | GB | |
||
| 83 | 861349-00 | 1 | CIRCLIP | GB | |
||
| 84 | 640614-00 | 1 | SPRING | GB | |
||
| 84 | 648132-00 | 1 | SPRING | GB | |
||
| 85 | 861336-02 | 1 | BRAKE | GB |  |
||
| 86 | 861338-00 | 1 | SPRING | GB | |
||
| 87 | 860446-01 | 1 | BOLT | GB | |
||
| 88 | 637486-00 | 1 | CLIP CABLE | GB | |
||
| 89 | 869283-00 | 1 | SERVICE KIT | GB | |
||
| 90 | 330019-13 | 6 | SCREW | M4X19 T20 | GB | |
|
| 91 | 640985-00 | 1 | SWITCH | GB | |
||
| 92 | 868320-00 | 1 | COVER | GB | |
||
| 93 | 330019-13 | 2 | SCREW | M4X19 T20 | GB | |
|
| 94 | 326057-00 | 1 | TERMINAL BLOCK | GB | |
||
| 95 | 868313-14 | 1 | CORDSET | GB | |
||
| 96 | 641082-00 | 1 | CAPACITOR | GB | |
||
| 97 | 615851-00 | 1 | BUSHING | GB | |
||
| 98 | 618142-00 | 1 | END CAP | GB | |
||
| 99 | 640146-00 | 3 | PAD | GB | |
||
| 100 | 860093-05 | 4 | SCREW.TEMP | GB | |
||
| 101 | 153576-04 | 1 | SCREW | GB | |
||
| 102 | 861345-00 | 1 | HOUSING SA | GB | |
||
| 104 | 330022-17 | 1 | GRUB SCREW | GB | |
||
| 107 | 639554-00 | 2 | WASHER | GB | |
||
| 108 | 639383-00 | 1 | SPACER | GB | |
||
| 109 | N476325 | 1 | SPRING TORSION | GB | |
||
| 110 | 146732-00 | 1 | SPACER | GB | |
||
| 111 | 397128-00 | 1 | PIVOT SHAFT | GB | |
||
| 112 | 943030-00 | 1 | O RING | GB | |
||
| 113 | 147107-06 | 1 | KNOB | GB | |
||
| 114 | 606014-00 | 1 | SPRING | GB | |
||
| 115 | 330045-14 | 1 | SCREW | GB | |
||
| 116 | 397089-00 | 1 | NUT | GB | |
||
| 117 | 612008-00 | 1 | SCREW | GB | |
||
| 118 | 153781-00 | 1 | WASHER | GB | |
||
| 119 | 637807-00 | 1 | SCALE | GB | |
||
| 120 | 605798-00 | 1 | POINTER | GB | |
||
| 121 | 613270-00 | 1 | WASHER | GB | |
||
| 123 | 397118-00 | 2 | GUIDE | GB | |
||
| 125 | 397117-00 | 4 | SEAL | GB | |
||
| 126 | 397080-00 | 1 | HANDLE | GB | |
||
| 127 | 637332-00 | 1 | PIN | GB | |
||
| 128 | 637334-00 | 1 | SCALE | GB | |
||
| 130 | 153586-00 | 2 | WASHER | GB | |
||
| 131 | 616001-00 | 2 | SCREW | GB | |
||
| 132 | 613497-00 | 1 | THRUST PLATE | GB | |
||
| 134 | 860093-05 | 4 | SCREW.TEMP | GB | |
||
| 135 | 941756-00 | 1 | KNOB | GB | |
||
| 137 | 330045-15 | 3 | SCREW | GB | |
||
| 138 | 621135-00 | 1 | WARNING LABEL | GB | |
||
| 139 | 635047-00 | 1 | COVER | GB | |
||
| 140 | 637288-00 | 1 | SPRING | GB | |
||
| 141 | 625857-00 | 1 | SCREW.SPECIAL | GB | |
||
| 142 | 860094-05 | 2 | SCREW | GB | |
||
| 143 | 153639-00 | 1 | SCREW | GB | |
||
| 144 | 604728-00 | 2 | LOCKING RING | GB | |
||
| 145 | 146774-00 | 2 | ROLLER | GB | |
||
| 146 | 637998-00 | 1 | LOWER GUARD SA | GB | |
||
| 147 | 647776-00 | 1 | BLADE BOLT | M8 X 20 LH T40 | GB | |
|
| 148 | 604765-00 | 1 | CLAMP OUTER | GB | |
||
| 149 | 616319-00 | 1 | WASHER INNER CLAMP | GB | |
||
| 150 | 861340-00 | 1 | NUT | GB | |
||
| 151 | 605040-51 | 1 | SPACER | GB | |
||
| 152 | 330024-49 | 1 | SCREW | GB | |
||
| 153 | 330045-23 | 1 | SCREW | GB | |
||
| 154 | 146740-02 | 2 | SLEEVE | GB | |
||
| 155 | 153639-00 | 5 | SCREW | GB | |
||
| 156 | 637192-00 | 1 | CAM | GB | |
||
| 157 | 629745-00 | 1 | CIRCLIP | GB | |
||
| 158 | 330045-05 | 1 | SCREW | GB | |
||
| 159 | 640503-00 | 1 | SPRING | GB | |
||
| 160 | 634726-00 | 1 | GUARD | GB | |
||
| 161 | 635046-00 | 1 | GUARD | GB | |
||
| 162 | 720929-00 | 1 | WING NUT | GB | |
||
| 163 | 640959-00 | 1 | BOLT | GB | |
||
| 164 | 634736-00 | 1 | FENCE | GB | |
||
| 165 | 645156-00 | 1 | LABEL | GB | |
||
| 166 | 860094-02 | 1 | SCREW | GB | |
||
| 168 | 720929-00 | 1 | WING NUT | GB | |
||
| 169 | 931429-00 | 1 | WASHER | GB | |
||
| 170 | 720959-00 | 1 | WASHER | GB | |
||
| 171 | 931997-00 | 1 | SCREW | GB | |
||
| 172 | 862427-00 | 1 | KNOB | GB | |
||
| 173 | 634734-00 | 1 | BRACKET | GB | |
||
| 174 | 860094-02 | 1 | SCREW | GB | |
||
| 175 | 860098-04 | 1 | WRENCH 6 MM | GB | |
||
| 175 | 385567-04 | 1 | KEY | T40 | GB | |
|
| 176 | 645746-00 | 2 | BUSHING | GB | |
||
| 200 | 869231-04 | 1 | FENCE SA | GB | |
||
| 250 | N176001 | 1 | RAIL SA | GB | |
||
| 350 | 654313-00 | 1 | DUST PORT | >402007 | GB | |
|
| 351 | 654787-00 | 1 | RETAINER | >402007 | GB | |
|
| 352 | 330045-23 | 2 | SCREW | >402007 | GB | |
|
| 356 | 860083-12 | 1 | NUT M6 | >402007 | GB | |
|
| 357 | 654312-00 | 1 | SUPPORT | >402007 | GB | |
|
| 358 | 607491-00 | 2 | RIVET | >402007 | GB | |
|
| 359 | 330013-02 | 4 | SCREW | >402007 | GB | |
|
| 800 | 93488-00 | 1 | GREASE | GB | |
||
| 800 | 5140061-28 | 1 | GREASE | GB | |
||
| 821 | N049782 | 1 | RATING PLATE | GB | |
