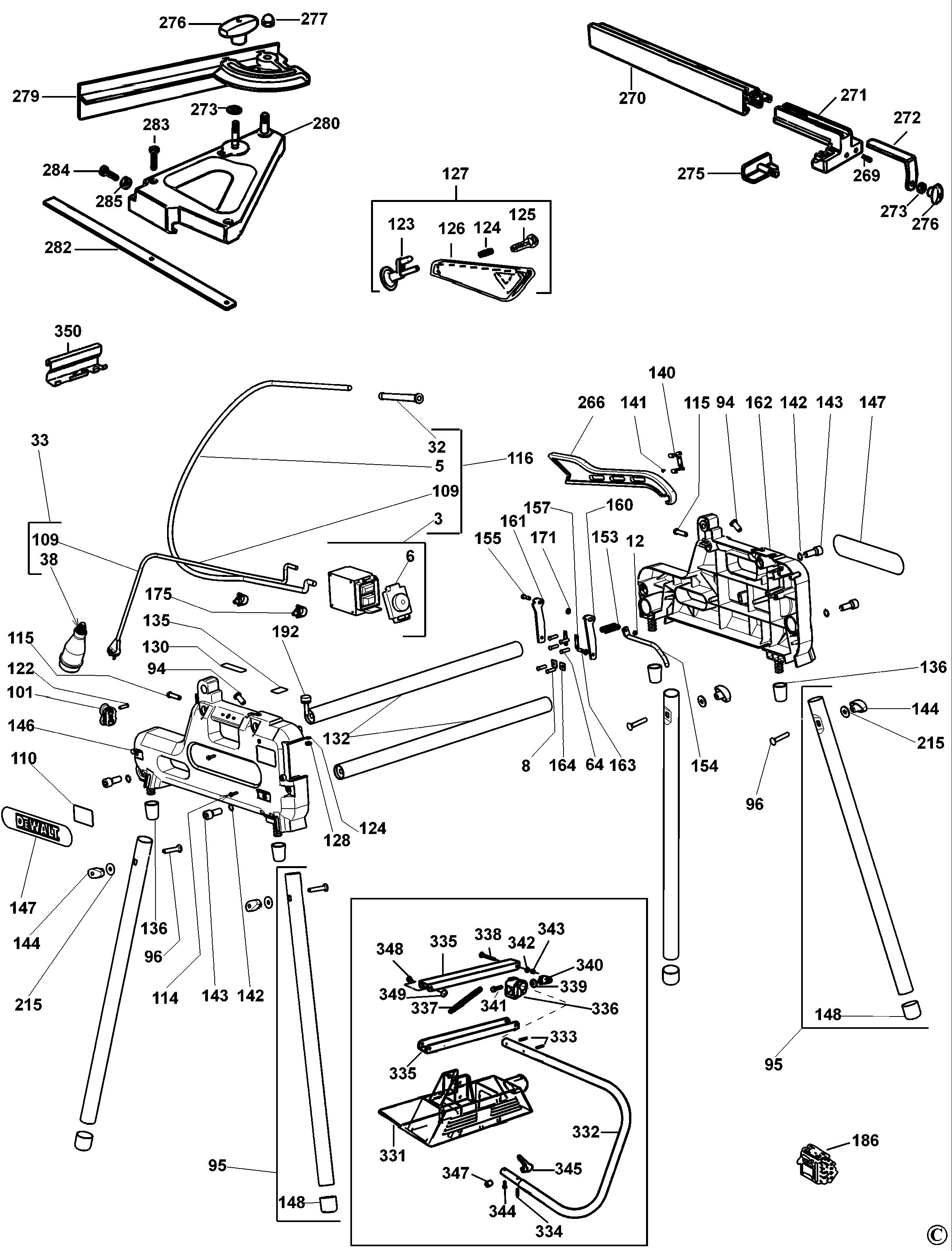

DW743 COMBINATION SAW Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868397-02 | 1 | ROTOR SA | 115V | LX |  |
|
| 2 | 868395-06 | 1 | STATOR 115V | LX |  |
||
| 3 | 868180-02 | 1 | SWITCH SA | LX | |
||
| 4 | 869209-00 | 1 | STOP PLATE | LX | |
||
| 5 | 868179-01 | 1 | MOTOR CABLE | 115 V - 4 core | LX | |
|
| 6 | N377168 | 1 | SWITCH COVER | LX | |
||
| 7 | 861085-04 | 1 | END CAP | LX | |
||
| 8 | 330045-15 | 2 | SCREW | LX | |
||
| 9 | 942413-02 | 1 | FAN | LX | |
||
| 10 | 861036-02 | 1 | END CAP | LX | |
||
| 11 | 942453-00 | 1 | KNOB | LX | |
||
| 12 | 949726-05 | 1 | NUT | LX | |
||
| 13 | 861069-00 | 1 | BARREL | LX | |
||
| 14 | 761054-00 | 1 | SPRING | LX | |
||
| 15 | 941798-00 | 1 | LOCKING PIN | LX | |
||
| 16 | 942329-00 | 6 | SCREW | LX | |
||
| 17 | 761065-00 | 1 | PIN | LX | |
||
| 18 | 949853-03 | 1 | SCREW | LX | |
||
| 19 | 869212-00 | 1 | SCREW | LX | |
||
| 20 | 939625-00 | 1 | WASHER | LX | |
||
| 21 | 860092-04 | 1 | NUT,STOP M5 | LX | |
||
| 22 | 616592-00 | 2 | BOLT | M8 x 16 | LX | |
|
| 23 | 607182-00 | 2 | BUSHING | LX | |
||
| 24 | 150075-00 | 1 | SCREW | LX | |
||
| 25 | 860083-03 | 1 | NUT | LX | |
||
| 26 | 869085-00 | 1 | SEGMENT | LX | |
||
| 27 | 860073-03 | 1 | WASHER M8 | LX | |
||
| 28 | 949884-01 | 1 | LEVER | LX | |
||
| 29 | 869205-01 | 2 | PIN | D6 x 36 | LX | |
|
| 30 | 148296-00 | 2 | WASHER | LX | |
||
| 31 | 869217-00 | 1 | HOUSING MOTOR | LX | |
||
| 32 | 942277-00 | 2 | PROTECTOR | LX | |
||
| 33 | 868181-08 | 1 | CABLE SA | LX | |
||
| 34 | 869087-00 | 1 | SPINDLE | LX | |
||
| 35 | 869089-00 | 1 | GUARD COVER | LX | |
||
| 36 | 869123-00 | 1 | GROMMET | LX | |
||
| 37 | 860085-32 | 1 | SCREW | M8 X 160 | LX | |
|
| 38 | 865975-00 | 1 | PLUG | 115 Volt | LX | |
|
| 39 | 949743-01 | 2 | SCREW | LX | |
||
| 40 | 869230-00 | 1 | ROTARY TABLE | LX | |
||
| 41 | 861452-02 | 1 | KNOB | LX | |
||
| 42 | 869205-00 | 1 | PIN | LX | |
||
| 43 | 869179-00 | 1 | INSERT | LX | |
||
| 44 | 869179-01 | 1 | INSERT | LX | |
||
| 46 | 623289-00 | 1 | LABEL | LX | |
||
| 47 | 869198-00 | 1 | SCREW | M8 x 20 | LX | |
|
| 48 | N060145 | 1 | TABLE | LX | |
||
| 49 | 869127-00 | 1 | BACK FENCE | LX | |
||
| 50 | 869224-00 | 1 | CLAMP | LX | |
||
| 51 | 861721-15 | 2 | BEARING 6202 | 6202 2RS EMS | LX | |
|
| 52 | 869090-00 | 1 | WASHER | LX | |
||
| 53 | 860085-28 | 1 | SCREW | LX | |
||
| 54 | 861983-01 | 1 | WASHER | LX | |
||
| 55 | 869094-01 | 1 | BELT | PV-559J8 | LX | |
|
| 56 | 869096-00 | 1 | RIVING KNIFE | LX | |
||
| 59 | 330045-49 | 8 | SCREW | LX | |
||
| 61 | 869196-00 | 1 | SCREW | M5 x 20 | LX | |
|
| 62 | 868216-02 | 1 | LOWER GUARD SA | LX | |
||
| 63 | 146774-00 | 1 | ROLLER | LX | |
||
| 64 | 860094-00 | 7 | SCREW.TEMP | LX | |
||
| 65 | 869119-00 | 1 | LEVER SA | LX | |
||
| 66 | N399933 | 2 | SCREW | M5x30 T30 Patch | LX | |
|
| 67 | 330003-16 | 1 | BEARING | LX | |
||
| 68 | 860079-05 | 1 | CIRCLIP | LX | |
||
| 69 | 860155-08 | 1 | BEARING | LX | |
||
| 70 | 869116-00 | 1 | BUSH | LX | |
||
| 71 | 860077-01 | 1 | WASHER | LX | |
||
| 72 | 616319-00 | 1 | WASHER INNER CLAMP | LX | |
||
| 73 | 604765-00 | 1 | CLAMP OUTER | LX | |
||
| 74 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | LX | |
|
| 75 | 869099-00 | 1 | WHEEL ADJUSTER | LX | |
||
| 76 | 869115-00 | 1 | ADJUSTER HEIGHT | LX | |
||
| 77 | 869118-00 | 1 | PLATE | LX | |
||
| 78 | 869188-00 | 1 | SPRING | LX | |
||
| 79 | 869117-00 | 1 | HANDLE | LX | |
||
| 80 | 868182-01 | 1 | SWITCH | LX | |
||
| 81 | 869185-00 | 1 | COVER | LX | |
||
| 82 | 942467-05 | 1 | LEAD SA | LX | |
||
| 84 | 942508-00 | 1 | TERMINAL BLOCK | LX | |
||
| 85 | 869122-00 | 1 | COVER BELT | LX | |
||
| 86 | 860092-05 | 1 | NUT | LX | |
||
| 87 | 869093-00 | 1 | PULLEY | LX | |
||
| 88 | 869092-00 | 1 | SPINDLE | LX | |
||
| 89 | N497345-01 | 1 | CAPACITOR SA | LX | |
||
| 90 | 869093-01 | 1 | PULLEY | LX | |
||
| 91 | 869221-00 | 1 | NUT | M14 | LX | |
|
| 92 | 860086-13 | 1 | SCREW | M8 x 65 | LX | |
|
| 93 | 869222-00 | 1 | SPACER | LX | |
||
| 94 | 949701-05 | 1 | SCREW | M8 x 20 | LX | |
|
| 95 | 869199-00 | 4 | LEG SA | LX | |
||
| 96 | 949891-03 | 1 | SCREW | LX | |
||
| 98 | 863257-01 | 1 | PLATE | LX | |
||
| 99 | 861989-00 | 1 | SCREW | LX | |
||
| 100 | 949719-04 | 1 | BEARING | LX | |
||
| 101 | 605601-01 | 1 | CORD CLAMP | LX | |
||
| 102 | 869058-01 | 1 | KNOB | LX | |
||
| 107 | 861991-00 | 1 | CAP | LX | |
||
| 109 | 868181-07 | 1 | CABLE | LX | |
||
| 110 | 869124-01 | 1 | RATING PLATE | LX | |
||
| 112 | 861988-00 | 1 | SPRING | LX | |
||
| 114 | 860084-09 | 2 | SCREW | LX | |
||
| 115 | 860089-41 | 2 | SCREW | M8 x 35 | LX | |
|
| 116 | 869121-02 | 1 | SWITCH & CABLE SA | LX | |
||
| 118 | 861095-01 | 2 | BUFFER | LX | |
||
| 122 | 861090-00 | 1 | SCREW | LX | |
||
| 123 | N162670 | 1 | PIVOT | LX | |
||
| 124 | 941622-00 | 1 | SPRING | LX | |
||
| 125 | 860084-11 | 1 | SCREW | LX | |
||
| 126 | N162669 | 1 | GUARD UPPER | LX | |
||
| 127 | N164678 | 1 | GUARD SA | LX | |
||
| 128 | 860083-14 | 1 | NUT | LX | |
||
| 130 | 610710-00 | 1 | WARNING LABEL | LX | |
||
| 132 | 861074-01 | 1 | CROSS BRACE | LX | |
||
| 135 | 626191-00 | 1 | LABEL | LX | |
||
| 136 | 942375-00 | 4 | FOOT | LX | |
||
| 140 | 615994-00 | 1 | CLIP | LX | |
||
| 141 | 330045-05 | 1 | SCREW | LX | |
||
| 142 | 98197-08 | 4 | WASHER | LX | |
||
| 143 | 942447-00 | 4 | SCREW | LX | |
||
| 144 | 941756-00 | 4 | KNOB | LX | |
||
| 146 | N156120 | 1 | FRAME LH | LX | |
||
| 147 | 869125-00 | 1 | LABEL | LX | |
||
| 148 | 861073-00 | 4 | FOOT | LX | |
||
| 153 | 942522-00 | 2 | SPRING | LX | |
||
| 154 | 942098-00 | 1 | LOCKING DEVICE | LX | |
||
| 155 | 942185-00 | 1 | SCREW | M6 | LX | |
|
| 157 | 942104-00 | 2 | BRIDGE | LX | |
||
| 160 | 861071-00 | 1 | CATCH | LX | |
||
| 161 | 861070-00 | 1 | LOCKING DEVICE | LX | |
||
| 162 | N156121 | 1 | FRAME RH | LX | |
||
| 163 | 942365-00 | 1 | PIN | LX | |
||
| 164 | 949876-08 | 2 | WASHER | LX | |
||
| 167 | 860094-03 | 2 | SCREW | LX | |
||
| 171 | 860073-07 | 2 | WASHER M6 | LX | |
||
| 175 | 861091-00 | 3 | CABLE CLAMP | LX | |
||
| 186 | 868538-02 | 1 | CONTACT SA | 115v | LX | |
|
| 192 | 941614-00 | 1 | FOOT | LX | |
||
| 196 | 860098-04 | 1 | WRENCH 6 MM | LX | |
||
| 197 | 869181-00 | 1 | WRENCH SPECIAL | LX | |
||
| 198 | 861063-00 | 1 | TABLE LATCH | LX | |
||
| 211 | 861084-00 | 1 | LOCKING PIN SA | LX | |
||
| 214 | 869086-00 | 2 | SPRING | LX | |
||
| 215 | 941602-00 | 1 | WASHER | LX | |
||
| 220 | 868428-02 | 1 | COVER | LX | |
||
| 221 | 868431-00 | 1 | GROMMET | LX | |
||
| 222 | 868429-00 | 1 | COVER | LX | |
||
| 223 | 941812-00 | 1 | SCREW.SPECIAL | LX | |||
| 224 | 933652-00 | 1 | WASHER | LX | |
||
| 235 | N060146 | 1 | GUARD SA | LX | |
||
| 236 | 868303-00 | 2 | FASTENER | LX | |
||
| 250 | 861099-00 | 1 | LABEL | LX | |
||
| 253 | N060144 | 1 | CORD | LX | |
||
| 257 | 868256-00 | 12 | SCREW | LX | |
||
| 258 | 949795-01 | 4 | SCREW | LX | |
||
| 266 | 860610-01 | 1 | PUSHROD | LX | |
||
| 269 | 949743-03 | 1 | SCREW | LX | |
||
| 270 | 942320-03 | 1 | GUIDE | LX | |
||
| 271 | 861346-00 | 1 | FENCE | LX | |
||
| 272 | 942316-01 | 1 | CLAMPING BAR | LX | |
||
| 273 | 860073-03 | 2 | WASHER M8 | LX | |
||
| 275 | 941819-01 | 1 | BRACKET | LX | |
||
| 276 | 941756-00 | 2 | KNOB | LX | |
||
| 277 | 860092-00 | 1 | NUT | LX | |
||
| 279 | 941578-01 | 1 | FENCE | LX | |
||
| 280 | 942172-00 | 1 | BASE | LX | |
||
| 282 | 942151-00 | 1 | RAIL | LX | |
||
| 283 | 860089-00 | 2 | SCREW.TEMP | LX | |
||
| 284 | 941518-00 | 1 | SCREW | LX | |
||
| 285 | 860083-12 | 1 | NUT M6 | LX | |
