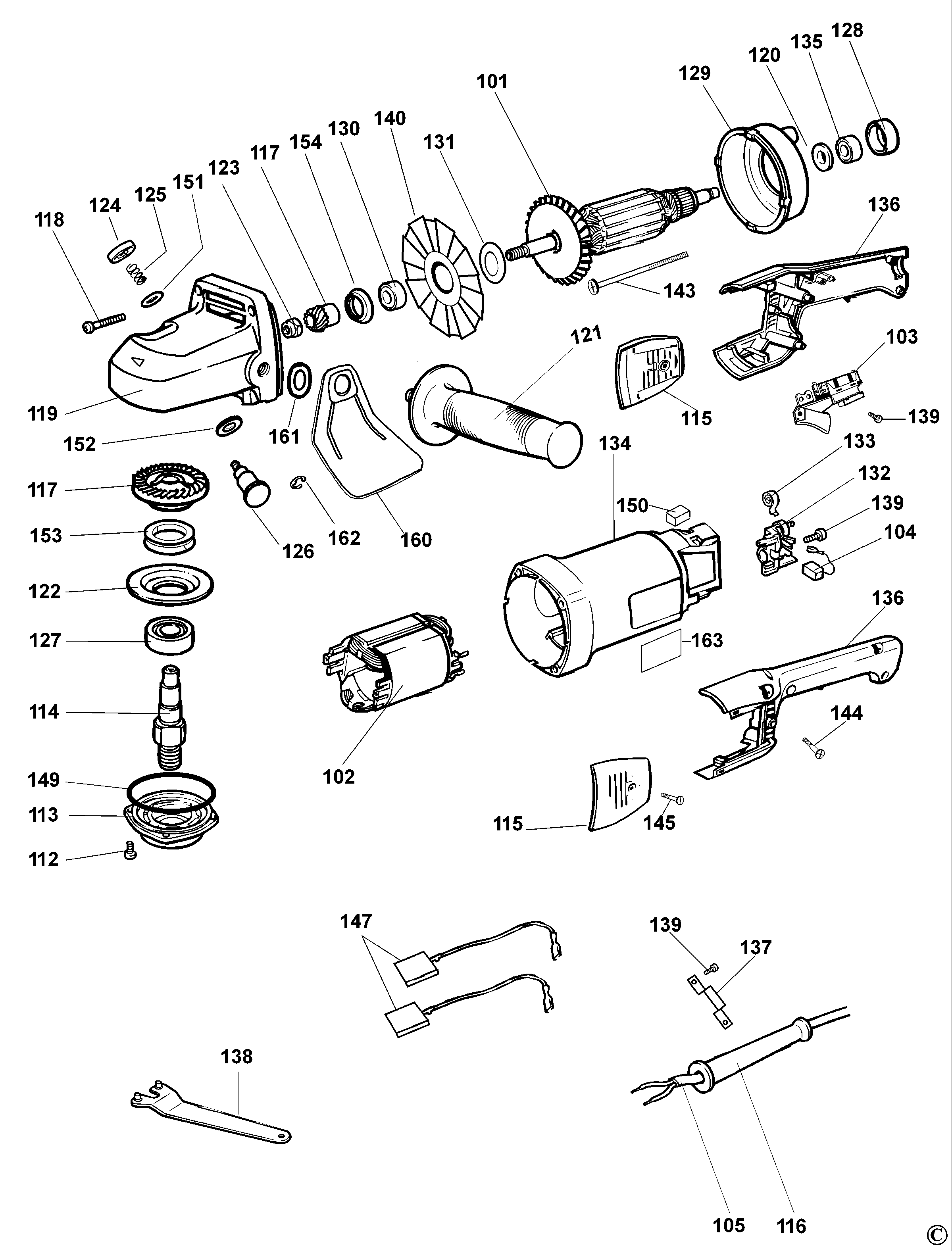

DW630 SANDER/GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 402875-07 | 1 | ARMATURE 115V | XW |  |
||
| 102 | 569588-06 | 1 | FIELD 115V | XW | |
||
| 103 | 402868-03 | 1 | SWITCH LOCK-ON | XW | |
||
| 104 | 654631-01 | 2 | BRUSH CUT OFF | CUT-OFF | XW |  |
|
| 105 | 330061-13 | 1 | CABLE 115V | XW | |
||
| 112 | 562160-05 | 4 | SCREW | XW | |
||
| 113 | N072241 | 1 | GEARCASE COVER | XW | |
||
| 114 | 389180-00 | 1 | SPINDLE | M14 | XW | |
|
| 115 | 402849-00 | 1 | COVER BRUSH | XW | |
||
| 116 | 401088-00 | 1 | PROTECTOR | XW | |
||
| 117 | 403119-02 | 1 | GEAR & PINION SA | XW | |
||
| 118 | 562097-10 | 4 | SCREW | XW | |
||
| 119 | 5140000-32 | 1 | SERVICE KIT | XW | |
||
| 120 | 402861-00 | 1 | SPACER | XW | |
||
| 121 | 573115-00 | 1 | SIDE HANDLE | XW | |
||
| 122 | 403129-00 | 1 | FLANGE | XW | |
||
| 123 | 393568-00 | 1 | NUT | XW | |
||
| 124 | 944575-00 | 1 | BUTTON | XW | |
||
| 125 | 562210-00 | 1 | SPRING | XW | |
||
| 126 | 391018-00 | 1 | SPINDLE LOCK | XW | |
||
| 127 | 605040-22 | 1 | BEARING | XW | |
||
| 128 | 930275-00 | 1 | SLEEVE | XW | |
||
| 129 | 403151-00 | 1 | BAFFLE | XW | |
||
| 130 | 605040-60 | 1 | BEARING 6200 | XW | |
||
| 131 | 930753-00 | 1 | WASHER | XW | |
||
| 132 | 402869-07 | 1 | BRUSH HOLDER | XW | |
||
| 133 | 402873-00 | 2 | SPRING | XW | |
||
| 134 | 609206-01 | 1 | FIELDCASE SA | XW | |
||
| 135 | 605040-02 | 1 | BEARING | XW | |
||
| 136 | 402844-11 | 1 | HANDLE SA | XW | |
||
| 137 | 930103-00 | 1 | CORD CLAMP | XW | |
||
| 138 | 401680-00 | 1 | WRENCH | XW | |
||
| 139 | 562097-00 | 5 | SCREW | XW | |
||
| 140 | 403121-00 | 1 | FLANGE | XW | |
||
| 143 | 562097-12 | 2 | SCREW | XW | |
||
| 144 | 562097-03 | 4 | SCREW | XW | |
||
| 145 | 945280-00 | 2 | SCREW | XW | |
||
| 147 | 402878-01 | 1 | LEAD | XW | |
||
| 149 | 403123-01 | 1 | O RING | XW | |
||
| 150 | 402847-00 | 4 | SHOCK ABSORBER | XW | |
||
| 151 | 403148-00 | 1 | WASHER | XW | |
||
| 152 | 403149-00 | 1 | O RING | XW | |
||
| 153 | 403134-00 | 1 | RING | XW | |
||
| 154 | 403132-00 | 1 | RETAINER | XW | |
||
| 160 | 398415-00 | 1 | GUARD | XW | |
||
| 161 | 398773-00 | 1 | RETAINER | XW | |
