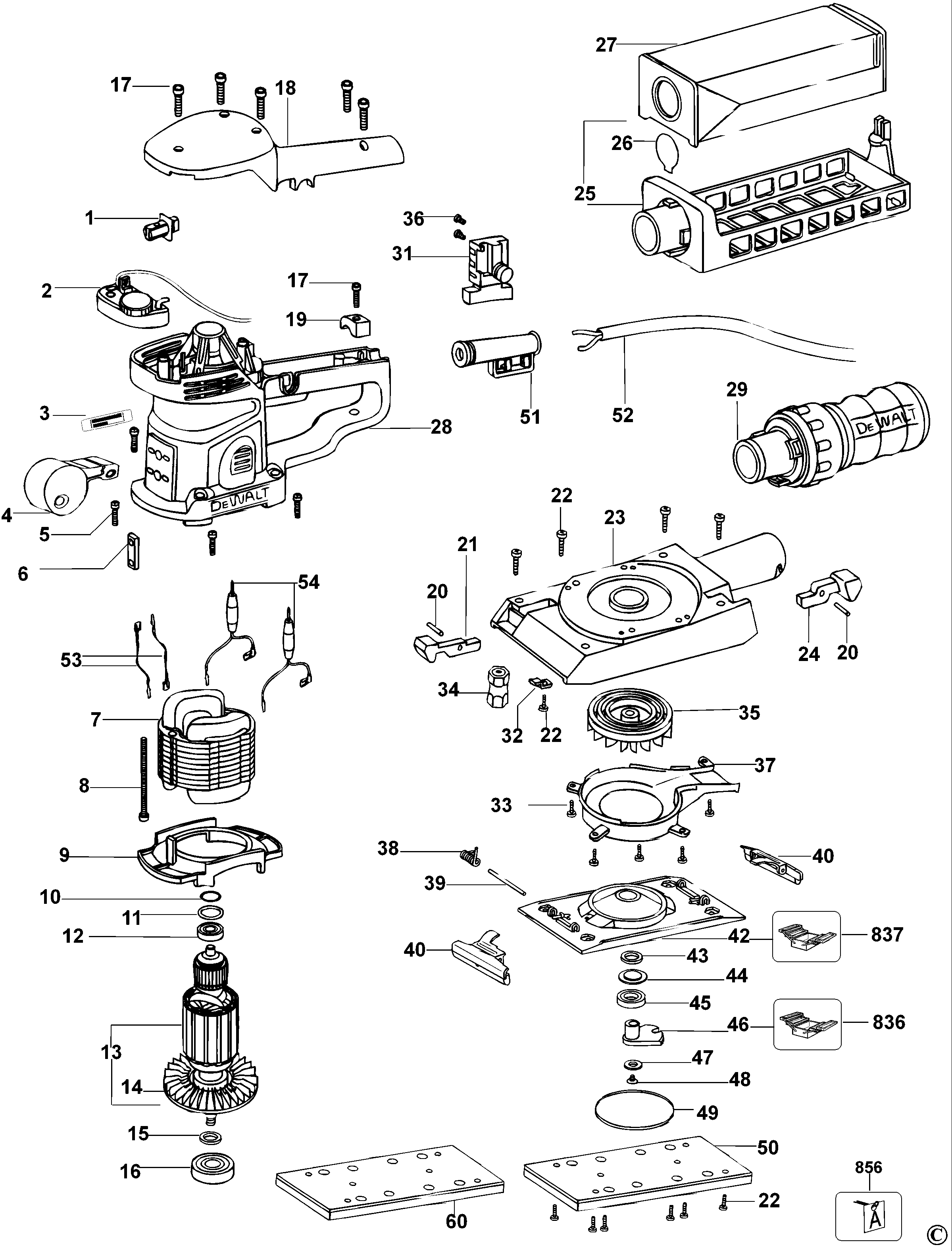

D26422 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 596107-00 | 1 | BRUSH PAIR 115V | LX |  |
||
| 2 | 596104-00 | 1 | ELECTRONIC 115V | LX | |
||
| 3 | N045102 | 1 | RATING PLATE | LX | |||
| 4 | 596114-00 | 1 | HANDLE SA | LX | |
||
| 5 | 596113-00 | 4 | SCREW | LX | |
||
| 6 | 596115-00 | 1 | PLATE | LX | |
||
| 7 | 596117-00 | 1 | FIELD 120V | LX | |
||
| 8 | 596118-00 | 2 | SCREW | LX | |
||
| 9 | 596119-00 | 1 | BAFFLE FAN | LX | |
||
| 10 | 596120-00 | 1 | O RING | LX | |
||
| 11 | 596121-00 | 1 | WASHER | LX | |
||
| 12 | 596649-00 | 1 | BEARING | 626ZT - 6x19x6 | LX | |
|
| 13 | 596338-00 | 1 | ARMATURE 115V | LX | |
||
| 14 | 596125-00 | 1 | FAN | LX | |
||
| 15 | 596299-00 | 1 | WASHER | LX | |
||
| 16 | 596300-00 | 1 | BEARING | LX | |
||
| 17 | 596101-00 | 6 | SCREW | LX | |
||
| 18 | 596102-00 | 1 | COVER | LX | |
||
| 19 | 596128-00 | 1 | CORD CLAMP | LX | |
||
| 20 | 596301-00 | 2 | PIN | LX | |
||
| 21 | 596302-00 | 1 | LEVER | LX | |
||
| 22 | 596303-00 | 10 | SCREW | LX | |
||
| 23 | 596306-00 | 1 | HOUSING | LX | |
||
| 24 | 596305-00 | 1 | LEVER | LX | |
||
| 25 | 596146-00 | 1 | SUPPORT SA | LX | |
||
| 26 | 596287-00 | 1 | WASHER | LX | |
||
| 27 | 596286-00 | 1 | DUSTBAG | LX |  |
||
| 28 | 596108-00 | 1 | HOUSING MOTOR | LX | |
||
| 29 | 583319-00 | 1 | DUST BAG SA | LX | |
||
| 31 | 596127-00 | 1 | SWITCH | LX | |
||
| 32 | 596311-00 | 1 | CLAMP | LX | |
||
| 33 | 596312-00 | 7 | SCREW | LX | |
||
| 34 | 596313-00 | 4 | SUPPORT | LX | |
||
| 35 | 596314-00 | 1 | FAN | LX | |
||
| 36 | 596126-00 | 2 | SCREW | LX | |
||
| 37 | 596316-00 | 1 | COVERPLATE | LX | |
||
| 38 | 596317-00 | 2 | SPRING | LX | |
||
| 39 | 596318-00 | 2 | ROD | LX | |
||
| 40 | 596319-00 | 2 | CLAMP SA | LX | |
||
| 42 | 596333-00 | 1 | BASEPLATE | LX | |
||
| 43 | 596321-00 | 1 | FELT SEAL | LX | |
||
| 44 | 596322-00 | 1 | WASHER. CUP | LX | |
||
| 45 | 596323-00 | 1 | BEARING | LX | |
||
| 46 | 596334-00 | 1 | COUNTERWEIGHT | LX | |
||
| 47 | 596325-00 | 1 | WASHER | LX | |
||
| 48 | 596326-00 | 1 | SCREW | LX | |
||
| 49 | 596327-00 | 1 | SEAL | LX | |
||
| 50 | 596335-00 | 1 | SANDING PLATE | LX | |
||
| 51 | 596329-00 | 1 | CORD PROTECTOR | LX | |
||
| 52 | 596142-00 | 1 | CORDSET | LX | |
||
| 53 | 596154-00 | 1 | LEAD SA | LX | |
||
| 54 | 596155-00 | 1 | CHOKE SA | LX | |
||
| 60 | 596342-00 | 1 | PAD VELCRO | 1/3 Sheet | LX | |
|
| 836 | 559646-99 | 1 | S.T.LOCKING TOOL | LX | |
||
| 837 | 559647-99 | 1 | S.T.BASE REMOVAL TOOL | LX | |
||
| 856 | DE2641 | 1 | PUNCH | LX |
