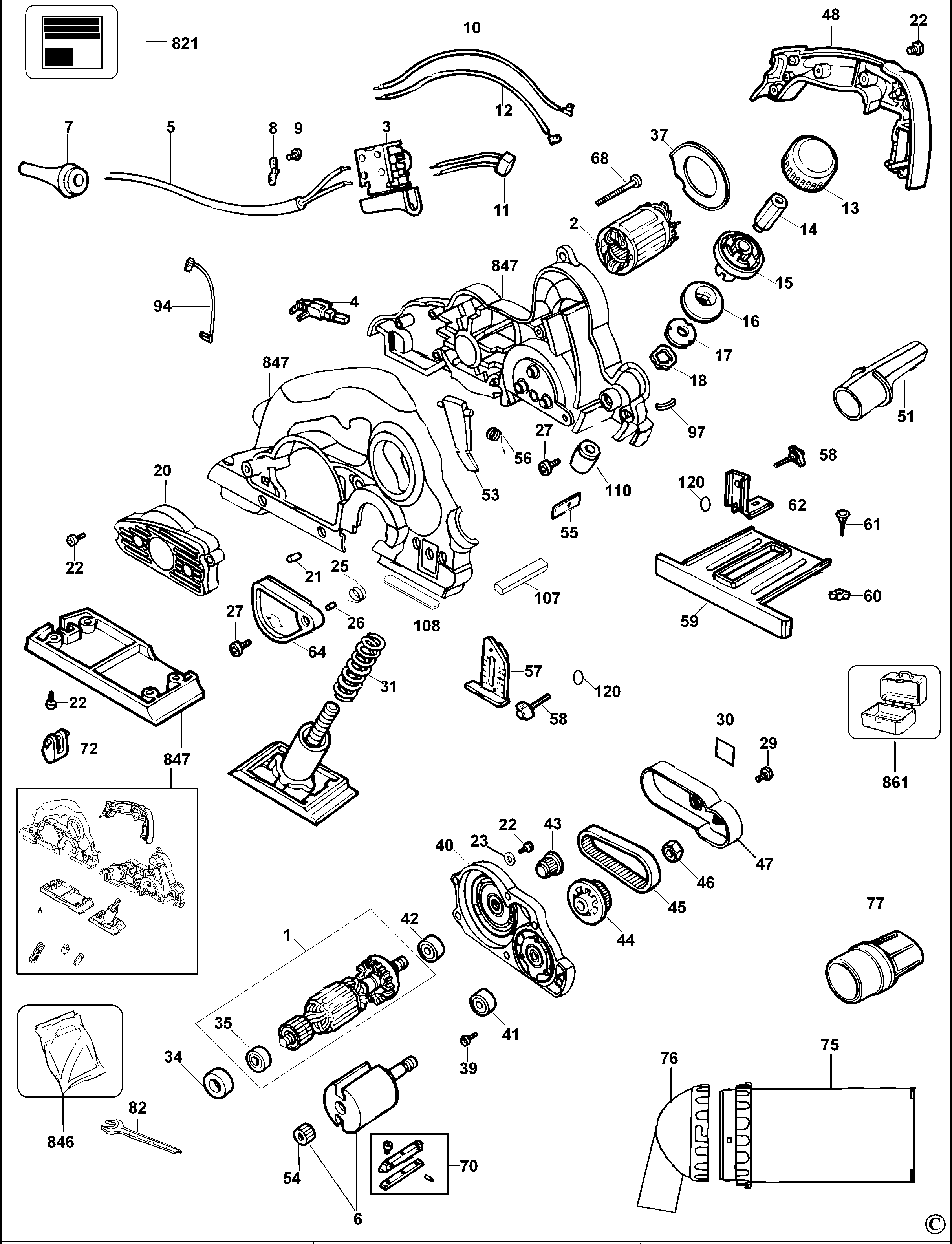

D26500 PLANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 589353-00 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 589356-01 | 1 | FIELD 230V | GB | |
||
| 3 | 327383-04 | 1 | SWITCH | Black | GB | |
|
| 4 | 575963-00 | 1 | BRUSH PAIR 230V | GB | |
||
| 5 | 330060-90 | 1 | CORDSET (M/PLUG) GB | GB | |
||
| 6 | 574232-01 | 1 | BLADEDRUM SA | GB | |
||
| 7 | 584090-00 | 1 | CORD PROTECTOR | GB | |||
| 8 | 329301-00 | 1 | CORD CLAMP | GB | |
||
| 9 | 330065-06 | 2 | SCREW | GB | |
||
| 10 | 586594-00 | 1 | LEADWIRE | GB | |
||
| 11 | 949877-01 | 1 | CAPACITOR | GB | |
||
| 12 | 586594-03 | 1 | LEADWIRE | GB | |
||
| 13 | 326592-00 | 1 | CAP | GB | |
||
| 14 | 328772-00 | 1 | NUT | GB | |
||
| 15 | 326590-01 | 1 | BASE | GB | |
||
| 16 | 326589-02 | 1 | SCALE | GB | |
||
| 17 | 326381-00 | 1 | RATCHET | GB | |
||
| 18 | 327341-00 | 1 | WASHER SPRING | GB | |
||
| 20 | 580980-00 | 1 | COVER BRUSH | GB | |
||
| 21 | 326636-00 | 1 | POST | GB | |
||
| 22 | 330065-08 | 22 | SCREW | M4x18 T20 | GB | |
|
| 23 | 330016-01 | 4 | WASHER | GB | |
||
| 25 | 323722-00 | 1 | SPRING | GB | |
||
| 26 | 326823-01 | 1 | BUSH | GB | |
||
| 27 | 324006-11 | 5 | SCREW | GB | |
||
| 29 | 324007-07 | 1 | SCREW | M4 x 12mm | GB | |
|
| 30 | 586529-00 | 1 | LABEL | GB | |
||
| 31 | 572255-00 | 1 | SPRING | GB | |
||
| 34 | 323481-00 | 1 | CAP | GB | |
||
| 35 | 605040-63 | 1 | BEARING | GB | |
||
| 37 | 580993-00 | 1 | BAFFLE FAN | GB | |
||
| 39 | 330045-44 | 3 | SCREW | GB | |
||
| 40 | 580997-00 | 1 | BEARING HOUSING | GB | |
||
| 41 | 330003-11 | 1 | BEARING | GB | |
||
| 42 | N542566 | 1 | BEARING | GB | |
||
| 42 | N542566 | 1 | BEARING | GB | |
||
| 43 | 324105-00 | 1 | PULLEY | GB | |
||
| 44 | 327065-00 | 1 | PINION | GB | |
||
| 45 | 579600-00 | 1 | BELT | GB | |
||
| 46 | 761225-02 | 1 | NUT | GB | |
||
| 47 | 580979-00 | 1 | BELT COVER | GB | |
||
| 48 | 580978-00 | 1 | HANDLE COVER | GB | |
||
| 51 | 580999-00 | 1 | CHUTE | GB | |
||
| 53 | 580981-00 | 1 | FLAP | GB | |
||
| 54 | 330004-31 | 1 | BEARING | GB | |
||
| 55 | 918405 | 1 | PLATE | GB | |
||
| 56 | 580982-00 | 1 | SPRING | GB | |
||
| 57 | 327393-00 | 1 | GUIDE | GB | |
||
| 58 | 326573-01 | 2 | SCREW WING | GB | |
||
| 59 | 327391-00 | 1 | GUIDE FENCE | GB | |
||
| 60 | 328834-00 | 1 | NUT WING | GB | |
||
| 61 | 911111 | 1 | BOLT | GB | |
||
| 62 | 328175-00 | 1 | BRACKET | GB | |
||
| 64 | 326637-00 | 1 | GUARD | GB | |
||
| 68 | 330065-10 | 2 | SCREW | GB | |
||
| 70 | N542564 | 2 | CLAMP SA | GB | |
||
| 70 | N542564 | 2 | CLAMP SA | GB | |
||
| 72 | N381124 | 1 | STAND | GB | |
||
| 75 | 584460-00 | 1 | BAG FILTER | GB | |
||
| 76 | 584459-00 | 1 | SUPPORT | GB | |
||
| 77 | 581002-00 | 1 | ADAPTOR | GB | |
||
| 82 | 868148-00 | 1 | SPANNER | GB | |
||
| 94 | 586594-01 | 1 | LEADWIRE | GB | |
||
| 97 | 329145-00 | 1 | CLIP | GB | |
||
| 107 | 580996-00 | 1 | FOAM | GB | |
||
| 108 | 586876-00 | 2 | FOAM | GB | |
||
| 110 | 583037-00 | 1 | GUIDE BUSH | GB | |
||
| 120 | 323711-35 | 1 | O RING | GB | |
||
| 846 | 582781-00 | 1 | PARTS PACK | GB | |
||
| 847 | 589358-00 | 1 | SERVICE KIT | GB | |
||
| 847 | 589358-00 | 1 | SERVICE KIT | GB | |
||
| 847 | 589358-00 | 1 | SERVICE KIT | GB | |
||
| 861 | 578772-54 | 1 | KITBOX | GB | |
