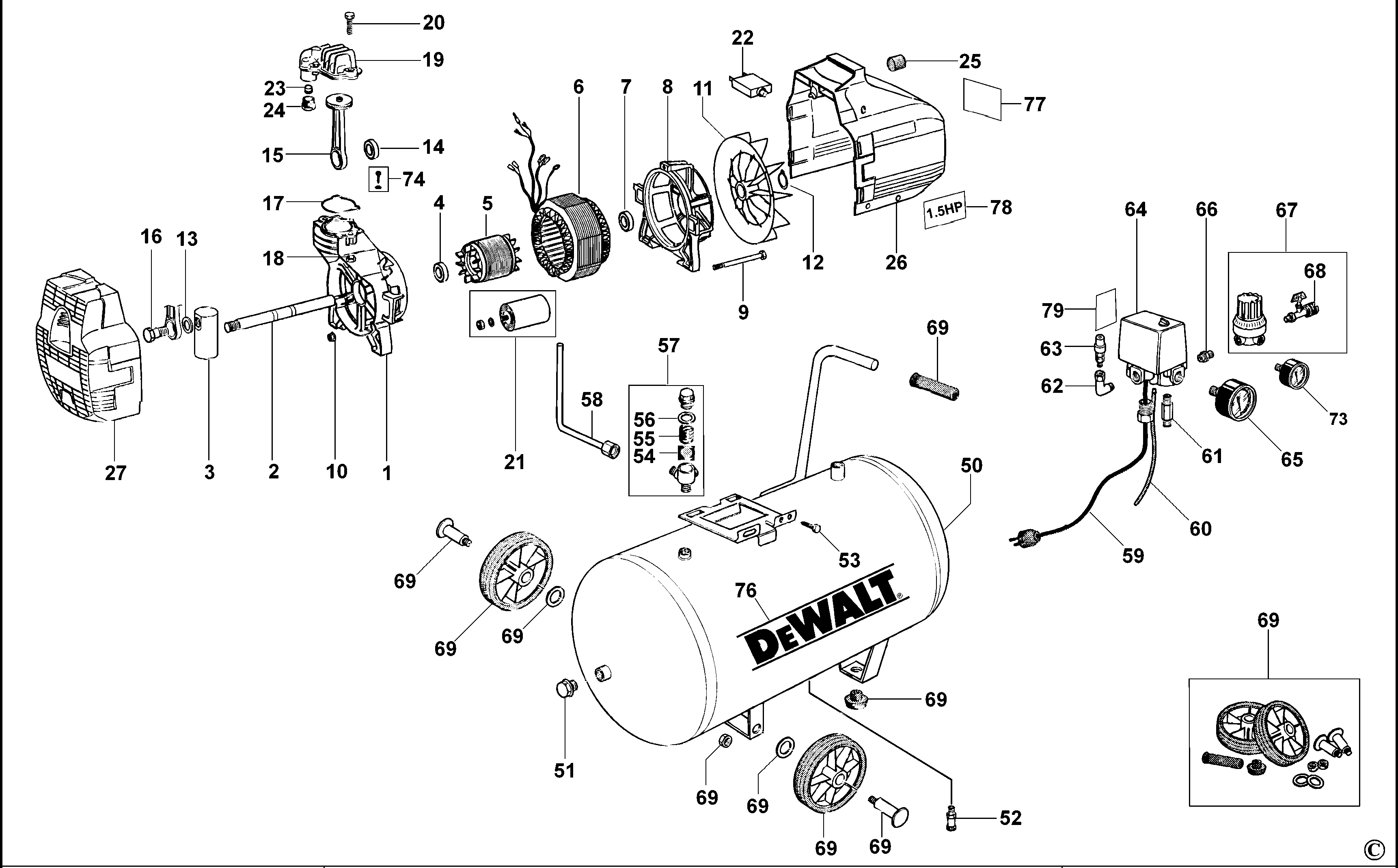

D55145 COMPRESSOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 596681-00 | 1 | GEARCASE | LX |  |
||
| 2 | 596682-00 | 1 | DRIVE SHAFT | LX | |
||
| 3 | 596683-00 | 1 | CRANK | LX | |
||
| 4 | 596684-00 | 1 | BEARING | LX | |
||
| 5 | 596685-00 | 1 | ROTOR | LX | |
||
| 6 | 596686-00 | 1 | STATOR | LX | |
||
| 7 | 596687-00 | 1 | BEARING | LX | |
||
| 8 | 596688-00 | 1 | COVER | LX | |
||
| 9 | 596689-00 | 3 | SCREW | LX | |
||
| 10 | 596690-00 | 3 | NUT | LX | |
||
| 11 | 596691-00 | 1 | FAN | LX | |
||
| 12 | 596692-00 | 1 | CIRCLIP | LX | |
||
| 13 | 596693-00 | 1 | WASHER | LX | |
||
| 14 | 596694-00 | 1 | BEARING | LX | |
||
| 15 | 596695-00 | 1 | PISTON | LX | |
||
| 16 | 596696-00 | 1 | PIN | LX | |
||
| 17 | 596697-00 | 1 | GASKET | LX | |
||
| 18 | 596698-00 | 2 | NUT | LX | |
||
| 19 | 596699-00 | 1 | HEAD | LX | |
||
| 20 | 596700-00 | 2 | SCREW | LX | |
||
| 21 | 596701-00 | 1 | CONDENSOR | LX | |
||
| 22 | 596702-00 | 1 | CUT OUT | LX | |
||
| 23 | 596703-00 | 1 | CONE | LX | |
||
| 24 | 596704-00 | 1 | NUT | LX | |
||
| 25 | 596705-00 | 1 | FILTER | LX | |
||
| 26 | 596706-00 | 1 | HOUSING | LX | |
||
| 27 | 596707-00 | 1 | COVER | LX | |
||
| 50 | 596708-00 | 1 | TANK | LX | |
||
| 51 | 596709-00 | 2 | PLUG | LX | |
||
| 52 | 596710-00 | 1 | PLUG | LX | |
||
| 53 | 596711-00 | 3 | SCREW | LX | |
||
| 54 | 596712-00 | 2 | SEAL | LX | |
||
| 55 | 596713-00 | 1 | SPRING | LX | |
||
| 56 | 596714-00 | 1 | O RING | LX | |
||
| 57 | 596715-00 | 1 | VALVE | LX | |
||
| 58 | 596716-00 | 1 | ELBOW TUBE | LX | |
||
| 59 | 596799-00 | 1 | CORDSET | LX | |
||
| 60 | 596718-00 | 1 | TUBE | LX | |
||
| 61 | 596719-00 | 1 | NIPPLE | LX | |
||
| 62 | 596720-00 | 1 | ELBOW TUBE | LX | |
||
| 63 | 596721-00 | 1 | VALVE | LX | |
||
| 64 | 596722-00 | 1 | SWITCH SA | LX | |
||
| 65 | 596723-00 | 1 | GAUGE | 50 | LX | |
|
| 66 | 596724-00 | 1 | NIPPLE | LX | |
||
| 67 | 596725-00 | 1 | REDUCER | Pressure | LX | |
|
| 68 | 596726-00 | 1 | VALVE SLIDE | LX | |
||
| 69 | 596727-00 | 1 | WHEEL SET | LX | |
||
| 73 | 596728-00 | 1 | GAUGE | 40 | LX | |
|
| 74 | 596791-00 | 1 | SCREW | LX | |
||
| 76 | 596793-00 | 1 | LABEL DEWALT | LX | |
||
| 77 | 596795-00 | 1 | RATING PLATE | 115 volt | LX | |
|
| 78 | 596796-00 | 1 | LABEL | 1.5 HP | LX | |
|
| 79 | 596797-00 | 1 | LABEL | ON / OFF | LX | |
