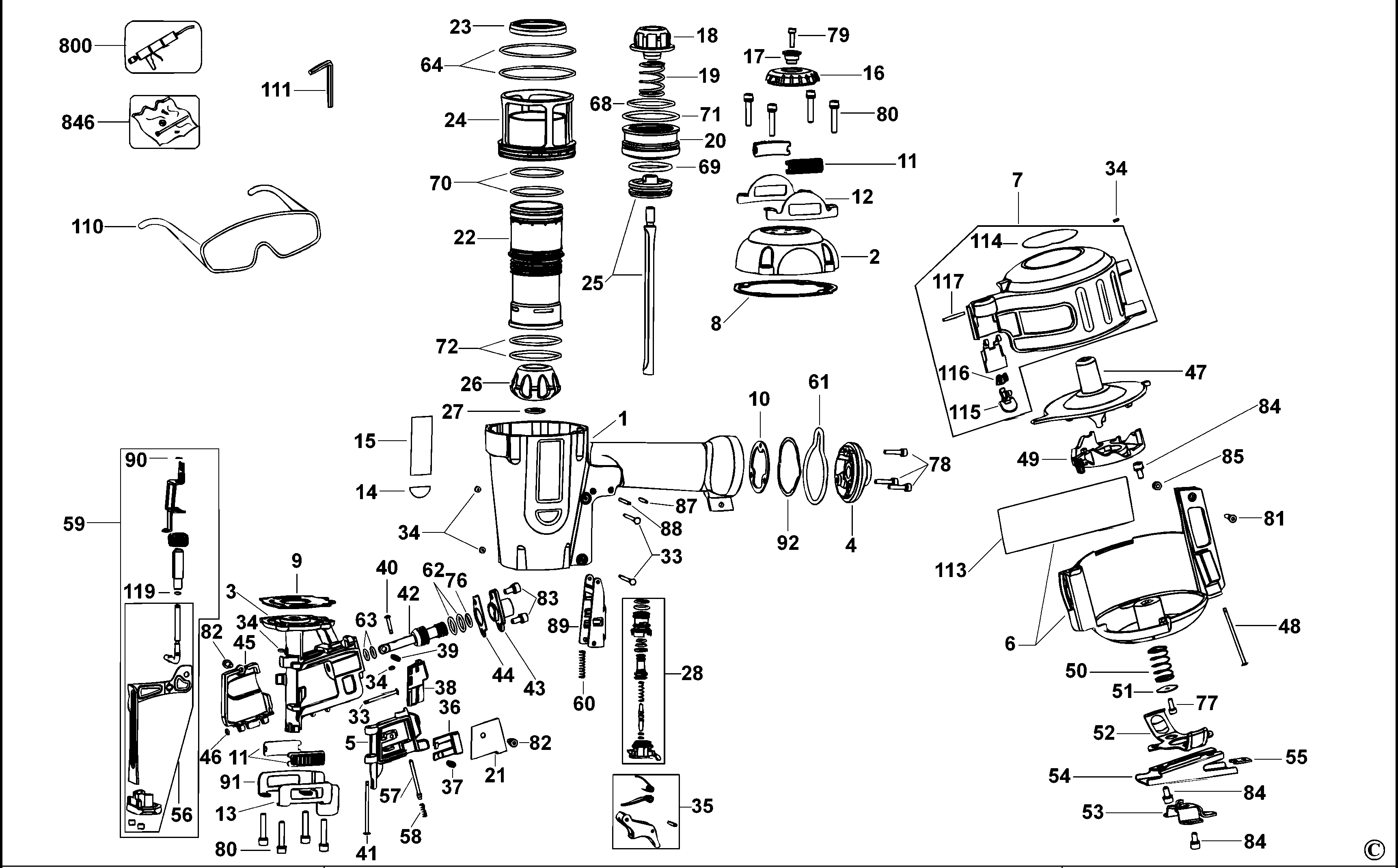

D51321 NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 614947-00 | 1 | FRAME | GB |  |
||
| 1 | 882301 | 1 | PLATE | GB | |
||
| 2 | 614921-00 | 1 | CAP | GB | |
||
| 2 | 877358 | 1 | LEAD 220MM | GB | |
||
| 3 | 614933-00 | 1 | NOSE | GB | |
||
| 3 | 6010110-01 | 1 | BOWL | GB | |||
| 4 | 395433-00 | 1 | END CAP | GB | |
||
| 4 | 1003182-00 | 1 | FIELD 230V | 2000W | GB | |
|
| 5 | 614936-00 | 1 | DOOR | GB | |
||
| 5 | 248420-01 | 1 | ARMATURE 120V | GB | |
||
| 6 | 626275-00 | 1 | HOLDER | CANISTER | INCL 113 | GB | |
| 6 | 577427-00 | 1 | BRAND LABEL | GB | |
||
| 7 | 614945-00 | 1 | COVER | INCL 91,114,115,116 | GB | |
|
| 7 | 882324 | 1 | SOCKET | GB | |||
| 8 | 614922-00 | 1 | GASKET | GB | |
||
| 8 | 568059-00 | 1 | SCREW | GB | |
||
| 9 | 614934-00 | 1 | GASKET | NOSE | GB | |
|
| 9 | 596276-00 | 1 | MOTOR SA | GB | |
||
| 10 | 395430-00 | 1 | GASKET | GB | |
||
| 10 | 885747 | 1 | LEAD | GB | |
||
| 11 | 614961-00 | 4 | PAD | ANTI-SKID | GB | |
|
| 11 | 581153-00 | 1 | ADJUSTER SA | GB | |
||
| 12 | 614962-00 | 2 | CAP | WEAR PLATE | GB | |
|
| 13 | 614963-00 | 1 | NOSE | WEAR PLATE | GB | |
|
| 13 | 568016-00 | 1 | PUSHROD | GB | |
||
| 14 | 619131-00 | 2 | LABEL | BUMPER, 16GA | GB | |
|
| 15 | 613090-00 | 2 | LABEL | LOGO, 16GA | GB | |
|
| 15 | 582319-34 | 1 | CORDSET | GB |  |
||
| 16 | 614985-00 | 1 | DEFLECTOR | GB | |
||
| 16 | 6010119-16 | 2 | RING | GB | |
||
| 17 | 619175-00 | 1 | BUSHING | DEFLECTOR | GB | |
|
| 17 | 1002785-00 | 1 | SCREW | M6 X 15 | GB | |
|
| 18 | 395062-00 | 1 | BUMPER | GB | |
||
| 18 | 6010119-16 | 26 | RING | GB | |
||
| 19 | 395064-00 | 1 | SPRING | GB | |
||
| 20 | 395063-00 | 1 | VALVE | GB | |
||
| 20 | 596259-00 | 1 | BLADE.SHREDDING | GB | |
||
| 21 | 614964-00 | 1 | COVER | DOOR | GB | |
|
| 21 | N012833 | 1 | RATING PLATE | GB | |
||
| 22 | 614926-00 | 1 | CYLINDER | GB | |
||
| 22 | 1004015-00 | 1 | WHEEL | GB | |
||
| 23 | 395065-00 | 1 | SEAL | GB | |
||
| 24 | 631569-00 | 1 | HEAD | BULKHEAD | GB | |
|
| 24 | 1004014-00 | 1 | GRASSBOX | GB | |
||
| 25 | 614930-00 | 1 | DRIVER SA | PISTON | GB | |
|
| 25 | 874415 | 1 | FLAP | GB | |
||
| 26 | 631041-00 | 1 | BUMPER | GB | |
||
| 26 | 247842-00 | 1 | HOUSING | GB | |
||
| 27 | 614931-00 | 1 | PLATE | BUMPER | GB | |
|
| 27 | 1004776-69 | 1 | HOUSING PAIR | GB | |
||
| 28 | N566148 | 1 | TRIGGER | GB | |
||
| 28 | 6010395-23 | 1 | BUTTON | SPRAY | GB | ||
| 31 | 1004427-00 | 1 | SERVICE KIT | GB | |
||
| 32 | 569239-00 | 2 | GEAR | GB | |
||
| 33 | 395091-00 | 3 | PIN | GB | |
||
| 33 | 6010167-38 | 1 | TERMINAL BLOCK | GB | |
||
| 34 | 391814-00 | 5 | GROMMET | GB | |
||
| 35 | 398219-00 | 1 | TRIGGER | BUMP | GB | |
|
| 35 | 398230-00 | 1 | TRIGGER | SEQUENTIAL | GB | |
|
| 36 | 614937-00 | 1 | PAWL | CHECK | GB | |
|
| 37 | 629583-00 | 1 | SPRING | GB | |
||
| 38 | 614939-00 | 1 | PAWL | FEED | GB | |
|
| 39 | 614941-00 | 1 | SPRING | FEED PAWL | GB | |
|
| 40 | 614942-00 | 1 | PIN | GB | |
||
| 41 | 614949-00 | 1 | PIN | GB | |
||
| 42 | 614944-00 | 1 | PISTON | FEED | GB | |
|
| 43 | 614993-00 | 1 | PLATE | GB | |
||
| 44 | 614979-00 | 1 | GASKET | GB | |
||
| 45 | 614946-00 | 1 | COVER | GB | |
||
| 46 | 620635-00 | 1 | GROMMET | GB | |
||
| 47 | 614954-00 | 1 | HOLDER | NAIL | GB | |
|
| 48 | 614955-00 | 1 | PIN | GB | |
||
| 49 | 614956-00 | 1 | CAM | ADJUSTMENT | GB | |
|
| 50 | 614957-00 | 1 | SPRING | GB | |
||
| 51 | 614986-00 | 1 | WASHER | GB | |
||
| 52 | 614959-00 | 1 | PLATE | WEAR | GB | |
|
| 53 | 614958-00 | 1 | GAUGE | SHINGLE | GB | |
|
| 54 | 614960-00 | 1 | GUIDE | SHINGLE | GB | |
|
| 55 | 614973-00 | 1 | PLATE | MOUNTING | GB | |
|
| 56 | 614984-00 | 1 | LINKAGE SA | CONTACT TRIP | GB | |
|
| 57 | 614976-00 | 1 | PIN | GB | |
||
| 58 | 620502-00 | 1 | SPRING | GB | |
||
| 59 | 614987-00 | 1 | ADJUSTER DEPTH | GB | |
||
| 60 | 614972-00 | 1 | SPRING | GB | |
||
| 61 | 629190-00 | 1 | HOOK | BELT | GB | |
|
| 62 | 614981-00 | 2 | O RING | 13.8 X 2 | GB | |
|
| 63 | 614982-00 | 2 | O RING | 7.8 X 1.9 | GB | |
|
| 64 | 614983-00 | 2 | O RING | 67.4 X 2 | GB | |
|
| 68 | 398156-00 | 1 | O RING | GB | |
||
| 69 | 622418-00 | 1 | O RING | GB | |
||
| 70 | 398167-00 | 2 | O RING | GB | |
||
| 71 | 609018-00 | 1 | O RING | GB | |
||
| 72 | 631427-00 | 2 | O RING | GB | |
||
| 76 | 614994-00 | 1 | O RING | GB | |
||
| 77 | 98119-08 | 1 | SCREW | GB | |
||
| 78 | 608178-00 | 3 | SCREW | GB | |
||
| 79 | 98119-14 | 1 | SCREW | M4 X 14 SHCS | GB | |
|
| 80 | 608181-00 | 8 | SCREW.SPECIAL | M5 x 25 | GB | |
|
| 81 | 608180-00 | 1 | SCREW | Plus Washer | GB | |
|
| 82 | 608179-00 | 2 | SCREW | GB | |
||
| 83 | 614997-00 | 2 | SCREW.SPECIAL | GB | |
||
| 84 | 614988-00 | 3 | SCREW | GB | |
||
| 85 | 607156-00 | 1 | NUT | GB | |
||
| 87 | 330036-19 | 1 | ROLL PIN | 3 x 18mm | GB | |
|
| 88 | 330036-20 | 1 | ROLL PIN | 3 x 26mm | GB | |
|
| 89 | 614968-00 | 1 | GUIDE | CONTACT TRIP | GB | |
|
| 90 | 133825-00 | 1 | CLIP | GB | |
||
| 91 | 628636-00 | 1 | SHROUD | WEAR PLATE | GB | |
|
| 92 | 395080-00 | 1 | PLATE | GB | |
||
| 110 | 609123-00 | 1 | SAFETY GLASSES | GB | |
||
| 111 | 604407-02 | 1 | WRENCH | GB | |
||
| 111 | 497570-02 | 1 | KEY | 4mm | GB | |
|
| 113 | 629121-00 | 1 | WARNING LABEL | GB | |
||
| 114 | 614974-00 | 1 | LABEL | DEPTH ADJUSTMENT | GB | |
|
| 115 | 614950-00 | 1 | LATCH | GB | |
||
| 116 | 614951-00 | 1 | SPRING | GB | |
||
| 117 | 330036-24 | 1 | ROLL PIN | GB | |
||
| 119 | 624940-00 | 1 | O RING | 2.57 X 1.78 | GB | |
|
| 800 | 429995-00 | 1 | GREASE 150 GMS | GB | |
||
| 800 | 605708-00 | 1 | OIL | 8 Ounces | GB | |
|
| 846 | 623083-00 | 1 | FOOT | ANTI SKID KIT | GB | |
|
| 846 | 603415-00 | 1 | TRIGGER | GB | |
||
| 846 | 621641-00 | 1 | BUMPER | KIT | GB | |
|
| 846 | 621639-00 | 1 | O RING KIT | GB | |
||
| 846 | 621640-00 | 1 | PISTON SA | GB | |
