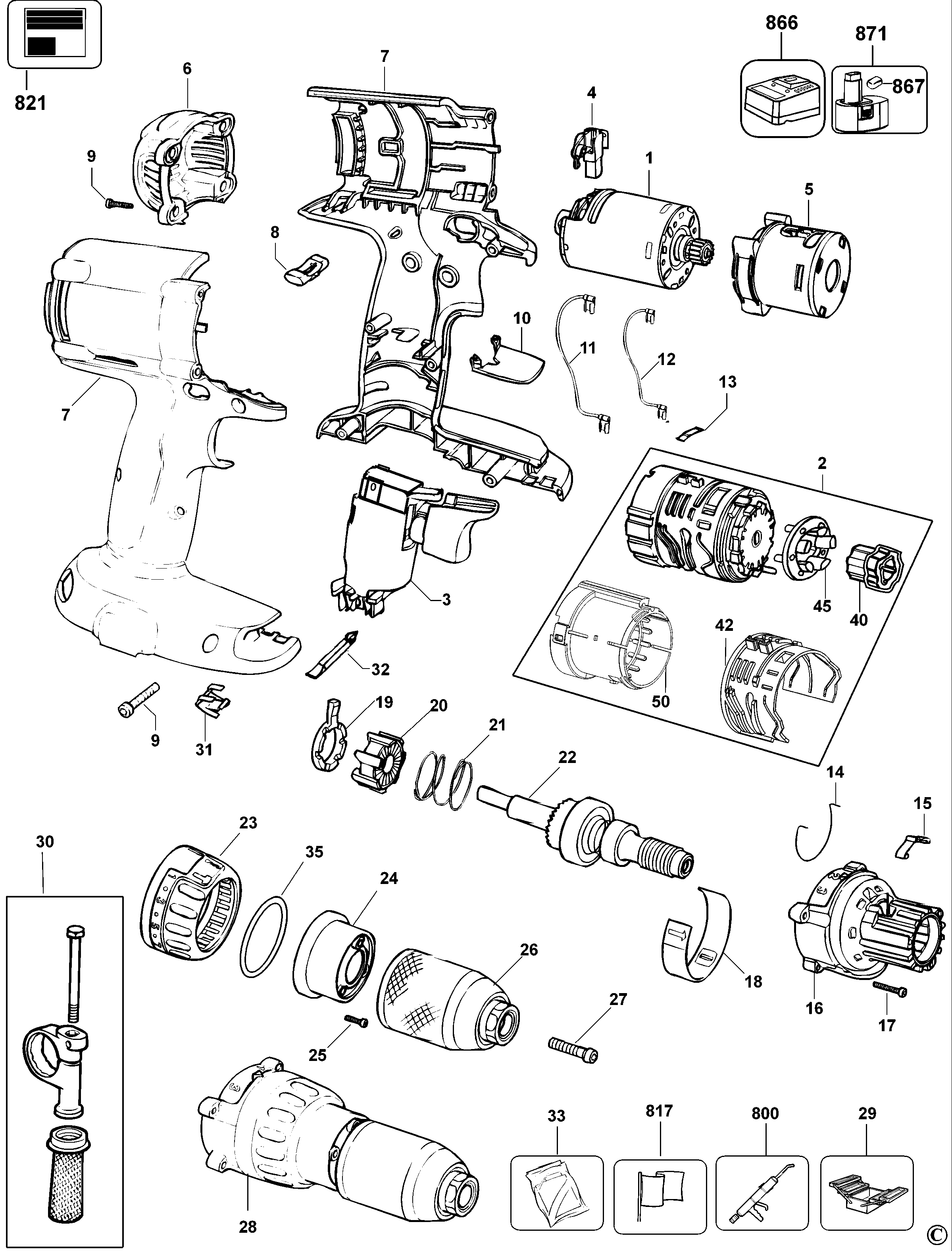

DC988K COMBINATION UNIT Type 12 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 579724-05 | 1 | MOTOR & PINION | GB |  |
||
| 2 | 583013-00 | 1 | GEARBOX SA | GB | |
||
| 3 | N030560 | 1 | SWITCH | GB | |
||
| 4 | 493511-00 | 1 | BRUSH PAIR | GB |  |
||
| 5 | 394514-01 | 1 | ADAPTOR | GB | |
||
| 6 | 394513-00 | 1 | END CAP | GB | |
||
| 7 | N030313 | 1 | CLAMSHELL PAIR | GB | |
||
| 8 | 628741-00 | 1 | LEVER | GB | |
||
| 9 | 682211-00 | 9 | SCREW | GB | |
||
| 10 | 603529-00 | 1 | GUIDE | GB | |
||
| 11 | 630599-00 | 1 | LEADWIRE | GB | |
||
| 12 | 630598-00 | 1 | LEADWIRE | GB | |
||
| 13 | 608060-00 | 1 | DETENT | GB | |
||
| 14 | 399059-00 | 1 | SPRING | GB | |
||
| 15 | 395460-00 | 1 | SPRING GUIDE | GB | |
||
| 16 | 613767-01 | 1 | GEARCASE | GB | |
||
| 17 | 330019-49 | 4 | SCREW | GB | |
||
| 18 | 394518-01 | 1 | SHROUD | GB | |
||
| 19 | 394545-00 | 1 | CAM | GB | |
||
| 20 | 394542-00 | 1 | RATCHET FIXED | GB | |
||
| 21 | 619421-00 | 1 | SPRING | GB | |
||
| 22 | 579726-00 | 1 | SPINDLE SA | GB | |
||
| 23 | 604643-00 | 1 | COLLAR | GB | |
||
| 24 | 609133-00 | 1 | END CAP | GB | |
||
| 25 | 330045-53 | 3 | SCREW | GB | |
||
| 26 | N242399 | 1 | CHUCK KEYLESS | GB | |
||
| 27 | 605256-02 | 1 | SCREW | GB | |
||
| 28 | 579728-00 | 1 | REPAIR KIT | GB | |
||
| 29 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | GB | |
||
| 29 | 559697-99 | 1 | S.T.INSERT | GB | |
||
| 30 | 939794-02 | 1 | HANDLE SIDE SA | GB | |
||
| 31 | 148354-03 | 1 | HOLDER | GB | |
||
| 32 | 297757-02 | 1 | BIT PHILLIPS | GB | |
||
| 33 | 479938-00 | 1 | REPAIR KIT | GB | |
||
| 35 | N092649 | 1 | WASHER SHIM | GB | |
||
| 40 | 394532-00 | 1 | ANVIL | GB | |
||
| 42 | 607282-00 | 1 | SLIDER | GB | |
||
| 45 | 397302-00 | 1 | CARRIER SA | GB | |
||
| 50 | 394522-02 | 1 | HOUSING | GB | |
||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | GB | ||
| 817 | 578037-00 | 1 | BRAND LABEL | GB | |
||
| 821 | N042752 | 1 | RATING PLATE | GB | |
||
| 866 | N015877 | 1 | CHARGER 7.2V - 18V | DC988KL | GB | |
|
| 867 | 608522-00 | 1 | SAFETY CAP | GB | |
||
| 871 | N425667 | 1 | BATTERY 18V - 2.0AH - 36WH | DC988KL | GB | |
