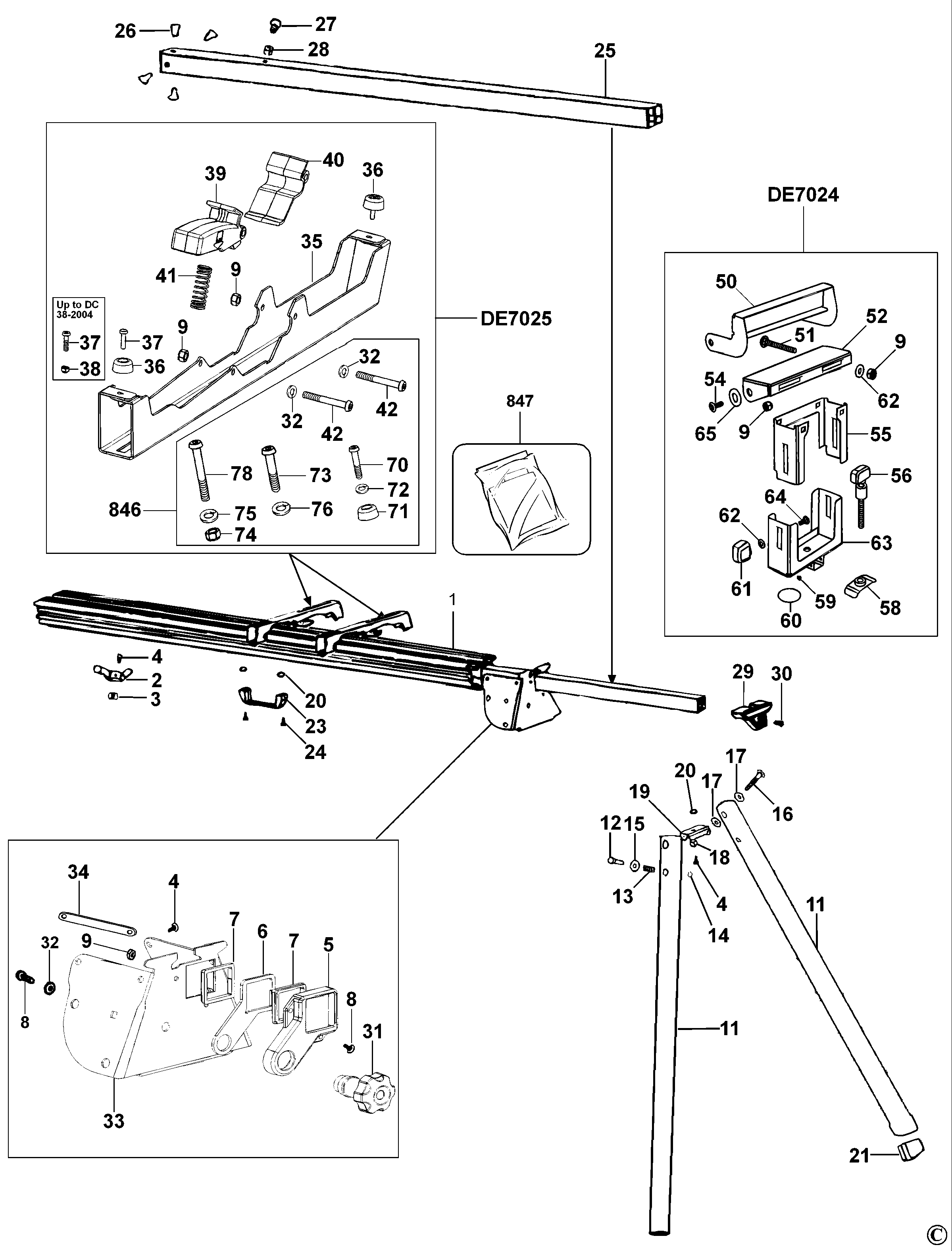

DE7023 LEG STAND Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 590880-00 | 1 | BEAM | GB |  |
||
| 2 | 590881-00 | 1 | CLIP | GB | |
||
| 3 | 590882-00 | 1 | NUT | GB | |
||
| 3 | N082122 | 1 | CHARGER 10.8V (EURO) | DCB100; DCB100-QW - 1.8A | GB | ||
| 4 | 330045-31 | 11 | SCREW | GB |  |
||
| 4 | 860077-01 | 2 | WASHER | GB | |
||
| 5 | 590883-10 | 2 | CASTING SA | Up to DC 23-2003 | GB | |
|
| 5 | 1004566-00 | 2 | REPAIR KIT | From DC 24-2003 | GB | |
|
| 5 | 589467-00 | 2 | SIDE HANDLE | GB | |
||
| 6 | N087196 | 2 | PLATE LOCK | GB | |||
| 7 | N087198 | 4 | GUIDE | GB | |
||
| 8 | 590872-01 | 6 | SCREW | M6X16 | GB | |
|
| 9 | 330021-01 | 16 | NUT | GB | |
||
| 10 | 577787-00 | 1 | MOTOR COVER | GB | |
||
| 11 | 590886-00 | 4 | LEG | GB | |
||
| 12 | 1004587-00 | 4 | REPAIR KIT | 12.1mm | GB | |
|
| 13 | 658120-00 | 4 | SPRING COMPRESSION | GB | |
||
| 13 | 568290-00 | 1 | GEARCASE COVER | GB | |
||
| 14 | 1004587-00 | 4 | REPAIR KIT | 12.1mm | GB | |
|
| 15 | 590876-00 | 4 | WASHER | 14mm | GB | |
|
| 15 | 942934-01 | 1 | FIELDCASE | GB | |
||
| 16 | 590867-02 | 4 | SCREW | M8 x 50 | GB | |
|
| 17 | 590877-01 | 8 | WASHER | 9mm | GB | |
|
| 17 | 590713-00 | 1 | ARMATURE & FAN | 115 V | * LATER BUILD H1 | GB | |
| 18 | 725886 | 4 | NUT | GB | |
||
| 18 | 807265-00 | 1 | PCB SA | GB | |
||
| 19 | 590888-00 | 2 | BRACKET | GB | |
||
| 19 | 568889-00 | 1 | CASING UPPER | GB | |
||
| 20 | N087199 | 4 | NUT | GB | |
||
| 20 | 6010167-45 | 1 | SET OF LEAD WIRES | * LATER BUILD H1 | GB | ||
| 21 | 1004685-77 | 4 | REPAIR KIT | GB | |
||
| 21 | 372598-03 | 1 | RATING PLATE | * EARLY BUILD H1 | GB | |
|
| 22 | 833876 | 9 | ELEMENT | GB | |||
| 23 | 590890-00 | 1 | HANDLE | GB | |
||
| 23 | 6010029-21 | 1 | ADAPTOR | OUTLET | GB | |
|
| 24 | 591040-00 | 2 | SCREW | GB | |
||
| 25 | N087325 | 2 | EXTENSION | 1376mm | GB | |
|
| 25 | 172990-00 | 1 | BULB | GB | |
||
| 26 | 590893-00 | 8 | COVER | GB | |
||
| 26 | 806719-14 | 1 | CLAMSHELL PAIR | GB | |
||
| 27 | 591092-00 | 2 | SCREW | GB | |
||
| 28 | 725115 | 4 | WASHER | GB | |
||
| 29 | N576964 | 2 | END CAP | GB | |
||
| 29 | 372429-12 | 1 | RATING PLATE | GB | |
||
| 30 | 590872-04 | 2 | SCREW | GB | |
||
| 30 | 808575-01 | 1 | BASE | * EARLY BUILD H1 | GB | |
|
| 31 | 1004566-00 | 2 | REPAIR KIT | GB | |
||
| 31 | 577357-02 | 1 | ARMATURE & FAN | GB | |
||
| 32 | 725342 | 3 | WASHER | 6.4mm | GB | |
|
| 33 | 590898-10 | 2 | BRACKET | Up to DC 23-2003 | GB | |
|
| 33 | 590898-10 | 2 | BRACKET | From DC 24-2003 | GB | |
|
| 33 | 370963-01 | 2 | BRAND LABEL | GB | |
||
| 34 | N087205 | 4 | PLATE | GB | |
||
| 34 | N663174 | 2 | GEARBOX | GB | |
||
| 35 | 1004757-47 | 1 | MOUNTING BRACKET | GB | |
||
| 36 | N057926 | 4 | FOOT | GB | |
||
| 37 | 590532-00 | 4 | RIVET | 4 X 16 mm | From DC 39-2004 | GB | |
| 37 | 590872-00 | 4 | SCREW | M4 x 16 | Up to DC 38-2004 | GB | |
| 38 | 590873-00 | 4 | NUT | M4 | Up to DC 38-2004 | GB | |
| 39 | 6010262-00 | 2 | LEVER KIT | GB | |
||
| 40 | N087369 | 2 | CLIP | GB | |
||
| 40 | 372660 | 1 | SHAFT SA | PARTS NOT DRAWN | GB | |
|
| 41 | 6010262-00 | 2 | LEVER KIT | GB | |
||
| 42 | 590872-02 | 4 | SCREW | M6 x 45 | GB | |
|
| 50 | N087387 | 2 | STOP | GB | |
||
| 51 | 590867-01 | 4 | SCREW | M6 x 55 | GB | |
|
| 52 | 590908-01 | 2 | SUPPORT | GB | |
||
| 54 | N087390 | 4 | SCREW | GB | |
||
| 55 | 590907-00 | 2 | SUPPORT | GB | |
||
| 56 | 590911-01 | 1 | SCREW.SPECIAL | M6 x 35 - Inc Spacer | GB | |
|
| 58 | N087375 | 2 | BAR LOCKING | GB | |
||
| 59 | N087373 | 8 | PLASTIC INSERT | GB | |
||
| 60 | 590876-01 | 4 | CAP | GB | |
||
| 61 | N087378 | 4 | KNOB | GB | |
||
| 62 | 880391 | 8 | WASHER | GB | |
||
| 63 | 590878-10 | 2 | BASE | GB | |
||
| 64 | N087380 | 4 | SCREW | GB | |
||
| 65 | N087392 | 1 | WASHER PLASTIC | GB | |
||
| 70 | 591128 | 4 | SCREW | M6 x 25 | GB | |
|
| 71 | 591129 | 4 | SPACER | GB | |
||
| 72 | 743415 | 4 | WASHER | 6mm | GB | |
|
| 73 | 249406-11 | 2 | BOLT | M8 x 45 | GB | |
|
| 74 | 725187 | 4 | NUT | M8 | GB | |
|
| 75 | 725929 | 4 | WASHER | 8.4mm | GB | |
|
| 76 | 590516-00 | 4 | WASHER | 8.4mm | GB | |
|
| 78 | 590956-00 | 4 | SCREW | M8 x 50 | GB | |
|
| 846 | 590879-01 | 1 | PARTS PACK | GB | |
||
| 846 | N088855 | 1 | PARTS PACK | GB | |
||
| 847 | 868985-00 | 1 | PARTS PACK(KIT) | DW701 & DW707 TYPE 2 | GB | |
