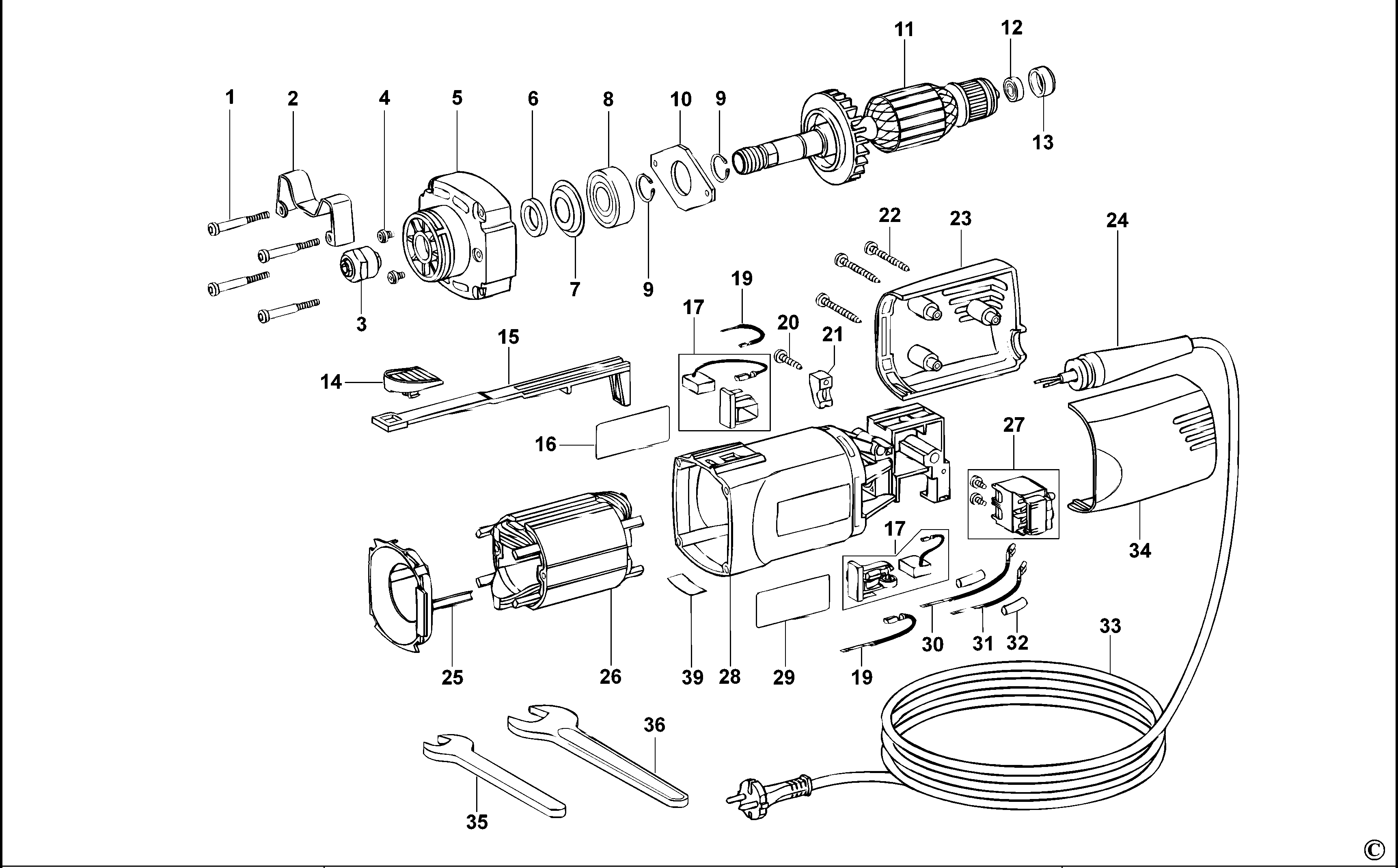

D28885 GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 596604-00 | 4 | SCREW | GB |  |
||
| 2 | 596605-00 | 1 | FOOT | GB | |
||
| 3 | 596606-00 | 1 | COLLET & NUT SA | 6mm - D288863-XJ | GB | ||
| 4 | 596607-00 | 2 | SCREW | GB | |
||
| 5 | 596608-00 | 1 | HOUSING FRONT | GB | |
||
| 6 | 596609-00 | 1 | FELT SEAL | GB | |
||
| 7 | 596610-00 | 1 | WASHER SPECIAL | GB | |
||
| 8 | 596611-00 | 1 | BEARING | 15 x 35 x 11 | GB | |
|
| 9 | 596612-00 | 2 | CIRCLIP | GB | |
||
| 10 | 596613-00 | 1 | CLAMP | GB | |
||
| 11 | 596614-00 | 1 | ARMATURE SA | 230V | GB | |
|
| 12 | 596615-00 | 1 | BEARING | 6 x 19 x 6 | GB | |
|
| 13 | 596616-00 | 1 | BEARING HOLDER | GB | |
||
| 14 | 596617-00 | 1 | BUTTON | GB |  |
||
| 15 | 596618-00 | 1 | SLIDER | GB | |
||
| 16 | N045279 | 1 | RATING PLATE | GB | |
||
| 17 | 596621-00 | 2 | BRUSH HOLDER SA | 230V | GB | |
|
| 19 | 596622-00 | 2 | LEADWIRE | GB | |
||
| 20 | 596582-00 | 1 | SCREW | GB | |
||
| 21 | 596128-00 | 1 | CORD CLAMP | GB | |
||
| 22 | 596623-00 | 3 | SCREW | GB | |
||
| 23 | 596624-00 | 1 | HANDLE | GB | |
||
| 24 | 596587-00 | 1 | CORD PROTECTOR | GB | |
||
| 25 | 596625-00 | 1 | BAFFLE | GB | |
||
| 26 | 596626-00 | 1 | FIELD SA | 230V | GB | |
|
| 27 | 596627-00 | 1 | SWITCH | 230V | GB | |
|
| 28 | 596628-00 | 1 | FIELDCASE | GB | |
||
| 29 | 596600-00 | 1 | BRAND LABEL | GB | |
||
| 30 | 596630-00 | 1 | LEADWIRE | GB | |
||
| 31 | 596631-00 | 1 | LEADWIRE | GB | |
||
| 32 | 596632-00 | 2 | INSULATOR | GB | |
||
| 33 | 596141-00 | 1 | CORDSET | GB | |
||
| 34 | 596633-00 | 1 | HANDLE COVER | GB | |
||
| 35 | 596634-00 | 1 | SPANNER | GB | |
||
| 36 | 596635-00 | 1 | SPANNER | GB | |
||
| 39 | 596636-00 | 1 | LABEL | GB | |
