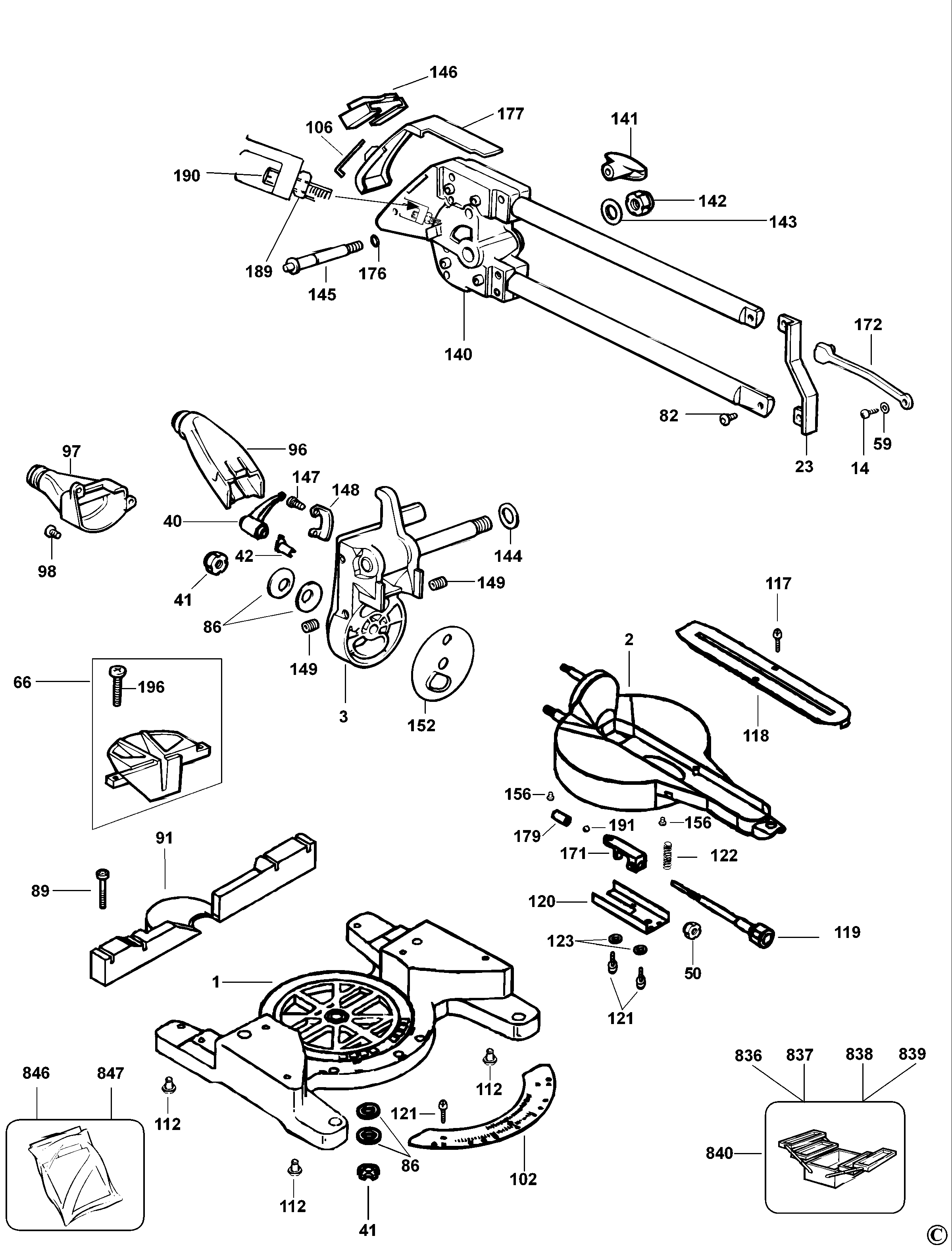

DW707 MITRE SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N283746 | 1 | TABLE SA | => DC 37 2006 | GB |  |
|
| 1 | N283746 | 1 | TABLE SA | < DC 37 2006 | GB | |
|
| 2 | 869234-00 | 1 | ROTARY TABLE | GB | |
||
| 3 | 868710-00 | 1 | SEGMENT | GB | |
||
| 4 | 861361-01 | 1 | GUARD SA | GB | |
||
| 5 | 861366-00 | 2 | QUICKLOCK | GB |  |
||
| 6 | 861367-01 | 2 | ROLLER | GB | |
||
| 7 | 760298-01 | 2 | INSERT | GB | |
||
| 8 | 947645-00 | 1 | CARRIAGE SA | GB | |
||
| 9 | 947108-10 | 1 | CABLE SA | GB | |
||
| 10 | 720748-00 | 1 | CLAMP | GB | |
||
| 11 | 860084-12 | 3 | SCREW | GB | |
||
| 12 | 861363-00 | 1 | SCREW.SPECIAL | GB | |
||
| 13 | 949876-19 | 1 | WASHER | GB | |
||
| 14 | 860084-20 | 4 | SCREW | GB | |
||
| 15 | 860073-00 | 3 | WASHER | GB | |
||
| 16 | 760296-01 | 1 | PIVOT | GB | |
||
| 17 | 860084-20 | 1 | SCREW | GB | |
||
| 18 | 860084-12 | 2 | SCREW | GB | |
||
| 19 | 942589-00 | 2 | LEAD | GB | |
||
| 20 | 868512-00 | 1 | SPRING | GB | |
||
| 21 | 943004-05 | 1 | GUARD | GB | |
||
| 22 | 947486-00 | 1 | SWITCH SA | GB | |
||
| 23 | 947613-00 | 1 | BRACKET | GB | |
||
| 24 | 946871-00 | 1 | LOCK BUTTON | GB | |
||
| 25 | 947016-00 | 1 | ECCENTRIC | GB | |
||
| 26 | 946876-00 | 1 | LEAF SPRING | GB | |
||
| 27 | 946880-00 | 1 | LEVER | GB | |
||
| 28 | 946999-02 | 1 | HANDLE & COVER | YELLOW | GB | |
|
| 29 | 861765-00 | 1 | KIT SA | GB | |
||
| 30 | 947010-01 | 1 | LEVER | GB | |
||
| 31 | 947025-00 | 1 | CAPACITOR | GB | |
||
| 32 | 860084-12 | 2 | SCREW | GB | |
||
| 33 | 860084-20 | 1 | SCREW | GB | |
||
| 35 | 947067-00 | 1 | PLUG | GB | |
||
| 36 | 947019-00 | 1 | SPRING | GB | |
||
| 37 | 949896-10 | 6 | SCREW | GB | |
||
| 38 | 946877-03 | 1 | END CAP | GB | |
||
| 39 | 946997-02 | 1 | FIELDCASE | GB | |
||
| 40 | 861840-03 | 1 | LEVER | GB | |
||
| 41 | 860092-07 | 2 | NUT | GB | |
||
| 42 | 868680-00 | 1 | INSERT | GB | |
||
| 43 | 860084-20 | 2 | SCREW | GB | |
||
| 46 | 760215-00 | 1 | BELT | GB | |
||
| 47 | 942569-00 | 2 | CLAMP | GB | |
||
| 48 | 934409-00 | 1 | SLEEVE | GB | |
||
| 49 | 761202-00 | 2 | BRUSHBOX SA | GB | |||
| 50 | 868943-02 | 1 | LOCKING DEVICE | GB | |
||
| 51 | 868405-00 | 1 | FIELD | GB | |
||
| 53 | 944975-00 | 1 | SPACER | GB | |
||
| 54 | 946857-01 | 1 | FAN | GB | |
||
| 56 | 861379-08 | 1 | ARMATURE 230V | GB | |
||
| 57 | 947011-01 | 1 | LOCK BUTTON | GB | |
||
| 59 | 939625-00 | 1 | WASHER | GB | |
||
| 60 | 947022-00 | 1 | INNER FLANGE | GB | |
||
| 61 | 946954-00 | 1 | LEAD SA | GB | |
||
| 62 | 947070-00 | 1 | SPRING | GB | |
||
| 63 | 949728-01 | 1 | CIRCLIP | GB | |
||
| 65 | 949736-01 | 2 | BRUSH CUT OFF | Single | GB | |
|
| 66 | 401457-00 | 1 | INSERT SA | GB | |
||
| 66 | 401363-00 | 1 | INSERT | For Aluminium only | GB | |
|
| 67 | 949886-27 | 1 | SCREW | BLACK | GB | |
|
| 69 | 760251-00 | 2 | SCREW | GB | |
||
| 70 | 949894-02 | 3 | SCREW | GB | |
||
| 71 | 949886-26 | 1 | SCREW | GB | |
||
| 72 | 760261-00 | 2 | WASHER | GB | |
||
| 73 | 577745-00 | 1 | BEARING | GB | |
||
| 74 | 942959-03 | 1 | OUTER FLANGE | BLACK | GB | |
|
| 75 | 931298-02 | 1 | SCREW | GB | |
||
| 76 | 930082-01 | 1 | SCREW | GB | |
||
| 79 | 860073-00 | 3 | WASHER | GB | |
||
| 81 | 940441-00 | 1 | KEY | GB | |
||
| 82 | 949609-01 | 2 | SCREW | GB | |
||
| 83 | 949894-04 | 2 | SCREW | GB | |
||
| 84 | 330045-05 | 1 | SCREW | GB | |
||
| 85 | 949739-01 | 1 | PIN | GB | |
||
| 86 | 949705-01 | 4 | WASHER | GB | |
||
| 87 | 861356-00 | 1 | PULLEY | 22w x 58OD. ID 15.85 | GB | |
|
| 88 | 401166-00 | 1 | PULLEY | GB | |
||
| 89 | 330045-26 | 4 | SCREW | GB | |
||
| 90 | 946869-02 | 1 | LEVER | GB | |
||
| 91 | 868687-02 | 1 | FENCE | >DC 37 2006 | GB | |
|
| 91 | 868687-00 | 1 | FENCE | < DC 37 2006 | GB | |
|
| 91 | N283746 | 1 | TABLE SA | => DC 37 2006 | GB | |
|
| 92 | 946863-00 | 1 | BAFFLE | GB | |
||
| 93 | 760311-00 | 1 | ADAPTOR | GB | |
||
| 96 | 760312-00 | 1 | ADAPTOR | GB | |
||
| 97 | 947620-00 | 1 | ADAPTOR | GB | |
||
| 98 | 860094-03 | 2 | SCREW | GB | |
||
| 102 | 868677-00 | 1 | SCALE | GB | |
||
| 106 | 868682-00 | 1 | HEX KEY | 4/6mm | GB | |
|
| 112 | 868777-00 | 4 | FOOT | GB | |
||
| 117 | 860205-08 | 2 | SCREW | GB | |
||
| 118 | 868688-01 | 1 | INSERT | GB | |
||
| 119 | 868943-02 | 1 | LOCKING DEVICE | GB | |
||
| 120 | 868737-00 | 1 | PLATE | GB | |
||
| 121 | 330045-05 | 7 | SCREW | GB | |
||
| 122 | 868778-00 | 1 | SPRING | GB | |
||
| 123 | 860074-00 | 2 | WASHER SPRING | GB | |
||
| 127 | 720703-00 | 1 | PROTECTOR | GB | |
||
| 128 | 861721-13 | 1 | BEARING | GB | |
||
| 129 | 930117-00 | 2 | WASHER | GB | |
||
| 130 | N110358 | 1 | BEARING | GB | |
||
| 131 | 947012-01 | 1 | SPINDLE | GB | |
||
| 132 | 861721-10 | 1 | BEARING | 6003 2RS | GB | |
|
| 133 | 949729-02 | 1 | CIRCLIP | GB | |
||
| 134 | 949729-03 | 1 | CIRCLIP | GB | |
||
| 138 | 761306-00 | 1 | BUMPER | GB | |
||
| 139 | 761307-00 | 1 | SCREW | GB | |
||
| 140 | 401172-01 | 1 | FSO SUPPORT SA | GB | |
||
| 141 | 941756-00 | 1 | KNOB | GB | |
||
| 142 | 943016-00 | 1 | LOCK NUT | GB | |
||
| 143 | 860226-02 | 1 | WASHER | GB | |
||
| 144 | 947290-01 | 2 | WASHER | GB | |
||
| 145 | 947616-00 | 1 | PIN | GB | |
||
| 146 | 947021-00 | 1 | CABLE CLAMP | GB | |
||
| 147 | 949894-12 | 2 | SCREW | GB | |
||
| 148 | 946862-01 | 1 | SCALE | GB | |
||
| 149 | 949743-02 | 2 | SCREW | M8 x 14mm | GB | |
|
| 152 | 947614-00 | 1 | PLATE | GB | |
||
| 154 | 947653-00 | 1 | BAFFLE | GB | |
||
| 155 | 947638-00 | 1 | SEAL | GB | |
||
| 156 | 760298-01 | 3 | INSERT | GB | |
||
| 157 | 947017-00 | 1 | FLANGE | GB | |
||
| 158 | 860094-03 | 2 | SCREW | GB | |
||
| 161 | 947617-01 | 1 | LOCKING DEVICE | GB | |
||
| 162 | 860084-12 | 1 | SCREW | GB | |
||
| 162 | 860084-12 | 1 | SCREW | GB | |
||
| 164 | 947642-00 | 1 | SPRING | GB | |
||
| 165 | 947573-00 | 1 | BAFFLE | GB | |
||
| 166 | 947018-00 | 1 | INSERT | GB | |
||
| 167 | 946874-00 | 1 | ADJUSTER | GB | |
||
| 168 | 947610-00 | 1 | SEAL | GB | |
||
| 169 | 401174-00 | 1 | SEAL | GB | |
||
| 171 | 868943-02 | 1 | LOCKING DEVICE | GB | |
||
| 172 | 947650-00 | 1 | SPRING | GB | |
||
| 175 | 760279-00 | 1 | PIN | GB | |
||
| 176 | 943030-00 | 1 | O RING | GB | |
||
| 177 | 868689-00 | 1 | COVER | GB | |
||
| 179 | 868707-01 | 1 | BUSH | GB | |
||
| 189 | 860083-14 | 1 | NUT | GB | |
||
| 190 | 949854-01 | 1 | SCREW | GB | |
||
| 191 | 868708-00 | 1 | BALL | GB | |
||
| 192 | 949896-11 | 2 | SCREW | GB | |
||
| 193 | 949896-12 | 2 | SCREW | GB | |
||
| 196 | 860090-05 | 2 | SCREW | GB | |
||
| 198 | 949739-01 | 1 | PIN | GB | |
||
| 199 | 861736-00 | 1 | BUSH | GB | |
||
| 836 | 279663-99 | 1 | SPANNER TOOL | GB | |
||
| 837 | 559506-99 | 1 | SOCKET | GB | |
||
| 838 | 559570-99 | 1 | SOCKET | GB | |
||
| 839 | 559572-99 | 1 | BOLT | GB | |
||
| 840 | 559606-99 | 1 | S.T.SQUARE | Small square | GB | |
|
| 846 | 868980-00 | 1 | PARTS PACK | GB | |
||
| 847 | 868985-00 | 1 | PARTS PACK(KIT) | DE7023 | GB | |
