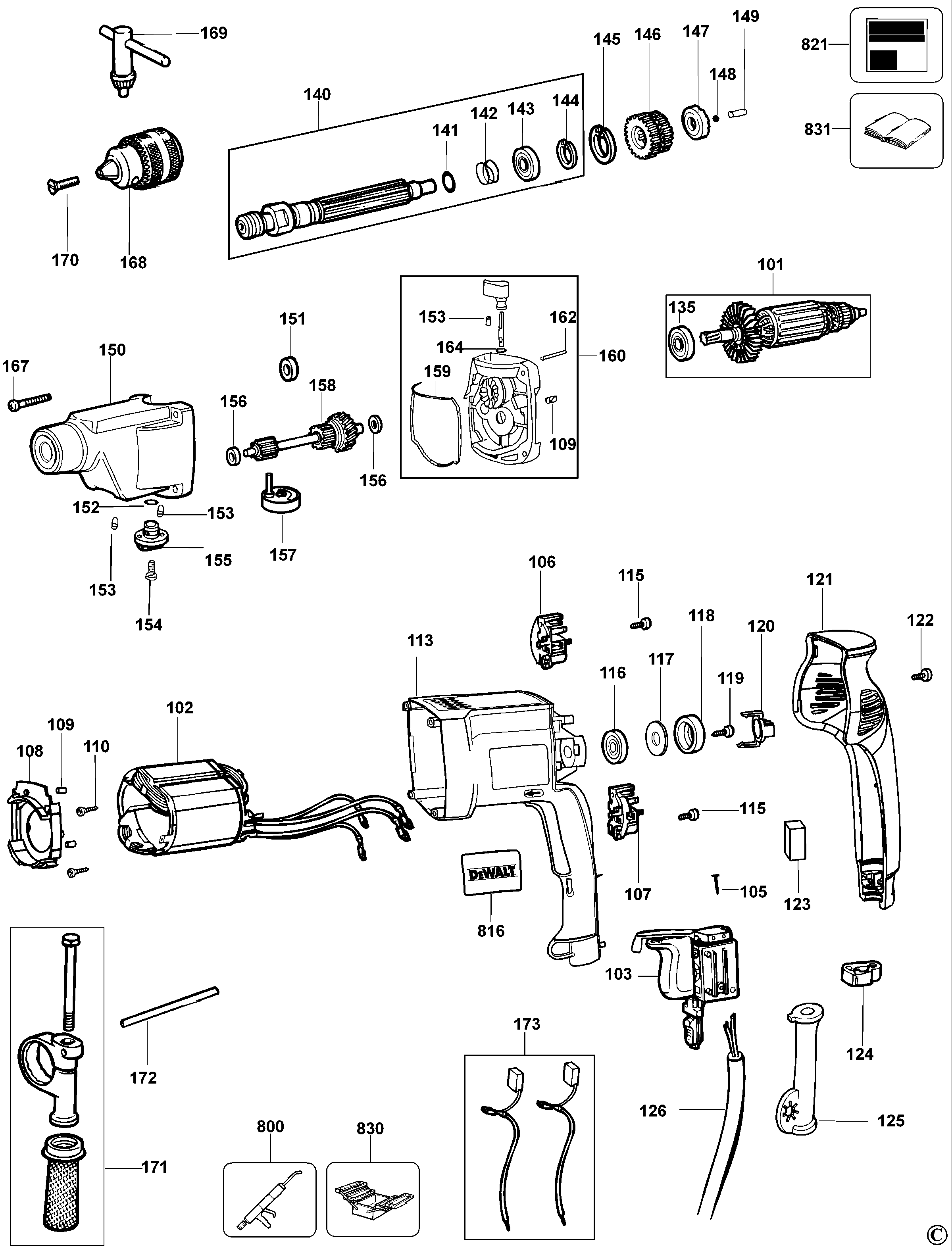

DW515K HAMMER DRILL Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 105 | 402760-01 | 1 | PIN | XJ |  |
||
| 106 | 401878-01 | 1 | BRUSH HOLDER SA | XJ | |||
| 107 | 401877-01 | 1 | BRUSH HOLDER SA | XJ |  |
||
| 108 | 327293-00 | 1 | BAFFLE FAN | XJ | |
||
| 109 | 949638-01 | 3 | BUFFER | XJ | |
||
| 110 | 747329 | 4 | SCREW | XJ | |
||
| 115 | 930284-01 | 1 | SCREW | XJ | |
||
| 116 | 330003-19 | 1 | BEARING | XJ | |
||
| 117 | 949876-25 | 1 | WASHER | XJ | |
||
| 118 | 870052 | 1 | SLEEVE | XJ | |
||
| 119 | 828790 | 1 | SCREW.SPECIAL | XJ | |
||
| 120 | 327296-00 | 1 | CAP | XJ | |
||
| 121 | 327298-01 | 1 | SWITCH COVER | XJ | |
||
| 122 | 330065-08 | 3 | SCREW | M4x18 T20 | XJ | |
|
| 123 | 930026-01 | 1 | BUMPER | XJ | |
||
| 125 | 401751-00 | 1 | CORD PROTECTOR | XJ | |
||
| 135 | 605040-05 | 1 | BEARING | XJ | |
||
| 140 | 327313-02 | 1 | SPINDLE SA | XJ | |
||
| 141 | 930028-00 | 1 | O RING | XJ | |
||
| 142 | 931890 | 1 | SPRING | XJ | |
||
| 143 | 605040-25 | 1 | BEARING,BALL | XJ | |
||
| 144 | 944137-00 | 1 | CIRCLIP | XJ | |
||
| 145 | 931398 | 1 | RING | XJ | |
||
| 146 | 1008288-00 | 1 | GEAR | XJ | |
||
| 147 | 945706-00 | 1 | RATCHET | XJ | |
||
| 148 | 917725 | 1 | BALL | 3.5mm | XJ | |
|
| 149 | 330041-25 | 1 | PIN | XJ | |
||
| 150 | 327311-00 | 1 | GEARCASE SA | XJ | |
||
| 151 | 1006305-00 | 1 | SEAL | XJ | |
||
| 152 | 323711-34 | 1 | O RING | XJ | |
||
| 153 | 326467-00 | 2 | DETENT | XJ | |
||
| 154 | 330065-22 | 1 | SCREW | XJ | |
||
| 155 | 327309-01 | 1 | KNOB | XJ | |
||
| 156 | 930102-00 | 2 | WASHER | XJ | |
||
| 157 | 327314-00 | 1 | ACTUATOR | XJ | |
||
| 159 | 327291-00 | 1 | SEAL | XJ | |
||
| 160 | 583999-00 | 1 | GEARCASE COVER SA | XJ | |
||
| 162 | 325880-04 | 1 | PIN | XJ | |
||
| 164 | 577168-00 | 1 | O RING | XJ | |
||
| 167 | 580095-00 | 4 | SCREW | XJ | |
||
| 168 | 5140071-68 | 1 | CHUCK 13MM | XJ | |
||
| 169 | 330034-08 | 1 | CHUCK KEY | XJ | |
||
| 170 | 575237-00 | 1 | SCREW | XJ | |
||
| 171 | 939794-02 | 1 | HANDLE SIDE SA | XJ | |
||
| 172 | 580787-00 | 1 | DEPTH STOP | XJ | |
||
| 173 | N081423 | 1 | BRUSH PAIR 115V | XJ | |
||
| 800 | 870889-02 | 1 | GREASE | XJ | |
||
| 816 | 395047-00 | 1 | BRAND LABEL | XJ | |
||
| 830 | 559596-99 | 1 | S.T.PULLER | XJ | |
