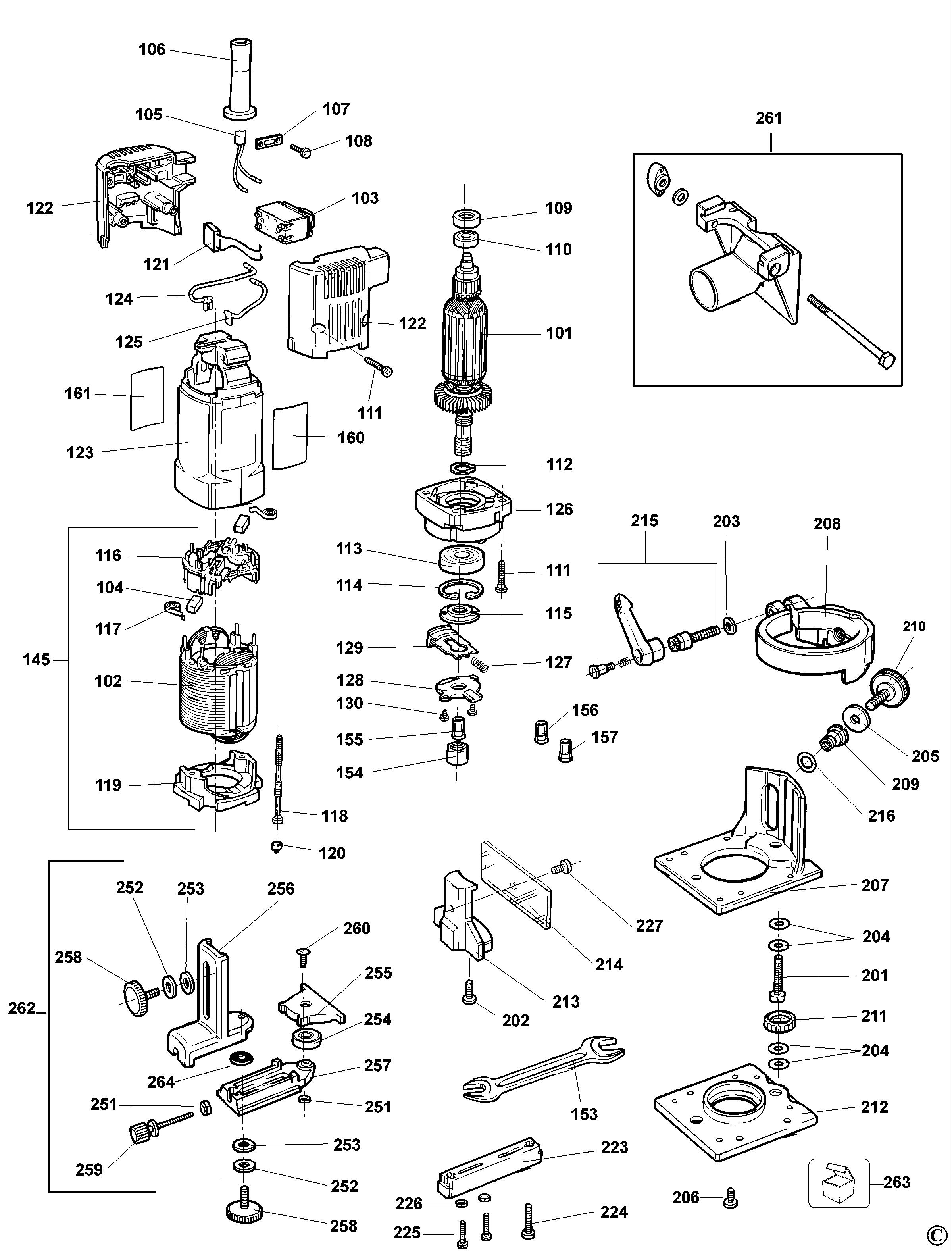

DW670K TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 868630-00 | 1 | ARMATURE | GB |  |
||
| 102 | 868629-02 | 1 | FIELD | GB | |
||
| 103 | N566709 | 1 | SWITCH | GB |  |
||
| 104 | 930760-00 | 2 | BRUSH 230V | GB | |
||
| 105 | 949770-06 | 1 | CABLE & PLUG | GB | |
||
| 106 | 949835-01 | 1 | PROTECTOR | GB | |
||
| 107 | 930103-00 | 1 | CORD CLAMP | GB | |
||
| 108 | 860084-10 | 2 | SCREW | GB | |
||
| 109 | 930029-00 | 1 | HOLDER BEARING | GB | |
||
| 110 | 330003-34 | 1 | BEARING | GB | |
||
| 111 | 930079-01 | 6 | SCREW | GB | |
||
| 112 | 930098-00 | 1 | RETAINER | GB | |
||
| 113 | 868768-02 | 1 | BEARING | GB | |
||
| 114 | 949729-02 | 1 | CIRCLIP | GB | |
||
| 115 | 944484-00 | 1 | LOCKING RING | GB | |
||
| 116 | 930746-00 | 1 | BRUSH HOLDER SA | GB | |
||
| 117 | 930090-00 | 2 | BRUSH SPRING | GB | |
||
| 118 | 930077-00 | 2 | SCREW | GB | |
||
| 119 | 943173-00 | 1 | BAFFLE | GB | |
||
| 120 | 933657-00 | 2 | CAP | GB | |
||
| 121 | 949877-01 | 1 | CAPACITOR | GB | |
||
| 122 | 943172-02 | 1 | HANDLE SA | GB | |
||
| 123 | 943169-02 | 1 | FIELDCASE | GB | |
||
| 124 | 949801-11 | 1 | LEAD | GB | |
||
| 125 | 949801-10 | 1 | LEAD | GB | |
||
| 126 | 943178-01 | 1 | HOUSING | GB | |
||
| 127 | N406641 | 1 | SPRING COMPRESSION | GB | |
||
| 128 | 944386-00 | 1 | COVER | GB | |
||
| 129 | 947048-00 | 1 | BUTTON SA | GB | |
||
| 130 | 249424-02 | 2 | SCREW | GB | |
||
| 145 | 868629-00 | 1 | FIELD SA | GB | |
||
| 153 | 945393-00 | 1 | WRENCH | GB | |
||
| 154 | 943270-00 | 1 | COLLET NUT | GB | |
||
| 155 | 943269-01 | 1 | COLLET 6.35MM | GB | |
||
| 156 | 943269-00 | 1 | COLLET 6MM | GB | |
||
| 157 | 943269-02 | 1 | COLLET 8MM | GB | |
||
| 161 | N050169 | 1 | RATING PLATE | GB | |
||
| 201 | 860085-26 | 1 | SCREW.TEMP | GB | |
||
| 202 | 930770-00 | 1 | SCREW | GB | |
||
| 203 | 720959-00 | 1 | WASHER | GB | |
||
| 204 | 932892-00 | 2 | SPACER | GB | |
||
| 205 | 942555-00 | 1 | WASHER | GB | |
||
| 206 | 949894-12 | 4 | SCREW | GB | |
||
| 207 | 947922-00 | 1 | BASE | GB | |
||
| 208 | 947923-00 | 1 | SUPPORT | GB | |
||
| 209 | 947924-00 | 1 | BUSH | GB | |
||
| 210 | 947925-00 | 1 | SCREW | GB | |
||
| 211 | 402043-00 | 1 | THUMBSCREW | GB | |
||
| 212 | 947927-00 | 1 | BASEPLATE | GB | |
||
| 213 | 868996-00 | 1 | BRACKET | FROM 37-2004 | GB | |
|
| 214 | 868950-01 | 1 | GUARD SA | BEFORE 37-2004 | INC 213 - 227 | GB | |
|
| 214 | 947938-02 | 1 | GUARD | FROM 37-2004 | GB | |
|
| 215 | 949723-04 | 1 | LOCK HANDLE | GB | |
||
| 216 | 949876-18 | 1 | WASHER SHIM | GB | |
||
| 223 | 401029-00 | 2 | SKID | GB | |
||
| 224 | 330045-05 | 4 | SCREW | GB | |
||
| 225 | 930770-00 | 2 | SCREW | GB | |
||
| 226 | 860083-10 | 2 | NUT | GB | |
||
| 227 | 868995-00 | 1 | RIVET | FROM 37-2004 | GB | |
|
| 251 | 860083-10 | 2 | NUT | GB | |
||
| 252 | 931407-00 | 2 | WASHER | GB | |
||
| 253 | 937545-00 | 2 | WASHER SPRING | GB | |
||
| 254 | 330003-02 | 1 | BEARING | GB | |
||
| 255 | 946292-00 | 1 | GUIDE FENCE | GB | |
||
| 256 | 947936-00 | 1 | BRACKET | GB | |
||
| 257 | 947937-00 | 1 | SUPPORT | GB | |
||
| 258 | 947939-00 | 2 | SCREW | GB | |
||
| 259 | 947940-00 | 1 | SCREW | GB | |
||
| 260 | 949889-01 | 1 | SCREW | GB | |
||
| 261 | 401365-00 | 1 | DUST EXTRACTOR | GB | |
||
| 262 | 947934-00 | 1 | COPY FOLLOWER | GB | |
||
| 263 | 947889-01 | 1 | FIXED BASE - TRIMMER | GB | |
||
| 264 | 933220-00 | 1 | O RING | GB | |
