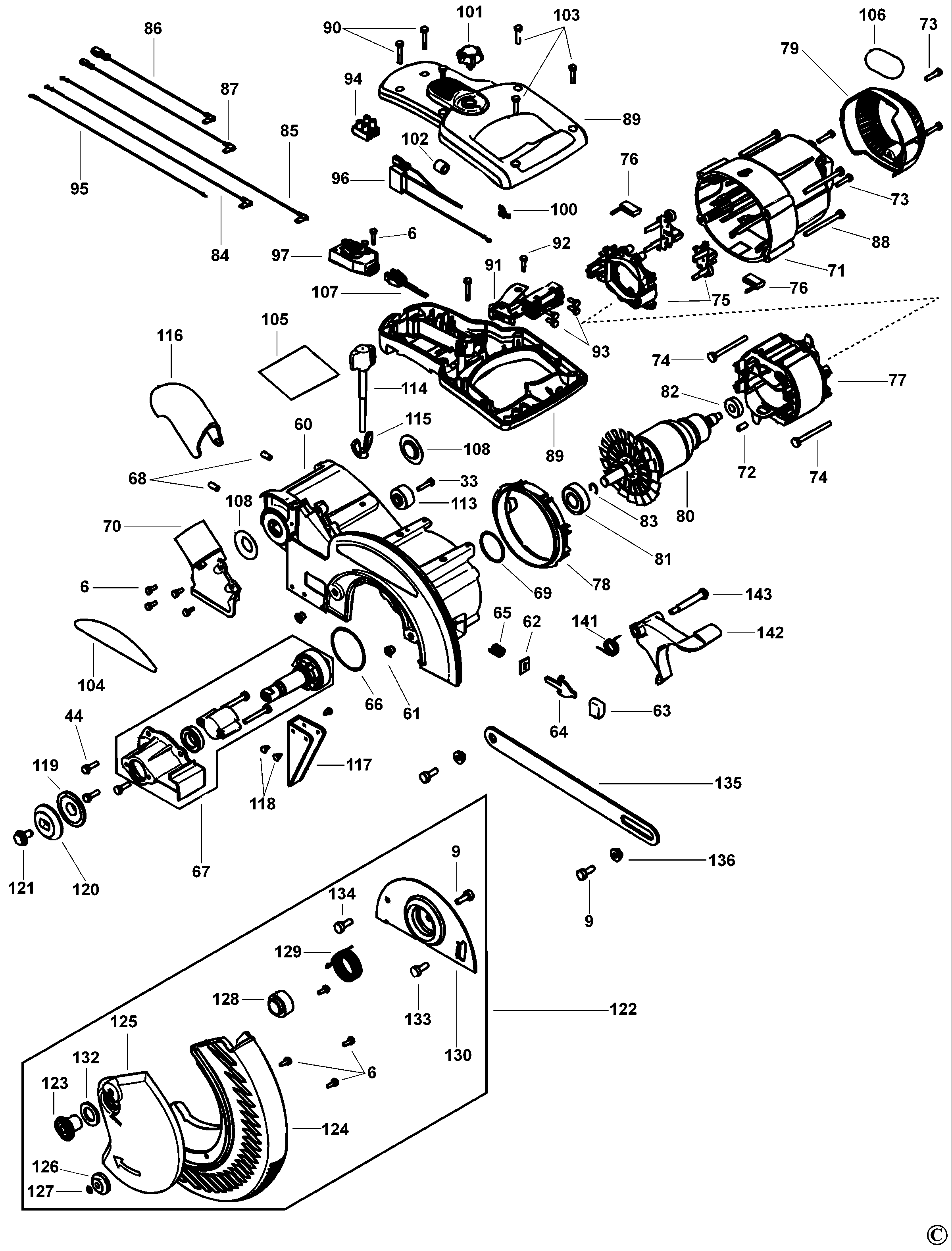

DW712 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 397038-00 | 1 | BASE | LX |  |
||
| 2 | 153612-00 | 5 | FOOT | LX |  |
||
| 3 | N690033 | 1 | SCALE | LX | |
||
| 4 | 604987-00 | 4 | SCREW | LX | |
||
| 5 | 397045-00 | 3 | PLATE | LX | |
||
| 6 | 330045-05 | 25 | SCREW | LX | |
||
| 7 | 610707-00 | 2 | WARNING LABEL | LX | |
||
| 8 | 397042-00 | 1 | BAR | LX | |
||
| 9 | 330045-23 | 7 | SCREW | LX | |
||
| 10 | 397087-00 | 1 | TABLE SA | LX | |
||
| 11 | 397085-00 | 1 | STUD | LX | |
||
| 12 | 397062-00 | 1 | PLATE | LX | |
||
| 13 | 330045-55 | 4 | SCREW | M5x55 MTL THD FMG | LX | |
|
| 14 | 397070-00 | 1 | SPRING | LX | |
||
| 15 | 397073-00 | 1 | ACTUATOR | LX | |
||
| 16 | 397075-00 | 1 | CLAMP | LX | |
||
| 17 | 397065-00 | 1 | LEVER | LX | |
||
| 19 | 629395-00 | 1 | LOCK SA | LX | |
||
| 20 | 761054-00 | 1 | SPRING | LX | |
||
| 21 | 397063-00 | 1 | PIN | LX | |
||
| 22 | 153576-03 | 3 | SCREW | LX | |
||
| 23 | 397048-00 | 1 | POINTER | LX | |
||
| 24 | 397090-00 | 1 | POINTER | LX | |
||
| 25 | 605153-00 | 1 | LABEL | 33.85 - DEG | LX | |
|
| 26 | 249233-00 | 2 | WASHER | LX | |
||
| 27 | 860085-19 | 1 | SCREW | LX | |
||
| 28 | 860092-05 | 1 | NUT | LX | |
||
| 29 | 153781-00 | 2 | WASHER | LX | |
||
| 30 | 613270-00 | 2 | WASHER | LX | |
||
| 31 | N714363 | 2 | COVERPLATE | LX | |
||
| 32 | 397077-00 | 1 | FENCE | LX | |
||
| 33 | 330045-33 | 4 | SCREW | LX | |
||
| 34 | 603758-00 | 1 | DUST GUARD | LX | |
||
| 35 | 605699-00 | 1 | TRUNNION | LX | |
||
| 36 | 397084-00 | 1 | BEVEL SCALE | LX | |
||
| 37 | 397118-00 | 4 | GUIDE | LX | |
||
| 38 | 153586-00 | 2 | WASHER | LX | |
||
| 39 | 616001-00 | 2 | SCREW | LX | |
||
| 40 | 153576-04 | 1 | SCREW | LX | |
||
| 41 | 397088-00 | 2 | SPRING | LX | |
||
| 42 | 397083-00 | 1 | PIN | LX | |
||
| 43 | 397086-00 | 1 | KNOB | LX | |
||
| 44 | 330045-14 | 5 | SCREW | LX | |
||
| 45 | 606014-00 | 1 | SPRING | LX | |
||
| 46 | 147107-06 | 2 | KNOB | LX | |
||
| 47 | 397081-00 | 1 | LABEL | LX | |
||
| 48 | 153603-01 | 1 | PAWL | LX | |
||
| 49 | 153655-00 | 1 | WASHER | LX | |
||
| 50 | 153639-00 | 1 | SCREW | LX | |
||
| 51 | 391358-01 | 1 | HOLDER | LX | |
||
| 53 | 397173-00 | 1 | SPRING | COMPRESSION | LX | |
|
| 54 | 397089-00 | 1 | NUT | LX | |
||
| 55 | 397080-00 | 1 | HANDLE | LX | |
||
| 56 | 608563-01 | 1 | WRENCH SPECIAL | M13 - T30 | LX | |
|
| 57 | 387130-00 | 1 | LOCKING PIN | LX | |
||
| 58 | 34158-00 | 1 | SEAL | LX | |
||
| 59 | 330061-22 | 1 | CORDSET | LX | |
||
| 60 | 397209-01 | 1 | ARM | LX | |
||
| 61 | 148608-00 | 2 | INSERT | LX | |
||
| 62 | 387732-00 | 1 | FELT | LX | |
||
| 63 | 145350-00 | 1 | BUTTON | LX | |
||
| 64 | 397135-00 | 1 | SPINDLE LOCK | LX | |
||
| 65 | 941586-00 | 1 | SPRING | LX | |
||
| 66 | 616979-00 | 1 | O RING | AFTER WK 18 2003 | LX | |
|
| 66 | 397139-00 | 1 | GASKET | BEFORE WK 18 2003 | LX | |
|
| 67 | 397210-00 | 1 | GEARCASE COVER SA | LX | |
||
| 68 | 150075-00 | 2 | SCREW | LX | |
||
| 69 | 696519-00 | 1 | RING | LX | |
||
| 70 | 603726-00 | 1 | DUST PORT | LX | |
||
| 71 | 391317-04 | 1 | FIELD CASE | LX | |
||
| 72 | 145312-00 | 1 | PLUG | LX | |
||
| 73 | 330019-13 | 4 | SCREW | M4X19 T20 | LX | |
|
| 74 | 330019-19 | 2 | SCREW | LX | |
||
| 75 | 389512-01 | 1 | BRUSH PLATE | LX | |
||
| 76 | 381028-08 | 2 | BRUSH & LEAD | LX | |
||
| 77 | 869045-01 | 1 | FIELD 115V | LX | |
||
| 78 | 391375-00 | 1 | BAFFLE FAN | LX | |
||
| 79 | 391933-00 | 1 | END CAP | LX | |
||
| 80 | 869071-01 | 1 | ARMATURE 115/120V | LX | |
||
| 81 | 868768-07 | 1 | BEARING | LX | |
||
| 82 | 330003-60 | 1 | BEARING | LX | |
||
| 83 | 144803-00 | 1 | CIRCLIP | LX | |
||
| 84 | 145371-00 | 1 | LEAD YELLOW | YELLOW | LX | |
|
| 85 | 398832-00 | 1 | LEAD RED | RED | LX | |
|
| 86 | 398823-00 | 1 | LEAD BLACK | BLACK | LX | |
|
| 87 | 398828-00 | 1 | LEAD WHITE | WHITE | LX | |
|
| 88 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | LX | |
|
| 89 | 397177-01 | 1 | HOUSING & COVER | LX | |
||
| 90 | 330045-08 | 3 | SCREW | LX | |
||
| 91 | N548978V | 1 | SWITCH | LX | |
||
| 92 | 330013-22 | 1 | SCREW | LX | |
||
| 93 | 384127-01 | 4 | SCREW | LX | |
||
| 94 | 326057-00 | 1 | TERMINAL BLOCK | LX | |
||
| 95 | 660071-00 | 1 | LEAD RED | LX | |
||
| 96 | 612322-00 | 1 | CAPACITOR | LX | |
||
| 97 | N033993 | 1 | PCB | Inc Pot | LX | |
|
| 100 | 394046-00 | 1 | ADAPTOR | LX | |
||
| 101 | 392131-00 | 1 | KNOB | LX | |
||
| 102 | 388414-01 | 1 | BUSH | LX | |
||
| 103 | 330019-13 | 3 | SCREW | M4X19 T20 | LX | |
|
| 104 | 397134-00 | 1 | LABEL | DEWALT | LX | |
|
| 105 | 604114-01 | 1 | WARNING LABEL | LX | |
||
| 106 | 610722-00 | 1 | LABEL | LX | |||
| 107 | 609138-00 | 1 | WIRE | HARNESS | LX | |
|
| 108 | 148296-00 | 2 | WASHER | LX | |
||
| 109 | 397130-00 | 1 | SPRING | TORSION | LX | |
|
| 110 | 397129-00 | 2 | SPACER | SPRING | LX | |
|
| 111 | 397128-00 | 1 | PIVOT SHAFT | LX | |
||
| 112 | 605155-00 | 1 | BUSHING | LX | |
||
| 113 | 146753-00 | 1 | BUSHING | LX | |
||
| 114 | 147107-05 | 1 | DEPTH STOP | LX | |
||
| 115 | 613365-00 | 1 | WING NUT | LX | |
||
| 116 | 148520-00 | 1 | DEFLECTOR | LX | |
||
| 117 | 612788-00 | 1 | CHUTE | DUST | LX | |
|
| 118 | 607491-00 | 4 | RIVET | LX | |
||
| 119 | 397138-00 | 1 | WASHER | LX | |
||
| 120 | 397136-00 | 1 | WASHER OUTER CLAMP | LX | |
||
| 121 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | LX | |
|
| 122 | N164918 | 1 | GUARD KIT | LX | |
||
| 123 | 399182-00 | 1 | RETAINER | LX | |
||
| 124 | N164683 | 1 | GUARD LOWER | LX | |
||
| 125 | 613460-00 | 1 | GUARD COVER | LX | |
||
| 126 | 146774-00 | 1 | ROLLER | LX | |
||
| 127 | 604728-00 | 1 | LOCKING RING | LX | |
||
| 128 | 603440-00 | 1 | SLEEVE | PIVOT | LX | |
|
| 129 | 603439-00 | 1 | SPRING | TORSION | LX | |
|
| 130 | 399181-00 | 1 | PLATE | PIVOT | LX | |
|
| 132 | 612923-00 | 1 | WASHER | LX | |
||
| 133 | 394589-01 | 1 | SCREW | LX | |
||
| 134 | 153778-04 | 1 | SCREW | M6*10 | LX | |
|
| 135 | 397159-00 | 1 | LINK | LX | |
||
| 136 | 146740-02 | 2 | SLEEVE | LX | |
||
| 137 | 397208-01 | 1 | FENCE | SLIDING | LX | |
|
| 138 | 610710-00 | 1 | WARNING LABEL | LX | |
||
| 140 | 603856-01 | 1 | LABEL | RAIL ADJ. SCREW | LX | |
|
| 141 | 398472-00 | 1 | SPRING TORSION | LX | |
||
| 142 | 397150-00 | 1 | LEVER LOCK | LX | |
||
| 143 | 152852-00 | 1 | BOLT | LX | |
||
| 144 | 612008-00 | 1 | SCREW | LX | |
||
| 145 | 612004-00 | 1 | KNOB | LOCK PIN | LX | |
|
| 146 | 613497-00 | 1 | THRUST PLATE | LX | |
||
| 147 | 615851-00 | 1 | BUSHING | LX | |
||
| 174 | 385567-03 | 1 | KEY | TX30 6.0mm | LX | |
|
| 800 | 93488-00 | 1 | GREASE | LX | |
||
| 800 | 610817-00 | 1 | GREASE | THERMAL - 75grams | LX | |
|
| 800 | 5140061-28 | 1 | GREASE | LX | |
