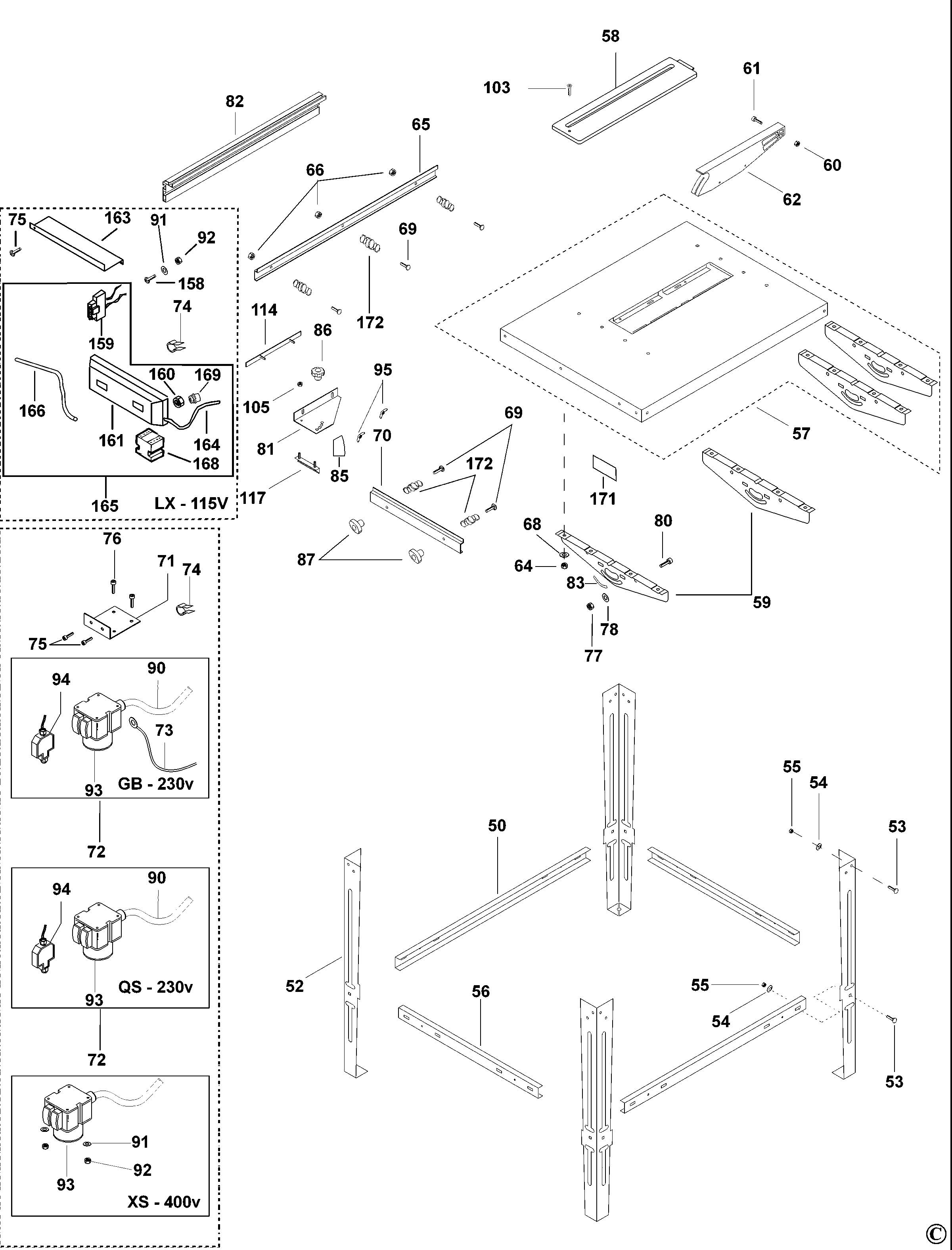

D27400 SITE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868496-02 | 1 | ROTOR | GB |  |
||
| 2 | 868393-02 | 1 | STATOR | GB | |
||
| 3 | 860083-05 | 1 | NUT RH | GB | |
||
| 4 | 860074-04 | 1 | WASHER | GB | |
||
| 5 | 944360-00 | 1 | PLATE | GB | |
||
| 6 | 944359-00 | 1 | PLATE | GB | |
||
| 7 | 868661-00 | 1 | HOUSING | GB | |
||
| 8 | 860301-15 | 1 | SCREW | GB | |
||
| 9 | 868768-10 | 1 | BEARING | GB | |
||
| 10 | 860806-01 | 1 | RING | GB |  |
||
| 11 | 942490-00 | 1 | BUSH | GB | |
||
| 12 | 860718-00 | 2 | SEAL | GB | |
||
| 13 | 860318-00 | 1 | KEY | GB | |
||
| 14 | 868768-07 | 1 | BEARING | GB | |
||
| 15 | 860080-02 | 1 | RING | GB | |
||
| 16 | 861863-00 | 1 | END CAP SA | GB | |
||
| 17 | 945841-00 | 1 | FAN | GB | |
||
| 18 | 863112-00 | 1 | CAP | GB | |
||
| 19 | 860687-04 | 1 | END CAP | GB | |
||
| 20 | 860094-01 | 2 | SCREW | GB | |
||
| 21 | 860446-00 | 4 | ROD | GB | |
||
| 23 | 944653-00 | 1 | GROMMET | GB | |
||
| 24 | 944654-00 | 1 | RETAINER | GB | |
||
| 25 | 944590-00 | 1 | NUT | GB | |
||
| 26 | 944652-00 | 1 | GROMMET | GB | |
||
| 27 | 860094-00 | 1 | SCREW.TEMP | GB | |
||
| 28 | 944650-00 | 1 | WASHER SPRING | GB | |
||
| 29 | 860094-01 | 1 | SCREW | GB | |
||
| 30 | 861257-00 | 3 | CONNECTOR | GB | |
||
| 31 | 860708-00 | 1 | GASKET | GB | |
||
| 32 | 944455-00 | 1 | CONDENSOR | GB | |
||
| 33 | 860702-00 | 1 | HOUSING | GB | |
||
| 34 | 860094-01 | 2 | SCREW | GB | |
||
| 36 | 862220-00 | 1 | COVER | GB | |
||
| 37 | 860094-03 | 2 | SCREW | GB | |
||
| 42 | 945842-00 | 1 | FLANGE | GB | |
||
| 43 | 945843-00 | 1 | FLANGE | GB | |
||
| 44 | 944460-00 | 1 | NUT | GB | |
||
| 46 | 861338-05 | 1 | SPRING | GB | |
||
| 47 | 861336-05 | 1 | BRAKE ADAPTER | GB | |
||
| 48 | 949727-06 | 1 | CIRCLIP | GB | |
||
| 49 | 868760-01 | 1 | MOTOR SA | GB | |
||
| 49 | 868760-02 | 1 | MOTOR 3 PH | 415 V | GB | |
|
| 50 | 868654-00 | 2 | SUPPORT | GB | |
||
| 51 | 868256-00 | 8 | SCREW | GB | |
||
| 52 | 868652-00 | 4 | LEG | GB | |
||
| 53 | 941606-00 | 16 | SCREW | GB | |
||
| 54 | 860075-00 | 16 | WASHER | GB | |
||
| 55 | 860083-12 | 16 | NUT M6 | GB | |
||
| 56 | 868653-00 | 2 | SUPPORT | GB | |
||
| 57 | 868954-00 | 1 | TABLE SA | GB | |
||
| 58 | 868657-00 | 1 | INSERT | GB | |
||
| 59 | 868923-00 | 2 | BRACKET | TABLE | From DC2004-22 | GB | |
| 60 | 860092-00 | 1 | NUT | GB | |
||
| 61 | 860093-06 | 1 | SCREW | GB | |
||
| 62 | 868681-00 | 1 | GUARD | GB | |
||
| 63 | 868664-00 | 1 | RIVING KNIFE | GB | |
||
| 64 | 860092-01 | 8 | NUT | GB | |
||
| 65 | 868700-00 | 1 | SUPPORT | GB | |
||
| 66 | 860092-00 | 3 | NUT | GB | |
||
| 68 | 860073-03 | 8 | WASHER M8 | GB | |
||
| 69 | 860301-00 | 5 | SCREW | GB | |
||
| 70 | 868701-00 | 1 | RAIL,SHORT | Up to DC2004-21 | GB | |
|
| 70 | 868927-00 | 1 | RAIL,SHORT | From DC2004-22 | GB | |
|
| 71 | 944341-00 | 1 | BRACKET | GB | |
||
| 72 | 868730-01 | 1 | SWITCHBOX SA | GB | |
||
| 73 | 949863-23 | 1 | CABLE SA | GB | |
||
| 74 | 945848-00 | 3 | CLIP | GB | |
||
| 75 | 860084-21 | 2 | SCREW | GB | |
||
| 76 | 930076-00 | 4 | SCREW | GB | |
||
| 77 | 949886-11 | 4 | SCREW | GB | |
||
| 78 | 933055-00 | 2 | WASHER | GB | |
||
| 79 | 860075-00 | 2 | WASHER | GB | |
||
| 80 | 949886-11 | 4 | SCREW | GB | |
||
| 81 | 868703-00 | 1 | PLATE | GB | |
||
| 81 | 868703-00 | 1 | PLATE | GB | |
||
| 82 | 868705-00 | 1 | FENCE | GB | |
||
| 82 | 868969-00 | 1 | PLATE SA | GB | |
||
| 83 | 868763-00 | 1 | LABEL | GB | |
||
| 85 | 868762-00 | 1 | LABEL | GB | |
||
| 86 | 868704-00 | 1 | KNOB | M6 | GB | |
|
| 87 | 860862-02 | 2 | KNOB | GB | |
||
| 90 | 868877-03 | 1 | CABLE | GB | |
||
| 93 | 868730-03 | 1 | SWITCH | GB | |
||
| 94 | 868878-02 | 1 | OVERLOAD PROTECTOR | GB | |
||
| 95 | 720929-00 | 2 | WING NUT | GB | |
||
| 96 | 860092-05 | 2 | NUT | GB | |
||
| 99 | 860862-01 | 2 | KNOB | GB | |
||
| 103 | 860428-06 | 1 | SCREW | GB | |
||
| 104 | 949886-11 | 2 | SCREW | GB | |
||
| 105 | 860092-00 | 1 | NUT | GB | |
||
| 107 | 860322-01 | 6 | CIRCLIP | GB | |
||
| 109 | 944322-02 | 1 | PLATE | GB | |
||
| 110 | 868656-00 | 1 | HOUSING | GB | |
||
| 111 | 868761-00 | 1 | LABEL | GB | |
||
| 113 | 860084-23 | 3 | SCREW | GB | |
||
| 114 | 868706-00 | 1 | BRACKET | GB | |
||
| 115 | 5120477-49 | 1 | BLADE | GB | |
||
| 117 | 868709-00 | 1 | BRACKET | GB | |
||
| 118 | 944353-00 | 2 | ADJUSTER HEIGHT | GB | |
||
| 119 | 860322-05 | 2 | CIRCLIP | GB | |
||
| 121 | 868663-00 | 1 | PLATE | GB | |
||
| 122 | 860084-23 | 4 | SCREW | GB | |
||
| 123 | 868863-00 | 1 | BRAND LABEL | GB | |
||
| 124 | 860085-04 | 2 | SCREW | GB | |
||
| 125 | 868655-00 | 1 | COVER | GB | |
||
| 133 | 860301-00 | 2 | SCREW | GB | |
||
| 137 | 860094-02 | 2 | SCREW | GB | |
||
| 138 | 868658-00 | 2 | RETAINER | GB | |
||
| 143 | 941602-00 | 2 | WASHER | GB | |
||
| 144 | 860083-03 | 2 | NUT | GB | |
||
| 145 | 944367-02 | 1 | SCREW.SPECIAL | ELEVATING SCREW | GB | |
|
| 146 | 944437-00 | 1 | PLATE | GB | |
||
| 147 | 860085-20 | 2 | SCREW | GB | |
||
| 148 | 945844-00 | 1 | PIN | GB | |
||
| 149 | 868725-00 | 1 | ELEVATING SA | GB | |
||
| 150 | 861428-01 | 1 | DUST EXTRACTOR | GB | |
||
| 151 | 860075-00 | 1 | WASHER | GB | |
||
| 152 | 860092-00 | 1 | NUT | GB | |
||
| 153 | 946474-00 | 1 | HANDLE SA | GB | |
||
| 154 | 944368-00 | 4 | ARM LINK | GB | |
||
| 156 | 860094-02 | 2 | SCREW | GB | |
||
| 158 | 760996-00 | 1 | SCREW.TEMP | GB | |
||
| 163 | 946023-00 | 1 | PLATE | GB | |
||
| 170 | 860610-01 | 1 | PUSHROD | GB | |
||
| 171 | 868733-00 | 1 | NAMEPLATE | GB | |
||
| 172 | 123255-01 | 5 | SPRING | GB | |
||
| 173 | 944366-00 | 1 | BUSH | GB | |
||
| 174 | 944366-01 | 1 | BUSH | GB | |
||
| 176 | 945847-01 | 2 | BRACKET | GB | |
||
| 836 | 860098-05 | 1 | HEX KEY 8 MM | GB | |
||
| 837 | 930574-00 | 1 | HEX KEY 5 MM | GB | |
||
| 838 | 869235-00 | 1 | SPANNER BOX | GB | |
||
| 839 | 944463-00 | 1 | SPANNER MULTI | GB | |
||
| 840 | 760601-00 | 1 | SPANNER BOX | GB | |
