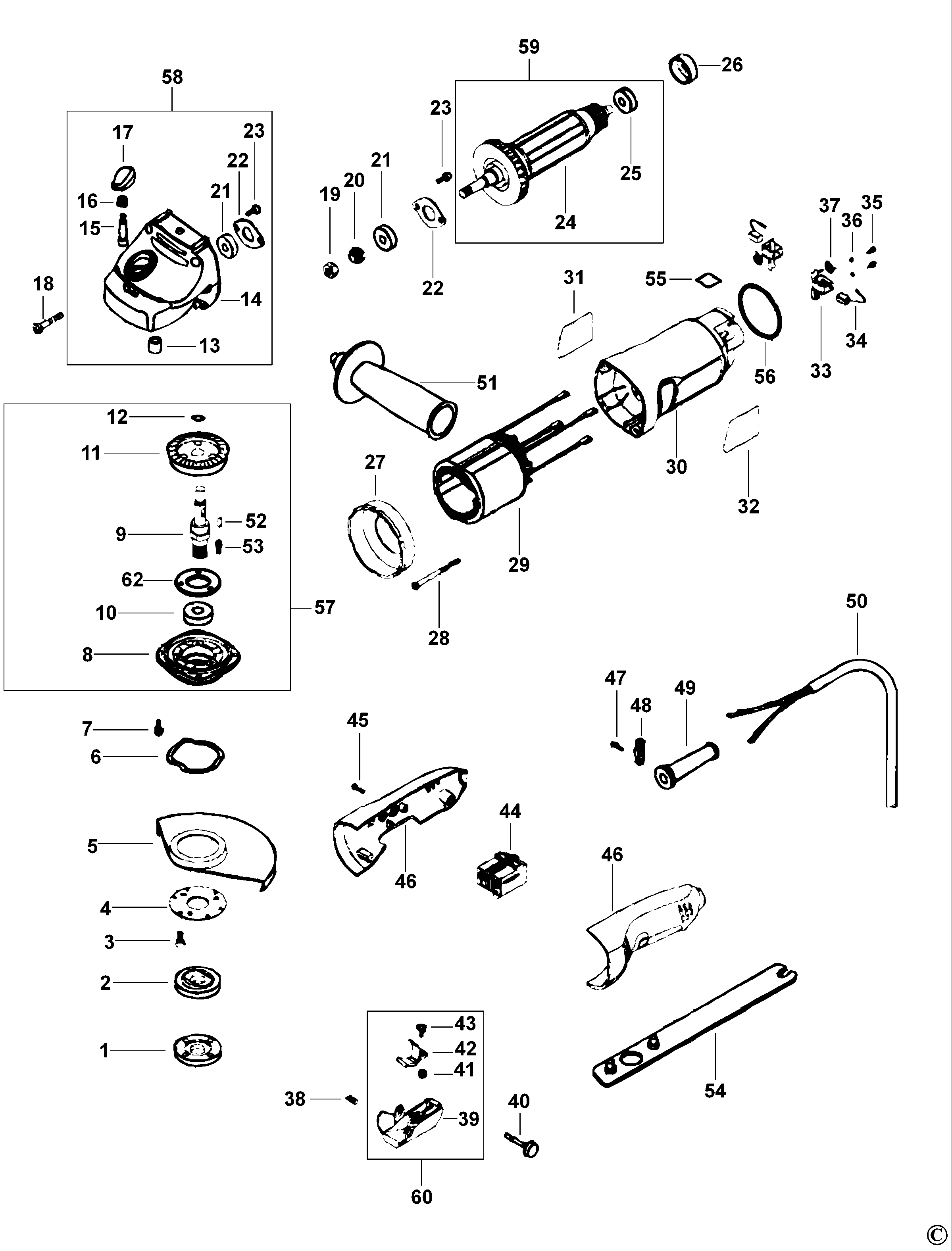

KG1200 ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 596386-00 | 1 | OUTER FLANGE | M14 | GB |  |
|
| 2 | 596387-00 | 1 | INNER FLANGE | M14 | GB | |
|
| 3 | 596388-00 | 3 | SCREW | GB | |
||
| 4 | 596389-00 | 1 | FLANGE | GUARD | GB | |
|
| 5 | 1004577-00 | 1 | GUARD SA | GB | |
||
| 6 | 596391-00 | 1 | WASHER SPRING | GB | |
||
| 7 | 596392-00 | 4 | SCREW | GEARCASE COVER | GB | |
|
| 8 | 1004577-01 | 1 | GEARCASE COVER | GB | |
||
| 9 | 596394-00 | 1 | SPINDLE | M14 | GB | |
|
| 10 | 596395-00 | 1 | BEARING | OUTPUT SPINDLE | GB | |
|
| 11 | 596396-00 | 1 | GEAR | OUTPUT | GB | |
|
| 12 | 596397-00 | 1 | CIRCLIP | GB | |
||
| 13 | 596398-00 | 1 | BEARING SINTER | GB | |
||
| 14 | 596399-00 | 1 | GEARCASE | GB | |
||
| 15 | 596534-00 | 1 | SHAFT | SPINDLE LOCK | GB | |
|
| 16 | 596401-00 | 1 | SPRING | SPINDLE LOCK | GB | |
|
| 17 | 596402-00 | 1 | SPINDLE LOCK | GB | |
||
| 18 | 596403-00 | 4 | SCREW | GEARCASE-FIELDCASE | GB | |
|
| 19 | 596404-00 | 1 | NUT | PINION | GB | |
|
| 20 | 596405-00 | 1 | PINION GEAR | GB | |
||
| 21 | 596406-00 | 1 | BEARING | FAN END | GB | |
|
| 22 | 596407-00 | 1 | COVERPLATE | GB | |
||
| 23 | 596408-00 | 2 | SCREW | GB | |
||
| 24 | 596409-00 | 1 | ARMATURE SA | GB |  |
||
| 25 | 596410-00 | 1 | BEARING | COMM END | GB | |
|
| 26 | 596411-00 | 1 | BOOT | GB | |
||
| 27 | 596412-00 | 1 | BAFFLE FAN | GB | |
||
| 28 | 596413-00 | 2 | SCREW | FIELD RETENTION | GB | |
|
| 29 | 596414-00 | 1 | FIELD SA | GB | |
||
| 30 | 596415-00 | 1 | FIELDCASE | GB | |
||
| 31 | 90555376 | 1 | RATING PLATE | GB | |
||
| 32 | 596417-00 | 1 | BRAND LABEL | GB | |
||
| 33 | 596418-00 | 2 | BRUSHBOX | GB | |
||
| 34 | 596419-00 | 2 | BRUSH | GB | |
||
| 35 | 596420-00 | 4 | SCREW | BRUSHBOX | GB | |
|
| 36 | 596421-00 | 4 | WASHER | BRUSHBOX | GB | |
|
| 37 | 596422-00 | 2 | SPRING BRUSH | GB | |
||
| 38 | 596423-00 | 1 | SPRING | GB | |
||
| 39 | 1004533-00 | 1 | TRIGGER | GB | |
||
| 40 | 596425-00 | 1 | BUTTON LOCK-ON | GB | |
||
| 41 | 596426-00 | 1 | SPRING | LOCK OFF | GB | |
|
| 42 | 596427-00 | 1 | TRIGGER | LOCK OFF | GB | |
|
| 43 | 596428-00 | 1 | SCREW | LOCK OFF | GB | |
|
| 44 | 596429-00 | 1 | SWITCH | 2 POLE | GB | |
|
| 45 | 596430-00 | 2 | SCREW | GB | |
||
| 46 | 596441-00 | 1 | CLAMSHELL SET | GB | |
||
| 47 | 596431-00 | 2 | SCREW | CORDCLAMP | GB | |
|
| 48 | 596432-00 | 1 | CORDCLAMP | GB | |
||
| 49 | 596433-00 | 1 | CORD PROTECTOR | GB | |
||
| 50 | 596434-00 | 1 | CORDSET | GB | |
||
| 51 | 596437-00 | 1 | SIDE HANDLE | GB | |
||
| 52 | 596438-00 | 1 | KEY | GB | |
||
| 53 | 596439-00 | 1 | SCREW | GB | |
||
| 54 | 596440-00 | 1 | WRENCH | GB | |
||
| 55 | 596536-00 | 1 | WARNING LABEL | GB | |
||
| 56 | 596537-00 | 1 | O RING | SEAL | GB | |
|
| 57 | 1004577-02 | 1 | SPINDLE SA | GB | |
||
| 58 | 596539-00 | 1 | GEARCASE SA | WITH LOCK BUTTON | GB | |
|
| 59 | 596540-00 | 1 | ARMATURE SA | WITH BEARING | GB | |
|
| 60 | 1004577-03 | 1 | SWITCH SA | GB | |
||
| 62 | 596770-00 | 1 | COVERPLATE | GB | |
