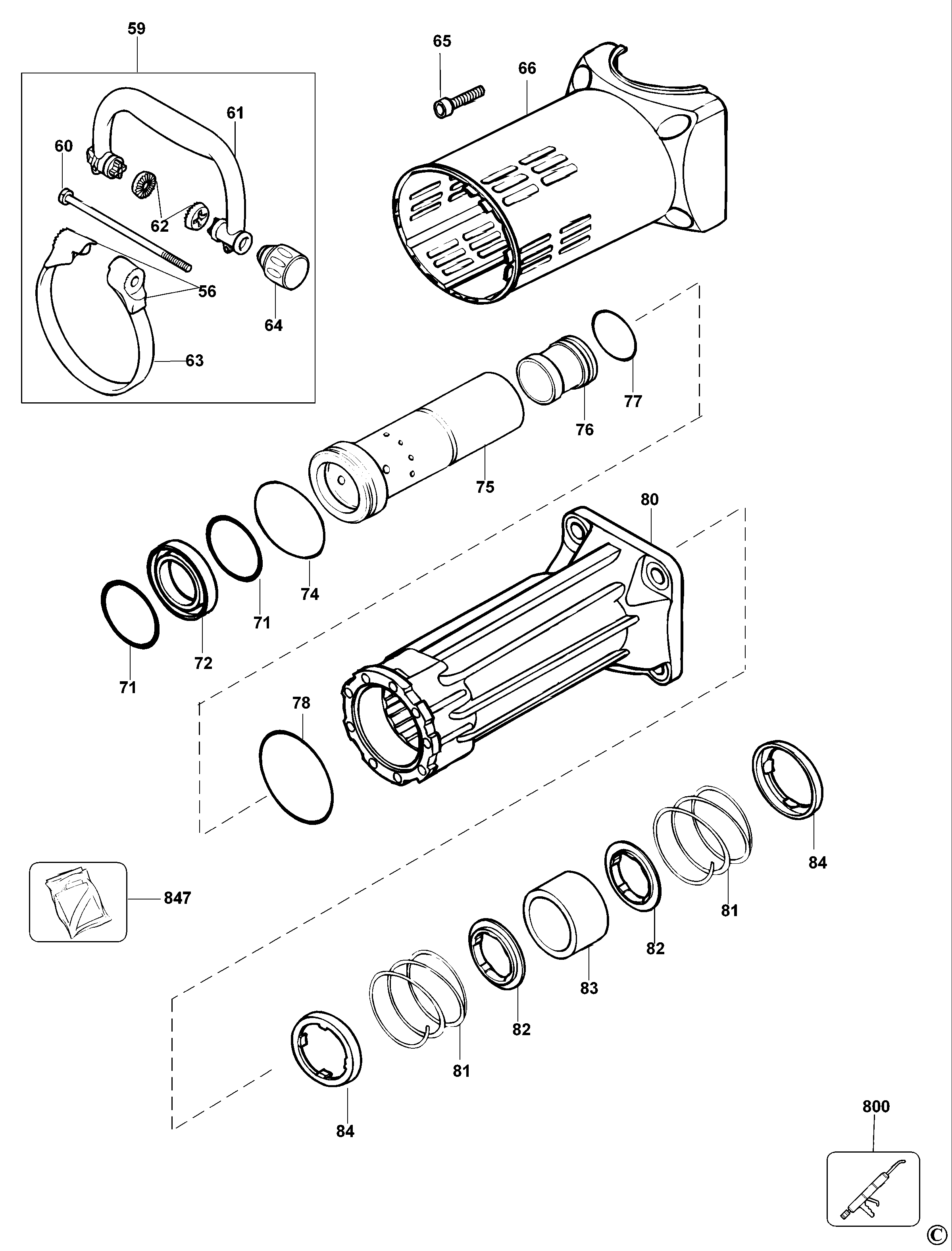

D25940K DEMOLITION HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 579837-03 | 1 | ARMATURE 120V | LX | |||
| 2 | 579827-01 | 1 | FIELD 120V | LX |  |
||
| 3 | 487266-03 | 1 | BRUSH HOLDER 115V | LX |  |
||
| 4 | 590191-00 | 1 | SLEEVE INSULATING | LX | |
||
| 5 | 577745-00 | 1 | BEARING | LX | |
||
| 7 | 1007800-00 | 1 | SEAL | LX | |
||
| 8 | 588698-01 | 1 | BRUSH PAIR 115V | LX | |
||
| 9 | 487377-00 | 2 | BRUSH SPRING | LX | |
||
| 10 | 487252-00 | 1 | FAN SA | LX | |
||
| 11 | 324119-02 | 1 | SCREW | LX | |
||
| 12 | 377374 | 1 | PIN | LX | |
||
| 13 | 487276-00 | 1 | TRIGGER | LX | |
||
| 14 | 487285-00 | 1 | ROD | LX | |||
| 15 | 487286-00 | 1 | ACTUATOR | LX | |
||
| 17 | 326467-00 | 2 | DETENT | LX | |
||
| 18 | 487326-00 | 1 | LEAD SWITCH SA | LX | |
||
| 19 | 487387-00 | 1 | HANDLE & COVER | LX | |
||
| 21 | 487388-00 | 1 | COVER | LX | |
||
| 22 | N485853 | 1 | SWITCH | LX | |
||
| 23 | 579093-01 | 1 | CABLE TIE | LX | |
||
| 23 | 579093-01 | 1 | CABLE TIE | LX | |
||
| 24 | 487378-00 | 1 | BRACKET | LX | |
||
| 25 | 821070 | 1 | CORD CLAMP | LX | |
||
| 26 | 330065-08 | 7 | SCREW | M4x18 T20 | LX | |
|
| 28 | 323091-01 | 1 | CORD PROTECTOR | LX | |
||
| 29 | 324438-72 | 1 | CORDSET | LX | |
||
| 30 | 487385-00 | 1 | COVER GEARCASE | LX | |
||
| 32 | 487224-00 | 1 | SEAL | LX | |
||
| 33 | 576387-00 | 1 | SEAL | LX | |
||
| 34 | 324821-04 | 1 | CIRCLIP | LX | |
||
| 35 | N570313 | 1 | BEARING | LX | |
||
| 36 | 487209-01 | 1 | SEAL | LX | |
||
| 37 | 324821-03 | 1 | CIRCLIP | LX | |
||
| 38 | N533907 | 1 | CON ROD | LX | |
||
| 39 | 578452-00 | 1 | SPACER | LX | |
||
| 40 | 578451-00 | 1 | SPACER | LX | |
||
| 41 | 605040-26 | 1 | BEARING | LX | |
||
| 42 | 582108-00 | 1 | GEAR SA | LX | |
||
| 43 | 582109-00 | 1 | GEAR | LX | |
||
| 44 | 582110-00 | 1 | GEARBOX SA | LX | |
||
| 45 | 582111-00 | 1 | CRANKSHAFT | LX | |
||
| 46 | 576451-00 | 1 | RING | LX | |
||
| 47 | 582387-00 | 1 | PIN | LX | |
||
| 48 | 581656-00 | 2 | PIN | LX | |
||
| 50 | 582112-00 | 1 | PISTON | LX | |
||
| 51 | 582113-01 | 1 | PISTON KIT | LX | |
||
| 52 | 323711-47 | 1 | O RING | LX | |
||
| 53 | N147098 | 1 | COVER SA | LX | |
||
| 54 | 584376-07 | 1 | ELECTRONIC 115V | LX | |
||
| 56 | 487284-00 | 1 | WASHER CLAMP | LX | |
||
| 57 | 487386-00 | 1 | MOTOR COVER | LX | |
||
| 58 | 324007-11 | 23 | SCREW | M5 X 18 | LX | |
|
| 59 | 584240-01 | 1 | HANDLE SIDE SA | LX | |
||
| 60 | 487343-00 | 1 | BOLT | LX | |
||
| 61 | 487277-00 | 1 | HANDLE | LX | |
||
| 62 | 487278-00 | 2 | WASHER | LX | |
||
| 63 | 487393-00 | 1 | CLAMP | LX | |
||
| 64 | 487291-00 | 1 | KNOB SA | LX | |
||
| 65 | 949886-32 | 4 | SCREW | LX | |
||
| 66 | 487283-00 | 1 | COVER HOUSING | LX | |
||
| 67 | 582369-00 | 1 | BEAT PIECE | LX | |
||
| 68 | 582388-00 | 1 | BUSH | LX | |
||
| 69 | 487321-00 | 1 | DAMPER | LX | |
||
| 70 | 582114-00 | 1 | BUSH | LX | |
||
| 71 | 487298-00 | 2 | O RING | LX | |
||
| 72 | 487376-00 | 1 | BUSH | LX | |
||
| 74 | 323711-46 | 1 | O RING | LX | |
||
| 75 | N075953 | 1 | CYLINDER | LX | |
||
| 76 | 582115-00 | 1 | RAM | LX | |
||
| 77 | 487287-00 | 3 | O RING | LX | |
||
| 78 | 323711-56 | 1 | O RING | LX | |
||
| 79 | 323711-55 | 3 | O RING | LX | |
||
| 80 | 582372-00 | 1 | HOUSING FRONT | LX | |
||
| 81 | 487317-00 | 2 | SPRING | LX | |
||
| 82 | 578784-00 | 2 | GUIDE | LX | |
||
| 83 | 582373-00 | 1 | COUNTERWEIGHT | LX | |
||
| 84 | 487316-00 | 2 | SPRING GUIDE | LX | |
||
| 90 | 582374-00 | 1 | BEARING | LX | |
||
| 92 | N014013 | 1 | SEAL | LX | |
||
| 93 | 487319-00 | 1 | SUPPORT | LX | |||
| 94 | 582277-00 | 1 | SPINDLE SA | LX | |
||
| 95 | 323711-41 | 1 | O RING | LX | |
||
| 96 | 487302-00 | 1 | DAMPER | LX | |
||
| 97 | 582375-00 | 1 | FLANGE | LX | |
||
| 98 | 918825-02 | 9 | SCREW | LX | |
||
| 99 | 487372-00 | 1 | SLEEVE | LX | |
||
| 100 | 487366-00 | 1 | SLEEVE SA | LX | |
||
| 101 | 487370-00 | 1 | SPRING | LX | |
||
| 102 | 487365-00 | 1 | BUSHING | LX | |
||
| 103 | 487369-00 | 1 | LOCKING DEVICE | LX | |
||
| 105 | 582383-00 | 1 | DAMPER | LX | |
||
| 106 | 487309-00 | 1 | SPRING | LX | |
||
| 107 | N542444 | 1 | SLEEVE SA | LX | |
||
| 107 | N542444 | 1 | SLEEVE SA | LX | |
||
| 108 | 487373-00 | 1 | DAMPER | LX | |
||
| 109 | 487301-00 | 1 | WASHER | LX | |
||
| 110 | 579399-00 | 1 | RING | LX | |
||
| 111 | 487375-00 | 1 | RUBBER SEAL | LX | |
||
| 112 | 487392-00 | 1 | LABEL | LX | |
||
| 120 | 330003-68 | 1 | BEARING | LX | |
||
| 130 | 330003-69 | 1 | BEARING | LX | |
||
| 800 | 578970-06 | 1 | GREASE 150 GMS | 145gms | LX | |
|
| 801 | 328771-07 | 1 | GREASE | 50G, BIT GREASE | LX | |
|
| 802 | 870889-02 | 1 | GREASE | LX | |
||
| 821 | 569037-00 | 1 | RATING PLATE | LX | |
||
| 826 | 487395-01 | 1 | LABEL | LX | |
||
| 836 | 559617-99 | 1 | S.T.SUPPORT JIG | Crank Gear removal. | LX | |
|
| 837 | 559618-99 | 1 | S.T.SUPPORT JIG | Motor assembly jig | LX | |
|
| 838 | 559621-99 | 1 | SERVICE TOOL | Armature brg tool | LX | |
|
| 840 | 559629-99 | 1 | S.T.CIRCLIP REMOVER | Snap ring SA kit | LX | |
|
| 845 | 559630-99 | 1 | SERVICE TOOLING KIT | Unique Kit parts, | LX | |
|
| 846 | 559628-99 | 1 | S.T.MANDREL | Seal insert tool | LX | |
|
| 847 | 588713-01 | 1 | SERVICE KIT 115V | 1st Kit 115V | LX | |
|
| 847 | 588720-03 | 1 | SERVICE KIT 115V | Major | LX | |
|
| 855 | 351091-01 | 1 | BIT | 400 mm Chisel Point | LX | |
|
| 861 | 487353-03 | 1 | KITBOX | LX | |
