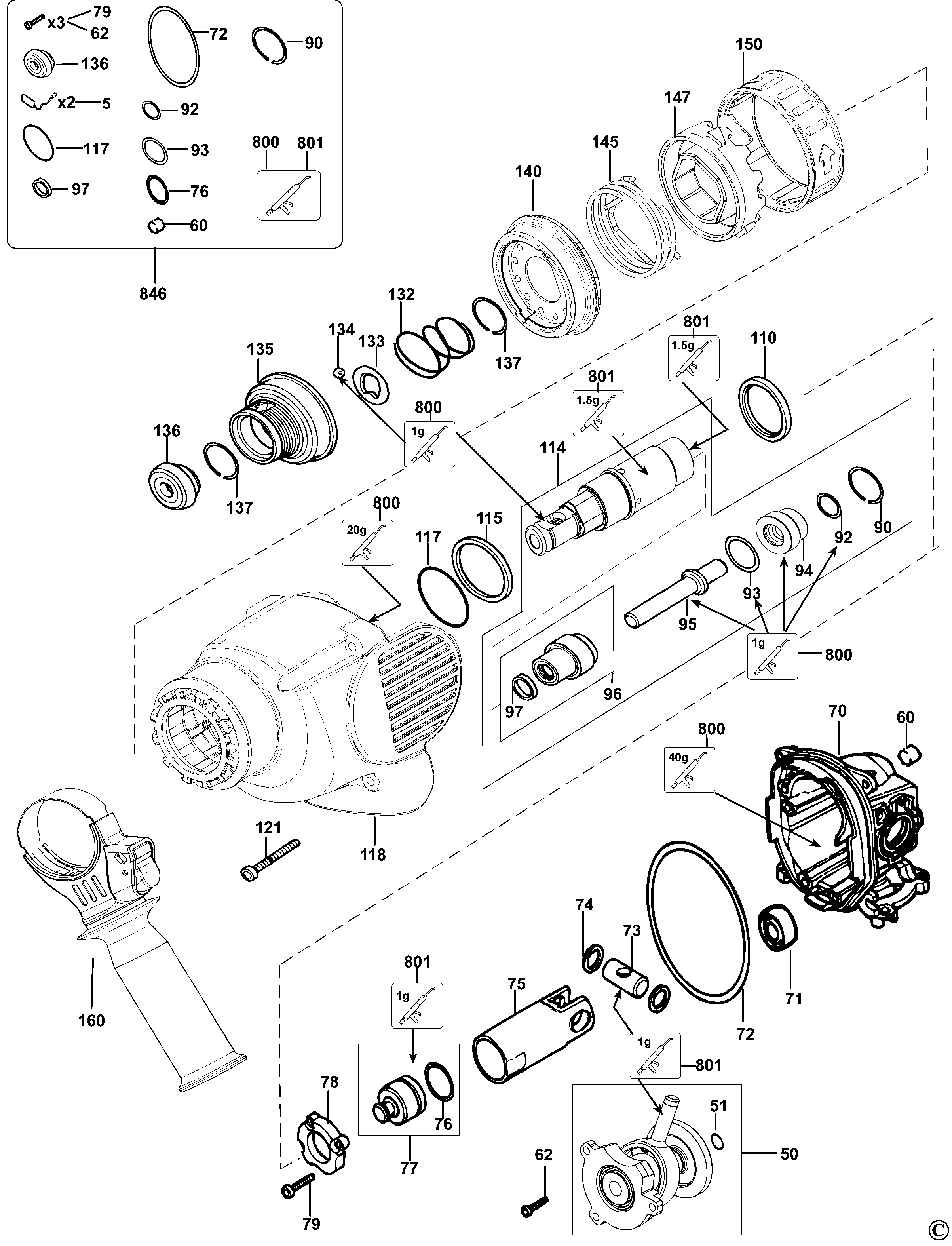

D25330K CHIPPING HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 477225-01 | 1 | ARMATURE 115V | LX |  |
||
| 2 | 576690-06 | 1 | FIELD 115V | LX | |
||
| 3 | 588724-01 | 1 | SWITCH 115V | LX | |
||
| 4 | 577805-04 | 2 | BRUSH HOLDER 115V | LX |  |
||
| 5 | 584429-01 | 1 | BRUSH KIT | 115 VOLT | LX | |
|
| 6 | 320842-19 | 1 | CAPACITOR | LX | |
||
| 7 | 584090-00 | 1 | CORD PROTECTOR | LX | |||
| 8 | 582319-19 | 1 | CORDSET (M/PLUG) | LX | |
||
| 12 | 584304-10 | 1 | LEAD BLUE | LX | |
||
| 16 | 582064-16 | 1 | LEAD BLUE | LX | |
||
| 17 | 589456-04 | 1 | LEADWIRE | LX | |
||
| 18 | 930026-01 | 1 | BUMPER | LX | |
||
| 19 | 588902-00 | 1 | SLIDER | LX | |
||
| 20 | 578220-00 | 1 | LEVER | LX | |
||
| 21 | 870052 | 1 | SLEEVE | LX | |
||
| 22 | 579720-00 | 1 | BUSH | LX | |
||
| 23 | 326519-03 | 2 | SCREW | LX | |
||
| 24 | 330003-19 | 1 | BEARING | LX | |
||
| 25 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | LX | |
|
| 28 | 582877-00 | 1 | INSERT | LX | |
||
| 30 | 577986-20 | 1 | HOUSING | LX | |
||
| 31 | 581808-00 | 1 | BAFFLE FAN | LX | |
||
| 32 | 577993-00 | 1 | FIELD CASE | DeWALT | LX | |
|
| 33 | 584041-00 | 1 | END CAP SA | LX | |
||
| 34 | 588675-00 | 1 | HANDLE COVER | LX | |
||
| 35 | 330065-08 | 6 | SCREW | M4x18 T20 | LX | |
|
| 36 | 821070 | 1 | CORD CLAMP | LX | |
||
| 37 | 330065-09 | 1 | SCREW | LX | |
||
| 39 | 330065-26 | 4 | SCREW | LX | |
||
| 40 | 330065-25 | 2 | SCREW | LX | |
||
| 50 | 1006350-00 | 1 | INTERSHAFT | LX | |
||
| 51 | 580908-00 | 1 | O RING | 7.5x1.0 | LX | |
|
| 60 | 582865-00 | 1 | FILTER | LX | |
||
| 62 | 583981-00 | 3 | SCREW | 4x16 | LX | |
|
| 70 | 477212-00 | 1 | HOUSING BEARING | LX | |
||
| 71 | 330003-81 | 1 | BEARING | LX | |
||
| 72 | 578229-00 | 1 | SEAL | LX | |
||
| 73 | 577801-00 | 1 | BEARING BLOCK | LX | |
||
| 74 | 577802-00 | 1 | WASHER SHIM | LX | |
||
| 75 | 477213-00 | 1 | PISTON | LX | |
||
| 76 | 579699-00 | 1 | O RING | LX | |
||
| 77 | 477214-00 | 1 | RAM SA | LX | |
||
| 78 | N042808 | 1 | BEARING BUSH | LX | |
||
| 79 | 324006-15 | 3 | SCREW | LX | |
||
| 90 | 577793-00 | 1 | CLIP | LX | |
||
| 92 | 580990-00 | 1 | O RING | LX | |
||
| 93 | 577135-00 | 1 | O RING | LX | |
||
| 94 | 477215-00 | 1 | BUSH | LX | |
||
| 95 | 584424-01 | 1 | BEAT PIECE | LX | |
||
| 96 | 477216-00 | 1 | BEARING & SEAL | LX | |
||
| 97 | 577139-00 | 1 | SEAL | LX | |
||
| 110 | 577797-00 | 1 | WASHER | LX | |||
| 114 | 477217-00 | 1 | SPINDLE SA | LX | |
||
| 115 | 577814-00 | 1 | WASHER | LX | |
||
| 117 | 589186-00 | 1 | O RING | 32 x 3 | LX | |
|
| 118 | 477218-00 | 1 | GEARCASE SA | LX | |||
| 121 | 330065-28 | 4 | SCREW | LX | |
||
| 132 | 871690 | 1 | SPRING | LX | |
||
| 133 | 578387-00 | 1 | WASHER | LX | |
||
| 134 | 583890-00 | 1 | BALL | LX | |
||
| 135 | N504215 | 1 | TUBE | LX | |
||
| 136 | 323489-00 | 1 | CAP | LX | |
||
| 137 | 579212-00 | 2 | RING | LX | |
||
| 140 | 586892-00 | 1 | SLEEVE | LX | |
||
| 145 | 586893-00 | 1 | SPRING | LX | |
||
| 147 | 586894-00 | 1 | LOCKING RING | LX | |
||
| 150 | 586891-00 | 1 | SLEEVE | LX | |
||
| 160 | 589467-00 | 1 | SIDE HANDLE | LX | |
||
| 800 | 870889-02 | 1 | GREASE | LX | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | LX | |
|
| 821 | 569037-00 | 1 | RATING PLATE | LX | |
||
| 846 | 477246-00 | 1 | SERVICE KIT 115V | LX | |
||
| 861 | 578005-00 | 1 | KITBOX | LX | |
