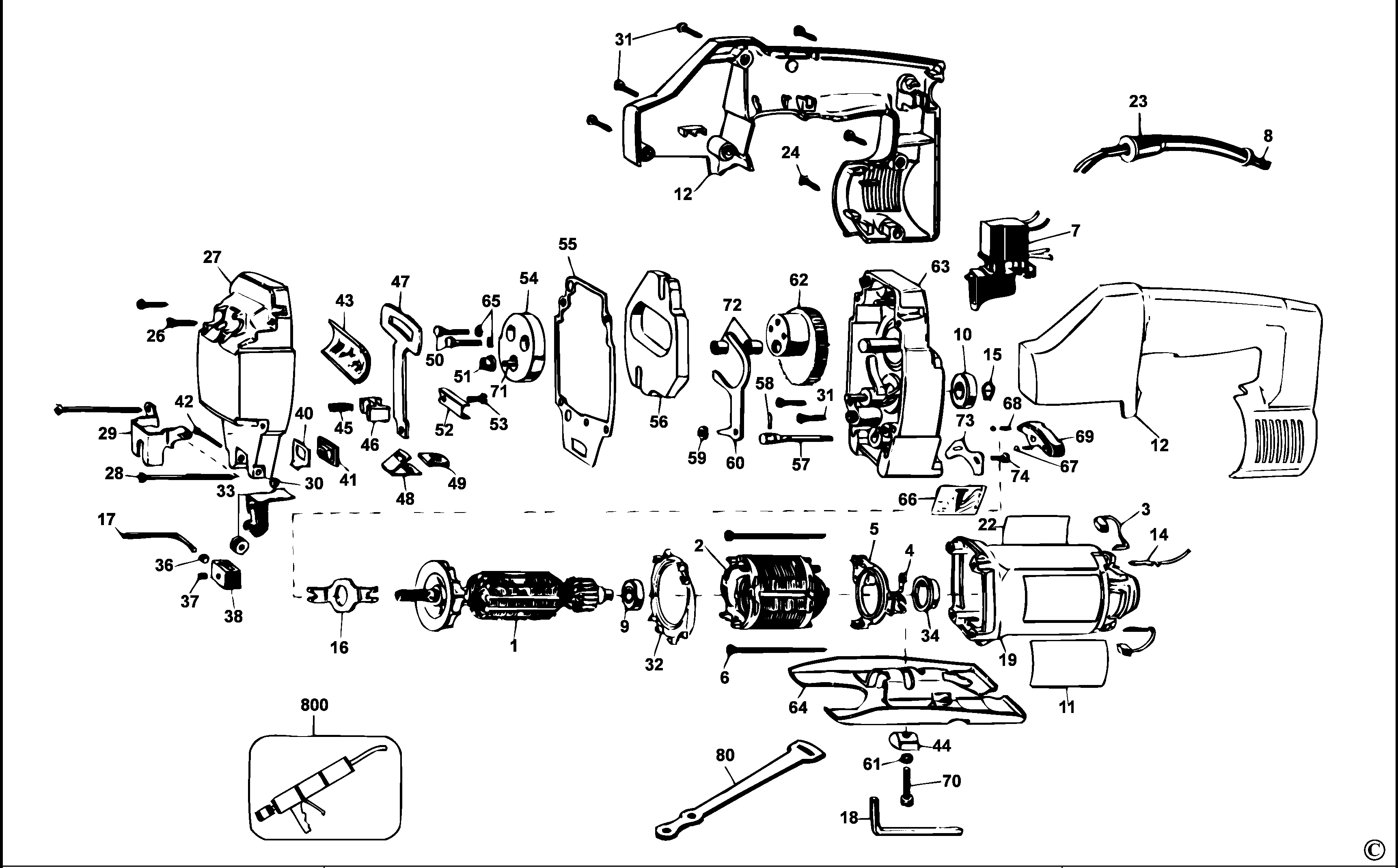

DW318 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140006-41 | 1 | MOTOR SA 230V | 220V / SG57 | LX |  |
|
| 1 | 5140006-41 | 1 | MOTOR SA 230V | 220V / SG57 | LX | |
|
| 1 | 5140006-40 | 1 | MOTOR SA 115V | 120V / SG57 | LX | ||
| 2 | 5140006-41 | 1 | MOTOR SA 230V | 220V / SG57 | LX | |
|
| 3 | 445861-25 | 2 | BRUSH 115V | LX |  |
||
| 4 | 445860-00 | 2 | BRUSH SPRING | LX | |
||
| 5 | 449899-05 | 1 | RING | LX | |
||
| 6 | 445880-00 | 2 | SCREW | LX | |
||
| 7 | 380763-00 | 1 | SWITCH 220V | LX | |
||
| 7 | 380733-00 | 1 | SWITCH 115V | LX | |||
| 8 | 185081-02 | 1 | CORD | LX | |
||
| 9 | 605040-06 | 1 | BEARING,BALL | LX | |
||
| 10 | 605040-15 | 1 | BEARING,BALL | NPP | LX | |
|
| 11 | 395047-00 | 1 | BRAND LABEL | LX | |
||
| 12 | 603209-00 | 1 | HANDLE SA | LX | |
||
| 14 | 449192-00 | 2 | TERMINAL | LX | |
||
| 15 | 444793-00 | 1 | CIRCLIP | LX | |
||
| 16 | 445874-00 | 1 | RETAINER | LX | |
||
| 17 | 99056-04 | 1 | SPANNER BLADE | 1/8 INCH | LX | |
|
| 18 | 098000-11 | 1 | HEX KEY | LX | |
||
| 19 | 445857-03 | 1 | FIELDCASE | LX | |
||
| 22 | 000000-00 | 1 | NO LONGER AVAILABLE | WAS 149545-06 | LX | ||
| 23 | N542553 | 1 | CORD PROTECTOR | LX | |||
| 23 | N542553 | 1 | CORD PROTECTOR | LX | |||
| 24 | 330019-13 | 1 | SCREW | M4X19 T20 | LX | |
|
| 26 | 330045-08 | 2 | SCREW | LX | |
||
| 27 | 133775-03 | 1 | GEARCASE COVER | LX | |
||
| 28 | 330019-27 | 2 | SCREW | LX | |
||
| 29 | 400765-00 | 1 | GUIDE | LX | |
||
| 30 | 133825-00 | 1 | CLIP | LX | |
||
| 31 | 330019-14 | 7 | SCREW | LX | |
||
| 32 | 445876-00 | 1 | BAFFLE | LX | |
||
| 33 | 608389-00 | 1 | BRACKET | LX | |
||
| 34 | 445217-02 | 1 | SLEEVE | LX | |
||
| 36 | 445405-00 | 1 | SCREW | LX | |
||
| 37 | 330022-16 | 1 | SCREW | LX | |
||
| 38 | 444520-00 | 1 | BLADE CLAMP | LX | |
||
| 40 | 133751-00 | 1 | SHIELD | LX | |
||
| 41 | 133755-00 | 1 | SEAL | LX | |
||
| 42 | 133820-00 | 1 | PIN | LX | |
||
| 43 | 133847-00 | 1 | OILER | LX | |
||
| 44 | 133750-00 | 1 | CLAMP | LX | |
||
| 45 | 49161-00 | 1 | SPRING | LX | |
||
| 46 | 133756-00 | 1 | BEARING | LX | |
||
| 47 | 445387-00 | 1 | BAR | LX | |
||
| 48 | 450285-00 | 1 | PLATE | LX | |
||
| 49 | 133807-00 | 1 | SEAL | LX | |
||
| 50 | 98022-26 | 2 | SCREW | LX | |
||
| 51 | 620203-00 | 1 | ROLLER | LX | |
||
| 52 | 133844-00 | 1 | BEARING | LX | |
||
| 53 | 330045-05 | 1 | SCREW | LX | |
||
| 54 | 133828-01SV | 1 | PLATE | LX | |
||
| 55 | 133765-00 | 1 | GASKET | LX | |
||
| 56 | 133761-00 | 1 | WEIGHT | LX | |
||
| 57 | 429882-64 | 1 | ROD | LX | |
||
| 58 | 98185-20 | 1 | PIN | LX | |
||
| 59 | 330015-07 | 1 | WASHER | M5x0.8 | LX | |
|
| 60 | 133799-00 | 1 | FORK | LX | |
||
| 61 | 098198-05 | 1 | WASHER | LOCK, M6 | LX | |
|
| 62 | 133827-02SV | 1 | GEAR SA | LX | |
||
| 63 | 448817-02 | 1 | GEARCASE SA | LX | |
||
| 64 | 133770-00 | 1 | SHOE | LX | |
||
| 65 | 445687-00 | 2 | WASHER | LX | |
||
| 66 | 449193-01 | 1 | LABEL | LX | |
||
| 67 | 000475-00 | 2 | BALL STEEL | LX | |
||
| 68 | 604892-00 | 2 | SPRING | LX | |
||
| 69 | 448809-00 | 1 | KNOB | LX | |
||
| 70 | 98121-31 | 1 | SCREW | LX | |||
| 70 | 98121-31 | 1 | SCREW | LX | |||
| 71 | 386700-00 | 1 | PIN | LX | |
||
| 72 | 330004-06 | 2 | BEARING NEEDLE | LX | |
||
| 73 | 449977-00 | 1 | QUADRANT | LX | |
||
| 74 | 80164-00 | 1 | SCREW | LX | |
||
| 80 | 65288-02 | 1 | HOLDER | LX | |
||
| 800 | 870889-02 | 1 | GREASE | LX | |
