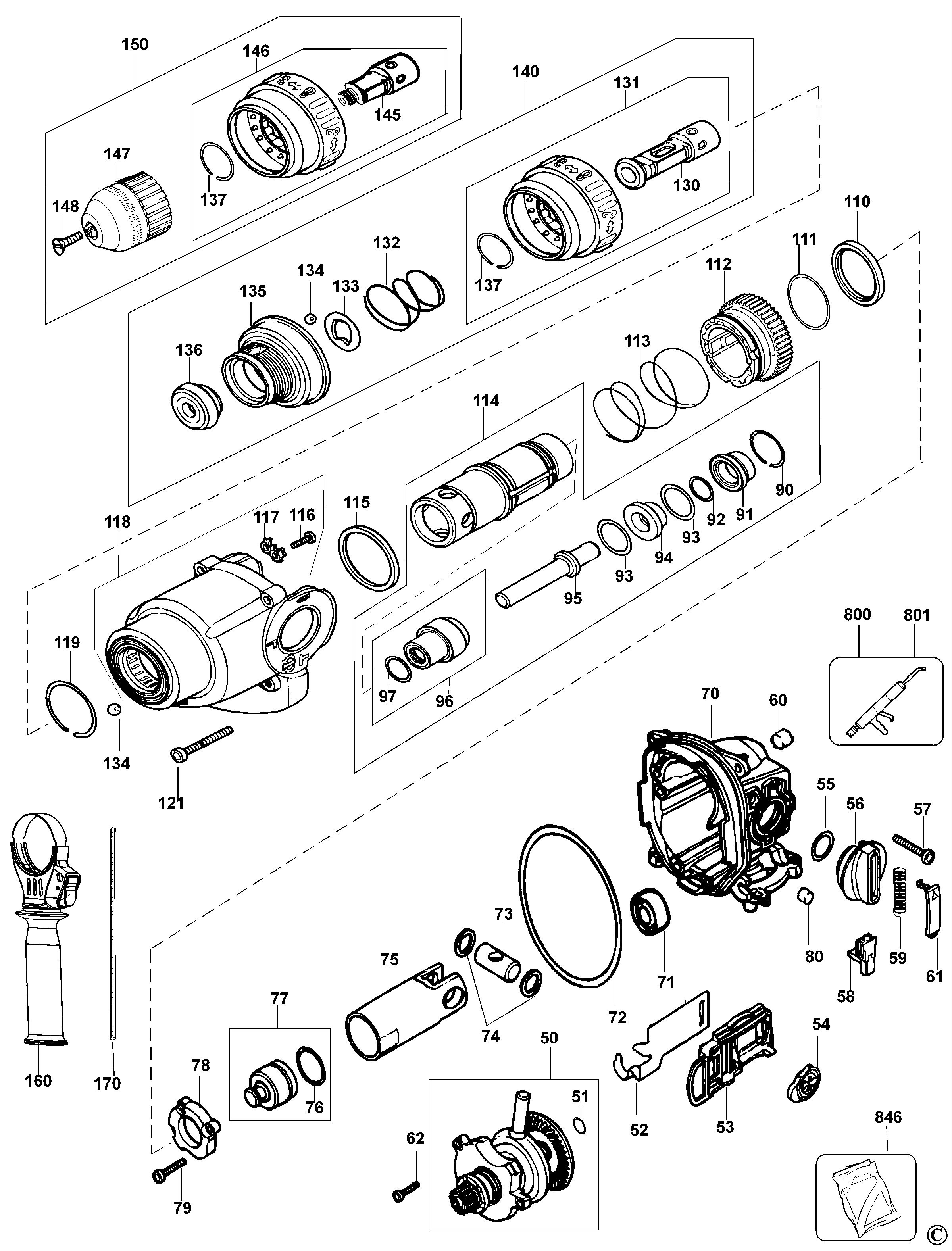

D25304K ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 584430-00 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 576690-05 | 1 | FIELD 230V | GB |  |
||
| 3 | 488779-00 | 1 | SWITCH KIT | GB | |
||
| 3 | 583748-08 | 1 | SWITCH | 230v | GB | |
|
| 4 | 577805-03 | 2 | BRUSH HOLDER 230V | GB | |
||
| 5 | 584429-00 | 1 | BRUSH KIT | 230 VOLT | GB | |
|
| 6 | 582064-10 | 1 | LEAD VIOLET | GB | |
||
| 7 | 584090-00 | 1 | CORD PROTECTOR | GB | |||
| 8 | 582319-04 | 1 | CORDSET (M/PLUG) GB | GB | |
||
| 9 | 578222-00 | 1 | PLUG | GB | |
||
| 10 | 582064-00 | 1 | LEAD RED | GB | |
||
| 11 | 582064-24 | 1 | LEAD WHITE | GB | |
||
| 12 | 582064-06 | 1 | LEAD VIOLET | GB | |
||
| 13 | 582064-02 | 1 | LEAD WHITE | GB | |
||
| 14 | 582064-07 | 1 | LEAD BLUE | GB | |
||
| 15 | 582064-05 | 1 | LEAD BLACK | GB | |
||
| 16 | 582064-04 | 1 | LEAD RED | With Choke. | GB | |
|
| 17 | 582064-03 | 1 | LEAD YELLOW | GB | |
||
| 18 | 930026-01 | 1 | BUMPER | GB | |
||
| 19 | 578218-00 | 1 | SLIDER | DeWALT | GB | |
|
| 20 | 578220-00 | 1 | LEVER | GB | |
||
| 21 | 870052 | 1 | SLEEVE | GB | |
||
| 22 | 579720-00 | 1 | BUSH | GB | |
||
| 23 | 326519-03 | 2 | SCREW | GB | |
||
| 24 | 330003-19 | 1 | BEARING | GB | |
||
| 25 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | GB | |
|
| 26 | 323534-00 | 1 | CONNECTOR | GB | |
||
| 27 | 584008-00 | 1 | SUPPORT | GB | |
||
| 28 | 582877-00 | 1 | INSERT | GB | |
||
| 29 | 584080-00 | 1 | INSERT | GB | |
||
| 30 | 577986-00 | 1 | HOUSING | DeWALT | GB | |
|
| 31 | 581808-00 | 1 | BAFFLE FAN | GB | |
||
| 32 | 577993-00 | 1 | FIELD CASE | DeWALT | GB | |
|
| 33 | 584041-00 | 1 | END CAP SA | GB | |
||
| 34 | 577987-00 | 1 | HANDLE COVER | GB | |
||
| 35 | 330065-08 | 8 | SCREW | M4x18 T20 | GB | |
|
| 36 | 821070 | 1 | CORD CLAMP | GB | |
||
| 37 | 330065-13 | 1 | SCREW | GB | |
||
| 39 | 330065-26 | 4 | SCREW | GB | |
||
| 40 | 330065-25 | 2 | SCREW | GB | |
||
| 50 | 584419-00 | 1 | INTERSHAFT SA | GB | |
||
| 51 | 580908-00 | 1 | O RING | 7.5x1.0 | GB | |
|
| 52 | 578271-00 | 1 | PLATE | GB | |
||
| 53 | 579564-00 | 1 | HOLDER | GB | |
||
| 54 | 579552-00 | 1 | SELECTOR | GB | |
||
| 55 | 584638-00 | 1 | O RING | 14x2 | GB | |
|
| 56 | 587269-00 | 1 | LEVER | GB | |
||
| 57 | 324007-14 | 1 | SCREW | 4x20 | GB | |
|
| 58 | 579184-00 | 1 | LOCK BUTTON | GB | |
||
| 59 | 579179-00 | 1 | SPRING | GB | |
||
| 60 | 582865-00 | 1 | FILTER | GB | |
||
| 61 | 579185-00 | 1 | COVER | GB | |
||
| 62 | 583981-00 | 3 | SCREW | 4x16 | GB | |
|
| 70 | 584432-00 | 1 | GEARCASE SA | GB | |
||
| 71 | 330003-81 | 1 | BEARING | GB | |
||
| 72 | 578229-00 | 1 | SEAL | GB | |
||
| 73 | 577801-00 | 1 | BEARING BLOCK | GB | |
||
| 74 | 577802-00 | 1 | WASHER SHIM | GB | |
||
| 75 | 584420-00 | 1 | PISTON | GB | |
||
| 76 | 579699-00 | 1 | O RING | GB | |
||
| 77 | 584421-00 | 1 | RAM | GB | |
||
| 78 | N042808 | 1 | BEARING BUSH | GB | |
||
| 79 | 324006-15 | 3 | SCREW | GB | |
||
| 80 | 587252-00 | 1 | FILTER | GB | |
||
| 90 | 577793-00 | 1 | CLIP | GB | |
||
| 91 | 584426-00 | 1 | BUSH | GB | |
||
| 92 | 580990-00 | 1 | O RING | GB | |
||
| 93 | 577135-00 | 2 | O RING | GB | |
||
| 94 | 584425-00 | 1 | DAMPER | GB | |
||
| 95 | 584424-01 | 1 | BEAT PIECE | GB | |
||
| 96 | 584423-01 | 1 | BEARING & SEAL | GB | |||
| 97 | 577139-00 | 1 | SEAL | GB | |
||
| 110 | 577797-00 | 1 | WASHER | GB | |||
| 111 | 577744-00 | 1 | O RING | 25.5 X 2 | GB | |
|
| 112 | 587482-00 | 1 | CLUTCH SA | GB | |
||
| 113 | 579178-00 | 1 | SPRING | GB | |
||
| 114 | 584422-01 | 1 | CYLINDER SA | GB | |
||
| 115 | 577814-00 | 1 | WASHER | GB | |
||
| 116 | 330065-05 | 2 | SCREW | GB | |
||
| 117 | 580291-00 | 1 | LOCKING DEVICE | GB | |
||
| 118 | 584433-01 | 1 | COVER GEARCASE | GB | |
||
| 119 | 577795-00 | 1 | RING | GB | |
||
| 121 | 330065-13 | 4 | SCREW | GB | |
||
| 130 | N403112 | 1 | SPINDLE | GB | |
||
| 131 | N591847 | 1 | CHUCK & SPINDLE SA | Dewalt | GB | |
|
| 132 | 871690 | 1 | SPRING | GB | |
||
| 133 | 578387-00 | 1 | WASHER | GB | |
||
| 134 | 583890-00 | 5 | BALL | GB | |
||
| 135 | N504215 | 1 | TUBE | GB | |
||
| 136 | 323489-00 | 1 | CAP | GB | |
||
| 137 | 579212-00 | 2 | RING | GB | |
||
| 140 | N591846 | 1 | CHUCK SA | SDS PLUS | GB | |
|
| 145 | 584676-00 | 1 | SPINDLE | GB | |
||
| 146 | N591847 | 1 | CHUCK & SPINDLE SA | Dewalt | GB | |
|
| 147 | 582512-02 | 1 | CHUCK KEYLESS | GB | |
||
| 148 | 605256-02 | 1 | SCREW | GB | |
||
| 150 | N591847 | 1 | CHUCK & SPINDLE SA | Dewalt | GB | |
|
| 160 | 589467-00 | 1 | SIDE HANDLE | GB | |
||
| 170 | 798846-02 | 1 | DEPTH STOP | GB | |
||
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | GB | |
|
| 821 | 569037-00 | 1 | RATING PLATE | GB | |
||
| 836 | 559638-99 | 1 | S.T.TERMINAL EXTRACTOR | GB | |
||
| 846 | 585146-00 | 1 | SERVICE KIT 230V | GB | |
