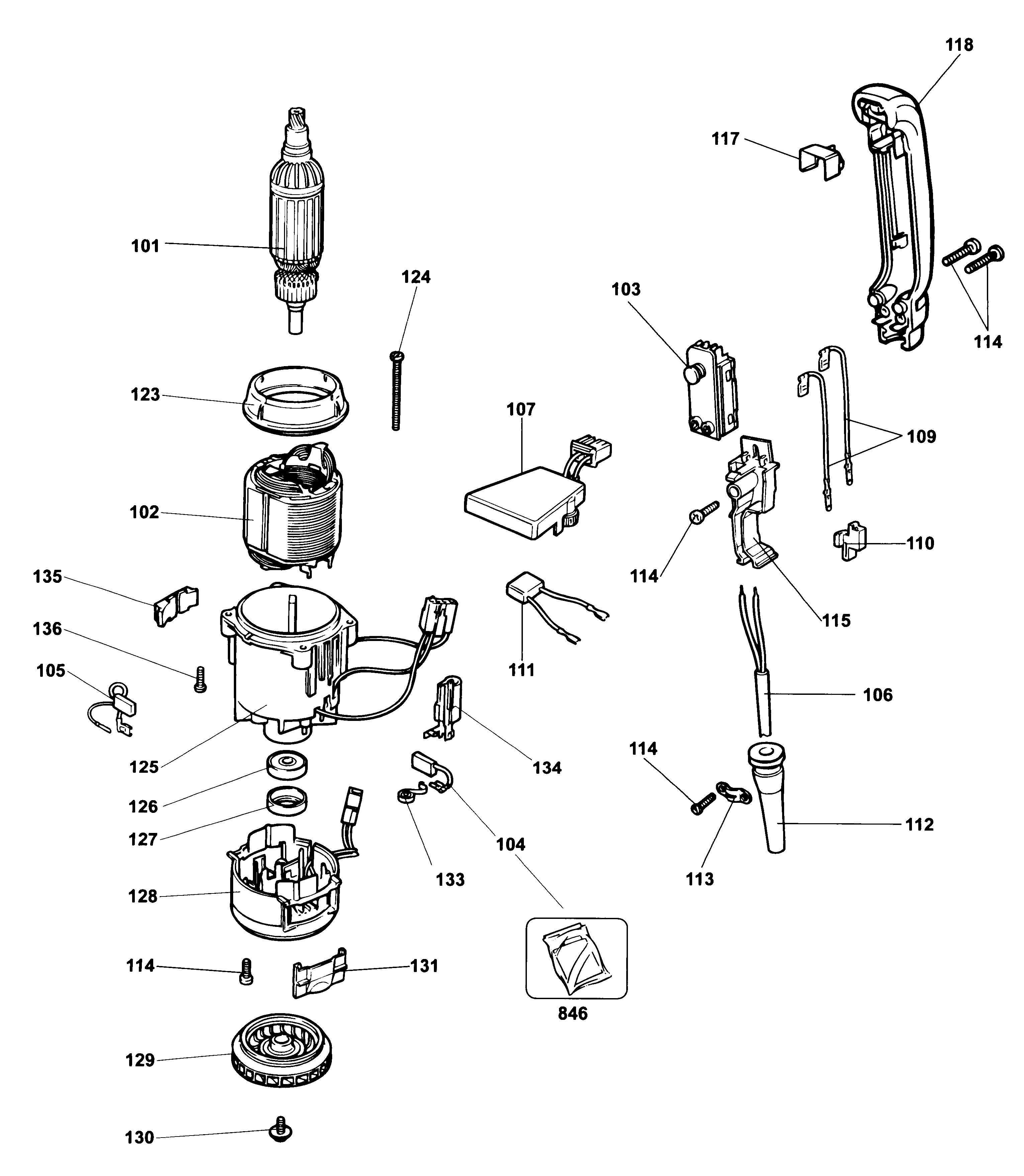

DW543 ROTARY HAMMER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 571059-00 | 1 | ARMATURE 230V | GB |  |
||
| 102 | 327430-04 | 1 | FIELD 230V | GB |  |
||
| 103 | 326087-00 | 1 | SWITCH | GB | |
||
| 104 | 326961-00 | 1 | SERVICE BRUSH | Cut-off | GB | |
|
| 105 | 326960-00 | 1 | SERVICE BRUSH | 230V - LED | GB | |
|
| 106 | 324438-73 | 1 | CORDSET | GB | |
||
| 107 | 326138-00 | 1 | ELECTRONIC 240V | GB | |
||
| 109 | 325089-00 | 2 | LEAD BLACK | GB | |
||
| 110 | 326189-00 | 1 | TERMINAL BLOCK | GB | |
||
| 111 | 320842-11 | 1 | CAPACITOR | GB | |
||
| 112 | 323091-01 | 1 | CORD PROTECTOR | GB | |
||
| 113 | 821070 | 1 | CORD CLAMP | GB | |
||
| 114 | 330065-08 | 17 | SCREW | M4x18 T20 | GB | |
|
| 115 | 326190-00 | 1 | CABLE GUIDE | GB | |
||
| 116 | 330065-05 | 1 | SCREW | GB | |
||
| 117 | 326581-00 | 1 | INSULATOR | GB | |
||
| 118 | 325382-00 | 1 | HANDLE | GB | |
||
| 120 | 327325-00 | 1 | TRIGGER LOCK-ON | GB | |
||
| 121 | 326519-00 | 1 | SCREW | GB | |
||
| 123 | 492073-00 | 1 | BAFFLE | GB | |
||
| 124 | 330065-11 | 2 | SCREW | GB | |
||
| 125 | 326411-16 | 1 | FIELDCASE | GB | |
||
| 126 | 577745-00 | 1 | BEARING | GB | |
||
| 127 | 325279-00 | 1 | SLEEVE | GB | |
||
| 128 | 326934-01 | 1 | COVER | GB | |
||
| 129 | 577736-00 | 1 | FAN | GB | |
||
| 130 | 324119-02 | 1 | SCREW | GB | |
||
| 131 | 326579-00 | 2 | SHUTTER | GB | |
||
| 133 | 326667-00 | 2 | BRUSH SPRING | GB | |
||
| 134 | 326933-01 | 2 | HOLDER | GB | |
||
| 135 | 325917-00 | 2 | DAMPER | GB | |
||
| 136 | 324007-11 | 8 | SCREW | M5 X 18 | GB | |
|
| 150 | 329033-00 | 1 | GEARCASE SA | GB | |
||
| 151 | 330004-32 | 1 | BEARING | GB | |
||
| 152 | 330004-33 | 1 | BEARING | GB | |
||
| 153 | 329039-01 | 1 | GEARCASE COVER SA | GB | |
||
| 154 | 325936-00 | 1 | SEAL | GB | |
||
| 165 | 327141-02 | 1 | SEAL | GB | |
||
| 167 | 918825-02 | 6 | SCREW | GB | |
||
| 168 | 918825-04 | 3 | SCREW | GB | |
||
| 169 | 581014-00 | 1 | CRANKSHAFT | GB | |
||
| 170 | 323711-26 | 1 | O RING | GB | |
||
| 171 | 325002-00 | 1 | CON ROD | GB | |
||
| 172 | 324858-00 | 1 | PISTON | GB | |
||
| 173 | 330041-22 | 1 | PIN | GB | |
||
| 174 | 325905-00 | 1 | RETAINER | GB | |
||
| 175 | 323711-11 | 2 | O RING | GB | |
||
| 176 | 326098-03 | 1 | CYLINDER | GB | |
||
| 177 | 323711-21 | 1 | O RING | GB | |
||
| 180 | 329319-00 | 1 | RAM | GB | |
||
| 181 | 326008-00 | 1 | INSERT | GB | |
||
| 183 | 323763-03 | 1 | CIRCLIP | GB | |
||
| 184 | 1005697-00 | 1 | SPINDLE LOCK | GB | |
||
| 185 | 325880-02 | 1 | SHAFT | GB | |
||
| 186 | 325160-00 | 1 | SELECTOR FORK | GB | |
||
| 187 | 323395-08 | 1 | SPRING | GB | |
||
| 188 | 323395-09 | 1 | SPRING | GB | |
||
| 189 | 326093-00 | 2 | SPACER | GB | |
||
| 190 | 325212-00 | 1 | LINK | GB | |
||
| 191 | 326720-00 | 1 | ECCENTRIC SA | GB | |
||
| 192 | 323711-07 | 1 | O RING | GB | |
||
| 193 | 326507-00 | 1 | LEVER SA | GB | |
||
| 194 | 326225-00 | 1 | COVER | GB | |
||
| 195 | 326122-00 | 1 | SCREW.SPECIAL | GB | |
||
| 196 | 329963-49 | 1 | CLAMSHELL SA | Yellow | GB | |
|
| 197 | 326192-00 | 1 | LENS | GB | |
||
| 198 | 325916-01 | 4 | BUFFER | GB | |
||
| 201 | 326194-00 | 1 | BRIDGE | GB | |
||
| 205 | 325371-04 | 1 | COVER | GB | |
||
| 206 | 323711-22 | 1 | O RING | GB | |
||
| 207 | 326824-00 | 1 | FILTER | GB | |
||
| 208 | 323711-17 | 1 | O RING | GB | |
||
| 210 | 326242-00 | 1 | BAFFLE FAN | GB | |
||
| 211 | 325384-00 | 1 | END CAP | GB | |
||
| 251 | 326555-00 | 1 | COLLAR | GB | |
||
| 252 | 326552-00 | 1 | BUSH | GB | |
||
| 253 | N079374 | 1 | PIN | GB | |
||
| 254 | 327146-00 | 1 | SIDE HANDLE | GB | |
||
| 255 | 323753-18 | 1 | WASHER | GB | |
||
| 256 | 327351-00 | 1 | KNOB | GB | |
||
| 261 | 323753-11 | 2 | WASHER | GB | |
||
| 262 | 323711-14 | 1 | O RING | GB | |
||
| 263 | 323753-14 | 1 | WASHER | GB | |
||
| 264 | 323395-07 | 1 | SPRING | GB | |
||
| 265 | 579580-00 | 1 | REPAIR KIT | GB | |
||
| 266 | 323711-10 | 2 | O RING | Upto date code 29-01 | GB | |
|
| 266 | 577484-00 | 1 | SEAL | From date code 30-01 | GB | |
|
| 267 | 582381-00 | 1 | WASHER | GB | |
||
| 268 | 577744-02 | 1 | O RING | GB | |
||
| 269 | 323753-16 | 1 | WASHER | GB | |
||
| 270 | N210233 | 1 | O RING | GB | |
||
| 271 | 326044-00 | 1 | CAP | GB | |
||
| 272 | 493133-00 | 1 | SPINDLE | GB | |
||
| 273 | 325878-00 | 2 | ROLLER | GB | |
||
| 274 | 329816-00 | 1 | LIP SEAL | GB | |
||
| 275 | 326575-02 | 1 | COLLAR | Black | GB | |
|
| 276 | 479247-00 | 1 | SLEEVE SA | GB | |
||
| 277 | 000000-03 | 1 | PART NLS ORDER SLEEVE SA 479247-00 | GB | |||
| 278 | 000000-03 | 1 | PART NLS ORDER SLEEVE SA 479247-00 | GB | |||
| 279 | 323395-06 | 1 | SPRING | GB | |
||
| 280 | 325929-00 | 2 | HALF WASHER | GB | |
||
| 281 | 487118-00 | 1 | SPRING | GB | |
||
| 282 | 325930-00 | 1 | SPRING GUIDE | GB | |
||
| 283 | 327141-00 | 1 | SEAL | GB | |
||
| 284 | 326125-00 | 1 | CASTING SA | Silver | GB | |
|
| 285 | 325935-00 | 1 | GASKET | GB | |
||
| 286 | 588560-00 | 1 | SPINDLE LOCK | GB | |
||
| 287 | 323763-04 | 1 | RING | GB | |
||
| 288 | 327208-00 | 1 | GUIDE | GB | |
||
| 290 | 326784-01 | 1 | END CAP SA | GB | |
||
| 291 | 324007-10 | 1 | SCREW | GB | |
||
| 293 | 323711-27 | 1 | O RING | 2.5 x 1.3 | GB | |
|
| 294 | 323711-28 | 1 | O RING | GB | |
||
| 316 | 000000-03 | 1 | PART NLS ORDER SLEEVE SA 479247-00 | GB | |||
| 800 | 328771-02 | 1 | GREASE 100 GMS | GB | |
||
| 816 | 578793-00 | 1 | BRAND LABEL | GB | |
||
| 836 | 559508-98 | 1 | SERVICE TOOL | GB | |
||
| 837 | 559603-99 | 1 | S.T.BEARING EXTRACTOR | GB | |
||
| 838 | 559510-99 | 1 | S.T.PULLER | GB | |
||
| 839 | 559656-99 | 1 | S.T.SUPPORT JIG | GB | |
||
| 840 | 559597-99 | 1 | S.T.ASSEMBLY JIG | Support Jig | GB | |
|
| 841 | 559598-99 | 1 | S.T.BLOCK | Block | GB | |
|
| 842 | 559602-99 | 1 | S.T.MANDREL | GB | |
||
| 846 | N542573 | 1 | BRUSH PAIR 230V | GB | |
||
| 846 | N542573 | 1 | BRUSH PAIR 230V | GB | |
||
| 847 | 327467-04 | 1 | SERVICE KIT 230VE | GB | |
||
| 850 | 576171-00 | 1 | REPAIR KIT | SB130 | GB | |
