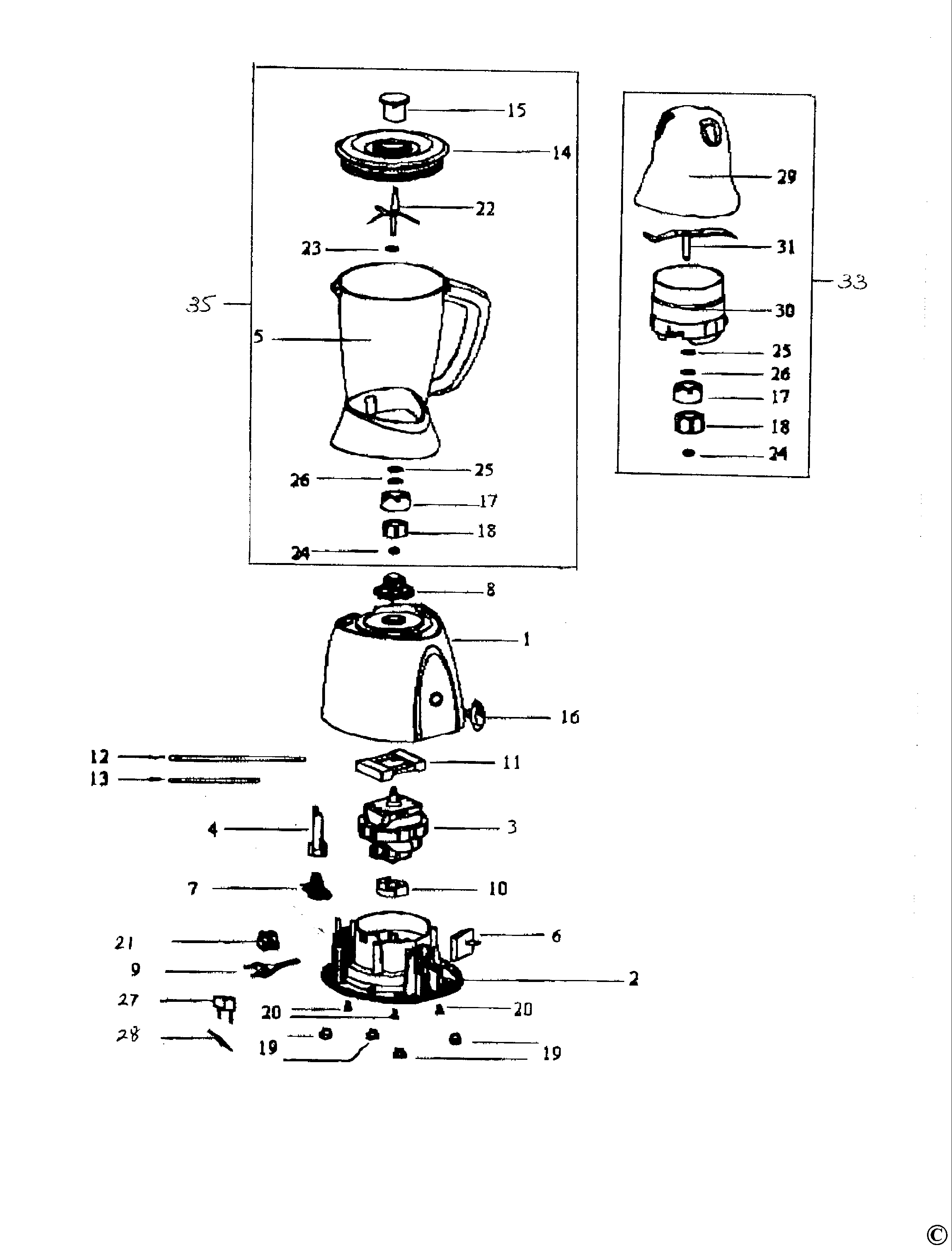

BX600 BLENDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010073-01 | 1 | BODY | MAIN | 151030001 | XJ |  |
| 2 | 6010073-02 | 1 | BODY | BOTTOM | 151030002 | XJ | |
| 3 | 6010073-03 | 1 | MOTOR 230V | 153030020 | XJ | |
|
| 3 | 6010073-36 | 1 | MOTOR 115V | 153030003 | XJ | |
|
| 4 | 6010073-04 | 1 | ACTUATOR | SAFETY SWITCH | 151030008 | XJ | |
| 5 | 6010073-05 | 1 | BLENDER | BLENDER GROUP | 154030005 | XJ | |
| 6 | 6010073-06 | 1 | SWITCH | ROTARY SWITCH | 153030002 | XJ | |
| 7 | 6010073-07 | 1 | SWITCH SAFETY | SAFETY SWITCH | 154000001 | XJ | |
| 8 | 6010073-08 | 1 | ADAPTOR | MALE ADAPTOR GROUP | 154030006 | XJ | |
| 9 | 6010073-09 | 1 | CORDSET | 115V | BX600-9 | XJ | |
| 9 | 6010073-37 | 1 | CORDSET | POWER CABLE 230V | 153030004 | XJ | |
| 10 | 6010073-10 | 1 | SHOCK ABSORBER | MOTOR | 151030009 | XJ | |
| 11 | 6010073-11 | 1 | SHOCK ABSORBER | MOTOR | 151030010 | XJ | |
| 12 | 6010073-12 | 1 | LEAD GREEN | INTERNAL CABLE GREEN | 153030007 | XJ | |
| 13 | 6010073-13 | 1 | LEAD BROWN | INTERNAL CABLE BROWN | 153030008 | XJ | |
| 14 | 6010029-73 | 1 | LID | BLENDER LID | 151030011 | XJ | |
| 15 | 6010028-53 | 1 | LID | 151025026 | XJ | |
|
| 16 | 6010073-16 | 1 | BUTTON | ON-OFF | 151030058 | XJ | |
| 17 | 6010073-17 | 1 | ADAPTOR | FEMALE | 151030022 | XJ | |
| 18 | 6010073-18 | 1 | ADAPTOR | FEMALE RUBBER | 153525001 | XJ | |
| 19 | 6010058-15 | 1 | FOOT | RUBBER | 151000005 | XJ | |
| 20 | 6010073-20 | 1 | SCREW | 153100031 | XJ | |
|
| 21 | 6010073-21 | 1 | TERMINAL | 153021003 | XJ | |
|
| 22 | 6010073-22 | 1 | BLADE SA | BLENDER SHAFT & BLAD | 151130004 | XJ | |
| 23 | 6010073-23 | 1 | SEAL | 153502015 | XJ | |
|
| 24 | 6010073-24 | 1 | NUT | BLENDER FEMALE ADAPT | 153230003 | XJ | |
| 25 | 6010028-25 | 1 | WASHER | 151215048 | XJ | |
|
| 26 | 6010029-70 | 1 | WASHER | 151218003 | XJ | |
|
| 27 | 6010073-27 | 1 | CAPACITOR | 153300032 | XJ | |
|
| 28 | 6010073-28 | 1 | RESISTOR | 153309032 | XJ | |
|
| 29 | 6010073-29 | 1 | BODY | TOP OF COFFEE MILL | 151030015 | XJ | |
| 30 | 6010073-30 | 1 | HOUSING LOWER | WITH BEARING | 154030025 | XJ | |
| 31 | 6010073-31 | 1 | BLADE SA | SHAFT & BLADE OF GRI | 151130005 | XJ | |
| 33 | 6010073-33 | 1 | ATTACHMENT | GRINDING MILL ASSEMB | 154030017 | XJ | |
| 35 | 6010073-35 | 1 | BLENDER | BLENDER GROUP ASSY | 154030015 | XJ | |
