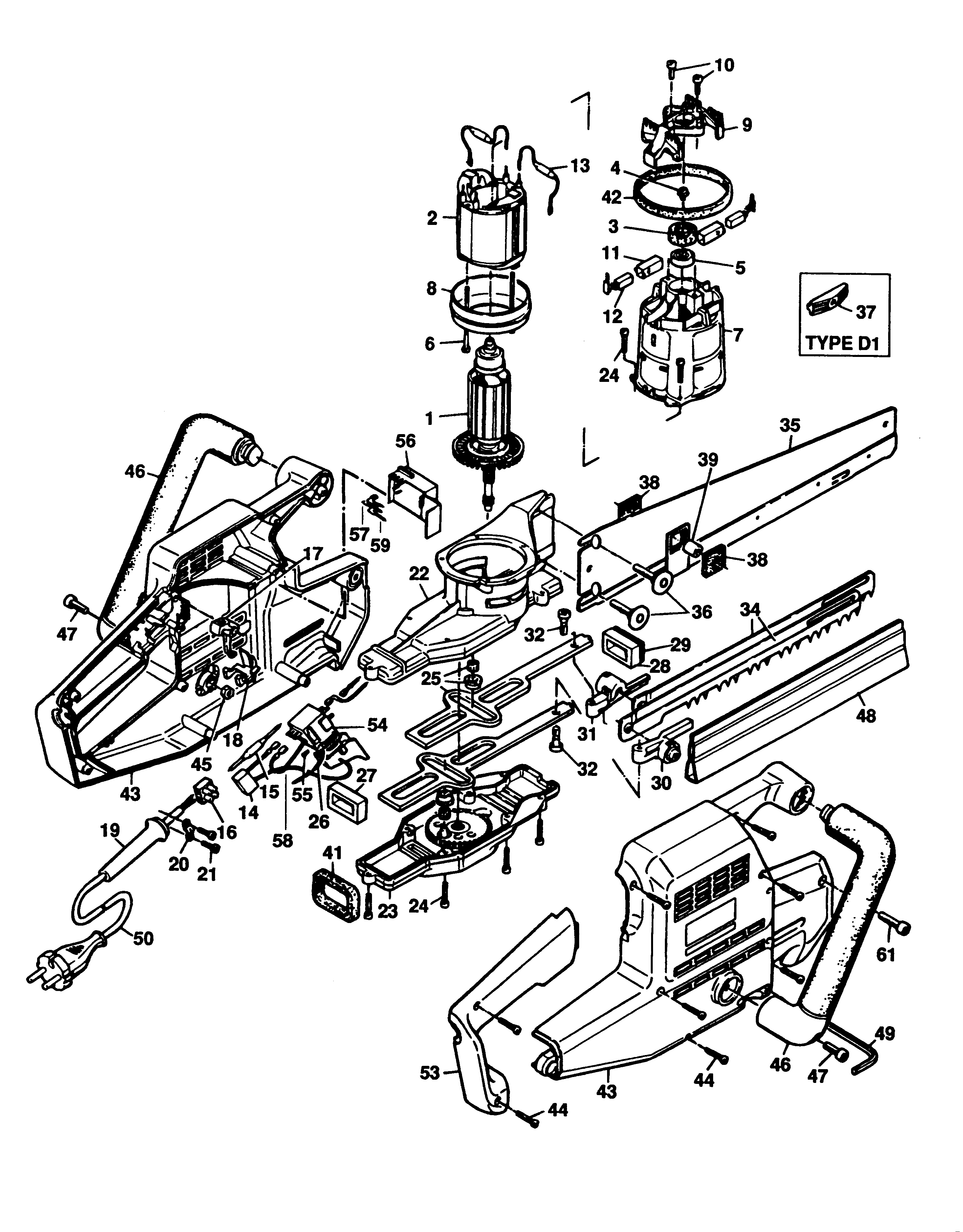

BD380E UNIVERSAL SAW Type 1-2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 369453-04 | 1 | ARMATURE 230V | XJ |  |
||
| 2 | 373007-15 | 1 | FIELD 230V | XJ | |
||
| 3 | 911897 | 1 | HOLDER | XJ | |
||
| 4 | 322491 | 1 | SCREW | XJ | |
||
| 5 | 330003-19 | 1 | BEARING | XJ |  |
||
| 6 | 916231 | 2 | SCREW | XJ | |
||
| 7 | 322330 | 1 | FIELDCASE | XJ | |
||
| 8 | 916128 | 1 | BAFFLE FAN | XJ | |
||
| 9 | 322894 | 1 | BRIDGE | XJ | |
||
| 10 | 894748 | 2 | O RING | XJ | |
||
| 11 | 321337 | 2 | BRUSH HOLDER | XJ | |
||
| 12 | 322950 | 2 | BRUSH 230V | XJ | |
||
| 13 | 917912-07 | 2 | CHOKE SA | XJ | |
||
| 14 | 320842-03 | 1 | CAPACITOR | XJ | |
||
| 17 | 322369-00 | 1 | LEVER | XJ | |
||
| 18 | 323136 | 1 | LEVER | XJ | |
||
| 19 | 859013 | 1 | PROTECTOR | XJ | |
||
| 20 | 821070 | 1 | CORD CLAMP | XJ | |
||
| 21 | D911324 | 2 | SCREW | XJ | |
||
| 22 | 324817-00 | 1 | GEARCASE | TYPE 2 | XJ | |
|
| 23 | 322667 | 1 | GEARCASE | XJ | |
||
| 24 | 320601-02 | 11 | SCREW | XJ | |
||
| 25 | 1008559-01 | 1 | REPAIR KIT | XJ | |
||
| 26 | 878756 | 2 | LEAD 200MM BLACK | XJ | |
||
| 27 | 322377 | 1 | BEARING | XJ | |
||
| 29 | 325990-00 | 1 | SEAL | XJ | |
||
| 30 | 368469-00 | 1 | CLAMP SA RH | XJ | |
||
| 31 | 368470-00 | 1 | CLAMP SA LH | XJ | |
||
| 32 | 495253-00 | 2 | REPAIR KIT | XJ | |
||
| 35 | 324770-00 | 1 | BAR | TYPE 2 | XJ | |
|
| 35 | 324770-00 | 1 | BAR | TYPE 1 | XJ | |
|
| 36 | 322928 | 2 | SCREW | TYPE 1 | XJ | |
|
| 36 | 324776-00 | 2 | SCREW | TYPE 2 | XJ | |
|
| 37 | 324904-49 | 2 | SPACER | TYPE 1 | XJ | |
|
| 38 | 322661 | 2 | INSERT | XJ | |
||
| 39 | 322662 | 1 | SPACER | XJ | |
||
| 41 | 322659 | 1 | INSERT | XJ | |
||
| 42 | 322660 | 1 | INSERT | XJ | |
||
| 43 | 325602-04 | 1 | CLAMSHELL | XJ | |
||
| 44 | 911325 | 9 | SCREW | XJ | |
||
| 45 | 911018 | 2 | NUT | XJ | |
||
| 46 | 322370 | 2 | HANDLE | XJ | |
||
| 47 | 911281 | 2 | SCREW | XJ | |||
| 48 | 322763-00 | 1 | GUARD | XJ | |
||
| 49 | 098000-11 | 1 | HEX KEY | XJ | |
||
| 50 | 747032-10 | 1 | CORDSET (EURO) | XJ | |
||
| 53 | 322363-00 | 1 | COVER | XJ | |
||
| 54 | 322840 | 1 | SWITCH | XJ | |
||
| 55 | 911026 | 4 | SCREW | XJ | |
||
| 56 | 323009 | 1 | ELECTRONIC | XJ | |
||
| 57 | 323375-01 | 1 | LEAD RED | XJ | |
||
| 58 | 323376-01 | 1 | LEAD BLUE | XJ | |
||
| 59 | 323377-01 | 1 | LEAD YELLOW | XJ | |
||
| 61 | 322928 | 1 | SCREW | XJ | |
