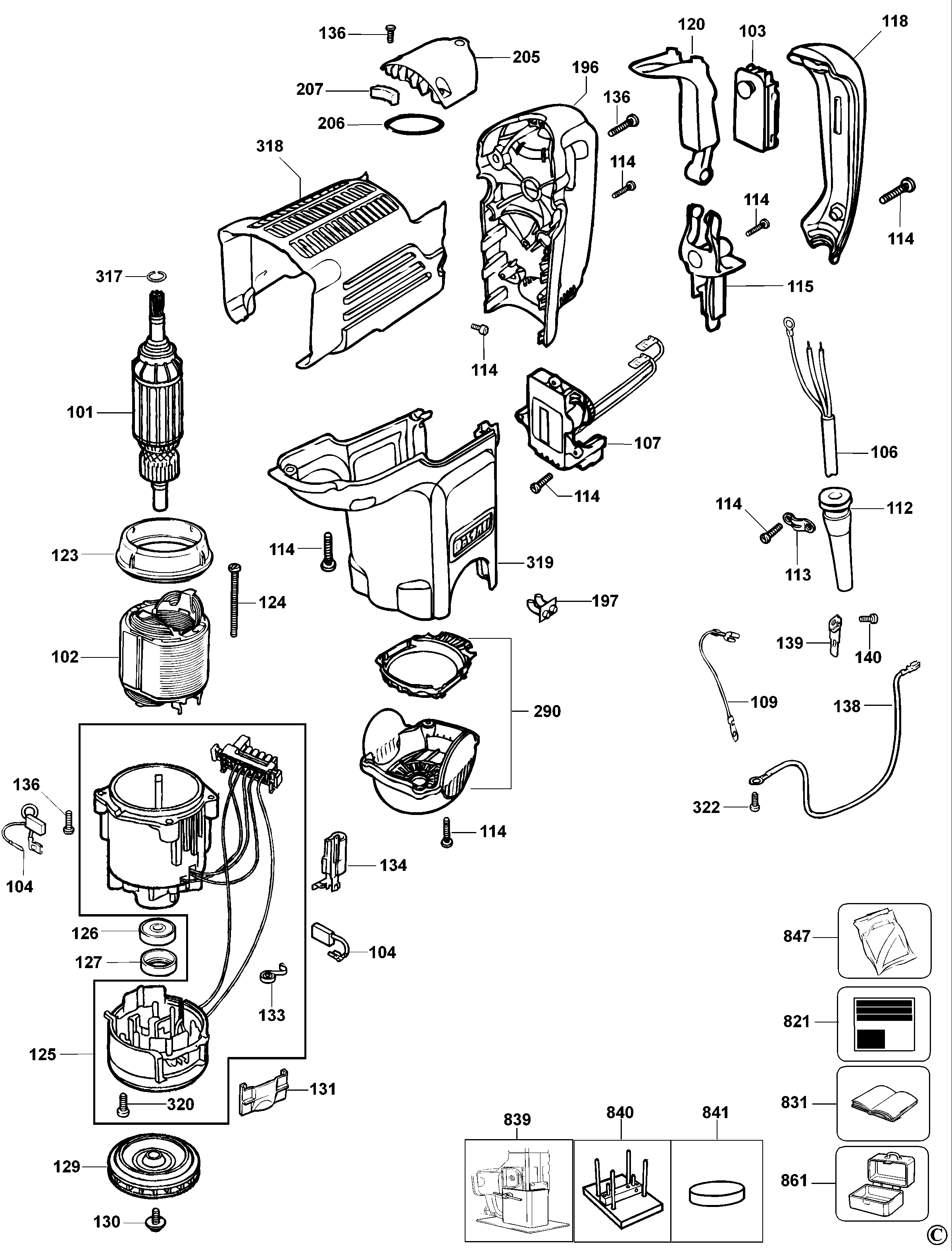

D25850K CHIPPING HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 103 | 581070-00 | 1 | SWITCH | XJ |  |
||
| 112 | 323091-01 | 1 | CORD PROTECTOR | XJ | |
||
| 113 | 821070 | 1 | CORD CLAMP | XJ | |
||
| 114 | 330065-08 | 18 | SCREW | M4x18 T20 | XJ | |
|
| 115 | 577716-00 | 1 | CABLE GUIDE | XJ |  |
||
| 118 | 577712-00 | 1 | HANDLE COVER | XJ | |
||
| 120 | 327325-00 | 1 | TRIGGER LOCK-ON | XJ | |
||
| 123 | 492073-00 | 1 | BAFFLE | XJ | |
||
| 124 | 330065-11 | 2 | SCREW | XJ | |
||
| 126 | 577745-00 | 1 | BEARING | XJ | |
||
| 127 | 325279-00 | 1 | SLEEVE | XJ | |
||
| 129 | 577736-00 | 1 | FAN | XJ | |
||
| 130 | 324119-02 | 1 | SCREW | XJ | |
||
| 131 | 326579-00 | 2 | SHUTTER | XJ | |
||
| 133 | 326667-00 | 2 | BRUSH SPRING | XJ | |
||
| 134 | 326933-01 | 2 | HOLDER | XJ | |
||
| 136 | 324007-11 | 8 | SCREW | M5 X 18 | XJ | |
|
| 137 | 324007-11 | 4 | SCREW | M5 X 18 | XJ | |
|
| 151 | 577745-01 | 1 | BEARING,BALL | XJ | |
||
| 152 | 330004-33 | 1 | BEARING | XJ | |
||
| 153 | 578486-01 | 1 | GEARCASE COVER SA | XJ | |
||
| 154 | 325936-00 | 1 | SEAL | XJ | |
||
| 165 | 327141-05 | 1 | SEAL | XJ | |
||
| 167 | 918825-02 | 2 | SCREW | XJ | |
||
| 169 | 582431-00 | 1 | CRANKSHAFT | XJ | |
||
| 170 | 323711-26 | 1 | O RING | XJ | |
||
| 171 | 325002-00 | 1 | CON ROD | XJ | |
||
| 172 | N041843 | 1 | PISTON | XJ | |
||
| 173 | 330041-22 | 1 | PIN | XJ | |
||
| 174 | 325905-00 | 1 | RETAINER | XJ | |
||
| 175 | 576232-01 | 2 | O RING | 23 X 4 | XJ | |
|
| 176 | 582576-00 | 1 | CYLINDER | XJ | |
||
| 177 | 577744-00 | 1 | O RING | 25.5 X 2 | XJ | |
|
| 180 | 582575-00 | 1 | RAM | XJ | |
||
| 183 | 323763-03 | 1 | CIRCLIP | XJ | |
||
| 184 | 1005697-00 | 1 | SPINDLE LOCK | XJ | |
||
| 196 | 577711-00 | 1 | HANDLE | XJ | |
||
| 197 | 577735-00 | 1 | LENS | XJ | |
||
| 205 | 577710-01 | 1 | COVER | Black | XJ | |
|
| 206 | 323711-22 | 1 | O RING | XJ | |
||
| 207 | 581578-00 | 1 | FILTER | XJ | |
||
| 251 | 326555-00 | 1 | COLLAR | XJ | |
||
| 252 | 326552-00 | 1 | BUSH | XJ | |
||
| 253 | N079374 | 1 | PIN | XJ | |
||
| 254 | 327146-00 | 1 | SIDE HANDLE | XJ | |
||
| 255 | 326553-00 | 1 | LOCKING RING | XJ | |
||
| 256 | 327351-00 | 1 | KNOB | XJ | |
||
| 257 | 326573-00 | 1 | SCREW WING | XJ | |
||
| 258 | 326556-00 | 1 | NUT | XJ | |
||
| 259 | 330021-01 | 1 | NUT | XJ | |
||
| 260 | 326205-00 | 1 | DEPTH ROD | XJ | |
||
| 261 | 323753-11 | 2 | WASHER | XJ | |
||
| 262 | 577744-05 | 1 | O RING | 40.6x4 | XJ | |
|
| 263 | 323753-14 | 1 | WASHER | XJ | |
||
| 264 | 323395-07 | 1 | SPRING | XJ | |
||
| 265 | 582432-01 | 1 | BEAT PIECE | XJ | |
||
| 266 | 577484-00 | 1 | SEAL | XJ | |
||
| 267 | 582381-00 | 1 | WASHER | XJ | |
||
| 268 | 577744-02 | 1 | O RING | XJ | |
||
| 269 | 323753-16 | 1 | WASHER | XJ | |
||
| 270 | N210233 | 1 | O RING | XJ | |
||
| 271 | 326044-01 | 1 | CAP | Black | XJ | |
|
| 272 | 493132-00 | 1 | SPINDLE | XJ | |
||
| 273 | 584339-00 | 1 | HOLDER TOOL | XJ | |
||
| 274 | 918825-03 | 4 | SCREW | XJ | |
||
| 275 | 325405-00 | 1 | RETAINER | XJ | |
||
| 276 | 325404-00 | 1 | RUBBER | XJ | |
||
| 277 | 327141-00 | 1 | SEAL | XJ | |
||
| 278 | 323711-15 | 1 | O RING | XJ | |
||
| 279 | 578490-01 | 1 | HOUSING FRONT | XJ | |
||
| 281 | 588560-00 | 1 | SPINDLE LOCK | XJ | |
||
| 285 | 577727-01 | 1 | GASKET | XJ | |
||
| 287 | 323763-04 | 1 | RING | XJ | |
||
| 290 | 578493-00 | 1 | END CAP | XJ | |
||
| 292 | 327210-00 | 1 | DUST DEFLECTOR | XJ | |
||
| 303 | 328051-00 | 4 | TUBE PLASTIC | XJ | |
||
| 317 | 577746-00 | 1 | RING | XJ | |
||
| 318 | 577708-02 | 1 | COVER-TOP | XJ | |
||
| 319 | 577709-00 | 1 | HOUSING LOWER | DeWALT | XJ | |
|
| 320 | 323924-08 | 2 | SCREW | XJ | |
||
| 322 | 326619-00 | 1 | SCREW | XJ | |
||
| 800 | 328771-02 | 1 | GREASE 100 GMS | XJ | |
||
| 801 | 328771-07 | 1 | GREASE | 50G, BIT GREASE | XJ | |
|
| 836 | 559632-99 | 1 | S.T.PULLER | Bearing Puller | XJ | |
|
| 837 | 559633-99 | 1 | S.T.MANDREL | Bearing Mandrel | XJ | |
|
| 838 | 559631-99 | 1 | S.T.PULLER | Cylinder removal | XJ | |
|
| 839 | 559656-99 | 1 | S.T.SUPPORT JIG | XJ | |
||
| 840 | 559597-99 | 1 | S.T.ASSEMBLY JIG | Support Jig | XJ | |
|
| 841 | 559598-99 | 1 | S.T.BLOCK | Block | XJ | |
|
| 843 | 559645-99 | 1 | S.T.SEAL FITTING TOOL | XJ | |
