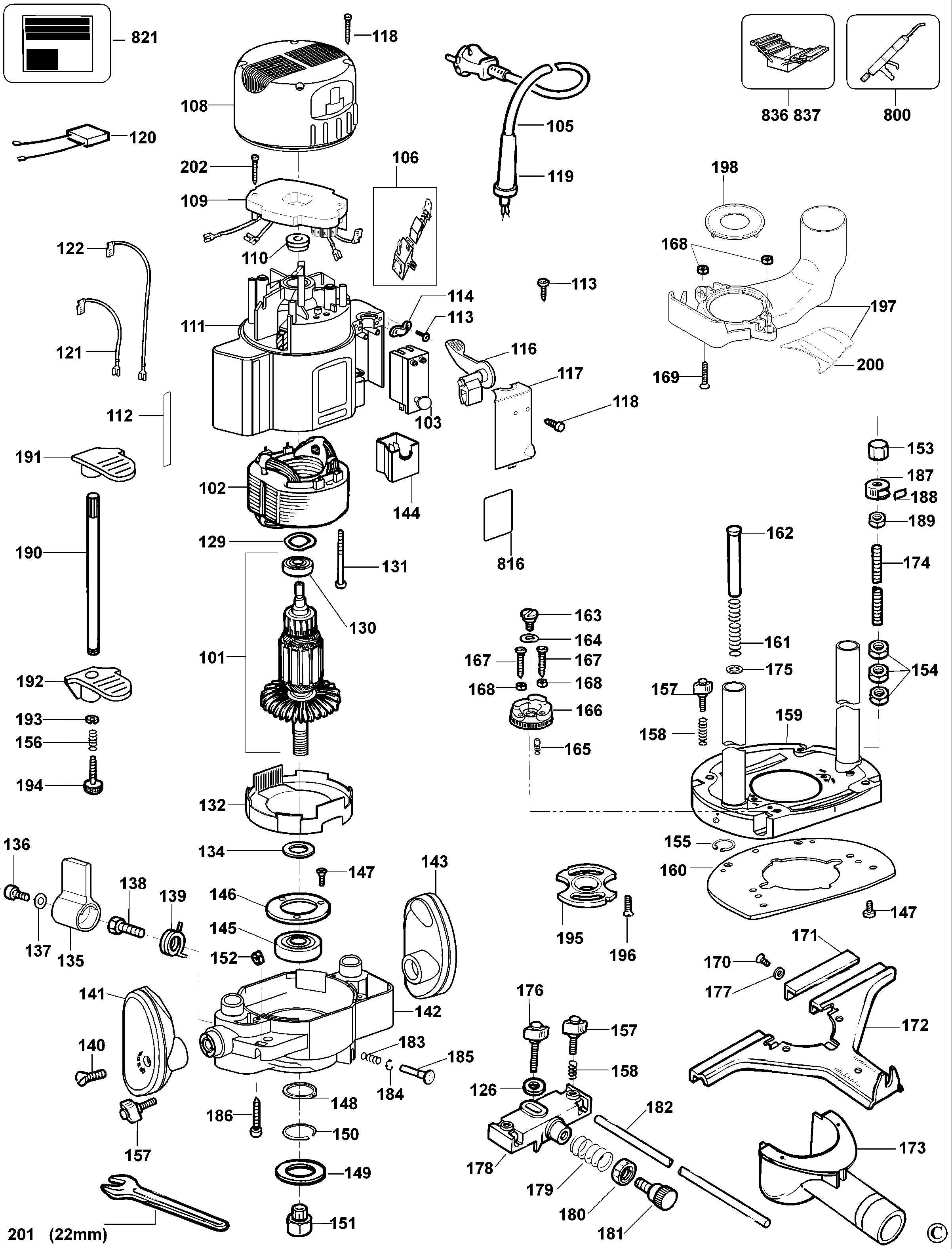

DW626 ROUTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 585646-01 | 1 | ARMATURE 115V | LX |  |
||
| 102 | 585647-01 | 1 | FIELD 115V | LX | |
||
| 103 | 326087-03 | 1 | SWITCH | LX | |
||
| 105 | 562226-16 | 1 | CABLE 115V | LX | |
||
| 106 | 585443-01 | 1 | BRUSH KIT | 115 V (single) | LX | |
|
| 108 | 326991-01 | 1 | COVER | LX | |
||
| 109 | 585654-01 | 1 | MODULE | 115 V | LX | |
|
| 110 | 326251-00 | 1 | MAGNET | LX |  |
||
| 111 | 395782-00 | 1 | FIELDCASE | LX | |
||
| 112 | 327178-00 | 1 | SCALE | LX | |
||
| 113 | 330065-06 | 4 | SCREW | LX | |
||
| 114 | 821070 | 1 | CORD CLAMP | LX | |
||
| 116 | 327177-00 | 1 | TRIGGER | LX | |
||
| 117 | 326993-00 | 1 | COVER | LX | |
||
| 118 | 330065-08 | 6 | SCREW | M4x18 T20 | LX | |
|
| 119 | 320785 | 1 | CORD PROTECTOR | LX | |
||
| 120 | 320842-17 | 1 | CAPACITOR | LX | |
||
| 121 | 328998-00 | 2 | LEAD 50MM BLACK | LX | |
||
| 122 | 328998-03 | 2 | LEAD 270MM BLACK | LX | |
||
| 126 | 330016-02 | 1 | WASHER | LX | |
||
| 129 | 326845-01 | 1 | WASHER SPRING | LX | |
||
| 130 | 577745-00 | 1 | BEARING | LX | |
||
| 131 | 330065-20 | 2 | SCREW | M5 x 75 T25 | LX | |
|
| 132 | 326978-00 | 1 | BAFFLE | LX | |
||
| 134 | 328956-00 | 1 | WASHER SPRING | 20 x 26 x 1 | LX | |
|
| 135 | 327184-00 | 1 | LEVER | LX | |
||
| 136 | 324007-10 | 1 | SCREW | LX | |
||
| 137 | 583639-00 | 1 | WASHER LOCK | LX | |
||
| 138 | 327183-00 | 1 | SCREW | LX | |
||
| 139 | 328506-00 | 1 | SPRING | LX | |
||
| 140 | 330045-29 | 2 | SCREW | LX | |
||
| 141 | 328709-00 | 1 | GRIP LH | LX | |
||
| 142 | 328706-00 | 1 | CARRIER SA | LX | |
||
| 143 | 328710-00 | 1 | GRIP RH | LX | |
||
| 144 | 327225-00 | 1 | SWITCH COVER | LX | |
||
| 145 | 570936-01 | 1 | BEARING | LX | |
||
| 146 | 326285-00 | 1 | CLAMP | LX | |
||
| 147 | 945121-00 | 9 | SCREW.TEMP | LX | |
||
| 148 | 949727-06 | 1 | CIRCLIP | LX | |
||
| 149 | 584591-00 | 1 | DUST GUARD | LX | |
||
| 150 | 584661-00 | 1 | RING | LX | |
||
| 151 | 326286-03 | 1 | COLLET & NUT SA | 1/2 INCH | LX | |
|
| 151 | 326286-04 | 1 | COLLET & NUT SA | 1/4 INCH | LX | |
|
| 152 | 860092-00 | 1 | NUT | LX | |
||
| 153 | 868150-00 | 1 | NUT | LX | |
||
| 154 | 326486-01 | 3 | NUT | M12 | LX | |
|
| 155 | 949729-01 | 2 | CIRCLIP | LX | |
||
| 156 | 323395-25 | 1 | SPRING | LX | |
||
| 157 | 326573-01 | 6 | SCREW WING | LX | |
||
| 158 | 868082-00 | 5 | SPRING | LX | |
||
| 159 | 328517-00 | 1 | BASE SA | LX | |
||
| 160 | 326984-00 | 1 | BASE | LX | |
||
| 161 | 323395-24 | 2 | SPRING | LX | |
||
| 162 | 326987-00 | 2 | ROD | LX | |
||
| 163 | 328505-00 | 1 | SCREW | M5 x 4 | LX | |
|
| 164 | 326845-02 | 1 | WASHER SPRING | LX | |
||
| 165 | 326467-00 | 1 | DETENT | LX | |
||
| 166 | 583837-00 | 1 | TURRET | LX | |
||
| 167 | 860089-17 | 2 | SCREW.TEMP | LX | |
||
| 168 | 930244-00 | 6 | NUT | LX | |
||
| 169 | 869076-00 | 2 | SCREW | LX | |
||
| 170 | 330045-05 | 4 | SCREW | LX | |
||
| 171 | 328788-00 | 2 | GUIDE | LX | |
||
| 172 | 328784-00 | 1 | FENCE | LX | |
||
| 173 | 328786-00 | 1 | EXHAUST | LX | |
||
| 174 | 326982-00 | 1 | STUD | LX | |
||
| 175 | 607502-00 | 2 | WASHER | LX | |
||
| 176 | 326573-02 | 1 | SCREW | LX | |
||
| 177 | 330016-01 | 4 | WASHER | LX | |
||
| 178 | 328785-00 | 1 | BRACKET | LX | |
||
| 179 | 323395-21 | 1 | SPRING | LX | |
||
| 180 | 942918-00 | 1 | INDEX | LX | |
||
| 181 | 326239-00 | 1 | ADJUSTER | LX | |
||
| 182 | 326966-00 | 2 | ROD 10MM X 300MM | LX | |
||
| 183 | 323395-25 | 1 | SPRING | LX | |
||
| 184 | 329945-00 | 1 | CIRCLIP | LX | |
||
| 185 | 329944-00 | 1 | SPINDLE LOCK | LX | |
||
| 186 | 323924-20 | 4 | SCREW | M5 x 20 | LX | |
|
| 187 | 942910-00 | 1 | NUT | LX | |
||
| 188 | 942912-00 | 2 | SPRING | LX | |
||
| 189 | 942911-00 | 1 | BUTTON | LX | |
||
| 190 | 326983-01 | 1 | ADJUSTER | LX | |
||
| 191 | 326995-00 | 1 | ADJUSTER | LX | |
||
| 192 | 328396-00 | 1 | CAP | LX | |
||
| 193 | 323762-05 | 1 | RING | SNAP 10 x 0.8 | LX | |
|
| 194 | 328493-00 | 1 | FINE ADJUSTER | M6 x 133 | LX | |
|
| 195 | 326276-05 | 1 | GUIDE BUSH | LX | |
||
| 196 | 911141 | 2 | SCREW | LX | |
||
| 197 | 329839-00 | 1 | HOUSING | LX | |
||
| 198 | 326599-01 | 1 | CAP | LX | |
||
| 200 | 329538-00 | 1 | COVER | LX | |
||
| 201 | 868111-00 | 1 | SPANNER | LX | |
||
| 202 | 330065-09 | 2 | SCREW | LX | |
||
| 800 | 575762-02 | 1 | GREASE 100 GMS | LX | |||
| 816 | 393097-00 | 1 | BRAND LABEL | LX | |
||
| 821 | N050149 | 1 | RATING PLATE | MD09 | LX | |
|
| 836 | 559639-99 | 1 | S.T.WRENCH | Pin Spanner | LX | |
|
| 837 | 559640-99 | 1 | S.T.CIRCLIP INSERTER | Spring Compressor | LX | |
|
| 861 | 578772-05 | 1 | KITBOX | LX |
