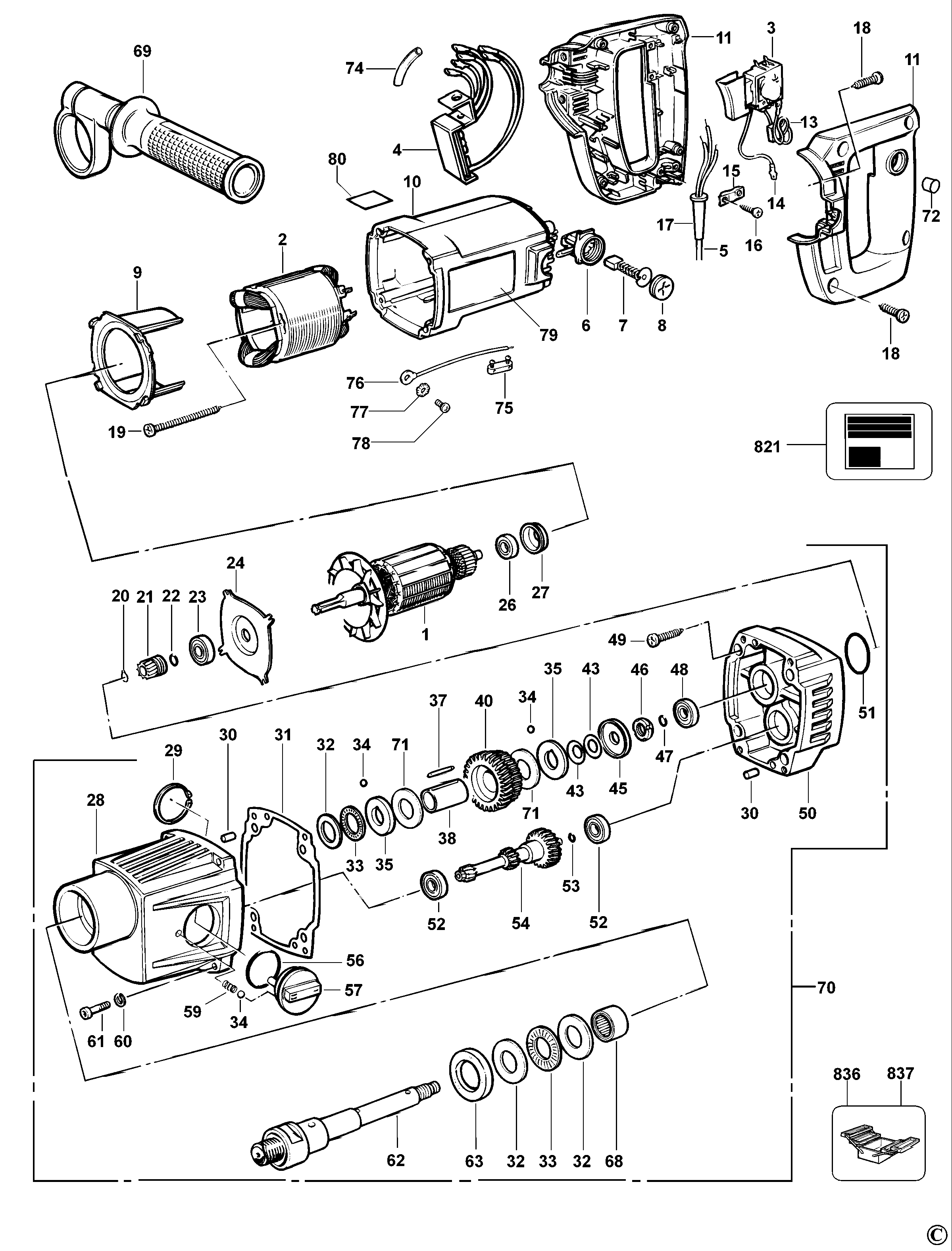

DW580EK DIAMOND DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 248158-01 | 1 | ARMATURE 115V | 115 VOLT | LX |  |
|
| 2 | 587020-01 | 1 | FIELD 115V | 115 VOLT | LX | |
|
| 3 | 249358-00 | 1 | SWITCH | LX | |
||
| 4 | 325516-01 | 1 | ELECTRONIC 115V | LX | |
||
| 5 | 330085-01 | 1 | CORDSET | LX | |
||
| 6 | 448083-01 | 2 | BRUSHBOX SA | LX |  |
||
| 7 | 248155-01 | 2 | BRUSH | LX | |
||
| 8 | 448084-01 | 2 | BRUSH CAP | LX | |
||
| 9 | 447786-00 | 1 | BAFFLE FAN | LX | |
||
| 10 | 447799-19 | 1 | FIELDCASE | LX | |
||
| 11 | 572000-01 | 1 | HANDLE SA | Yellow | LX | |
|
| 13 | 320842-03 | 1 | CAPACITOR | LX | |
||
| 14 | 248022-01 | 1 | LEAD 115V | LX | |
||
| 15 | 910556 | 1 | CABLE CLAMP | LX | |
||
| 16 | 949896-12 | 2 | SCREW | LX | |
||
| 17 | 401088-00 | 1 | PROTECTOR | LX | |
||
| 18 | 330019-13 | 8 | SCREW | M4X19 T20 | LX | |
|
| 19 | 844217-03 | 2 | SCREW | LX | |
||
| 20 | 248311-00 | 1 | CIRCLIP | LX | |
||
| 21 | 248035-00 | 1 | PINION | LX | |
||
| 22 | 248036-00 | 1 | O RING | LX | |
||
| 23 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | LX | |
|
| 24 | 448079-00 | 1 | PLATE | LX | |
||
| 26 | 605040-06 | 1 | BEARING,BALL | LX | |
||
| 27 | 445217-02 | 1 | SLEEVE | LX | |
||
| 28 | 248075-00 | 1 | GEARCASE SA | LX | |
||
| 29 | 278814-00 | 1 | CIRCLIP | LX | |
||
| 30 | 832327 | 2 | PIN | LX | |
||
| 31 | 248049-00 | 1 | GASKET | LX | |
||
| 32 | 278811-00 | 3 | RING | LX | |
||
| 33 | 278810-00 | 2 | BEARING | LX | |
||
| 34 | 832343 | 3 | BALL | LX | |
||
| 35 | 279196-00 | 1 | CLUTCH KIT | LX | |
||
| 37 | 278821-00 | 1 | PIN | LX | |
||
| 38 | 279196-00 | 1 | CLUTCH KIT | LX | |
||
| 40 | 248057-00 | 1 | GEAR SA | LX | |
||
| 43 | 248058-00 | 4 | WASHER | LX | |
||
| 45 | 248060-00 | 1 | CUP | LX | |
||
| 46 | 248061-00 | 1 | NUT | LX | |
||
| 47 | 278699-00 | 1 | SEAL | LX | |
||
| 48 | 050830000 | 1 | BEARING 6001 RSZ | LX | |
||
| 49 | 330019-42 | 4 | SCREW | LX | |
||
| 50 | 248065-04 | 1 | GEARCASE | LX | |
||
| 51 | 832348 | 1 | RING | LX | |
||
| 52 | 832337 | 2 | BEARING | LX | |
||
| 53 | 278778-00 | 1 | SEAL | LX | |
||
| 54 | 248069-00 | 1 | INTERGEAR | LX | |
||
| 56 | 832348 | 1 | RING | LX | |
||
| 57 | 248071-00 | 1 | KNOB | LX | |
||
| 59 | 832344 | 1 | SPRING | LX | |
||
| 60 | 832364 | 4 | WASHER | LX | |
||
| 61 | 248063-00 | 4 | SCREW.TEMP | LX | |
||
| 62 | 248074-02 | 1 | SPINDLE | 5/8"-16 UNF | LX | |
|
| 63 | 278812-00 | 1 | SEAL | LX | |
||
| 68 | 278809-00 | 1 | BEARING | LX | |
||
| 69 | 248190-00 | 1 | HANDLE SIDE SA | LX | |
||
| 70 | 248019-06 | 1 | GEARBOX SA | LX | |
||
| 71 | 279196-00 | 1 | CLUTCH KIT | LX | |
||
| 72 | 917650-01 | 1 | BLANK | LX | |
||
| 74 | 249666-00 | 1 | SHEATH | LX | |
||
| 75 | 323534-00 | 1 | CONNECTOR | LX | |
||
| 76 | 323635-15 | 1 | LEAD | LX | |
||
| 77 | 933652-00 | 1 | WASHER | LX | |
||
| 78 | 324006-07 | 1 | SCREW | LX | |
||
| 79 | 578777-00 | 1 | BRAND LABEL | LX | |
||
| 80 | 328310-00 | 1 | LABEL | LX | |
||
| 821 | 569037-00 | 1 | RATING PLATE | LX | |
||
| 836 | 559505-99 | 1 | SOCKET | LX | |
||
| 837 | 559569-99 | 1 | SOCKET | LX | |
