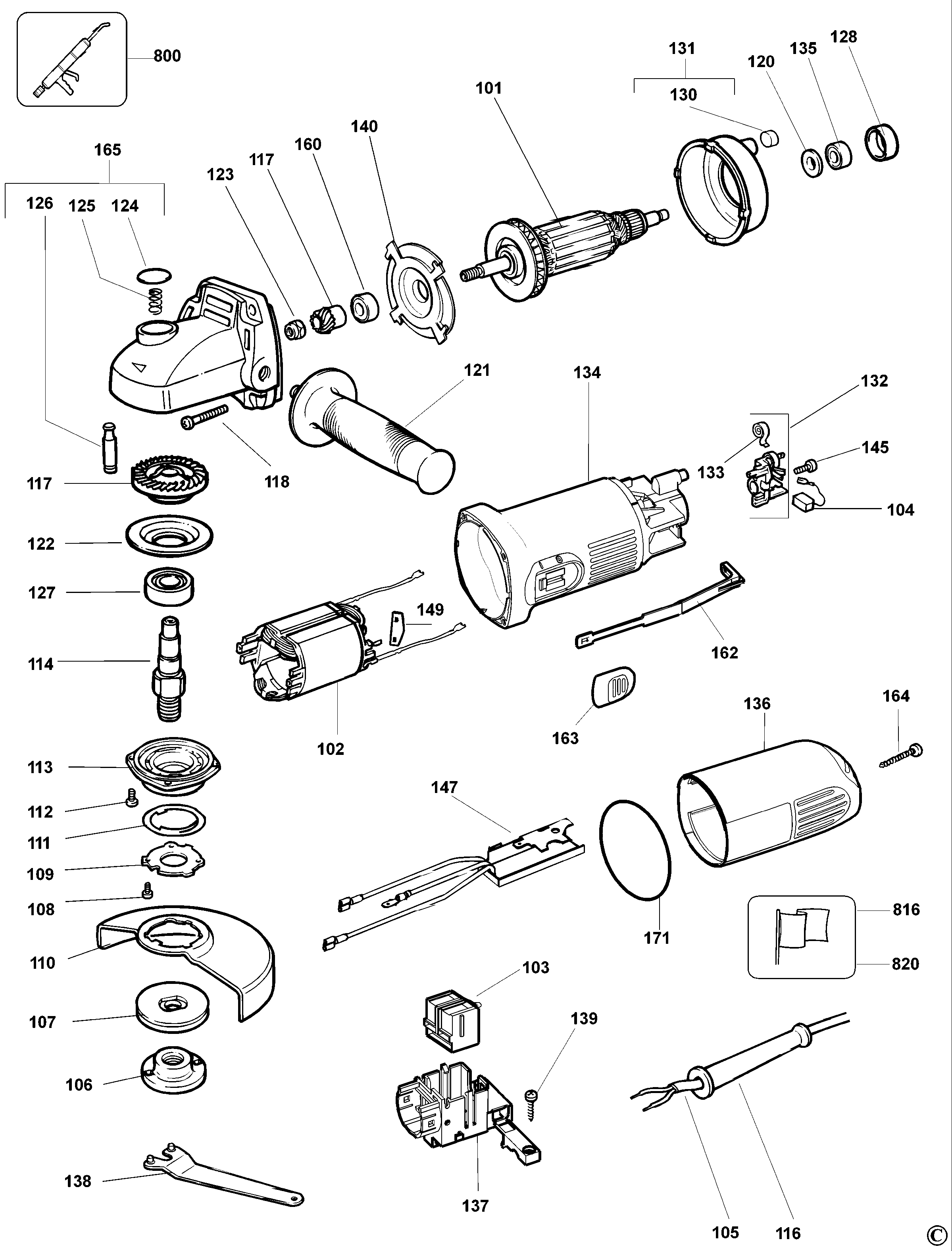

DW825 ANGLE GRINDER Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 949631-03 | 1 | ARMATURE 115V | LX |  |
||
| 102 | 605528-01 | 1 | FIELD 115V | LX | |
||
| 103 | 945614-00 | 1 | SWITCH | LX |  |
||
| 104 | 949646-01 | 2 | BRUSH CUT OFF 115V | LX | |
||
| 105 | 562226-07 | 1 | CABLE | LX | |
||
| 106 | 622613-02 | 1 | OUTER FLANGE | M14 | LX | |
|
| 107 | 391969-00 | 1 | INNER FLANGE | LX | |
||
| 108 | 562160-06 | 3 | SCREW | LX | |
||
| 109 | 605415-00 | 1 | RETAINING PLATE | LX | |
||
| 110 | 944586-00 | 1 | GUARD | LX | |
||
| 111 | 393576-00 | 1 | RING | LX | |
||
| 112 | 330045-46 | 4 | SCREW | for 610704-00 kit | LX | |
|
| 112 | 562160-07 | 4 | SCREW | LX | |||
| 113 | 390521-00 | 1 | GEARCASE COVER | LX | |
||
| 114 | 391971-00 | 1 | SPINDLE | LX | |
||
| 116 | 401088-03 | 1 | CORD PROTECTOR | LX | |
||
| 117 | 945295-02 | 1 | GEAR & PINION | LX | |
||
| 118 | 562097-01 | 4 | SCREW | LX | |
||
| 120 | 398906-00 | 1 | SPACER INSULATING | LX | |
||
| 121 | 573115-00 | 1 | SIDE HANDLE | LX | |
||
| 122 | 403156-00 | 1 | FLANGE | LX | |
||
| 123 | 945292-00 | 1 | NUT | LX | |
||
| 124 | 944574-00 | 1 | BUTTON | LX | |
||
| 125 | 562210-00 | 1 | SPRING | LX | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | LX | |
||
| 127 | 605040-22 | 1 | BEARING | LX | |
||
| 128 | 641823-00 | 1 | SLEEVE | LX | |
||
| 130 | 949638-01 | 2 | BUFFER | LX | |
||
| 131 | 401635-00 | 1 | BAFFLE SA | LX | |
||
| 132 | 606574-00 | 2 | BRUSH HOLDER | LX | |
||
| 133 | 562204-00 | 2 | SPRING | LX | |
||
| 134 | 394241-01 | 1 | FIELD CASE | LX | |
||
| 135 | 605040-02 | 1 | BEARING | LX | |
||
| 136 | 394938-01 | 1 | END CAP | LX | |
||
| 137 | 611540-00 | 1 | SUPPORT | LX | |
||
| 138 | 401680-00 | 1 | WRENCH | LX | |
||
| 139 | 562097-05 | 1 | SCREW | LX | |
||
| 140 | 401622-01 | 1 | FLANGE | LX | |
||
| 145 | 562097-00 | 2 | SCREW | LX | |
||
| 147 | 606175-02 | 1 | MODULE | LX | |
||
| 149 | 402489-00 | 2 | PAD | LX | |
||
| 160 | N110359 | 1 | BEARING | LX | |
||
| 162 | 611737-00 | 1 | LINK | LX | |
||
| 163 | 569624-01 | 1 | BUTTON | LX | |
||
| 164 | 562097-13 | 1 | SCREW | LX | |
||
| 165 | 610704-00 | 1 | SERVICE KIT | LX | |
||
| 171 | 393799-00 | 1 | O RING | LX | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | LX | |
|
| 816 | 946194-00 | 1 | BRAND LABEL | LX | |
||
| 820 | 569037-00 | 1 | RATING PLATE | LX | |
