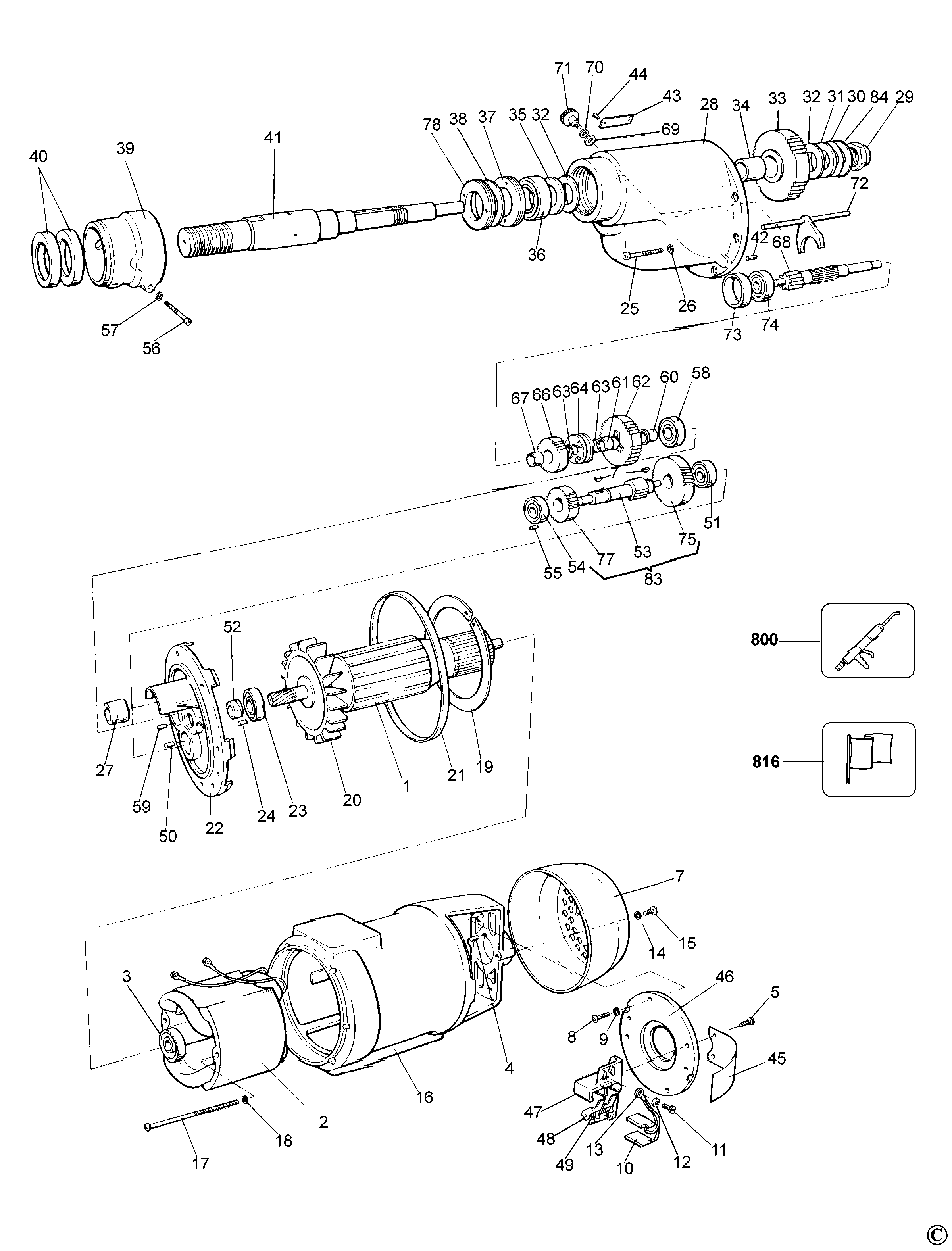

DW194 CORE DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 131995-31 | 1 | ARMATURE | 115 VOLTS | XJ |  |
|
| 1 | 131995-42 | 1 | ARMATURE | 240 VOLTS | XJ | |
|
| 2 | 46997-75 | 1 | FIELD 240V | 240 VOLTS | XJ | |
|
| 2 | 46997-71 | 1 | FIELD 115V | 115 VOLTS | XJ | |
|
| 3 | 13553-00 | 1 | BEARING | XJ | |
||
| 4 | 32731-00 | 1 | PLUG | XJ | |
||
| 5 | 99326-08 | 4 | SCREW | XJ | |
||
| 7 | 46965-02 | 1 | HEAD | XJ | |
||
| 8 | 369-00 | 2 | SCREW | XJ | |||
| 9 | 417-00 | 2 | WASHER LOCK | XJ | |
||
| 10 | 49227-00 | 4 | BRUSH SA | XJ | |
||
| 11 | 2379-00 | 2 | SCREW | XJ | |
||
| 12 | 418-00 | 2 | WASHER LOCK | XJ | |
||
| 13 | 34289-00 | 6 | LEAD | XJ | |
||
| 14 | 416-00 | 2 | WASHER LOCK | XJ | |
||
| 15 | 11908-00 | 2 | SCREW | XJ | |
||
| 16 | 46903-03 | 1 | FIELDCASE | XJ | |
||
| 17 | 18759-00 | 2 | SCREW | XJ | |
||
| 18 | 417-00 | 2 | WASHER LOCK | XJ | |
||
| 19 | 48815-00 | 1 | BAFFLE FAN | XJ | |
||
| 20 | 48621-00 | 1 | FAN | XJ | |
||
| 21 | 48816-00 | 1 | RING | XJ | |
||
| 22 | 48628-00 | 1 | GEARCASE COVER | XJ | |
||
| 23 | 50271-00 | 1 | BEARING | XJ | |
||
| 24 | 30613-00 | 1 | PLUG | XJ | |
||
| 25 | 49141-00 | 5 | SCREW | XJ | |
||
| 26 | 416-00 | 5 | WASHER LOCK | XJ | |
||
| 27 | 46817-00 | 1 | BEARING | XJ | |
||
| 28 | 46842-00 | 1 | GEARCASE | XJ | |
||
| 29 | 31680-00 | 1 | NUT | XJ | |
||
| 30 | 16048-00 | 4 | WASHER | XJ | |
||
| 31 | 49764-00 | 1 | WASHER | XJ | |
||
| 32 | 49765-00 | 2 | WASHER THRUST | XJ | |
||
| 33 | 54633-00 | 1 | GEAR | XJ | |
||
| 34 | 49766-00 | 1 | BEARING | XJ | |
||
| 35 | 49764-00 | 1 | WASHER | XJ | |
||
| 36 | 48535-00 | 1 | BEARING | XJ | |
||
| 37 | 46846-00 | 1 | SCREW | XJ | |
||
| 38 | 46848-00 | 1 | WASHER | XJ | |
||
| 39 | 54627-00 | 1 | HOUSING | XJ | |
||
| 40 | 48536-00 | 2 | SEAL | XJ | |
||
| 41 | 54612-01 | 1 | SPINDLE | XJ | |
||
| 42 | 2035-00 | 1 | DOWEL | XJ | |
||
| 43 | 384956-00 | 1 | PLATE | XJ | |
||
| 44 | 3041-00 | 2 | SCREW | XJ | |
||
| 45 | 49170-00 | 1 | INSULATOR | XJ | |
||
| 46 | 48550-00 | 1 | RING | XJ | |
||
| 47 | 48512-00 | 2 | BRUSH HOLDER SA | XJ | |
||
| 48 | 48503-00 | 4 | ARM | XJ | |
||
| 49 | 48552-00 | 4 | BRUSH SPRING | XJ | |
||
| 50 | 30612-00 | 1 | PLUG | XJ | |
||
| 51 | 13516-00 | 1 | BEARING | XJ | |
||
| 52 | 37341-00 | 1 | SLEEVE | XJ | |
||
| 53 | 54634-00 | 1 | SHAFT | XJ | |
||
| 54 | 13516-00 | 1 | BEARING | XJ | |
||
| 55 | 30612-00 | 1 | PLUG | XJ | |
||
| 56 | 21506-00 | 1 | SCREW | XJ | |
||
| 57 | 416-00 | 1 | WASHER LOCK | XJ | |
||
| 58 | 20264-00 | 1 | BEARING | XJ | |
||
| 59 | 30613-00 | 1 | PLUG | XJ | |
||
| 60 | 54638-00 | 1 | SLEEVE | XJ | |
||
| 61 | 49658-00 | 1 | BEARING | XJ | |
||
| 62 | 54635-00 | 1 | INTERGEAR | XJ | |
||
| 63 | 46797-00 | 2 | RING | XJ | |
||
| 64 | 46799-00 | 1 | CLUTCH | XJ | |
||
| 66 | 54636-00 | 1 | INTERGEAR | XJ | |
||
| 67 | 49659-00 | 1 | BEARING | XJ | |
||
| 68 | 54632-00 | 1 | PINION | XJ | |
||
| 69 | 8871-00 | 1 | WASHER | XJ | |
||
| 70 | 45874-00 | 1 | WASHER | XJ | |
||
| 71 | 48868-00 | 1 | SCREW | XJ | |
||
| 72 | 445127-00 | 1 | ROD | XJ | |
||
| 73 | 49312-00 | 1 | SLEEVE | XJ | |
||
| 74 | 20264-00 | 1 | BEARING | XJ | |
||
| 75 | 46792-00 | 1 | GEAR | XJ | |
||
| 76 | 26587-00 | 2 | KEY | XJ | |
||
| 77 | 54637-00 | 1 | INTERGEAR | XJ | |
||
| 78 | 46846-00 | 1 | SCREW | XJ | |
||
| 83 | 54668-00 | 1 | GEARSHAFT SA | XJ | |
||
| 84 | 57448 | 1 | SPACER | XJ | |
||
| 800 | 449772-06 | 1 | GREASE | 1lb (453 gms) | Use 10ozs (283 gms) | XJ | |
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | Use 10ozs (283 gms) | XJ |  |
| 816 | 385026-00 | 1 | LABEL | XJ | |
