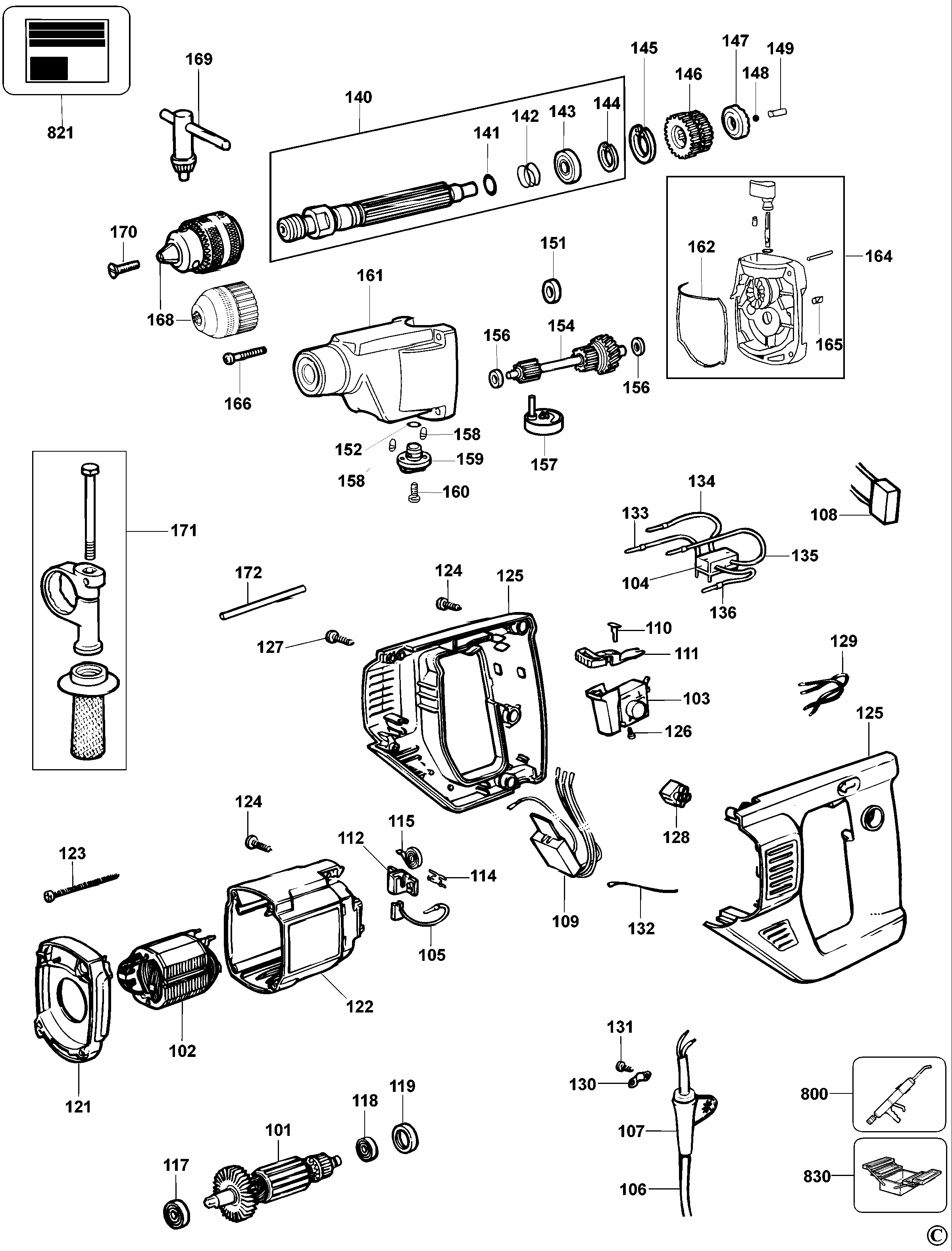

DW165 HAMMER DRILL Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 328620-11 | 1 | ARMATURE 115V | LX |  |
||
| 102 | 572393-03 | 1 | FIELD 115V | LX | |
||
| 103 | 324556-49 | 1 | SWITCH | LX | |
||
| 104 | 324400-00 | 1 | SWITCH REVERSE | LX | |
||
| 105 | 323660-00 | 2 | BRUSH 120V | LX |  |
||
| 106 | 330061-03 | 1 | CORDSET | LX | |
||
| 107 | 770236 | 1 | PROTECTOR | LX | |
||
| 108 | 320842-03 | 1 | CAPACITOR | LX | |
||
| 109 | 324552-05 | 1 | ELECTRONIC 115V | LX | |
||
| 110 | 324165-02 | 1 | INSERT | LX | |
||
| 111 | 323490-08 | 1 | LEVER | LX | |
||
| 112 | 323496-01 | 2 | BRUSH HOLDER | LX | |
||
| 114 | 323482-00 | 2 | PLUG | LX | |
||
| 115 | 872843 | 2 | SPRING | LX | |
||
| 117 | 605040-05 | 1 | BEARING | LX | |
||
| 118 | 330003-19 | 1 | BEARING | LX | |
||
| 119 | 870052 | 1 | SLEEVE | LX | |
||
| 121 | 326184-08 | 1 | BAFFLE | LX | |
||
| 122 | 324188-05 | 1 | FIELDCASE | LX | |
||
| 123 | 916231 | 2 | SCREW | LX | |
||
| 124 | 323924-02 | 4 | SCREW | LX | |
||
| 125 | 324189-05 | 1 | HANDLE SA | LX | |
||
| 126 | 911026 | 3 | SCREW | LX | |
||
| 127 | 330065-13 | 2 | SCREW | LX | |
||
| 128 | 323534-00 | 1 | CONNECTOR | LX | |
||
| 129 | 323635-10 | 2 | LEAD 70MM | LX | |
||
| 130 | 821070 | 1 | CORD CLAMP | LX | |
||
| 131 | 323924-08 | 2 | SCREW | LX | |
||
| 132 | 878846 | 1 | LEAD 360MM | LX | |
||
| 133 | 877358 | 1 | LEAD 220MM | LX | |
||
| 134 | 877357 | 1 | LEAD 160MM BLACK | LX | |
||
| 135 | 945402-27 | 1 | CHOKE SA | LX | |
||
| 136 | 945402-28 | 1 | CHOKE SA | LX | |
||
| 140 | 327313-02 | 1 | SPINDLE SA | LX | |
||
| 141 | 930028-00 | 1 | O RING | LX | |
||
| 142 | 931890 | 1 | SPRING | LX | |
||
| 143 | 605040-25 | 1 | BEARING,BALL | LX | |
||
| 144 | 944137-00 | 1 | CIRCLIP | LX | |
||
| 145 | 931398 | 1 | RING | LX | |
||
| 146 | 1008288-00 | 1 | GEAR | LX | |
||
| 147 | 945706-00 | 1 | RATCHET | LX | |
||
| 148 | 917725 | 1 | BALL | 3.5mm | LX | |
|
| 149 | 330041-25 | 1 | PIN | LX | |
||
| 151 | 1006305-00 | 1 | SEAL | LX | |
||
| 152 | 323711-34 | 1 | O RING | LX | |
||
| 154 | 577850-01 | 1 | INTERSHAFT SA | LX | |
||
| 156 | 930102-00 | 2 | WASHER | LX | |
||
| 157 | 327314-00 | 1 | ACTUATOR | LX | |
||
| 158 | 326467-00 | 2 | DETENT | LX | |
||
| 159 | 327309-01 | 1 | KNOB | LX | |
||
| 160 | 330065-22 | 1 | SCREW | LX | |
||
| 161 | 327311-00 | 1 | GEARCASE SA | LX | |
||
| 162 | 327291-00 | 1 | SEAL | LX | |
||
| 164 | 583999-01 | 1 | GEARCASE COVER SA | LX | |
||
| 165 | 916010 | 1 | BUMPER | LX | |
||
| 166 | 330065-11 | 4 | SCREW | LX | |
||
| 168 | 5140071-68 | 1 | CHUCK 13MM | LX | |
||
| 168 | N242399 | 1 | CHUCK KEYLESS | LX | |
||
| 169 | 330034-07 | 1 | CHUCK KEY | LX | |
||
| 170 | 575237-00 | 1 | SCREW | LX | |
||
| 171 | 939794-02 | 1 | HANDLE SIDE SA | LX | |
||
| 172 | 580787-00 | 1 | DEPTH STOP | LX | |
||
| 800 | 870889-02 | 1 | GREASE | LX | |
||
| 821 | 569037-00 | 1 | RATING PLATE | LX | |
||
| 830 | 559596-99 | 1 | S.T.PULLER | LX | |
