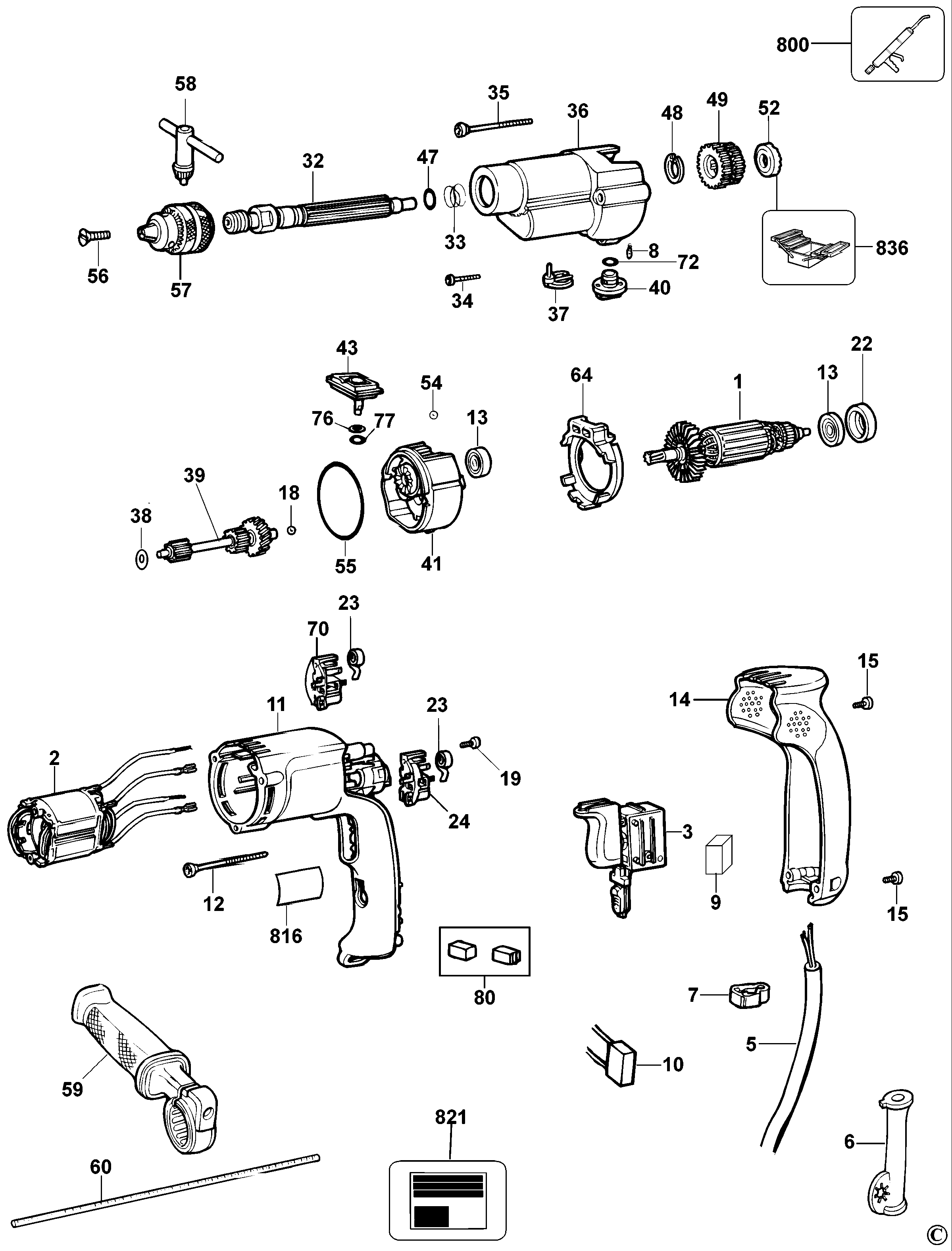

DW501 HAMMER DRILL Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 176830-13 | 1 | SWITCH SA | XJ |  |
||
| 6 | 401751-00 | 1 | CORD PROTECTOR | XJ |  |
||
| 7 | 402648-00 | 1 | CORD CLAMP | XJ | |
||
| 8 | 326467-00 | 2 | DETENT | XJ | |
||
| 9 | 930026-01 | 1 | BUMPER | XJ | |
||
| 10 | 949877-01 | 1 | CAPACITOR | XJ | |
||
| 11 | N019317 | 1 | FIELD CASE | XJ | |
||
| 12 | 390198-00 | 2 | SCREW | XJ | |
||
| 13 | 605040-06 | 1 | BEARING,BALL | XJ | |
||
| 14 | 176900-01 | 1 | HANDLE COVER | XJ | |
||
| 15 | 330019-13 | 3 | SCREW | M4X19 T20 | XJ | |
|
| 18 | 936840-00 | 1 | BALL STEEL | XJ | |||
| 19 | 330065-06 | 2 | SCREW | XJ | |
||
| 22 | 389824-00 | 1 | BOOT | XJ | |
||
| 23 | 402759-00 | 2 | BRUSH SPRING | XJ | |
||
| 24 | 401877-01 | 1 | BRUSH HOLDER SA | XJ | |
||
| 32 | 581235-00 | 1 | SPINDLE | 1/2" x 20 UNF | XJ | |
|
| 33 | 931890 | 1 | SPRING | XJ | |
||
| 34 | 330019-14 | 1 | SCREW | XJ | |
||
| 35 | 330019-50 | 2 | SCREW | M4.55x50 PLASTIC THD FMG | XJ | |
|
| 36 | 1006352-00 | 1 | GEARCASE | XJ | |
||
| 37 | 401735-00 | 1 | SELECTOR FORK | XJ | |
||
| 38 | 930102-00 | 1 | WASHER | XJ | |
||
| 39 | 581234-00 | 1 | INTERSHAFT | XJ | |
||
| 40 | 628891-00 | 1 | SELECTOR FORK | SPEED | XJ | |
|
| 41 | 583951-00 | 1 | GEARCASE COVER | XJ | |
||
| 43 | 401750-00 | 1 | SELECTOR SA | XJ | |
||
| 47 | 930028-00 | 1 | O RING | XJ | |
||
| 48 | 1006305-00 | 1 | SEAL | XJ | |
||
| 49 | 397239-01 | 1 | GEAR | XJ | |
||
| 52 | 945706-00 | 1 | RATCHET | XJ | |
||
| 54 | 000903-00 | 1 | BALL | XJ | |
||
| 55 | 401847-00 | 1 | SEAL | XJ | |
||
| 56 | 490910-00 | 1 | SCREW | XJ | |
||
| 57 | 5140071-68 | 1 | CHUCK 13MM | XJ | |
||
| 58 | 330034-07 | 1 | CHUCK KEY | XJ | |
||
| 59 | 939794-02 | 1 | HANDLE SIDE SA | XJ | |
||
| 60 | 940357-00 | 1 | DEPTH STOP | XJ | |
||
| 64 | 176811-00 | 1 | BAFFLE | XJ | |
||
| 70 | 401878-01 | 1 | BRUSH HOLDER SA | XJ | |||
| 72 | 930102-00 | 1 | WASHER | XJ | |
||
| 76 | 061145-00 | 1 | SEAL | XJ | |
||
| 77 | 050050-00 | 1 | RING | XJ | |
||
| 800 | 870889-02 | 1 | GREASE | XJ | |
||
| 816 | 395047-00 | 1 | BRAND LABEL | XJ | |
||
| 821 | 569037-00 | 1 | RATING PLATE | XJ | |
||
| 836 | 559596-99 | 1 | S.T.PULLER | XJ | |
