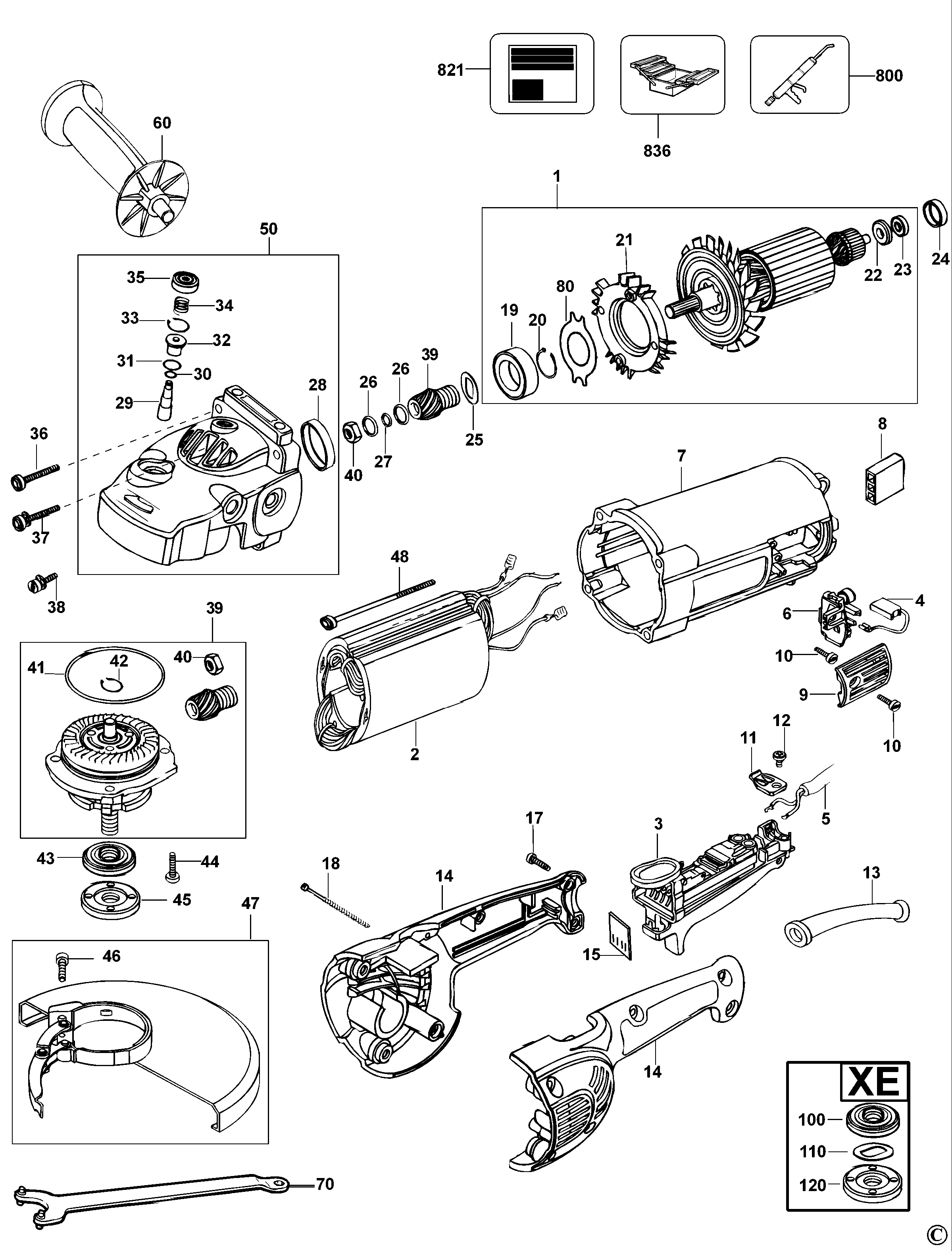

D28410 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 583530-01 | 1 | ARMATURE 115V | LX |  |
||
| 2 | 1005544-07 | 1 | FIELD 115V | LX | |
||
| 3 | 393440-03 | 1 | SWITCH SA | LX | |
||
| 4 | 585041-01 | 1 | BRUSH PAIR 115V | INCL. BOTH BRUSHES | LX | |
|
| 5 | 562226-16 | 1 | CABLE 115V | LX | |
||
| 6 | 617001-00 | 2 | BRUSH HOLDER SA | LX |  |
||
| 7 | 393239-01 | 1 | FIELD CASE | LX | |
||
| 8 | 604389-00 | 1 | CONNECTOR | LX | |
||
| 9 | 394387-01 | 2 | BRUSH COVER | LX | |
||
| 10 | 330019-11 | 4 | SCREW | M4.55x13 T20 | LX | |
|
| 11 | 398217-00 | 1 | CORD CLAMP | LX | |
||
| 12 | 330019-03 | 1 | SCREW | LX | |
||
| 13 | 947964-01 | 1 | CORD PROTECTOR | LX | |
||
| 14 | 395185-00 | 1 | HANDLE SA | LX | |
||
| 15 | 398720-00 | 1 | SEAL | LX | |
||
| 17 | 330019-32 | 3 | SCREW | LX | |
||
| 18 | 330019-50 | 2 | SCREW | M4.55x50 PLASTIC THD FMG | LX | |
|
| 19 | 330003-13 | 1 | BEARING | LX | |
||
| 20 | 398605-00 | 1 | RETAINER | LX | |
||
| 21 | 393222-00 | 1 | SPACER | LX | |
||
| 22 | 393238-00 | 1 | SHIELD | LX | |
||
| 23 | 330003-60 | 1 | BEARING | LX | |
||
| 24 | 609970-00 | 1 | SLEEVE INSULATING | LX | |
||
| 25 | 608568-00 | 1 | WASHER | LX | |
||
| 26 | 607502-00 | 1 | WASHER | LX | |
||
| 27 | 614045-00 | 1 | WASHER SPRING | LX | |
||
| 28 | 609971-00 | 1 | SLEEVE | LX | |
||
| 29 | 496443-00 | 1 | REPAIR KIT | LX | |
||
| 30 | 603608-00 | 1 | O RING | LX | |
||
| 31 | 050049-00 | 1 | RING | LX | |
||
| 32 | 496443-00 | 1 | REPAIR KIT | LX | |
||
| 33 | 603470-00 | 1 | RETAINER | LX | |
||
| 34 | 395029-00 | 1 | SPRING | LX | |
||
| 35 | 610999-00 | 1 | CAP | LX | |
||
| 36 | 330019-26 | 4 | SCREW | LX | |
||
| 37 | 330045-59 | 1 | SCREW | LX | |
||
| 38 | 330045-58 | 1 | SCREW | LX | |
||
| 39 | 583532-01 | 1 | GEARCASE COVER SA | M14 THD. | LX | |
|
| 40 | 609125-00 | 1 | LOCK NUT | LX | |
||
| 41 | 397031-00 | 1 | O RING | LX | |
||
| 42 | 034109-00 | 1 | RETAINER | LX | |
||
| 43 | 403150-01 | 1 | INNER FLANGE | LX | |
||
| 44 | 330045-15 | 4 | SCREW | LX | |
||
| 45 | 401678-05 | 1 | OUTER FLANGE | LX | |
||
| 46 | 606863-00 | 1 | SCREW | LX | |
||
| 47 | 393141-02 | 1 | GUARD SA | 180MM | LX | |
|
| 48 | 330019-19 | 2 | SCREW | LX | |
||
| 50 | N075439 | 1 | GEARCASE | PKG'D N040648 | LX | |
|
| 60 | 613777-00 | 1 | SIDE HANDLE | LX | |
||
| 70 | 938733 | 1 | WRENCH PIN | LX | |
||
| 80 | 613366-00 | 1 | INSERT | LX | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | LX | |
|
| 821 | 608707-53 | 1 | RATING PLATE | LX | |
||
| 836 | 559638-99 | 1 | S.T.TERMINAL EXTRACTOR | LX | |
