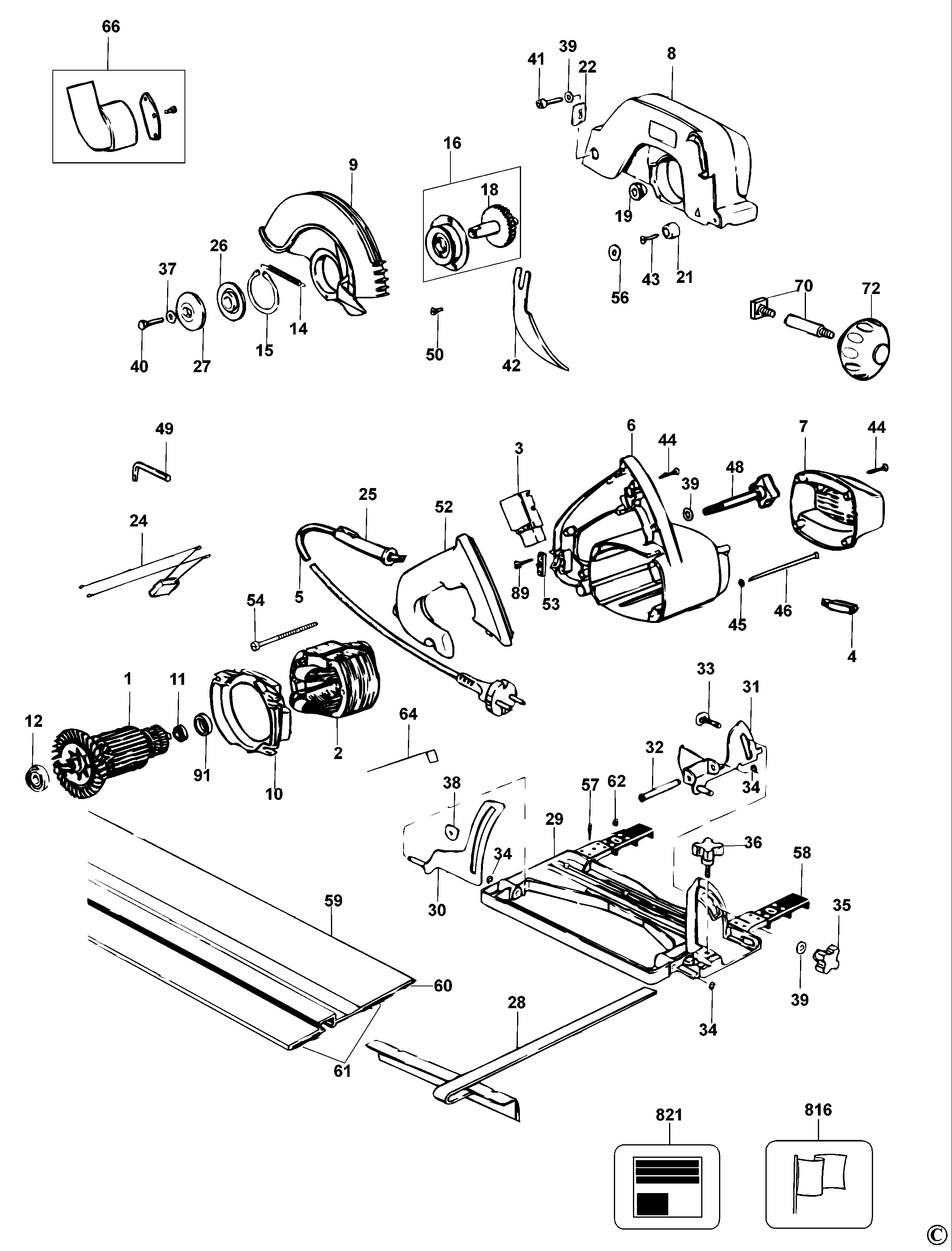

DW351 CIRCULAR SAW Type 7 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 590713-00 | 1 | ARMATURE & FAN | 115 V | LX |  |
|
| 1 | 590706-00 | 1 | ARMATURE & FAN | 230 V | LX | |
|
| 2 | 590712-00 | 1 | FIELD 115V | 115 V | LX | |
|
| 2 | 590705-00 | 1 | FIELD 230V | 230 V | LX | |
|
| 3 | 590976-00 | 1 | SWITCH | LX | |
||
| 4 | 590717-00 | 2 | BRUSH HOLDER 115V | LX | |
||
| 4 | 247533-11 | 2 | BRUSH & HOLDER 230V | LX |  |
||
| 5 | 378990 | 1 | CORDSET | LX | |
||
| 6 | 591211-21 | 1 | FIELD CASE KIT | LX | |
||
| 7 | 247054-20 | 1 | COVER REAR | LX | |
||
| 8 | 941052-00 | 1 | GEARCASE | LX | |
||
| 9 | 940970-01 | 1 | GUARD | LX | |
||
| 10 | 590700-00 | 1 | BAFFLE FAN | LX | |
||
| 11 | N110358 | 1 | BEARING | LX | |
||
| 12 | 143830000 | 2 | BEARING | LX | |
||
| 14 | 248813-00 | 1 | SPRING | LX | |
||
| 15 | 860079-05 | 1 | CIRCLIP | LX | |
||
| 16 | 590729-00 | 1 | COVER SA | LX | |
||
| 18 | 590704-00 | 1 | GEAR SA | LX | |
||
| 19 | 151980150 | 1 | BEARING SINTER | LX | |
||
| 21 | 761306-00 | 1 | BUMPER | LX | |
||
| 22 | 940969-51 | 1 | PLATE | LX | |
||
| 24 | 590710-00 | 1 | CAPACITOR 220/240 | 230 V | LX | |
|
| 24 | 590715-00 | 1 | CAPACITOR 115V | LX | |
||
| 25 | 916969 | 1 | PROTECTOR | LX | |
||
| 26 | 590697-00 | 1 | CLAMP | LX | |
||
| 27 | 590698-00 | 1 | CLAMP OUTER | LX | |
||
| 28 | 249226-00 | 1 | FENCE | LX | |
||
| 29 | 151115101 | 1 | BASE | LX | |
||
| 30 | 248864-00 | 1 | SWIVEL SUPPORT | LX | |
||
| 31 | 378929-00 | 1 | BRACKET SA | LX | |
||
| 32 | 249107-00 | 1 | SPINDLE | LX | |
||
| 33 | 249406-00 | 1 | SCREW | LX | |
||
| 34 | 860322-03 | 3 | CIRCLIP | LX | |
||
| 35 | 744324 | 1 | KNOB SA | LX | |
||
| 36 | 744325 | 1 | SCREW.SPECIAL | LX | |
||
| 37 | 725342 | 1 | WASHER | 6.4mm | LX | |
|
| 38 | 151112400 | 1 | NUT | LX | |
||
| 39 | 249221-00 | 3 | WASHER | LX | |
||
| 40 | 744323 | 1 | SCREW | LX | |
||
| 41 | 249408-10 | 1 | SCREW | LX | |
||
| 42 | 248863-00 | 1 | RIVING KNIFE | LX | |
||
| 43 | 249403-00 | 1 | SCREW | LX | |
||
| 44 | 249437-01 | 6 | SCREW | LX | |
||
| 45 | 093820600 | 4 | WASHER LOCK | LX | |
||
| 46 | 101811100 | 4 | SCREW | LX | |
||
| 48 | 248866-00 | 1 | SCREW WING | LX | |
||
| 49 | 725927 | 1 | HEX KEY 5 MM | LX | |
||
| 52 | 324617-11 | 1 | COVER | Yellow | LX | |
|
| 53 | 378975 | 1 | CABLE CLAMP | LX | |
||
| 54 | 868528-00 | 2 | SCREW | LX | |
||
| 56 | 142930194 | 1 | WASHER | LX | |
||
| 57 | 249437-00 | 8 | SCREW | LX | |
||
| 58 | 249116-00 | 2 | LUG | LX | |
||
| 59 | 151237700 | 1 | GUIDE | LX | |
||
| 60 | 088207058 | 2 | RUBBER STRIP 30X1500 | LX | |
||
| 61 | 088207057 | 1 | RUBBER STRIP 20X1500 | LX | |
||
| 62 | 249119-00 | 1 | ECCENTRIC | LX | |
||
| 64 | 590716-00 | 2 | LEAD 100MM RED | 115 V | LX | |
|
| 64 | 590711-00 | 2 | LEAD 100MM RED | 230 V | LX | |
|
| 66 | 248021-00 | 1 | EXTRACTOR | LX | |
||
| 70 | 378295 | 1 | SPINDLE SA | LX | |
||
| 72 | 379019 | 1 | KNOB | LX | |
||
| 89 | 249416-06 | 2 | SCREW | LX | |
||
| 91 | 590708-00 | 1 | SLEEVE | LX | |
||
| 816 | 329307-00 | 1 | BRAND LABEL | LX | |
||
| 821 | 569037-00 | 1 | RATING PLATE | LX | |
