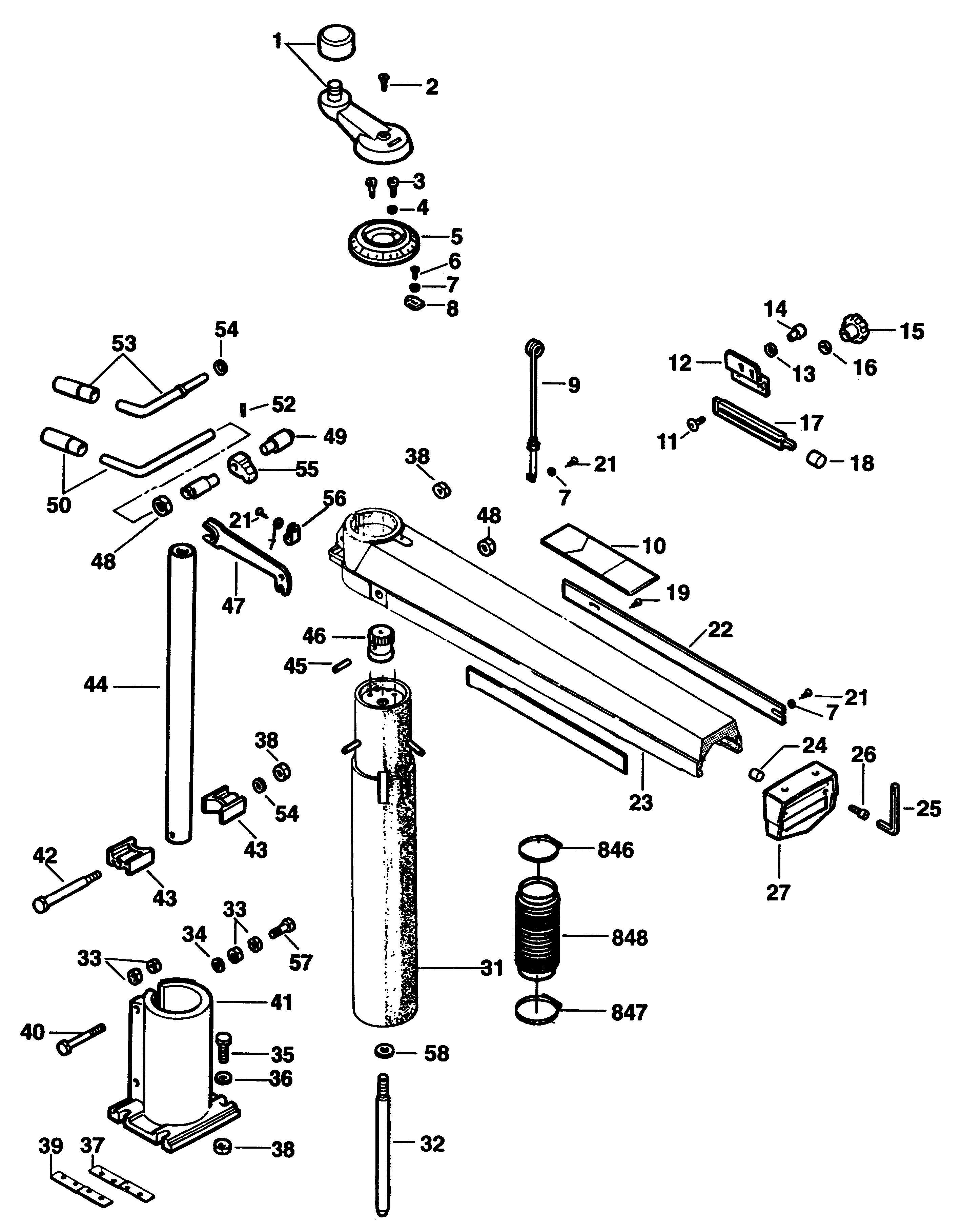

DW1751----A RADIAL ARM SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 860792-00 | 1 | KNOB SA | XJ |  |
||
| 2 | 934401-00 | 1 | SCREW | XJ | |
||
| 3 | 860093-06 | 1 | SCREW | XJ | |
||
| 4 | 720959-00 | 1 | WASHER | XJ | |
||
| 5 | 860784-00 | 1 | CAP | XJ | |
||
| 6 | 860238-00 | 1 | SCREW | XJ | |
||
| 7 | 860073-00 | 1 | WASHER | XJ | |
||
| 8 | 860237-00 | 1 | POINTER | XJ | |
||
| 9 | 863912-00 | 1 | SUPPORT | XJ | |
||
| 10 | 33077 | 1 | NAMEPLATE | XJ |  |
||
| 11 | 860301-00 | 1 | SCREW | XJ | |
||
| 12 | 860787-90 | 1 | SUPPORT | XJ | |
||
| 13 | 860074-03 | 1 | WASHER | XJ | |
||
| 14 | 860093-14 | 1 | SCREW | XJ | |
||
| 15 | 946469-00 | 1 | KNOB | XJ | |
||
| 16 | 720959-00 | 1 | WASHER | XJ | |
||
| 17 | 860852-90 | 1 | ARM | XJ | |
||
| 18 | 860786-00 | 1 | STOP RUBBER | XJ | |
||
| 19 | 860238-00 | 1 | SCREW | XJ | |
||
| 20 | 860074-01 | 1 | WASHER | XJ | |
||
| 21 | 860238-04 | 1 | SCREW | XJ | |
||
| 22 | 863227-00 | 1 | BAR | XJ | |
||
| 23 | 860908-02 | 1 | ARM | XJ | |
||
| 24 | 860429-00 | 1 | BUMPER | XJ | |
||
| 25 | 930574-00 | 1 | HEX KEY 5 MM | XJ | |
||
| 26 | 860093-03 | 1 | SCREW | XJ | |
||
| 27 | 862067-90 | 1 | CAP | XJ | |
||
| 31 | 860910-02 | 1 | COLUMN SA | XJ | |
||
| 33 | 860083-04 | 1 | NUT | XJ | |
||
| 34 | 860073-03 | 1 | WASHER M8 | XJ | |
||
| 35 | 860085-05 | 1 | SCREW | XJ | |
||
| 36 | 860073-04 | 1 | WASHER | XJ | |
||
| 37 | 31450 | 1 | SPACER RH | XJ | |
||
| 38 | 860083-05 | 1 | NUT RH | XJ | |
||
| 39 | 860065-00 | 1 | SPACER | XJ | |
||
| 40 | 860085-02 | 1 | SCREW | XJ | |
||
| 41 | 860909-02 | 1 | BASE | XJ | |
||
| 42 | 860086-00 | 1 | SCREW | XJ | |
||
| 43 | 860065-00 | 1 | SPACER | XJ | |
||
| 44 | 199053 | 1 | TUBE ELEVATING SA | XJ | |
||
| 45 | 860096-06 | 1 | PIN | XJ | |
||
| 46 | 860831-90 | 1 | PINION | XJ | |
||
| 47 | 860423-00 | 1 | WRENCH | XJ | |
||
| 48 | 860232-00 | 1 | NUT | XJ | |
||
| 49 | 860231-00 | 1 | SCREW | XJ | |
||
| 50 | 860801-00 | 1 | LEVER | XJ | |
||
| 52 | 11467 | 1 | PIN | XJ | |
||
| 53 | 860797-90 | 1 | LEVER | XJ | |
||
| 54 | 860074-04 | 1 | WASHER | XJ | |
||
| 55 | 860228-01 | 1 | LATCH | XJ | |
||
| 56 | 860843-01 | 1 | CLAMP | XJ | |
||
| 57 | 949853-11 | 1 | SCREW | XJ | |||
| 58 | 949876-17 | 1 | WASHER | XJ | |
||
| 846 | 949700-06 | 1 | CLIP | XJ | |
||
| 847 | 949700-07 | 1 | STRAP | XJ | |
||
| 848 | 863324-00 | 1 | PROTECTOR | XJ | |
